25 cm (10") High-end woofer with high level accuracy and excellent low-range bass imaging.

SHIPMENT IN 5-7 WORKING DAYS
€299.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€27.48
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton TIW 250 XS Subwoofer 10" 8 ohm

25 cm (10") High-end woofer with high level accuracy and excellent low-range bass imaging.

.

Highlights

  • Rigid Sandwich diaphragm
  • Wide surround
  • Long voice coil

.

Product Details

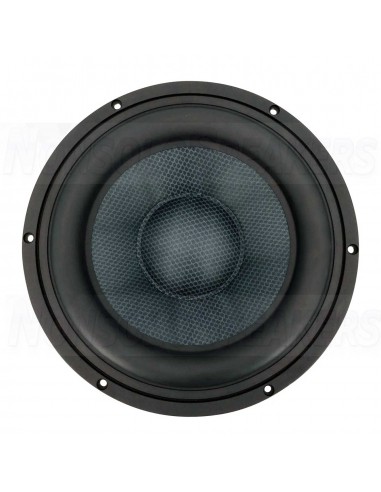

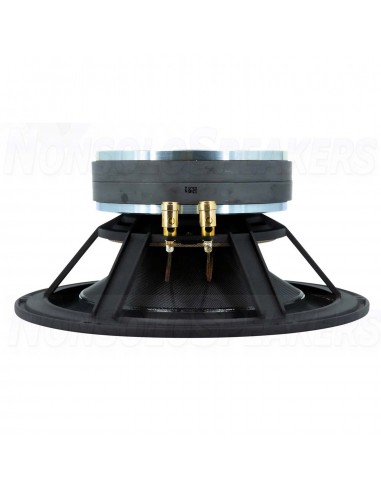

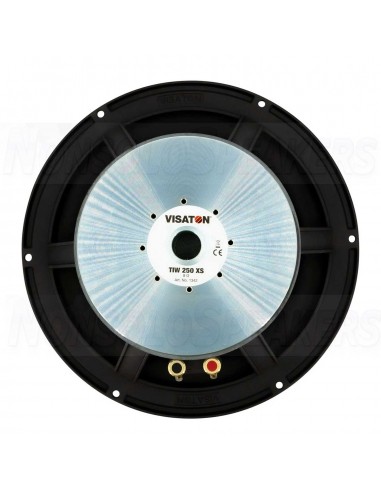

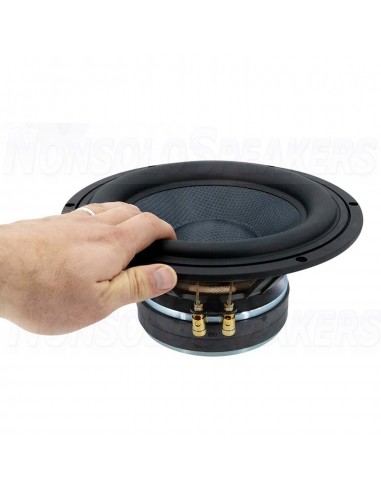

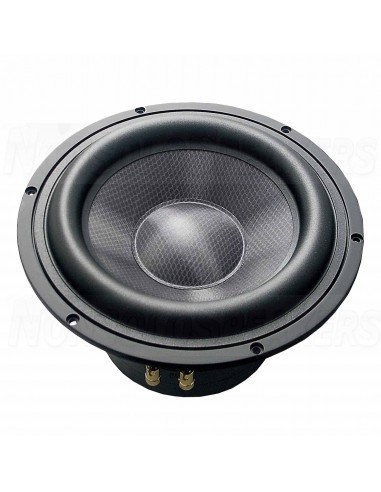

Visaton TIW 250 XS 10" High-End Woofer
The extra-wide elastic surround, the long voice coil and particularly large magnet arrangement give this speaker extremely long excursion. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminum diecast cone to vent the centering unit from behind) losses and flow noise are minimized.
The capton voice coil carrier and the long voice coil enable the driver to withstand considerable loads. The diaphragm is a sandwich construction made up of layers of fiberglass and polyester fabric which makes it particularly rigid and low in resonance. These design features result in high level accuracy and excellent low-range bass imaging.
.

Technical Specifications

  • Article number TIW 250 XS
  • Woofer Series High-End
  • Woofer Type Midwoofer
  • Nominal Diameter 10"
  • Power Handling (RMS) 200 Watts
  • Power Handling (max) 300 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 89 dB
  • Frequency Response 33 - 3000 Hz
  • Voice Coil Diameter 50 mm
  • DC Resistance (Re) 5.6 ohms
  • Voice Coil Inductance (Le) 1.7 mH
  • Resonant Frequency (Fs) 33 Hz
  • Mechanical Q (Qms) 5.21
  • Electromagnetic Q (Qes) 0.35
  • Total Q (Qts) 0.33
  • Diaphragm Mass Inc. Airload (Mms) 49g
  • Surface Area of Cone (Sd) 314 cm2
  • BL Product (BL) 13 Tm
  • Compliance Equivalent Volume (Vas) 66 liters
  • Maximum Linear Excursion (Xmax) 8.5 mm
  • Cone / Diaphragm Material Fiberglass Polyester Sandwich
  • Voice Coil Former Kapton
  • Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 276 mm
  • Overall Depth 121.2 mm
  • Baffle Cutout Diameter 235 mm
  • Bolt Circle Diameter 264 mm
  • # Mounting Holes 6
