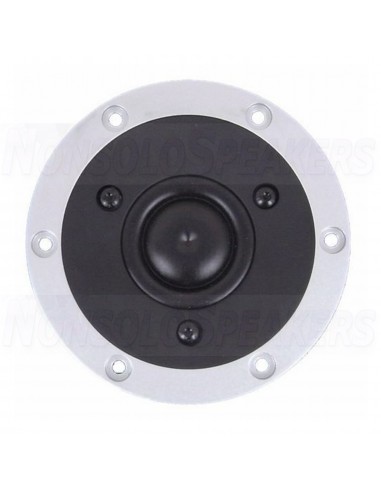

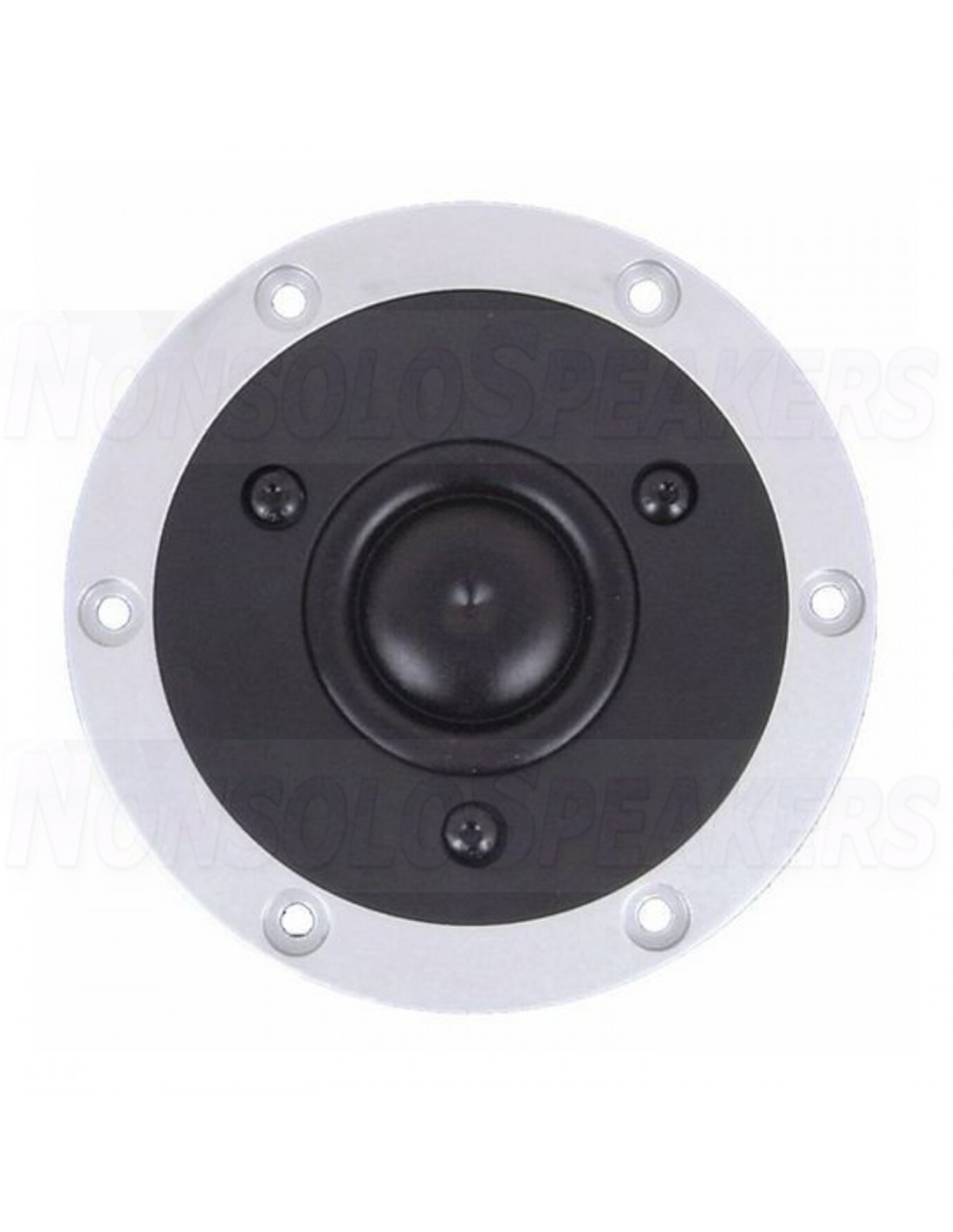

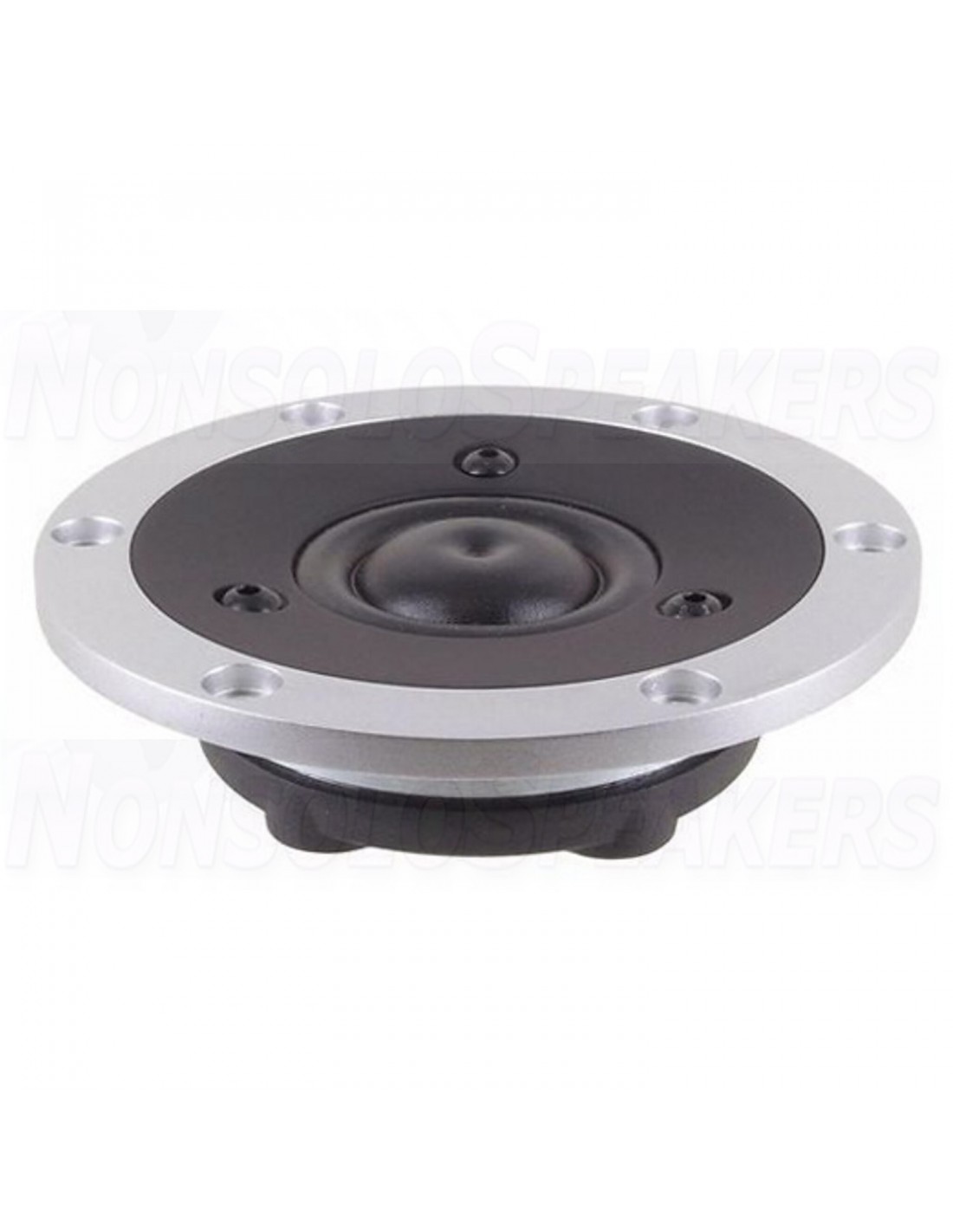

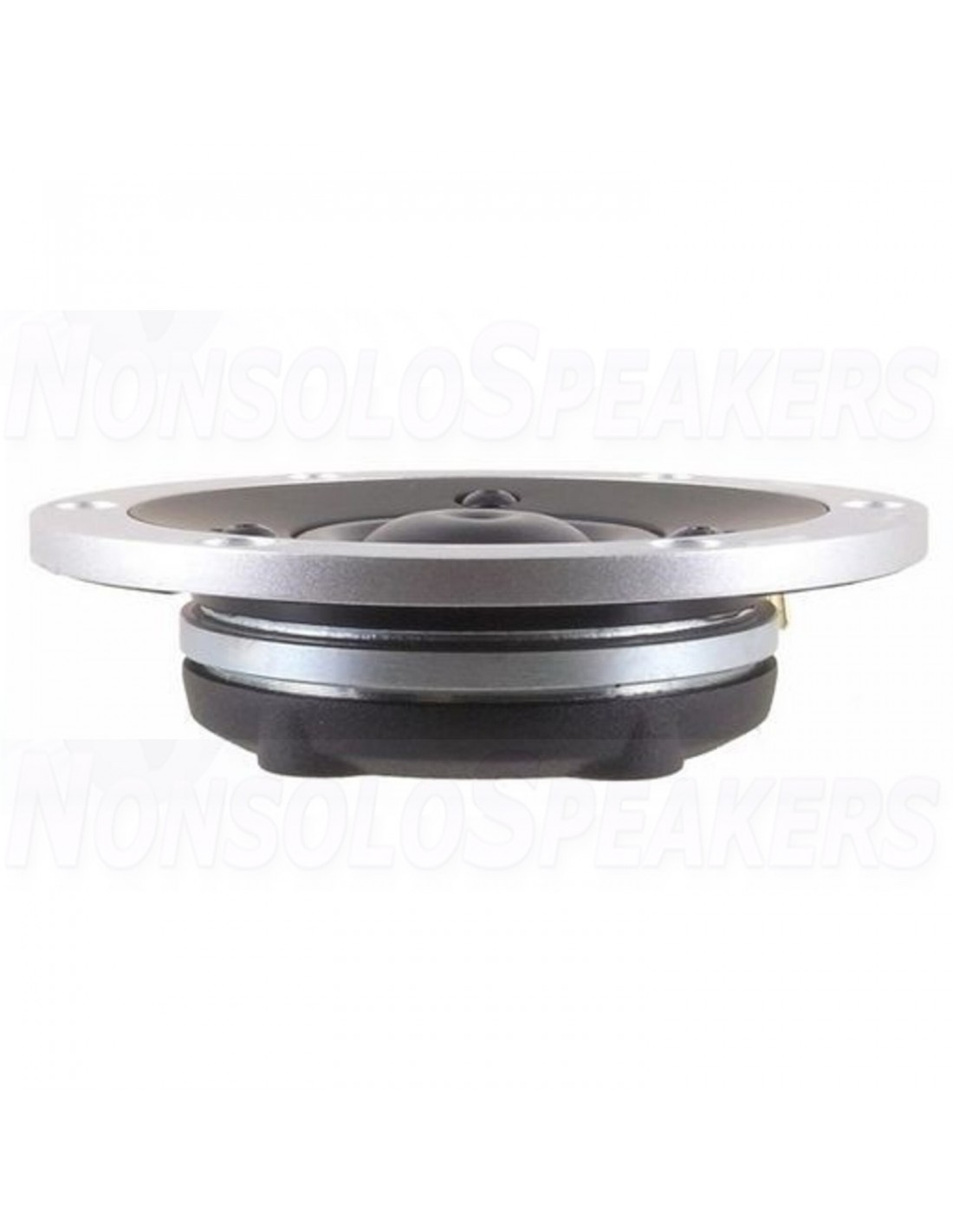

SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm
SB ACOUSTICS Satori TW29R - Tweeter 29mm

SB ACOUSTICS Satori TW29R - Tweeter 29mm

SB ACOUSTICS Satori TW29R - Tweeter 29mm SB Acoustics - 4 ohm

SHIPMENT IN 7-10 WORKING DAYS
€141.55 €149.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS Satori TW29R - Tweeter 29mm

-

Product description

Non-resonant diaphragm design for minimum high frequency break-up

Two part aluminum faceplate with integrated mechanical decoupling

Dual balanced compression chambers for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

Saturation controlled motor system with T-shaped pole piece for lower distortion

Non-reflective cast alumimum chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency for extended range

.

Product details

SB Acoustics Satori TW29BN Ring Dome Tweeter

The TW29R is a premium ring dome tweeter offered by SB Acoustics.  This tweeter has many advanced technology features that culminate in very detailed and low distortion output.  This tweeter is a perfect choice in any high end system.

Specifications: BL Product (BL): 2.0 Tm • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

.

Specifications

Article numberTW29R-B
Tweeter TypeDome
Tweeter SeriesSatori Series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)80 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)95 dB
Frequency Response1.8 - 30kHz
Resonant Frequency (Fs)600 Hz
DC Resistance (Re)3 ohms
Voice Coil Inductance (Le)0.02 mH
Mechanical Q (Qms)2.0
Electromagnetic Q (Qes)1.22
Total Q (Qts)0.76

TW29R
