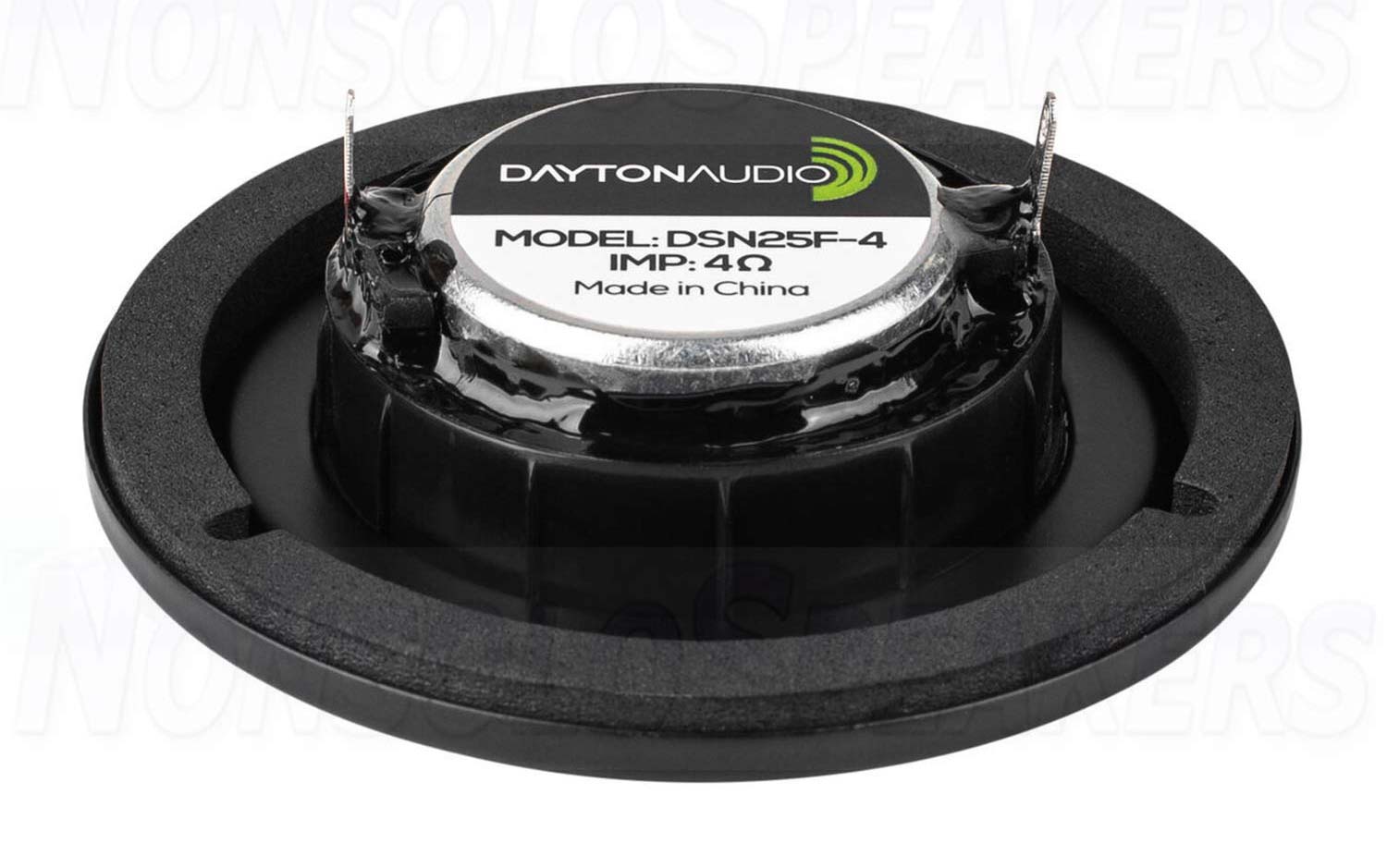

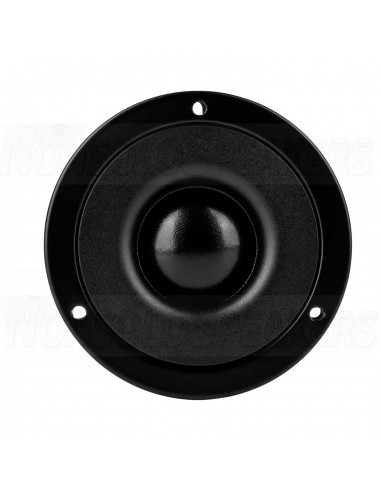

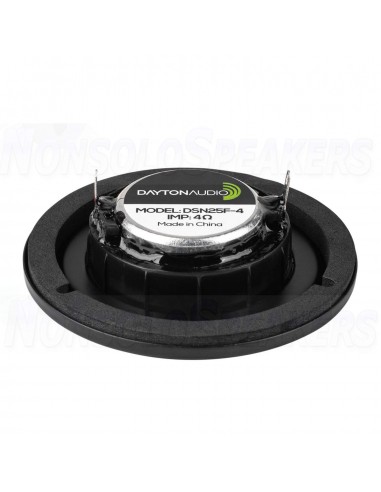

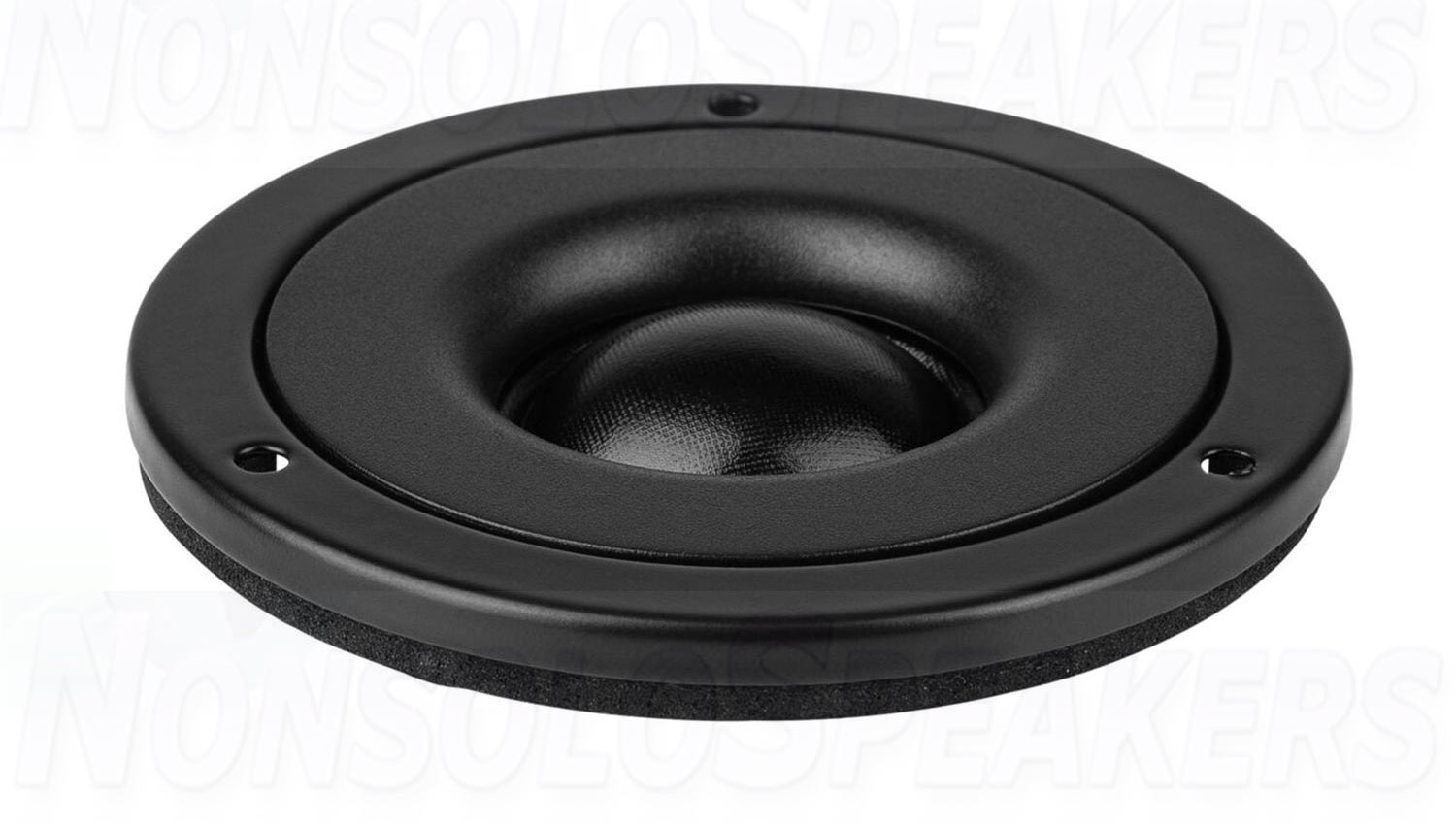

Dayton Audio DSN25F-4 1" Soft Dome Neodymium Tweeter with Steel Frame 4 Ohm

Dayton Audio DSN25F-4 1" Soft Dome Neodymium Tweeter with Steel Frame 4 Ohm

Dayton Audio's Designer Series DSN25F-4 1" silk dome tweeter has everything you have come to expect from the Designer Series drivers such as smooth frequency response, low distortion, good efficiency, and even a matching frame. Driver integration and crossover designs are simple with smooth response from 2,500 to 20,000 Hz and predictable roll off on the low end. The powerful Ferrofluid cooled neodymium motor provides high efficiency allowing excellent dynamics while keeping size and weight to a minimum. Finally, the DSN25F-4 includes a copper cap on the pole piece to lower distortion ensuring accurate high frequency response.

Product Details Brand

Dayton Audio Model DSN25F-4

UPC 848791004704

Unit of Measure Each

Weight 0.25 Kg

Product Specifications

Cone / Dome Diameter 1"

Cutout Diameter 1.70 T

weeter Type Soft Dome

Power Handling (RMS) 30 Watts

Impedance 4Ω

Frequency Response 2,500 to 20,000Hz

Sensitivity 95dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs) 1495Hz DC

Resistance (Re) 3.2Ω

Voice Coil Inductance (Le) 0.03mH

Mechanical Q (Qms) 3.11

Electromagnetic Q (Qes) 2.62

Total Q (Qts) 1.42

Mounting Information

Overall Outside Diameter 2.84"

Depth 0.55"
