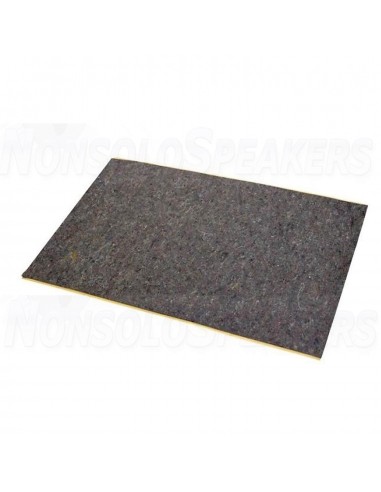

CTK CaiMat 8 V2 sound-absorbing thermal insulation material

CTK CaiMat 8 V2 sound-absorbing heat-insulating material: sound-absorbing and heat-insulating material based on non-woven pressed fabric.

.

Self-adhesive, very light and flexible material (acoustic felt) based on compressed natural fibers of high density (650 g / m2). It has high sound absorption and good thermal insulation properties. Due to its high flexibility and single-sided adhesive layer, CaiMat is very convenient for installation on flat surfaces or complex shapes. It is intended for use in dry places inside the car, e.g. for upholstery and roof lining elements. It is an effective noise-absorbing material in a wide frequency range (floor, engine compartment partition from the interior side, dashboard, luggage compartment, wheel arches, roof, door panels). The material has good breathability and high abrasion resistance. It is non-toxic, odorless, environmentally friendly and does not cause allergic reactions.

.

Recommended area of ​​use: roof, sides, inner part of the engine compartment, etc.

.

CTK CaiMat 8 V2 parameters

Sheet size: 50x40 cm (0.2 m)

Thickness: 8 mm

Number of pieces in the package: 20 (4.0 m2)

Weight of one sheet: 0.16 kg

Weight of 1m2: 0.8 kg

-

Price for 1 piece

BASIC PARAMETERS:

• self-adhesive, very flexible and soft silencing mat (acoustic felt) with high noise absorption in a wide frequency range and good temperature-isolating properties
• thickness: 8.0 mm
• base material: pressed natural non-woven fabric
• density: 650 g / m2
• sheet dimensions: 500x400 mm
• sheet area: 0.20 m2
• sheet weight: 0.16 kg (0.80 kg / m2)
• number of sheets in a collective packaging: 20 pcs / 4.00 m2
• recommended installation temperature: + 10ºC to + 30ºC
• application and operating temperature range: -40ºC to + 90ºC
• non-toxic, odorless product, does not cause allergic reactions, can be used in the automotive industry and indoors
• manufactured by CTK Ltd. in accordance with the quality management standards ISO 9001: 2008, SIC.02.040.1344
• application in the car:   in dry places inside the cabin behind the carpets and upholstery elements - e.g. floor, central tunnel, engine compartment bulkhead wall, dashboard, roof, door panels, internal wheel arches and sides and trunk lid - as a second or third layer on the elements bodywork and upholstery
• price for 1 sheet 50x40cm (0.20 m2)

-

HOW TO EFFECTIVELY SILENCE THE CAR?

The highest level of soundproofing the interior of the vehicle cabin can only be achieved by comprehensive soundproofing (soundproofing and acoustic isolation and soundproofing) of all key body and interior elements, assembling these elements in layers (if possible and available space) three different types of the most effective top-class materials, where each of them has different acoustic properties, operates in a different frequency range and plays a different role. They are:

• highly effective anti-vibration materials that dampen vibrations and resonances of body elements and additionally isolate the interior from external noise - high-quality butyl, aluminum and polymer mats with the highest possible MLF (e.g. damping mats CTK Dominator, CTK Premium, CTK Standard),
• foam insulation - sound barriers with a closed cell structure, blocking the ingress of road noise into the interior of the cabin and additionally thermally insulating the interior against excessive heating and rapid cooling (e.g. CTK Elastic rubber foams, CTK TempoFix polyethylene foams),
• soft, porous sound absorbing materials with the structure of open and partially closed cells, which in addition to sound-absorbing properties, also act as shock absorbers and suppression of resonance of plastic upholstery elements, and reduce creaking and creaking of these elements (e.g. CTK SilenceFix polyurethane sound absorbing foams, CTK WaveFix, silencing mats based on CTK CaiMat nonwoven, effective foams with increased density CTK SilenceMat).
