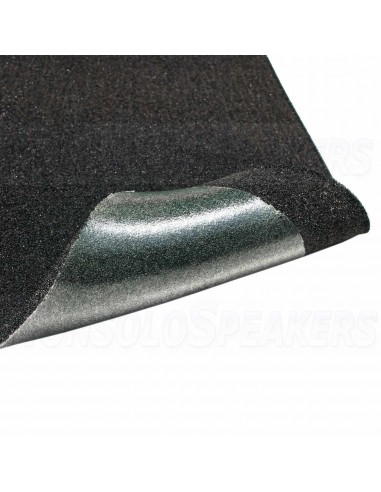

CTK SilenceFix 5 V2 is a water-resistant self-adhesive foam material designed to absorb medium and high frequency noise and prevent interior upholstery from vibrating and creaking.

-

500x400mm foam adesive

Self-adhesive, very light and flexible foam material of professional class characterized by high efficiency of sound absorption due to treatment with a special polymer composite. Additional sound-absorbing treatment improves acoustic properties, protects the substrate from moisture and aging, and gives it the special ability to slowly return to its original shape after compression (the so-called shape memory effect). SilenceFix mats are soft and easy to install on both flat and complex surfaces.

.

They are intended for use inside vehicles, primarily for covering the inside of the ceiling lining as a very effective medium and high frequency noise absorbing material (aerodynamic noise).

.

Thanks to its flexibility and ability to adapt to the shape, CTK SilenceFix is ​​also ideal for suppressing creaks, squeaks and resonances of

plastic components of the car's interior and upholstery (for example, door panels, pillars, center console, etc.).

.

The main advantages of the CTK SilenceFix 5 V2 material

Extremely light polymer composite with an adhesive layer

Excellent sound absorbing properties

Ideal for removing creaks and resonances from plastic components and upholstery

Easy installation with self-adhesive layer

Elastic, wear-resistant design

Shape memory

.

HOW TO MUTE THE CAR EFFECTIVELY?

The maximum level of soundproofing of the interior of the vehicle passenger compartment can only be achieved by a complete soundproofing (damping and soundproofing and soundproofing) of all key elements of the bodywork and interior, by installing on these elements in layers (if possible and available space) three different types of most effective materials of the highest class, in which each of them has different acoustic properties, operates in a different frequency range and plays a different role. I'm:

layer 1 - highly effective anti-vibration materials that dampen vibrations and resonances of the body elements and further isolate the interior from external noise, which are high-quality mats based on butyl, aluminum and polymers with the highest possible MLF value ( eg ➡️ CTK DOMINATOR,  ➡️ CTK PREMIUM cushioning mats, ➡️ CTK STANDARD Professional),

layer 2 - foam insulation - acoustic barriers with closed cell structure, which block the entry of road noise into the cabin and further thermally insulate the interior against excessive heating and rapid cooling (e.g. ➡️ CTK ELASTIC , ➡️ CTK ELASTIC F rubber foams, ➡️ CTK TEMPO FIX polyethylene foams),

layer 2/3 - soft and porous sound-absorbing materials with open and / or partially closed cell structure, which, in addition to the sound-absorbing properties, also play the role of shock-absorbing and damping spacers of the resonance of the plastic padding elements and reduce crackling and the creaking of these elements (eg ➡️ CTK SILENCE FIX, ➡️ CTK WAVE FIX sound-absorbing polyurethane foams, ➡️ CTK CAIMAT fleece-based sound-absorbing mats). To obtain the best road noise reduction effect, it is also recommended to install the ➡️ CTK BLOCK PRO acoustic membrane as the last third layer on the lower horizontal parts of the bodywork.

.

BASIC PARAMETERS:

• self-adhesive, very flexible and soft Professional-grade foam mat with high sound absorption in the medium and high frequencies with the property of slowly returning to their original shape after compression (so-called shape memory effect)
• thickness: 10.0 mm
• base material: foamed polyurethane impregnated with sound absorbing impregnate, open cells of various sizes
• the most effective noise reduction in the frequency band above 1000 Hz
• sound absorption level: up to 65%
• sheet dimensions: 500x400 mm
• recommended installation temperature: + 10ºC to + 30ºC
• application and operating temperature range: -40ºC to + 100ºC
• non-toxic, odorless, resistant to moisture and UV radiation, does not decompose under the influence of weather conditions even for 20 years
• foam mat can be used in the automotive industry and indoors
• manufactured by CTK Ltd. in accordance with the quality management standards ISO 9001: 2008, SIC.02.040.1344
• application in the car:   door panels, plastic panels and upholstery components inside the cab, central tunnel, dashboard, roof, inner wheel arches, trunk side panels, A / B / C pillars linings
• Price for 1 sheet 50x40cm
