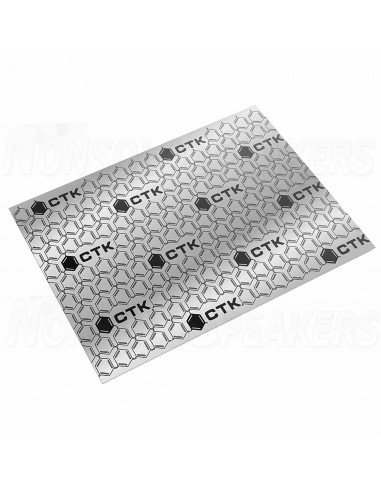

CTK FoilFix 200 aluminum self-adhesive foil

CTK FoilFix 200 aluminum self-adhesive foil: aluminum self-adhesive foil with a thickness of 0.2 mm and a size of 50x70 cm.

.

Prevents water ingress

Easy application (self-adhesive) resistant to water and oils

Excellent anti-corrosion and sealing properties

Application to doors, luggage compartment, etc.

Serves to cover openings and level surfaces before gluing anti-vibration materials

-

Board size: 50x70 cm (0.35 m2)

Board thickness: 0.2 mm

Weight per 1m2: 0.69 kg

Number of pieces in a carton: 10

Price for 1 piece


BASIC PARAMETERS:

• self-adhesive aluminum foil for closing technological openings of car body elements (e.g. door chambers, trunk lid, etc.)
• thickness: 0.2 mm (200 µm)
• material: aluminum sheet with strong Henkel acrylic adhesive
• sheet dimensions: 500x700 mm
• sheet area: 0.35 m2
• sheet weight: 0.24 kg (0.69 kg / m2)
• number of sheets in a collective packaging: 10 items / 3.50 m2
• recommended installation temperature: + 10ºC to + 30ºC
• visual features: aluminum foil in silver with black graphics printed
• manufactured by CTK Ltd. in accordance with the quality management standards ISO 9001: 2008, SIC.02.040.1344
• application in the car:   doors, trunk lid and other body elements - as a construction base on which soundproofing mats are glued or as a second, light layer additionally stiffening large body surfaces (e.g. roof)
• price for 1 sheet of 50x70 cm (0.35 m2)

Installation
To efficiently use CTK FoilFix 200 material, before gluing, it is recommended to cut it to the target shape with a few centimeter allowance enabling solid adhesive film to the substrate around the edge of the glued technological hole. It can be helpful in applying a sheet of foil to the hole with the paper securing the adhesive and pre-pressing the edge of the hole on the foil (e.g. by rolling the sheet over the hole's edges with a roller for mounting aluminum butyl mats). This will allow you to map the shape to the cut without losing material to the waste (remember allowance). Then, the technological hole should be covered with a foil of a previously cut shape and strongly pressed against the ground around the edge of the hole. In the area of ​​the hole itself, CTK FoilFix 200 can be rolled with moderate pressure, e.g. to lightly shape the cavity if it was necessary for some reason. The next stage is the standard sticking of alu-butyl damping mats to the entire surface prepared in this way, including technological holes sealed with CTK FoilFix 200 aluminum foil.

WARNING! - single use product. If you try to tear off the already glued CKT FoilFix 200 (e.g. to correct the mounting location), permanent damage (delamination) of the adhesive layer may occur, therefore, reuse of the same element may no longer be fully effective or possible.

• 70 x 50cm  sheet

How to apply

• Ensure surface you wish to apply CTK to is cleaned thoroughly
• Cut the sheet/roll as required
• Preheat the sheet if needed
• We recommend using a roller to ensure the CTK sticks well to the surface, please search CTK Roller in our store
