Vibrofiltr 2.0 mm anti vibration material

1 Pz 50X70 cm

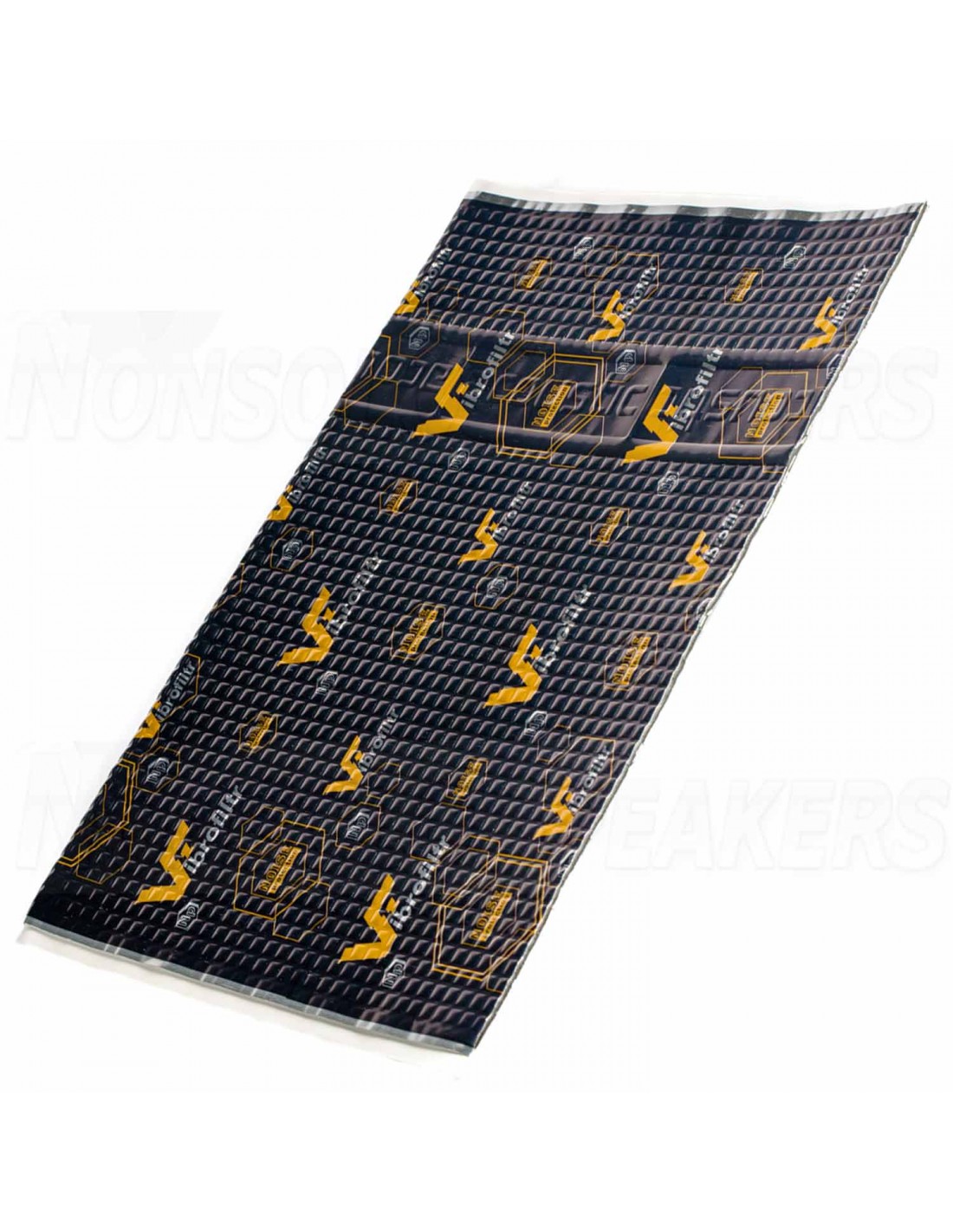

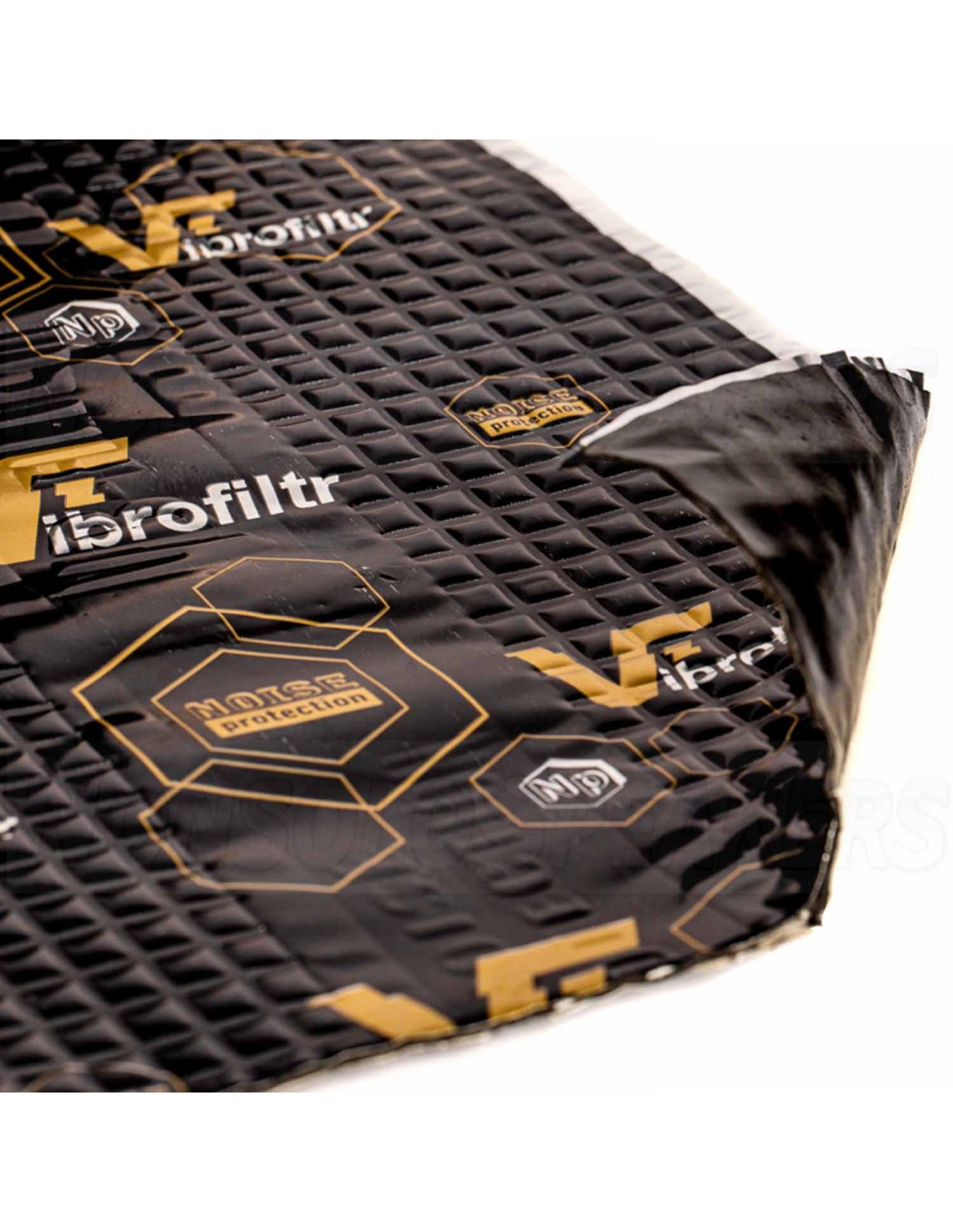

Vibrofilter 2.0 mm is an innovative self-adhesive anti-vibration damping material with a thickness of 2.0 mm.

Innovative anti-vibration damping material from the popular manufacturer Vibrofilter. VBF reacts to the development of the latest trends, adjusts the design of the cover film, perforation and adjusts the composition of the butyl layer. Thanks to more pronounced perforation, the material better copies the complex shapes of interior parts. New, softened butyl rubber with an innovative self-adhesive layer in conjunction with ALU foil with a high grammage of 0.1 mm sets a new standard among damping materials. The 2 mm material thus achieves a great acoustic loss factor of 0.38!

.

The main features of the damping material Vibrofilter 2.0 mm

self-adhesive anti-vibration, damping and anti-corrosion material for use in automobiles, agricultural machinery, engineering

serves to prevent unwanted resonances, dampens vibrations and absorbs acoustic waves

composition: self-adhesive layer, polymer layer based on butyl rubber and aluminum foil

higher grammage of ALU foil (0.1 mm) with anti-tear design during installation

highly flexible and elastic wetted material

resistant to water and oils

excellent anti-corrosion and sealing properties

temperature resistance: -45°C to +90°C (within 24 hours)

easy installation on any surfaces without the need for heating

use for automobiles, agricultural machinery and other technical equipment requiring noise and vibration reduction

can be stored in a dry environment at temperatures up to 40°C in a horizontal position

Recommended use in the car: floors, doors, roof, dashboard, engine and luggage compartment, wheel arches, etc.

.

Technical characteristics Vibrofilter 2.0 mm

- plate size 50 x 70 cm (0.350 m2)

- material thickness 2.0 mm + 0.1 mm ALU foil (+/- 0.1 mm)

- weight 3.0 kg / 1m2 (never less!)

- acoustic loss factor MLF at 200Hz: 0.38

- strength connection on a metal surface at a temperature of -45 to +70°C 6N/cm

- non-flammable

- heating required during application - NO

- the whole package contains 20 pcs (7.0 m2)

How to apply the damping material Vibrofilter 2.0 mm?

1) Degrease the surface.

2) Cut the damping material into pieces approx. 15x15 cm in size

3) Apply from the bottom up with an overlap of about 0.5 cm (as if you were putting bags on the roof, the water from the material will then run down to the drainage channels and will not get under the material)

4) Carefully roll out with the  ➡️ CTK ROLLER

.

Our TIP:  For maximum efficiency in noise reduction, we recommend layering the material with a second layer of  ➡️ VBF NOISE NEOPRENE 3 (undercarriage) or ➡️ VBF NOISE NEOPRENE 6 (doors, floor, sides, etc.).
