CTK PREMIUM case damping material front door package

CTK PREMIUM damping material front door package

Name: CTK PREMIUM damping material front door package
Brand: Ctk
SKU: CTK PREMIUM front door package
Price: 40.45 EUR
Availability: InStock

SHIPMENT IN 7/10 WORKING DAYS

€40.45

Tax included

No review at the moment

CTK PREMIUM damping material front door package

Estimated Shipping Costs

Shipping Costs

€16.80

Shipping Time

Want to check another country or courier?

CTK PREMIUM damping material front door package

The Premium Tailgate Damping Material Package contains only the best damping materials available on the market today. Lightweight materials with more than 20% weight loss compared to standard ones, yet with incredible efficiency. The package contains the number corresponding to damping one pair, i.e. both left and right rear doors of passenger cars.

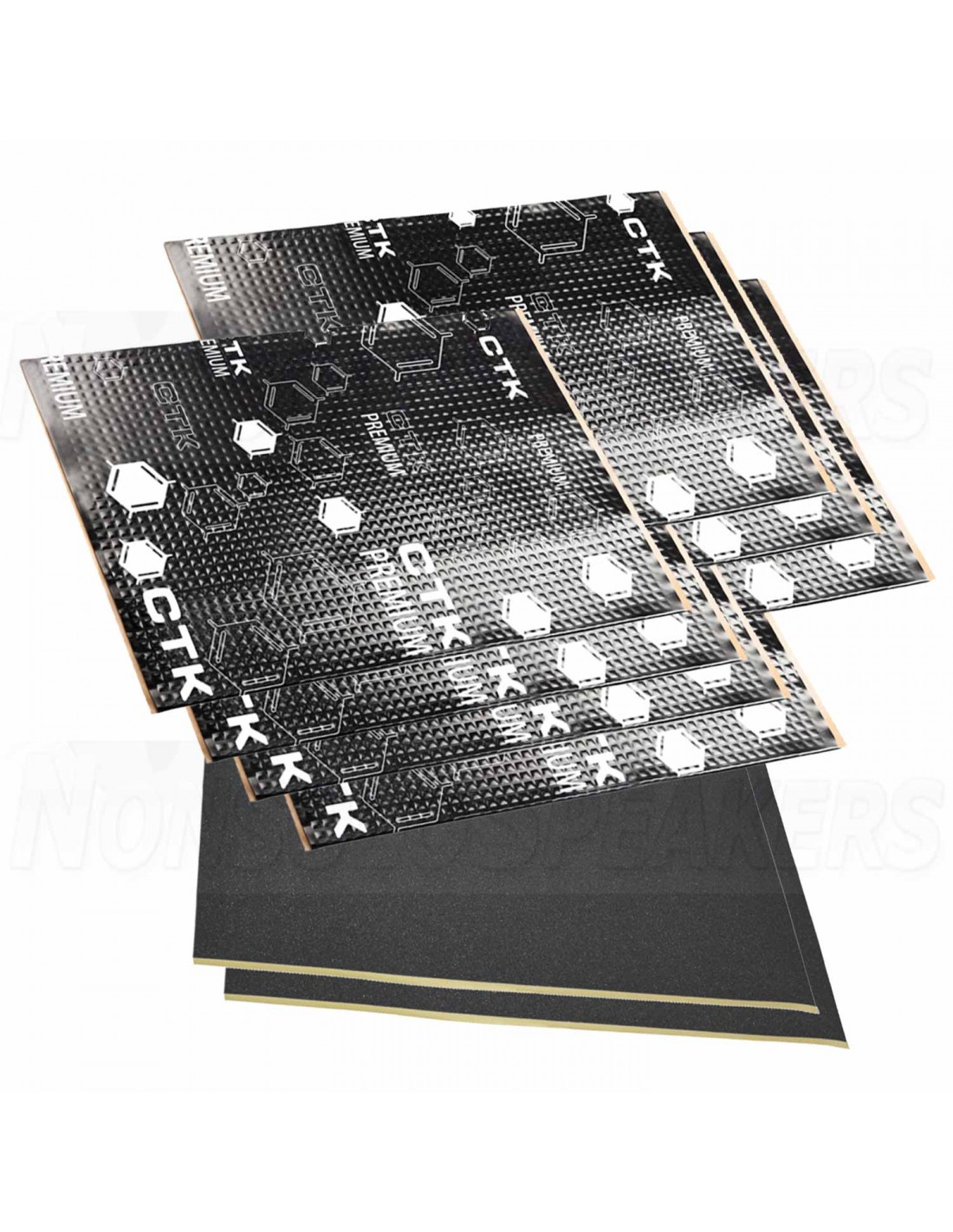

The package includes:

7x CTK Premium 18 to prevent vibrations inside the door, i.e. to dampen the inner sheets and the part to which the window closing mechanism is attached

2x CTK LineFix 7 V2 to prevent any unwanted vibrations of the upholstery, i.e. to dampen the inner side of the upholstery

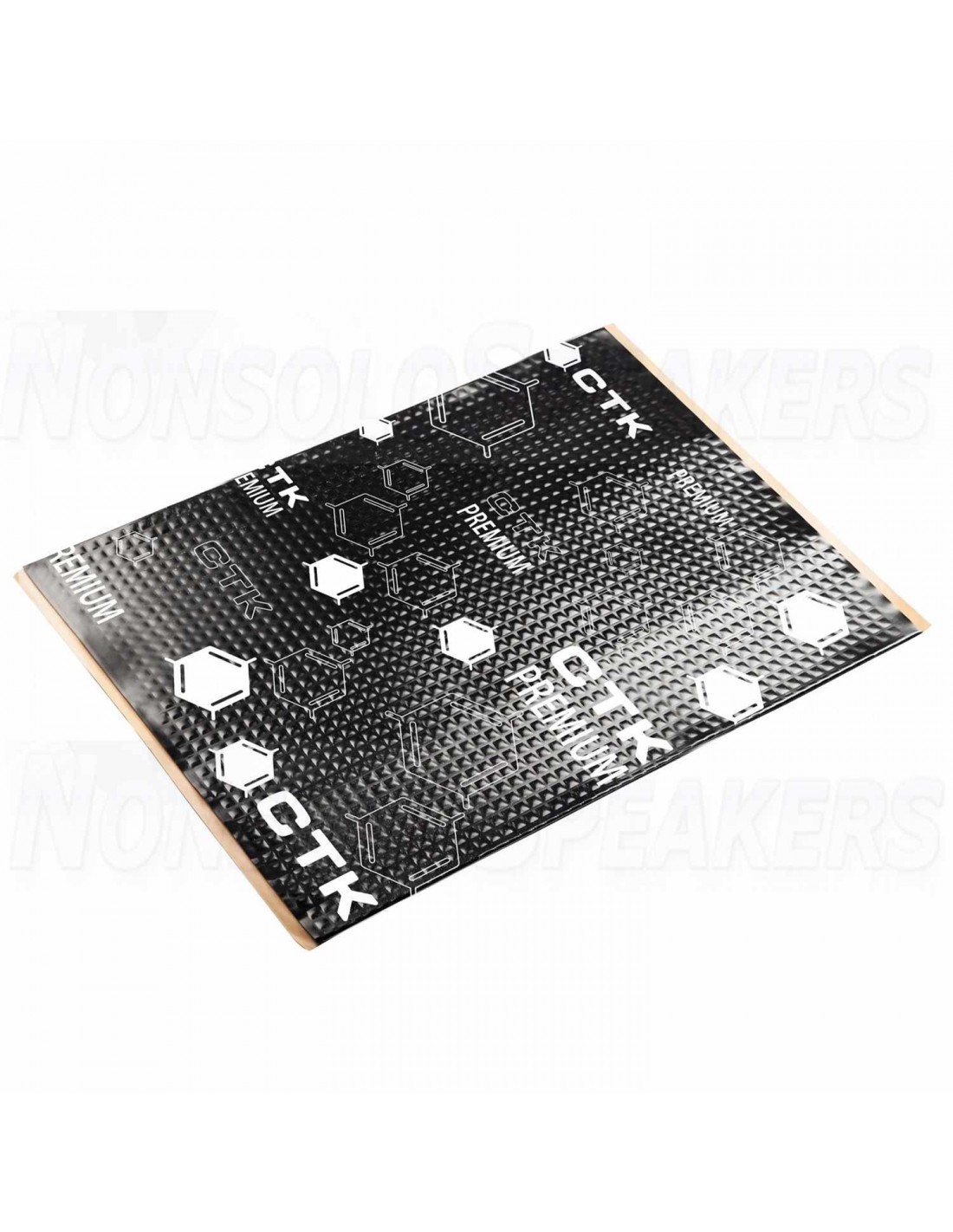

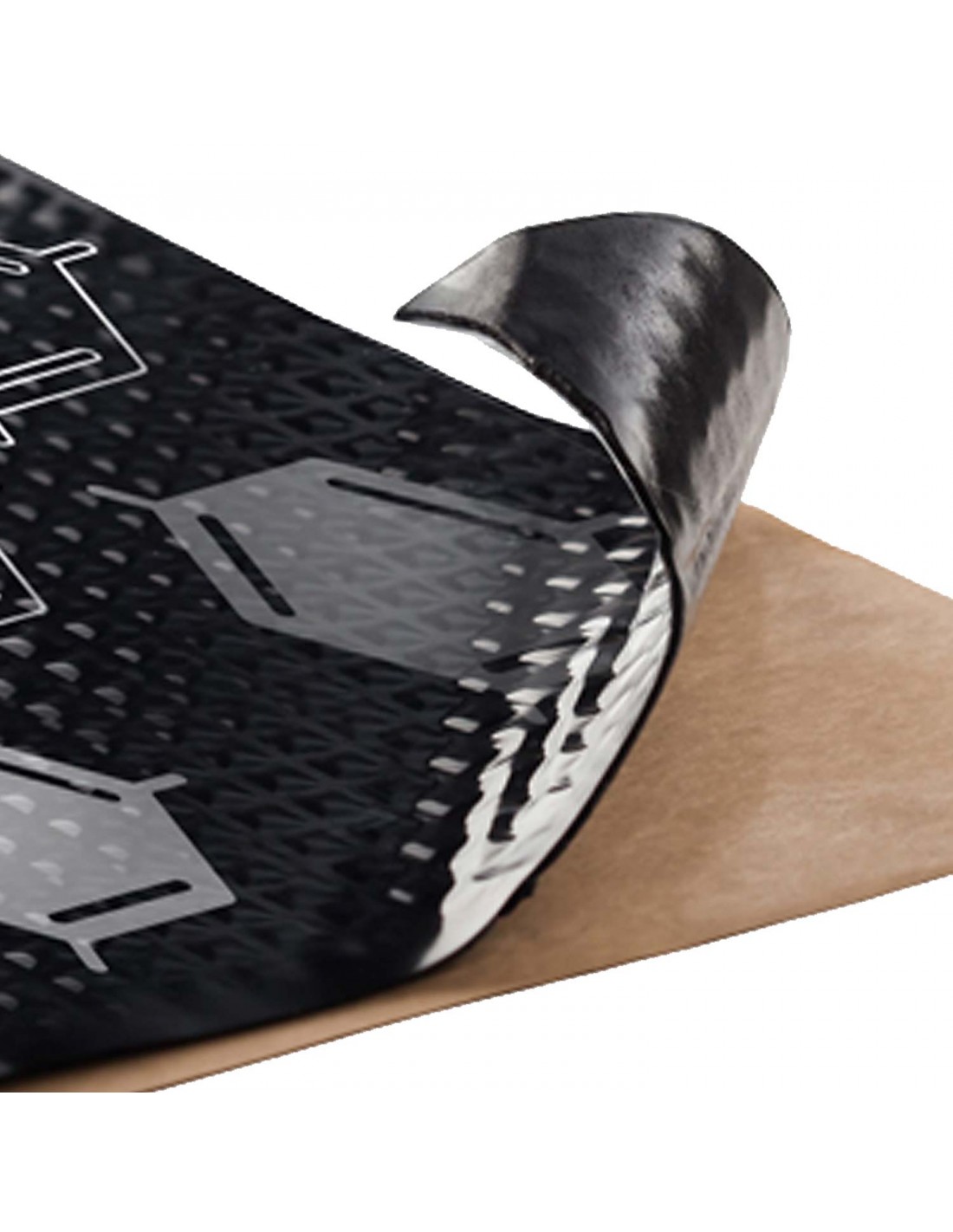

CTK Premium 18 - 1.8 mm is a self-adhesive lightweight butyl rubber anti-vibration material with a thickness of 1.8 mm.

CTK's premium line of anti-vibration materials is focused on the highest possible efficiency with the highest possible weight reduction. In terms of efficiency, the Premium series exceeds the Practic and Standard series, while the damping plates are up to 20% lighter. The Premium range is also characterized by extreme stickiness. The Premium series is for real car hifi enthusiasts, at the same time perfect for sports cars, where extra kilograms are not desirable! - butyl anti-vibration material - weight 2.70 kg/m2 - black foil with silver print - perforated foil for the possibility of rolling out without the risk of tearing - excellent flexibility - temperature stability - unrivaled adhesive properties

Technical specifications

sheet size 50 x 37 cm (0.185 m2)
material thickness 1.8 mm + 0.1 mm ALU foil (+/- 0.1 mm)
weight 2.70 kg / 1m2
non-flammable

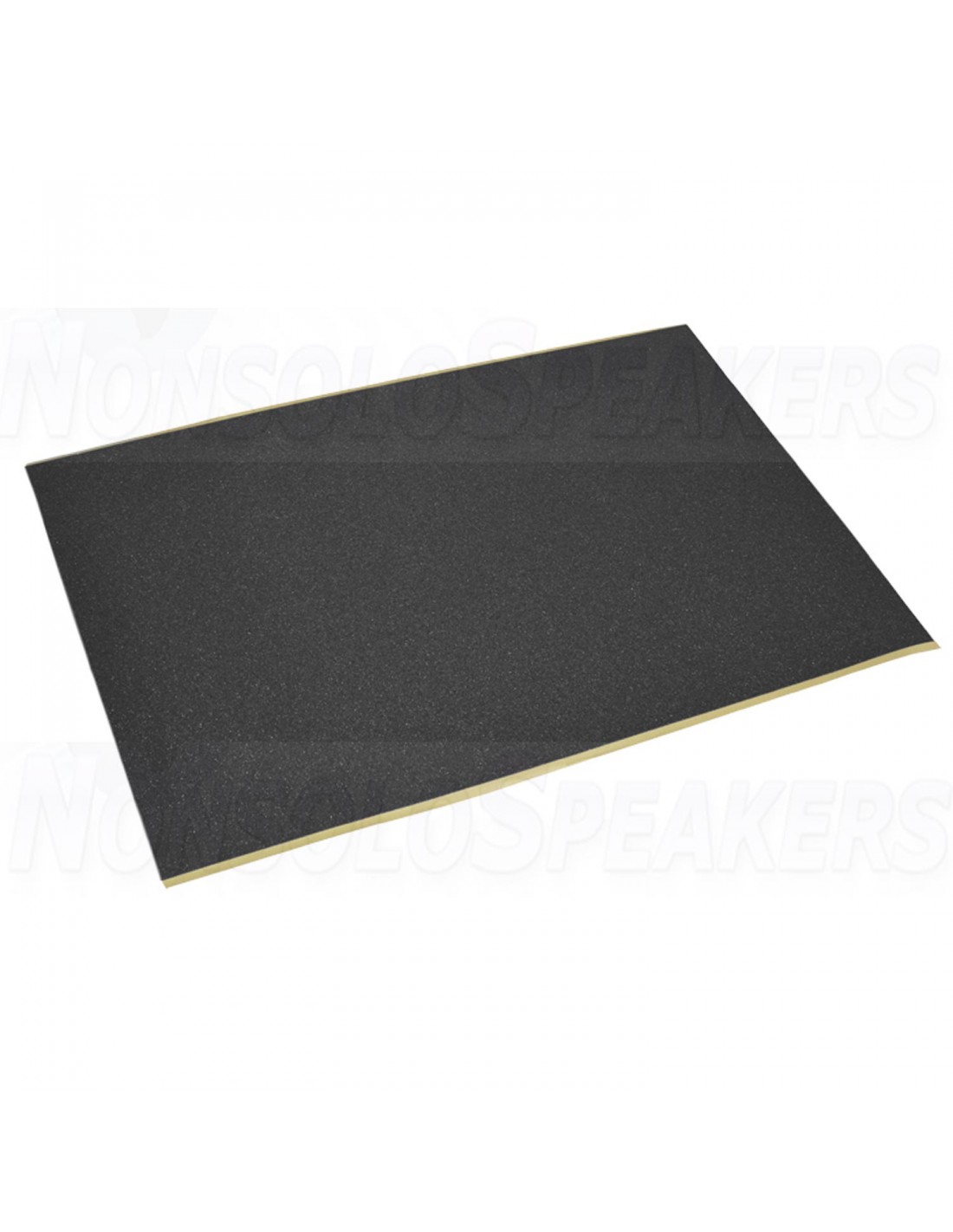

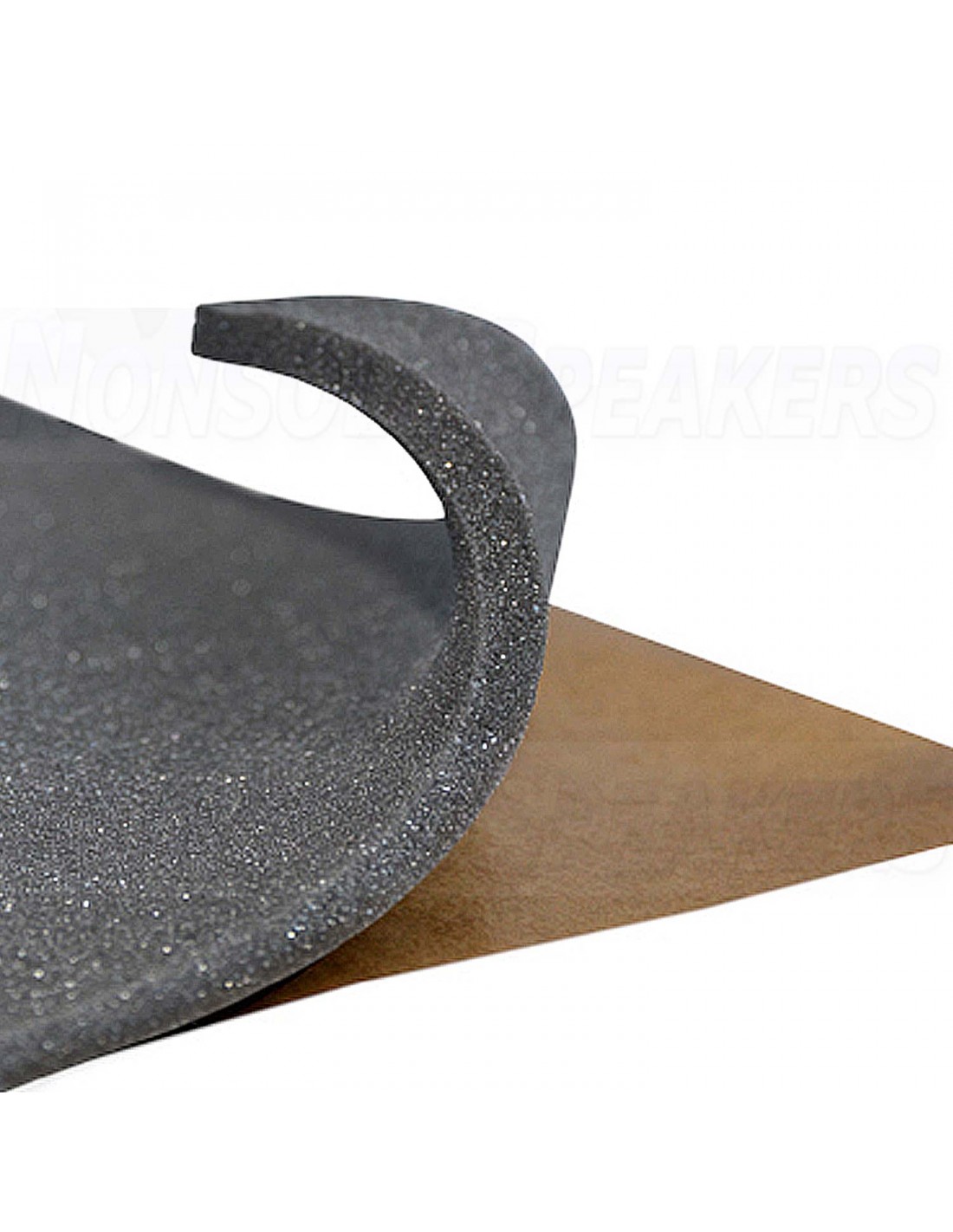

CTK LineFix 7 V2 is a water-resistant self-adhesive material designed to absorb noise of medium and high frequencies

The material is made of viscous polyurethane foam with an adhesive layer. Thanks to the latex impregnation, LineFix has a memory effect - it restores its shape even after pressing with great pressure, even after long-term pressing. LineFix's excellent sound-absorbing properties make it the ideal material for installing soundproofing on the inside of upholstery or in places where any counter-part needs to fit precisely. Easy installation with self-adhesive layer. Elastic, wear-resistant design

Technical Specifications

Sheet size: 50x40 cm (0.2 m2)
Thickness: 7 mm
Weight of 1 plate: 0.108 kg
Weight of 1m2: 0.54kg.

Total weight of the entire package: 3,71 kg

Procedure for application:

Remove the door trim, possibly also the part on which the window winder is attached
Dampen the inner sheet with CTK Premium 18
Reinstall the retractor part and damp it again with CTK Premium 18
Dampen the inside of the removed upholstery with CTK LineFix 7 V2
Put the upholstery back in its original position.

HOW TO MUTE THE CAR EFFECTIVELY?

The maximum level of soundproofing of the interior of the vehicle passenger compartment can only be achieved by a complete soundproofing (damping and soundproofing and soundproofing) of all key elements of the bodywork and interior, by installing on these elements in layers (if possible and available space) three different types of most effective materials of the highest class, in which each of them has different acoustic properties, operates in a different frequency range and plays a different role. I'm:

layer 1 - highly effective anti-vibration materials that dampen vibrations and resonances of the body elements and further isolate the interior from external noise, which are high-quality mats based on butyl, aluminum and polymers with the highest possible MLF value ( eg ➡️ CTK DOMINATOR, ➡️ CTK PREMIUM cushioning mats, ➡️ CTK STANDARD Professional),

layer 2 - foam insulation - acoustic barriers with closed cell structure, which block the entry of road noise into the cabin and further thermally insulate the interior against excessive heating and rapid cooling (e.g. ➡️ CTK ELASTIC , ➡️ CTK ELASTIC F rubber foams, ➡️ CTK TEMPO FIX polyethylene foams),

layer 2/3 - soft and porous sound-absorbing materials with open and / or partially closed cell structure, which, in addition to the sound-absorbing properties, also play the role of shock-absorbing and damping spacers of the resonance of the plastic padding elements and reduce crackling and the creaking of these elements (eg ➡️ CTK SILENCE FIX, ➡️ CTK WAVE FIX sound-absorbing polyurethane foams, ➡️ CTK CAIMAT fleece-based sound-absorbing mats). To obtain the best road noise reduction effect, it is also recommended to install the ➡️ CTK BLOCK PRO acoustic membrane as the last third layer on the lower horizontal parts of the bodywork.

Reference CTK PREMIUM front door package

In stock 10 Items

CTK is a manufacturer of high-tech polymer damping and sound-absorbing materials for cars.

Their factory is equipped with unique, self-developed devices that enable the mobility of the technological process and exceptional quality. Unlike other producers, they also have a laboratory that monitors the overall production process, in addition to constantly developing new ones. In their portfolio you will find anti-vibration, absorbent, insulating materials and a wide range of accessories. All materials are subject to careful quality control, are not subject to age or rot and are resistant to the action of water or oils. Rightfully so, CTK materials are rated as the best on the market, bringing innovation and increasing efficiency in the damping and noise reduction of cars, which are completely uncompromising thanks to these materials.

CTK anti-vibration materials

Practic series - basic series of anti-vibration self-adhesive material composed of butyl rubber and aluminum foil weighing 0.06 mm

Standard series - advanced series of anti-vibration self-adhesive material composed of butyl rubber and aluminum foil weighing 0.1 mm

Premium series - premium series of anti-vibration self-adhesive material composed of lightweight butyl rubber and aluminum foil with a weight of 0.1 mm

Dominator series - the highest line of anti-vibration self-adhesive material composed of degreased butyl rubber and aluminum foil with a weight of 0.2 mm

Sound-absorbing materials

CTK Caimat - self-adhesive material composed of non-woven fabric for the highest possible sound and temperature absorption

SilenceFix - self-adhesive polyurethane material absorbing high and medium frequencies.

LineFix - self-adhesive, extremely soft polyurethane material with a memory effect for absorbing medium and high frequencies. Ideal for preventing the upholstery from rattling.

WaveFix - self-adhesive polyurethane material with latex impregnation absorbing all frequencies.

Sound insulating materials

CTK Elastic - self-adhesive sound and heat insulating material composed of closed pulp with a neoprene layer

TempoFix - self-adhesive sound and heat insulator composed of light plastic material suitable for installation in areas with extreme temperature differences

TempoFix F - self-adhesive sound and heat insulator made of light plastic material layered with ALU foil for maximum temperature resistance
