CTK ProfiDamp Sound insulating material

Name: CTK ProfiDamp Sound insulating material
Brand: Ctk
SKU: CTK ProfiDamp
Price: 9.9 EUR
Availability: InStock

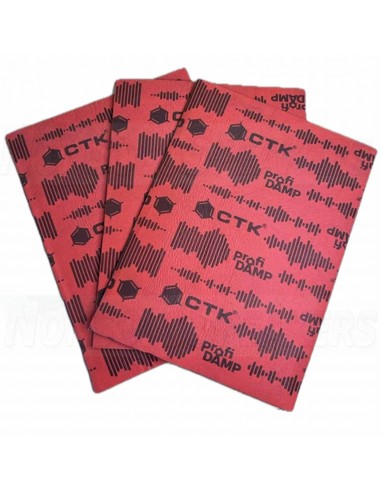

CTK ProfiDamp Sound insulating material

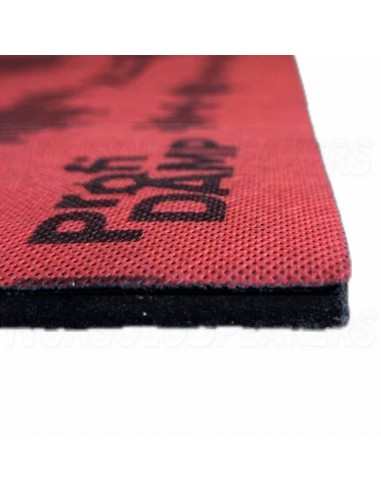

CTK Profidamp is a premium 2-layer (multi-layer) soundproofing material made of butyl and foam mixtures with a non-woven base cover. CTK ProfiDamp is a 7.5 mm two-layer damping material, the structure of which consists of a six-millimeter layer of foam rubber and a 1.5 mm BlockPro layer with a coating on a non-woven base.

SHIPMENT IN 7/10 WORKING DAYS

€9.90

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

CTK ProfiDamp Sound insulating material

1x piece 500x370 mm

It achieves the highest effects when used with the CTK Premium 18 anti-vibration material, when attenuation reaches up to 32 decibels. CTK ProfiDamp is a cheaper and lighter version of the CTK Multimat EVO multi-layer material due to the absence of one layer.

In addition, ProfiDamp is recommended to be used on CTK Premium anti-vibration material as a secondary layer, while Multimat EVO is intended to be used completely alone.

The main advantage of the CTK ProfiDamp material

It consists of a lightweight butyl layer and a polymer layer of closed pulp, covered with a non-woven base The material fully replaces the application of 2 separate layers - CTK Block PRO and CTK Elastic Full resistance to water and moisture The extreme adhesive layer guarantees 100% functionality throughout its lifetime Streamlines the installation process by applying 2 layers in 1 step Temperature stability in the range of -45 to +130 degrees

Recommended use of CTK ProfiDamp

CTK ProfiDamp can be applied completely alone or as a second layer. Replaces layering with 2 types of materials. It is suitable for application to the inside of the door, on the roof, on the floor, the central tunnel or underpasses. Recommended combination with CTK Premium 18.

CTK MultiWave 35 can be used in car areas roof, inner side of door panels, trunk lining, fifth door, trunk floor.

Technical Specifications

Sheet size 500x370 mm (0.185 m2)
Material thickness 7.5 mm
Weight 3.0 kg / 1m2
Adhesion 6 to 8 N/cm
Weight of 1 plate 0.55 kg
1st layer - butyl 1.5 mm
2nd layer - acoustic foam material from closed pulp 6.0 mm
Temperature stable between -45°C and +130°C

Price for 1 piece

HOW TO MUTE THE CAR EFFECTIVELY?

The maximum level of soundproofing of the interior of the vehicle passenger compartment can only be achieved by a complete soundproofing (damping and soundproofing and soundproofing) of all key elements of the bodywork and interior, by installing on these elements in layers (if possible and available space) three different types of most effective materials of the highest class, in which each of them has different acoustic properties, operates in a different frequency range and plays a different role. I'm:

layer 1 - highly effective anti-vibration materials that dampen vibrations and resonances of the body elements and further isolate the interior from external noise, which are high-quality mats based on butyl, aluminum and polymers with the highest possible MLF value ( eg ➡️ CTK DOMINATOR, ➡️ CTK PREMIUM cushioning mats, ➡️ CTK STANDARD Professional),

layer 2 - foam insulation - acoustic barriers with closed cell structure, which block the entry of road noise into the cabin and further thermally insulate the interior against excessive heating and rapid cooling (e.g. ➡️ CTK ELASTIC , ➡️ CTK ELASTIC F rubber foams, ➡️ CTK TEMPO FIX polyethylene foams),

layer 2/3 - soft and porous sound-absorbing materials with open and / or partially closed cell structure, which, in addition to the sound-absorbing properties, also play the role of shock-absorbing and damping spacers of the resonance of the plastic padding elements and reduce crackling and the creaking of these elements (eg ➡️ CTK SILENCE FIX, ➡️ CTK WAVE FIX sound-absorbing polyurethane foams, ➡️ CTK CAIMAT fleece-based sound-absorbing mats). To obtain the best road noise reduction effect, it is also recommended to install the ➡️ CTK BLOCK PRO acoustic membrane as the last third layer on the lower horizontal parts of the bodywork.

Reference CTK ProfiDamp

In stock 50 Items

CTK is a manufacturer of high-tech polymer damping and sound-absorbing materials for cars.

Their factory is equipped with unique, self-developed devices that enable the mobility of the technological process and exceptional quality. Unlike other producers, they also have a laboratory that monitors the overall production process, in addition to constantly developing new ones. In their portfolio you will find anti-vibration, absorbent, insulating materials and a wide range of accessories. All materials are subject to careful quality control, are not subject to age or rot and are resistant to the action of water or oils. Rightfully so, CTK materials are rated as the best on the market, bringing innovation and increasing efficiency in the damping and noise reduction of cars, which are completely uncompromising thanks to these materials.

CTK anti-vibration materials

Practic series - basic series of anti-vibration self-adhesive material composed of butyl rubber and aluminum foil weighing 0.06 mm

Standard series - advanced series of anti-vibration self-adhesive material composed of butyl rubber and aluminum foil weighing 0.1 mm

Premium series - premium series of anti-vibration self-adhesive material composed of lightweight butyl rubber and aluminum foil with a weight of 0.1 mm

Dominator series - the highest line of anti-vibration self-adhesive material composed of degreased butyl rubber and aluminum foil with a weight of 0.2 mm

Sound-absorbing materials

CTK Caimat - self-adhesive material composed of non-woven fabric for the highest possible sound and temperature absorption

SilenceFix - self-adhesive polyurethane material absorbing high and medium frequencies.

LineFix - self-adhesive, extremely soft polyurethane material with a memory effect for absorbing medium and high frequencies. Ideal for preventing the upholstery from rattling.

WaveFix - self-adhesive polyurethane material with latex impregnation absorbing all frequencies.

Sound insulating materials

CTK Elastic - self-adhesive sound and heat insulating material composed of closed pulp with a neoprene layer

TempoFix - self-adhesive sound and heat insulator composed of light plastic material suitable for installation in areas with extreme temperature differences

TempoFix F - self-adhesive sound and heat insulator made of light plastic material layered with ALU foil for maximum temperature resistance
