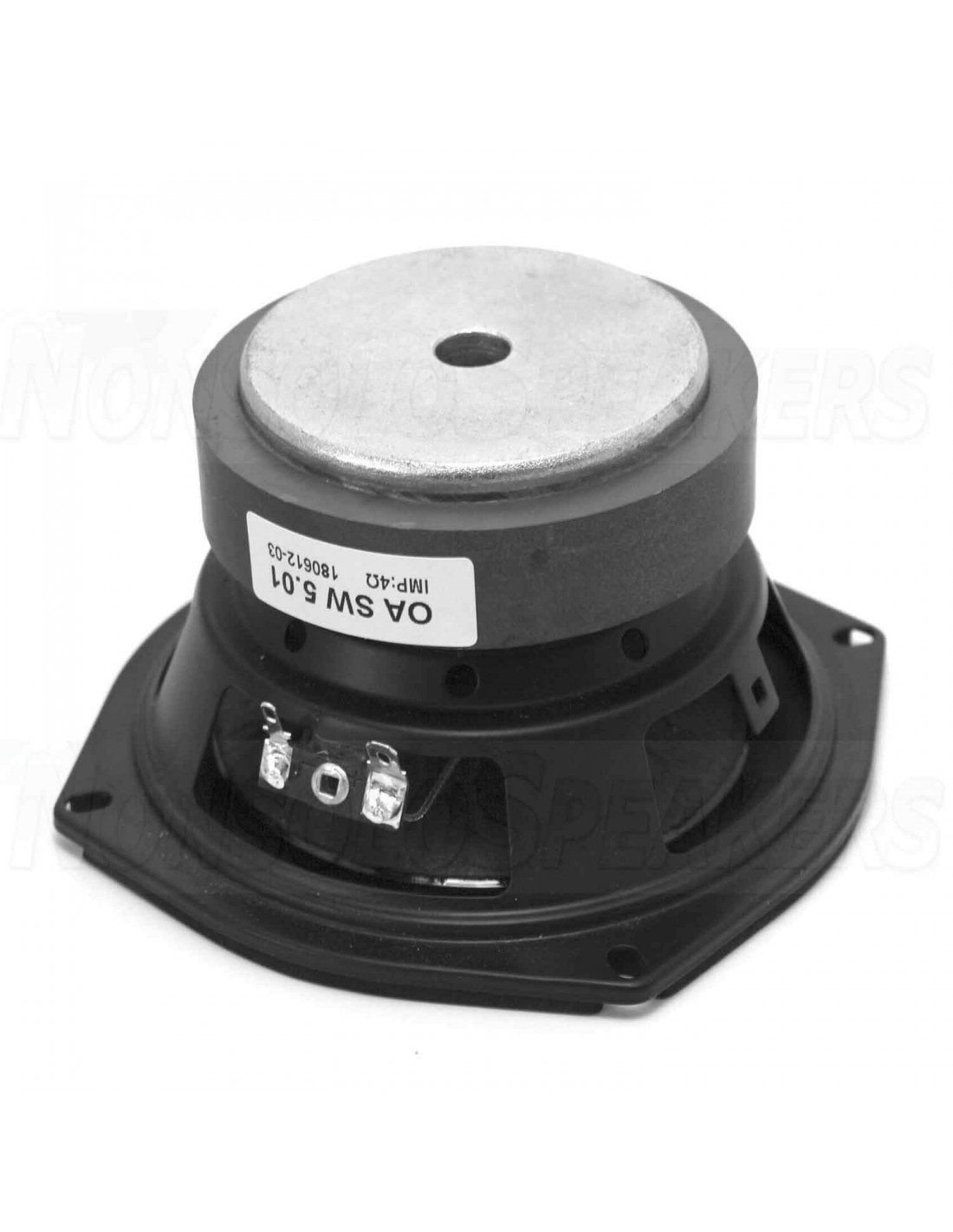

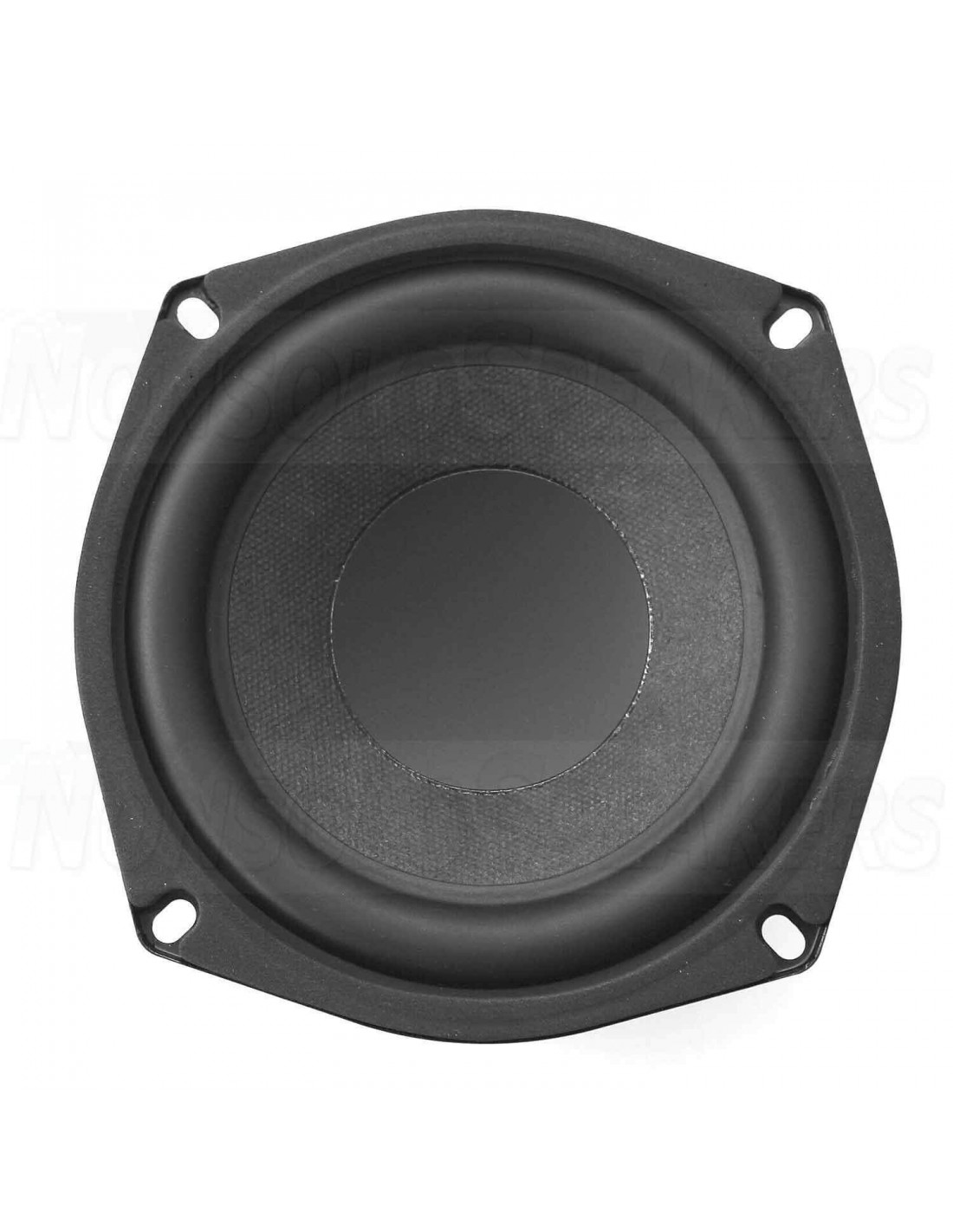

Omnes Audio SW 5.01 subwoofer 13 cm

13cm Omnes audio subwoofer for amazingly small bass reflex enclosures from 4 liters.
The W5-1138SMF from Tang Band was used as a template.

Application:

  • Small home theaters
  • Sub for the PC
  • Bass line array
  • Solution for space-saving small subwoofer solutions
  • Small bass for FAST systems (use up to 1 kHz ...)

Characteristics:

  • sensible metal basket with ventilation
  • Stable paper membrane
  • Optimal ferrrite magnet
  • Clever TS parameters

Specifications

Impedance: 4 ohms

Power: 40W RMS / 80W music

SPL: 82.3dB 1W/m

Diameter: 13mm [5"]

Magnet: ferrite

Resonance frequency: 47.61 Hz [Fs]

Frequency response: 40 - 1000 Hz

Re: 3.8 ohms

Qms: 5.31

Q's: 0.47

Qts: 0.43

Vas: 4.59L

Xmax: ~14mm [+-7mm]

SD: 86.59 cm²

Le: 0.85mH

Mms: 25.49g

BL: 7.88 N/A

cms: 0.44mm/N

Rms: 1.44 oms

Weight: 1.95kg

Outside diameter: 13.4 cm

Installation diameter: 12.2 cm

Installation depth: 6.9 cm

SW 5.01
