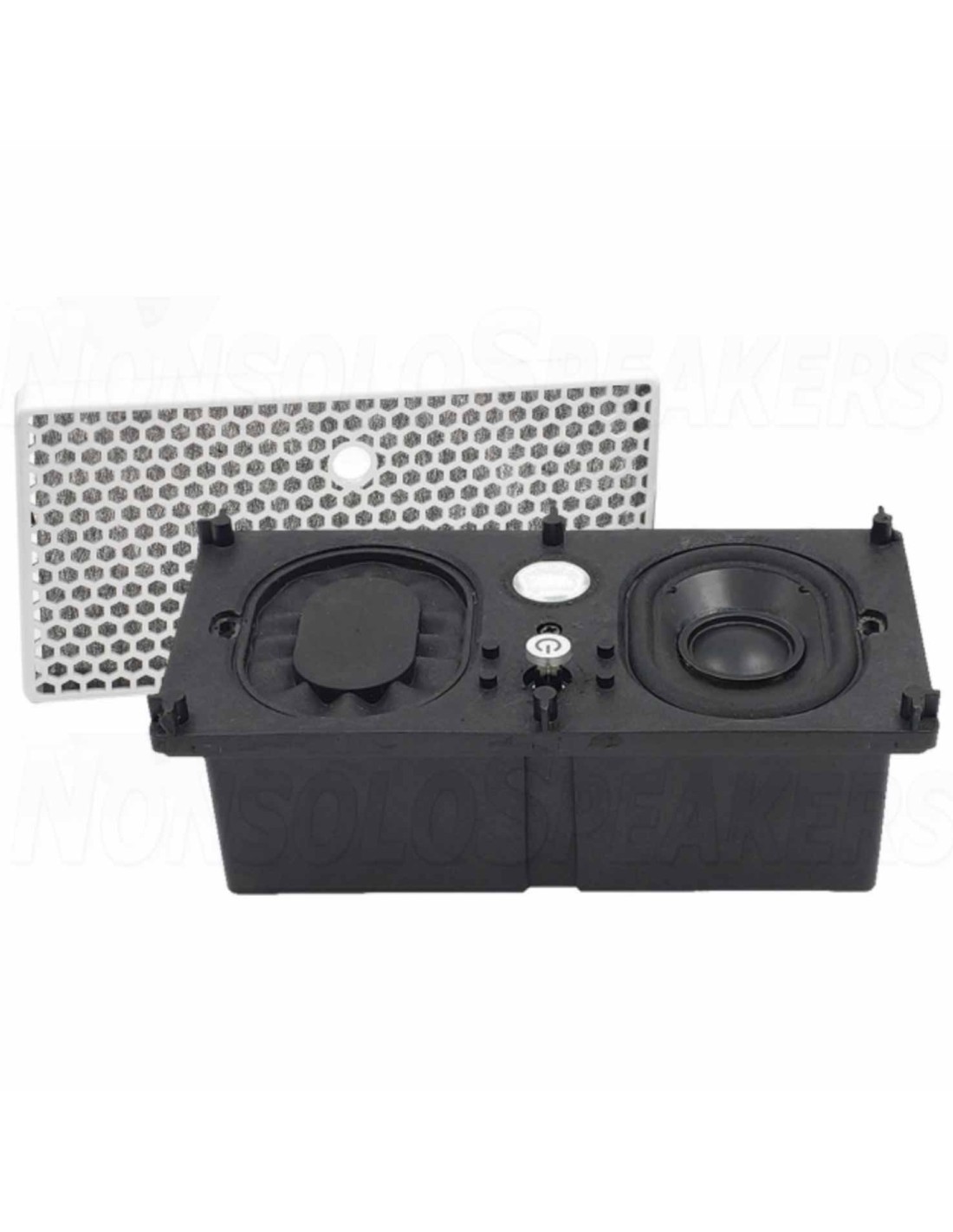

Tang Band  SW8622-1 module speakers 2 way

.

The TB Speaker SW8622-0 Big Socket Speaker is a two-way in-wall speaker designed to deliver advanced audio performance in a compact package, ideal for professional and residential installations. Thanks to its two-way configuration with high-frequency extension up to 40 kHz, this speaker delivers extremely detailed sound reproduction, with precise and crystal-clear response at the highest frequencies, ensuring clear listening for both high-resolution music and multimedia content.

A passive radiator allows for low-frequency extension down to 75 Hz, enhancing the depth and body of the sound without the need for bulky external systems. The result is balanced, powerful, and surprisingly rich audio for a speaker of this size. The integrated amplifier with built-in PCB power supply allows for direct connection to the mains, simplifying installation and making the system immediately operational without additional components.

Designed for seamless integration into standard 86x2 in-wall boxes, the TB Speaker SW8622-0 is engineered for quick and tidy installation, ideal for modern homes, hotels, restaurants, gaming rooms, and commercial spaces. Built-in Bluetooth connectivity enables stable, high-quality wireless audio transmission, offering maximum versatility for use with smartphones, tablets, and other compatible devices.

Thanks to high sound pressure and wide acoustic dispersion, this Bluetooth in-wall speaker ensures uniform room coverage, maintaining clarity and power even in medium-sized spaces. The TB Speaker SW8622-0 is a discreet, efficient, and professional audio solution, perfect for those looking for an in-wall speaker with a built-in amplifier, extended bass, and advanced wireless connectivity.

.

Specifications

CATEGORY Full Range

IMPEDANCE 4 Ω

SPL MAX (6W) 98 dB

CROSSOVER POINT 4 K Hz

INPUT VOLTAGE AC:100~230 V

FREQUENCY 70Hz ~ 17K Hz (-6dB)

AMPLIFIER POWER 30 W

RESONANCE FREQUENCY(Fs) 90 Hz

MODULE MODEL T23-2350

AMPLIFIER MODEL AMH196-55

BLUETOOTH PAIRING ID TB-Switch Pro

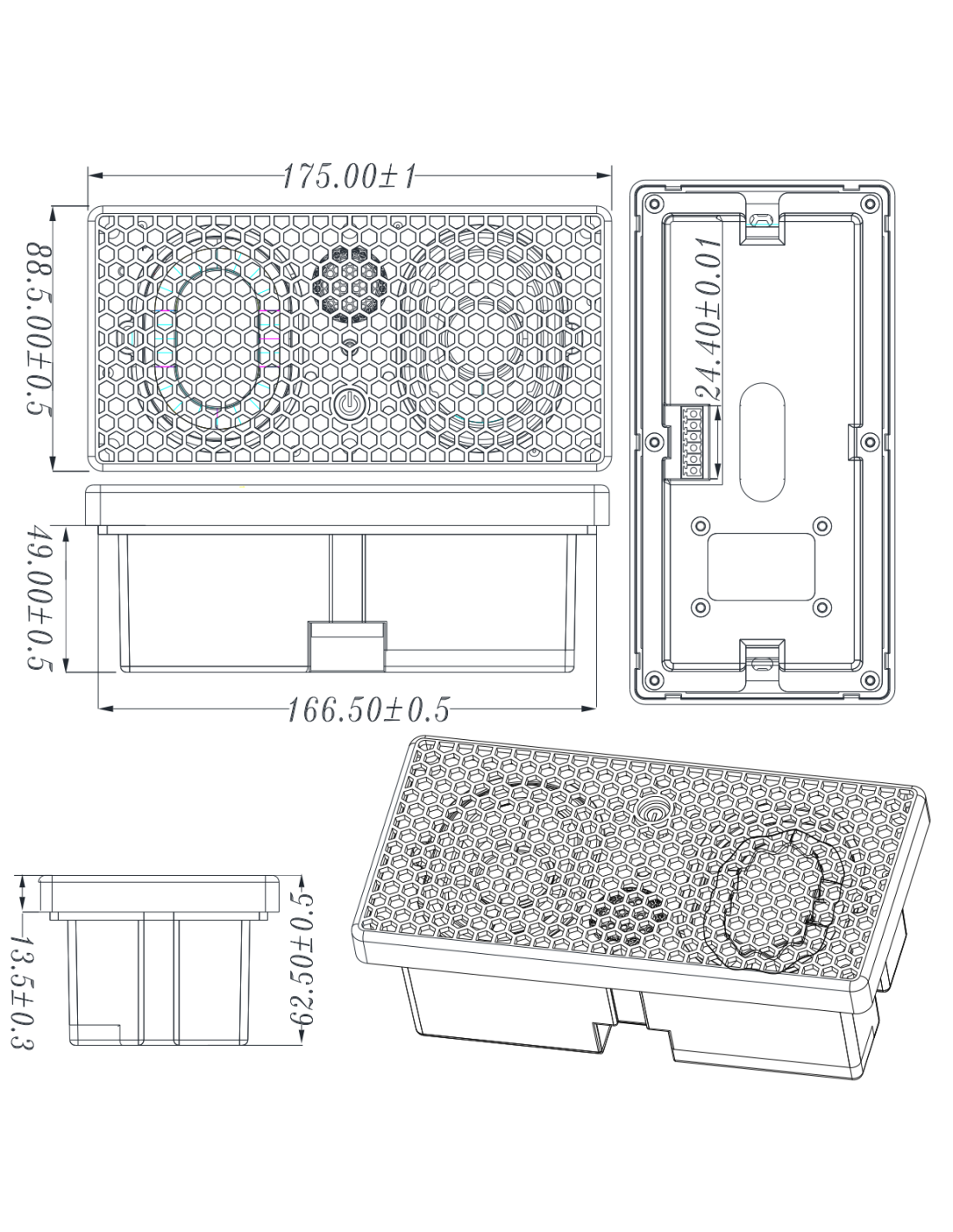

DIMENSION(EXTERNAL) 175x88.5x62.5 (mm)
