Variants
TANG BAND PR13-A - Subwoofer bundle W3-2088SOF + PR13
Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08
Out-of-Stock
€88.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND PR13-A - Subwoofer bundle W3-2088SOF + PR13

.

Specifications

  • Brand TB-Speaker
  • Series Subwoofer
  • Magnet Material Ferrite
  • Free Air Resonance [Hz] 35
  • Impedance [Ohm] 4
  • Sensitivity [dB] 77
  • Power Handling [Watt] 40
  • Cone Material Polypropylene
  • Cone Diameter [inch] 3
  • Xmax [mm] 7
  • Qts 0,48

-

Parameters Values

  • F0 35 Hz
  • F3 37.32 Hz
  • Piston area 0.0075 M²
  • Mms 30 gr

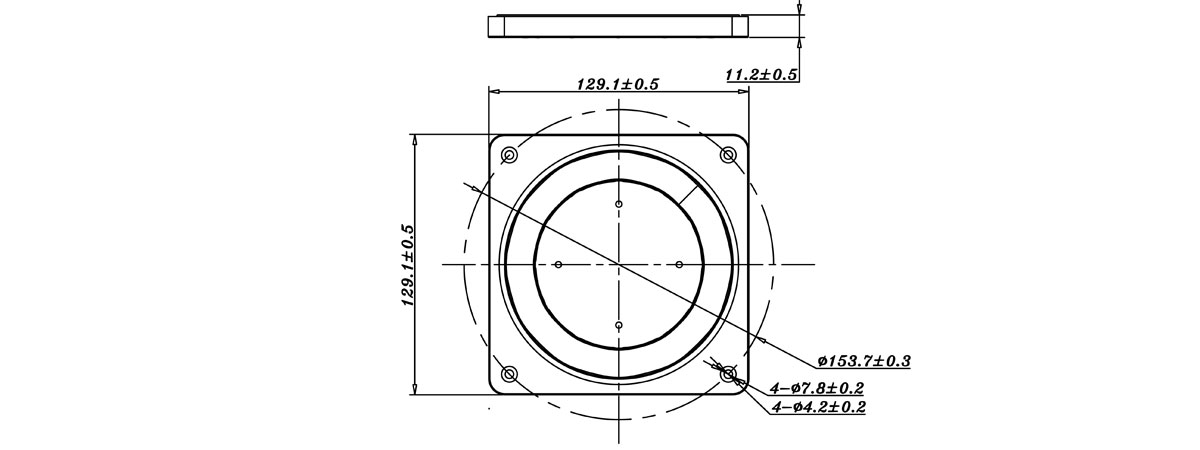

  • Dimensions 129.1 mm 129.1 mm 11.2 mm

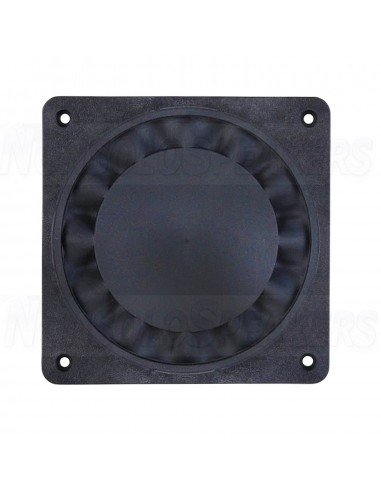

  • Features 3 "Subwoofer Bundle / PR13-A:
  • • Patented design of the wave-shaped structure for passive radiator;
  • • Applied co-injection molding technology;
  • • Optimal balance of internal loss and less damping of elasticity;
  • • Dimensions: 129.1mm x 129.1mm x 11.2mm;
  • • Square form.

-

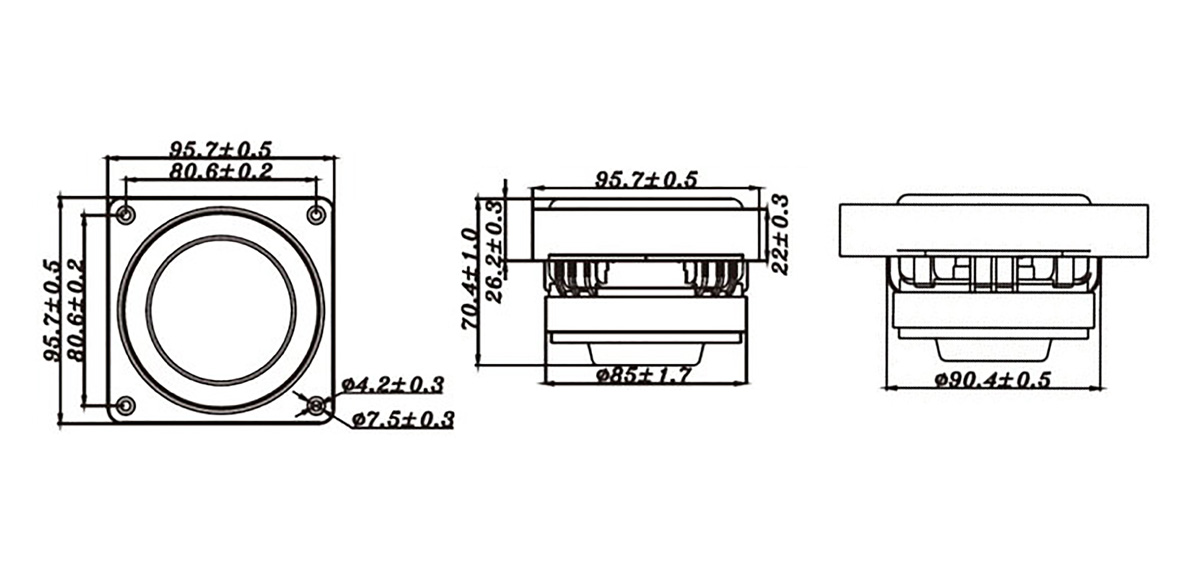

Thiele & Small parameters - W3-2088SOF

  • Nominal impedance 4 Ω
  • Re 3.6 Ω
  • Mms 17.96 g
  • Sensitivity 1W / 1m 77 dB
  • Frequency response 45-1K Hz
  • 45 Hz area resonance
  • Voice coil diameter 32 mm
  • AIR Gap 4 mm
  • Input power 25W
  • Output power 50W
  • Force Factor 5.65 TM
  • Levc 0.18 mH
  • Zo 28 Ω
  • Qts 0.48
  • Qms 4.14
  • Vas 2.1 l
  • xMax 7 mm
  • Qes 0.55

.

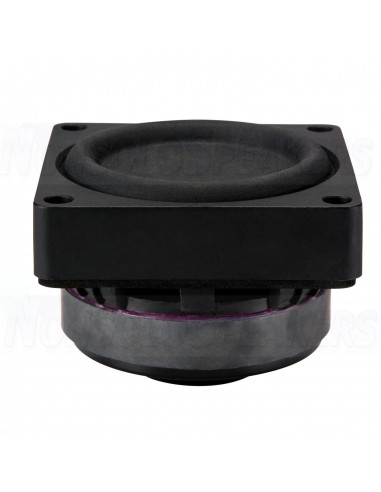

Features Subwoofer W3-2088SOF:

  • • Super powerful and powerful small subwoofer;
  • • Balance mode, ideal linear excursion, patented structure;
  • • VC = 32 mm, Xmax = 7 mm, F0 = 45 Hz;
  • • New composite material applied with a new assembly process;
  • • Subwoofer or woofer for audio application.

-

Other Features Bundle Box

  • Cone material Polypropylene
  • Magnet type Ferrite
  • Vb 2.5 L
  • V (total) 2,706 L.
  • QL 7
  • F3 37.32 Hz



PR13-A
