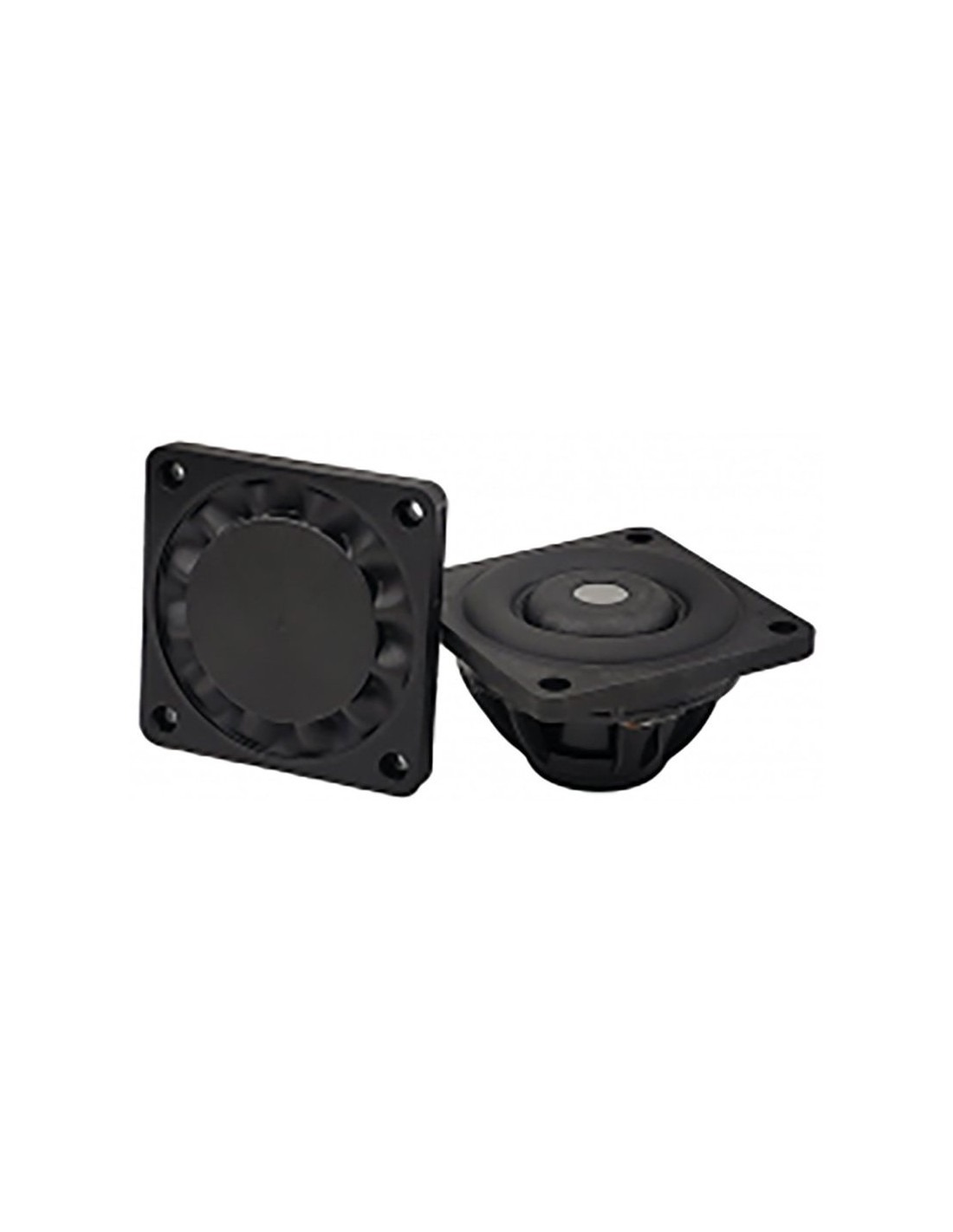

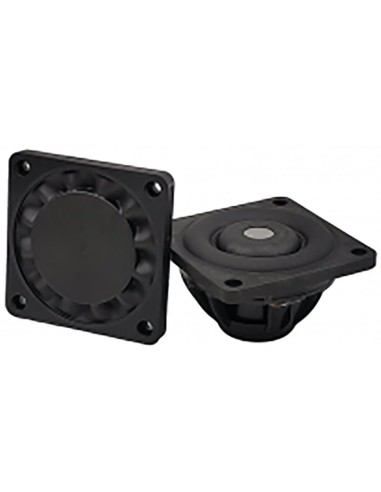

Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08
Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08

Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08

Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08

Variants
Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08
TANG BAND PR13-A - Subwoofer bundle W3-2088SOF + PR13
SHIPMENT IN 7/10 WORKING DAYS
€54.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Tang Band PR08-D - Subwoofer da 3" W3-2345S + PR08

.

Specifications

  • Brand TB-Speaker
  • Series Subwoofer
  • Magnet Material Ferrite
  • Free Air Resonance [Hz] 35
  • Impedance [Ohm] 4
  • Sensitivity [dB] 77
  • Power Handling [Watt] 40
  • Cone Material Polypropylene
  • Cone Diameter [inch] 3
  • Xmax [mm] 7
  • Qts 0,48

-

Parameters Values w3-2345s

  • - 3" high-power compact subwoofer
  • - Long-excursion xmax = 7.7 mm, f0 = 45 Hz
  • - Aluminum diaphragm with heat sink function
  • - Patented structural design
  • - New material applied with injection assembly process
  • - Neodymium magnet system
  • - Compact subwoofer for multiple applications

-

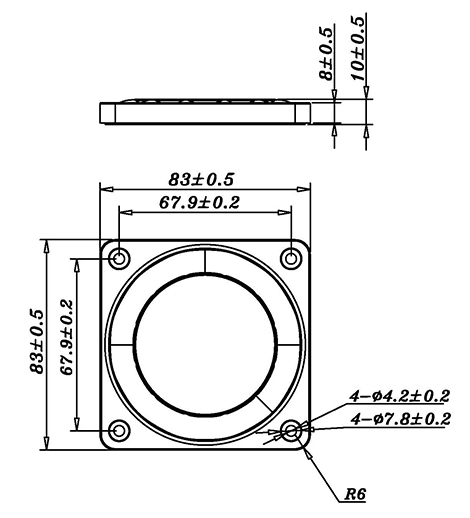

Thiele & Small parameters - PR08

  • Fs 22.97 Hz
  • Qms 8,437
  • Ves 1.841 litres
  • Cms 1 mm/N
  • Mms 48 g
  • Rms 0.821 kg/s
  • Sd 36 sq.c

.

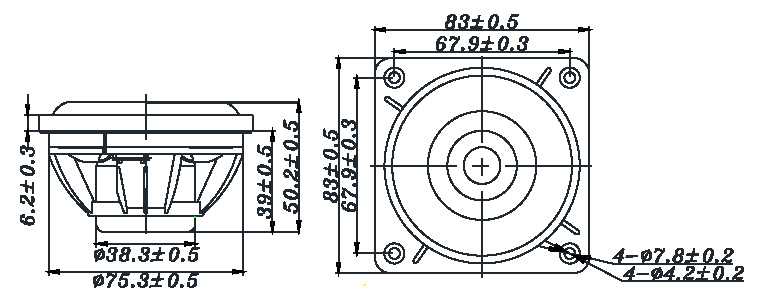

Features Subwoofer W3-2345S:

  • Nominal impedance 4 Ω
  • DCR impedance 3.6 Ω
  • Sensitivity 1W/1M 73 dB
  • Frequency response 45-2K Hz
  • Free air resonance 45 Hz
  • Voice coil diameter 25.4 mm
  • Air gap height 3 mm
  • Rated input power 20 W
  • Maximum input factor 40 W
  • Bl force factor 5.88 TM
  • Magnet type Neodymium
  • Moving mass 17.96 g
  • Effective piston area 0.0027 m²
  • Levc 0.15 mH
  • Zo 25 Ω
  • X-max 7.7 mm
  • Vas 0.64 Liters
  • Qts 0.48
  • Qms 2.59
  • Qes 0.56

PR08-D
