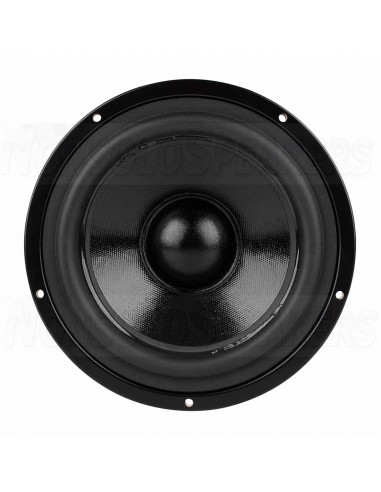

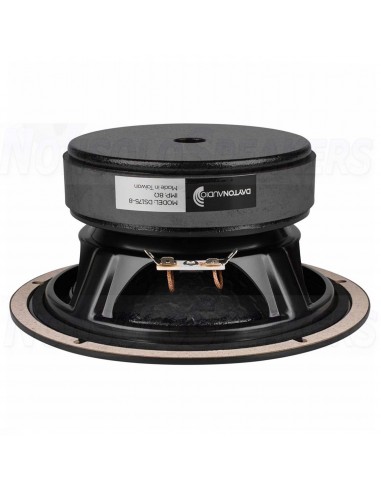

Dayton Audio DS175-8 6-1/2" Woofer Speaker
Product description
Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 40 Hz* without exceeding Xmax is very impressive!
Highlights
Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
Coated paper cone, half roll rubber surround for durability and accurate reproduction
Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
Vented pole piece for minimized power compression and maximized reliability
Generous Xmax capability encourages use of moderate bass boost to tailor the response
Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
.
Product details
Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.
These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
.
Specifications
Article number DS175-8
Woofer Series Designer Series
Woofer Type Midwoofer
Nominal Diameter 6.50"
Power Handling (RMS) 70 watts
Power Handling (max) 140 watts
Impedance (Z) 8 ohms
Sensitivity 87.7 dB @ 2.83V/1m
Frequency Response 40 - 4,500 Hz
Voice Coil Diameter 35.5 mm
Magnet Weight 33 oz.
DC Resistance (Re) 5.7 ohms
Voice Coil Inductance (Le) 1.06 mH @ 1 kHz
Resonant Frequency (Fs) 37 Hz
Mechanical Q (Qms) 1.63
Electromagnetic Q (Qes) 0.32
Total Q (Qts) 0.27
Diaphragm Mass Inc. Airload (Mms) 26g
Mechanical Compliance of Suspension (Cms) 0.71 mm/N
Surface Area of Cone (Sd) 128.7 cm²
Volume of Displacement (Vd) 67.6 cm³
BL Product (BL) 10.4 Tm
Compliance Equivalent Volume (Vas) 17 liters
Maximum Linear Excursion (Xmax) 5.25 mm
Cone / Diaphragm Material Coated Paper
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket / Frame Material Steel
Magnet Material Ferrite
Overall Outside Diameter 175.6 mm
Overall Depth 80.6 mm
Baffle Cutout Diameter 144 mm
# Mounting Holes 5
Sealed Volume 0.1 ft.³
Sealed F3 106 Hz
Vented Volume 0.2 ft.³
Vented F3 67 Hz
