SHIPMENT IN 7-10 WORKING DAYS
€82.90
Tax included
rating No review at the moment

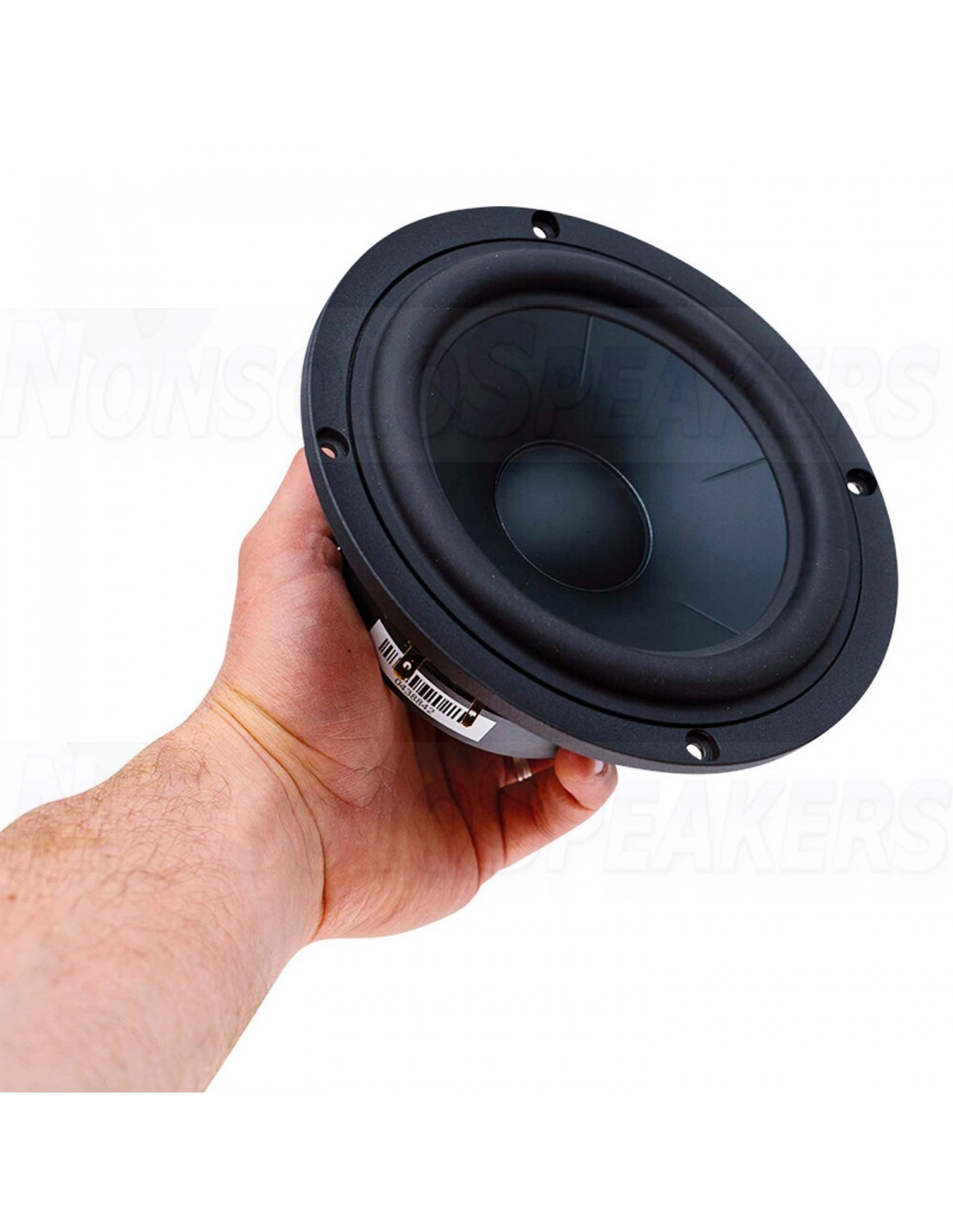

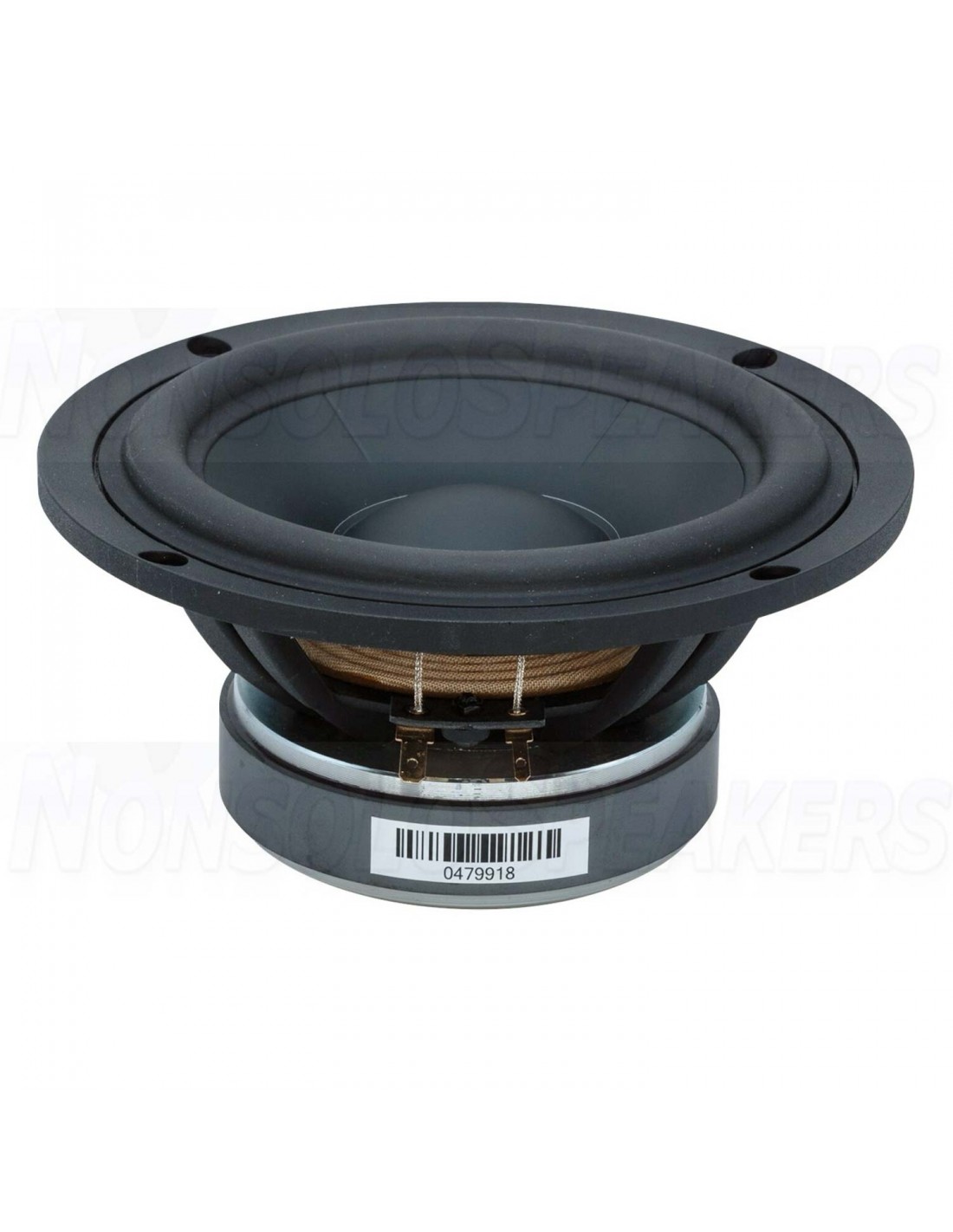

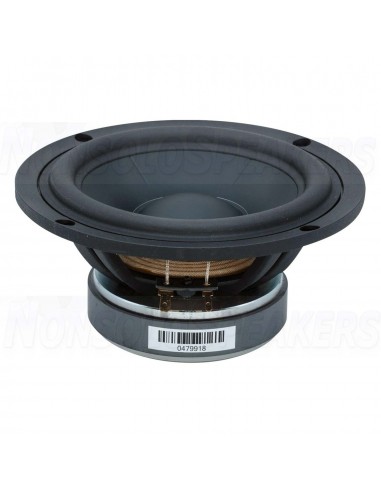

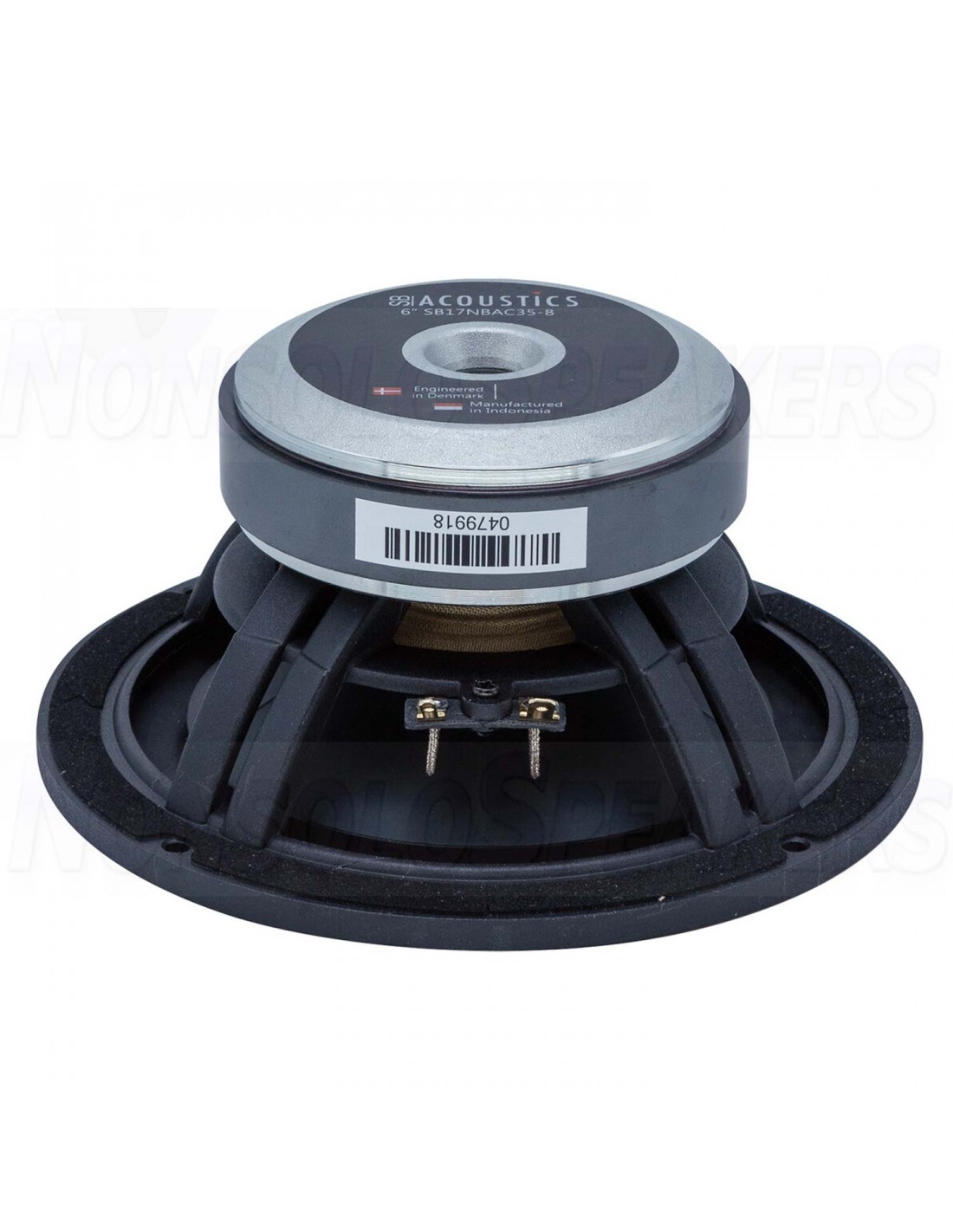

SB Acoustics SB17NBAC35-8 6" Black Aluminum Cone Woofer

The SB Acoustics SB17NBAC35-8 features a vented cast aluminum chassis for optimum strength and low compression, a geometrically reinforced aluminum cone for optimum piston operation and reduced break-up

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB17NBAC35-8 6" Black Aluminum Cone Woofer

Product description

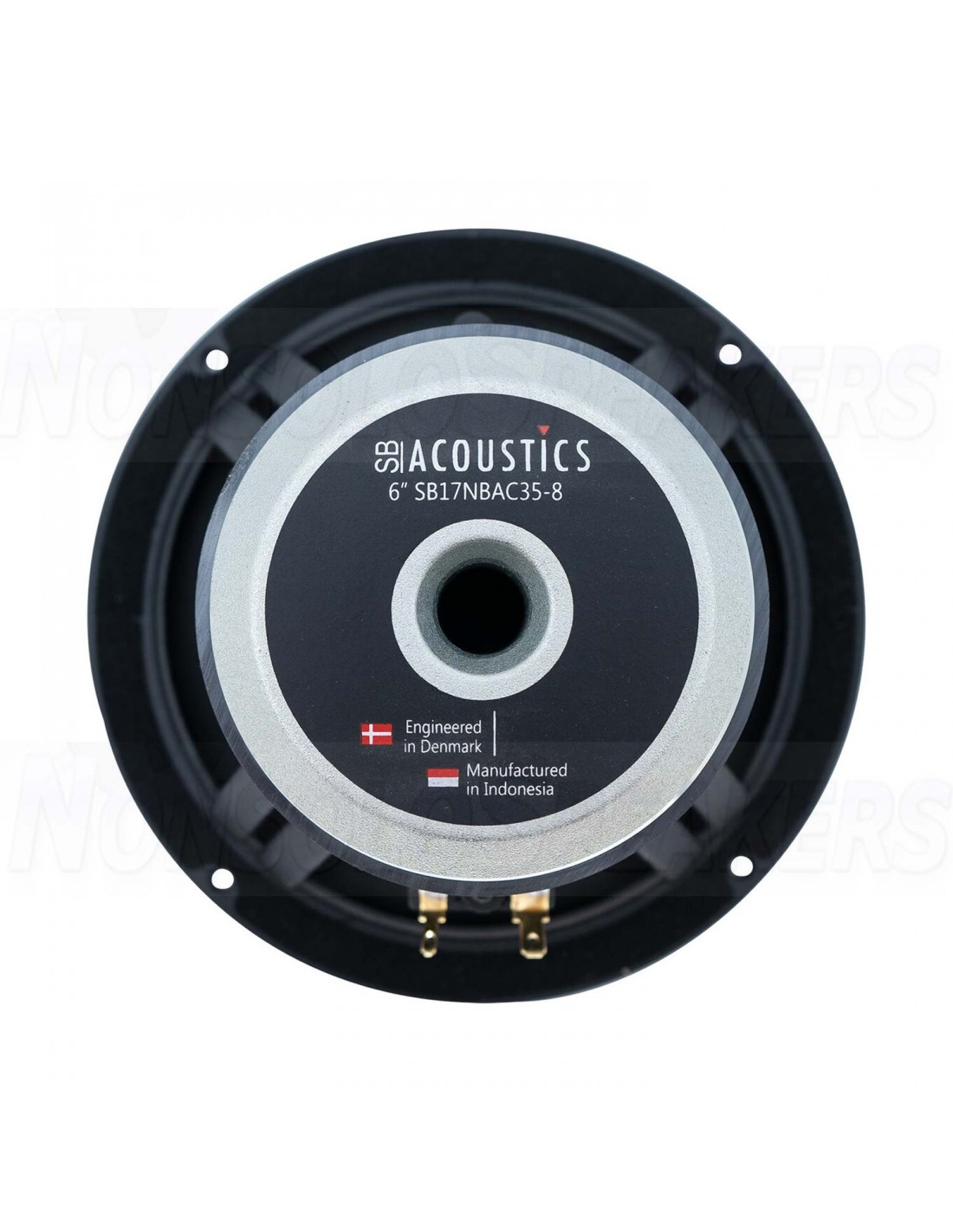

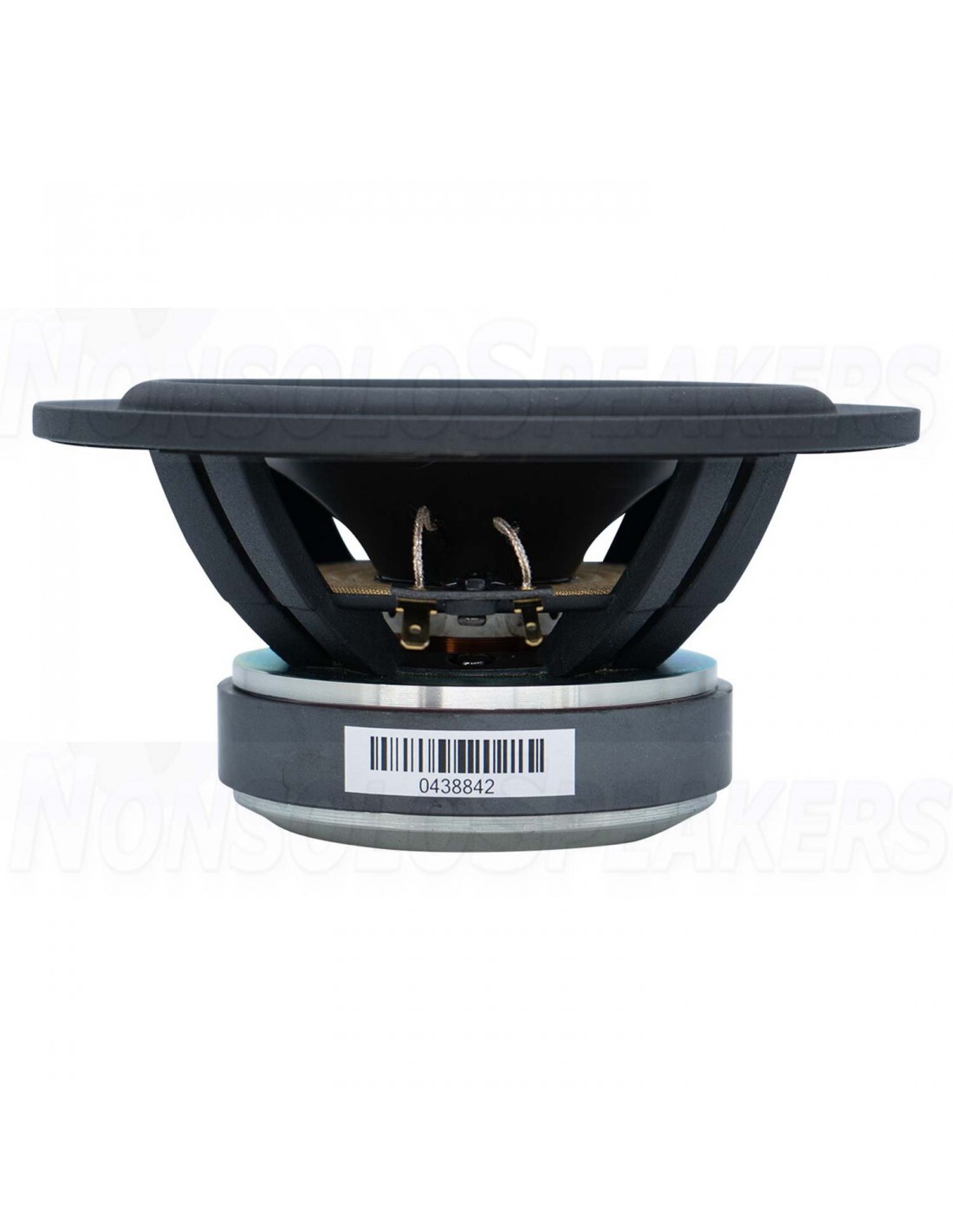

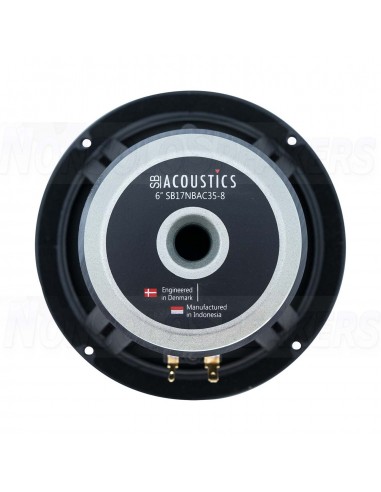

Vented cast aluminum chassis for optimum strength and low compression

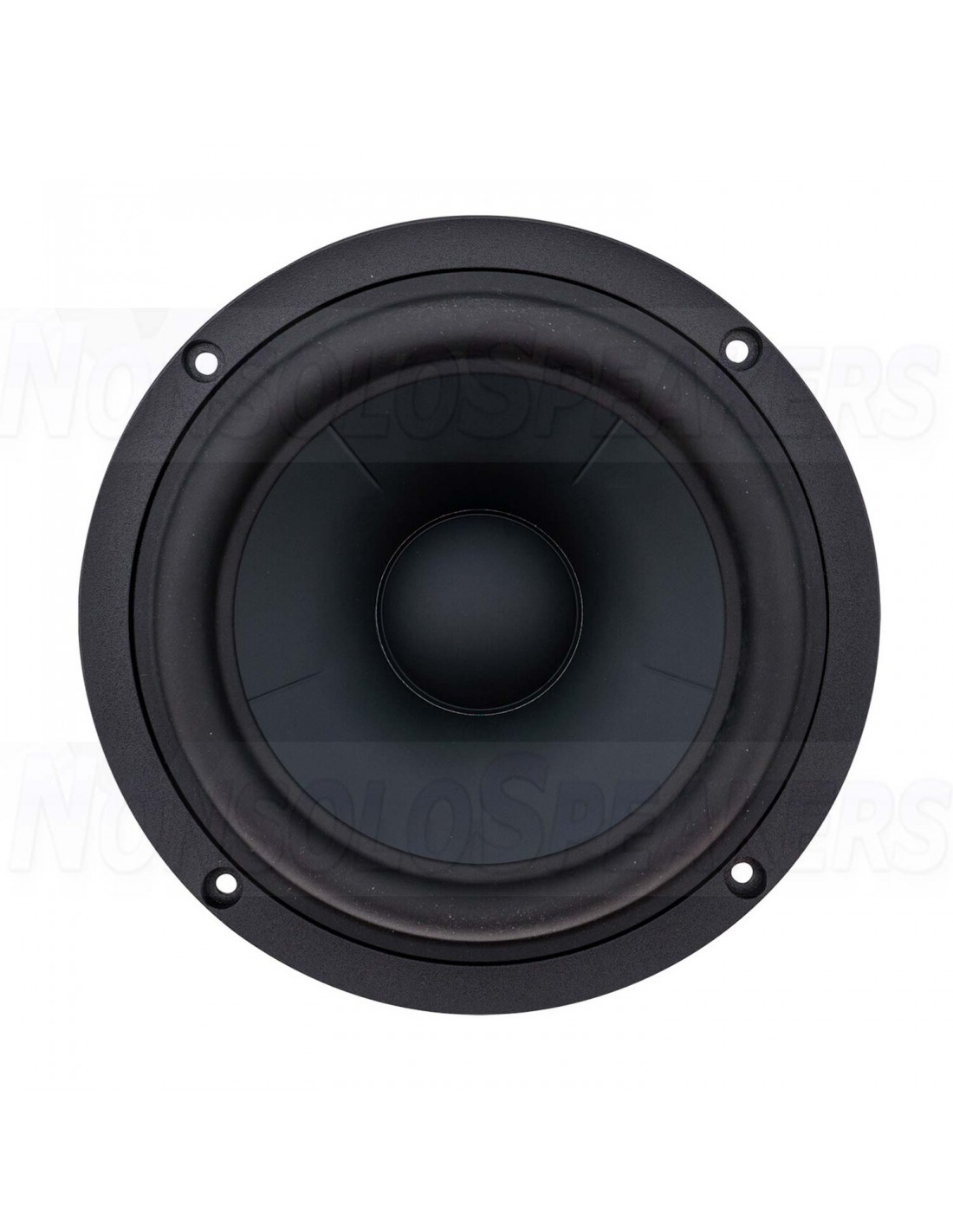

Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up

Soft low damping rubber surround for improved transient response

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

SB Acoustics SB17NBAC35-8 6" Black Aluminum Cone Woofer

The SB Acoustics SB17NBAC35-8 features a vented cast aluminum chassis for optimum strength and low compression, a geometrically reinforced aluminum cone for optimum piston operation and reduced break-up. Soft low damping rubber surround for improved transient response and non-conducting fiber glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and low distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires and vented pole piece for reduced compression.

.

Specifications

Article numberSB17NBAC35-8
Woofer SeriesNBAC Series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)60 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)86.5 dB
Voice Coil Diameter1.39"
DC Resistance (Re)5.7 ohms
Voice Coil Inductance (Le)0.15 mH
Resonant Frequency (Fs)31.5 Hz
Mechanical Q (Qms)4.1
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.35
Diaphragm Mass Inc. Airload (Mms)12.5 g
Mechanical Compliance of Suspension (Cms)2.3 mm/N
Surface Area of Cone (Sd)118 cm2
BL Product (BL)5.9 Tm
Compliance Equivalent Volume (Vas)1.58 ft.³
Maximum Linear Excursion (Xmax)5.5 mm
