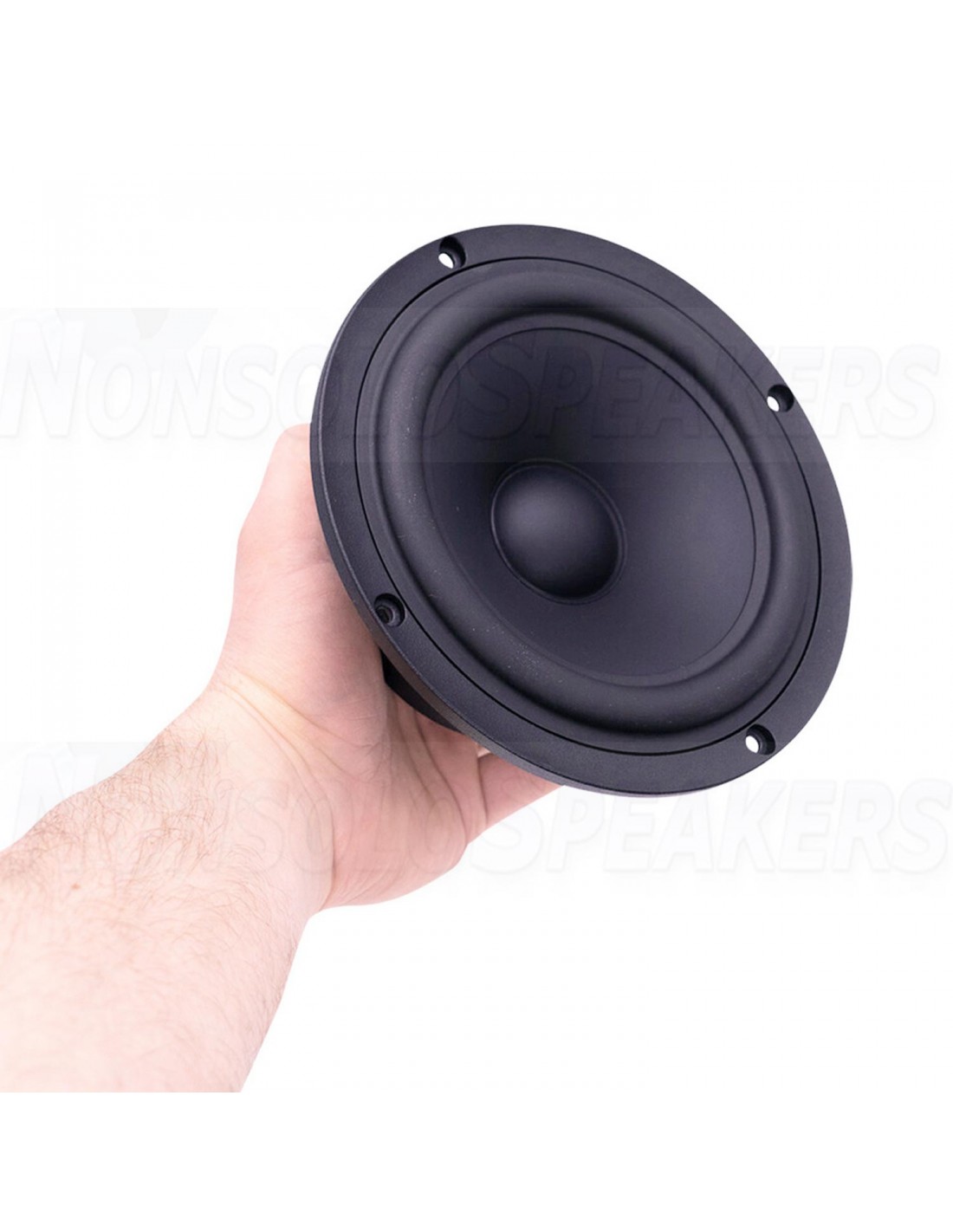

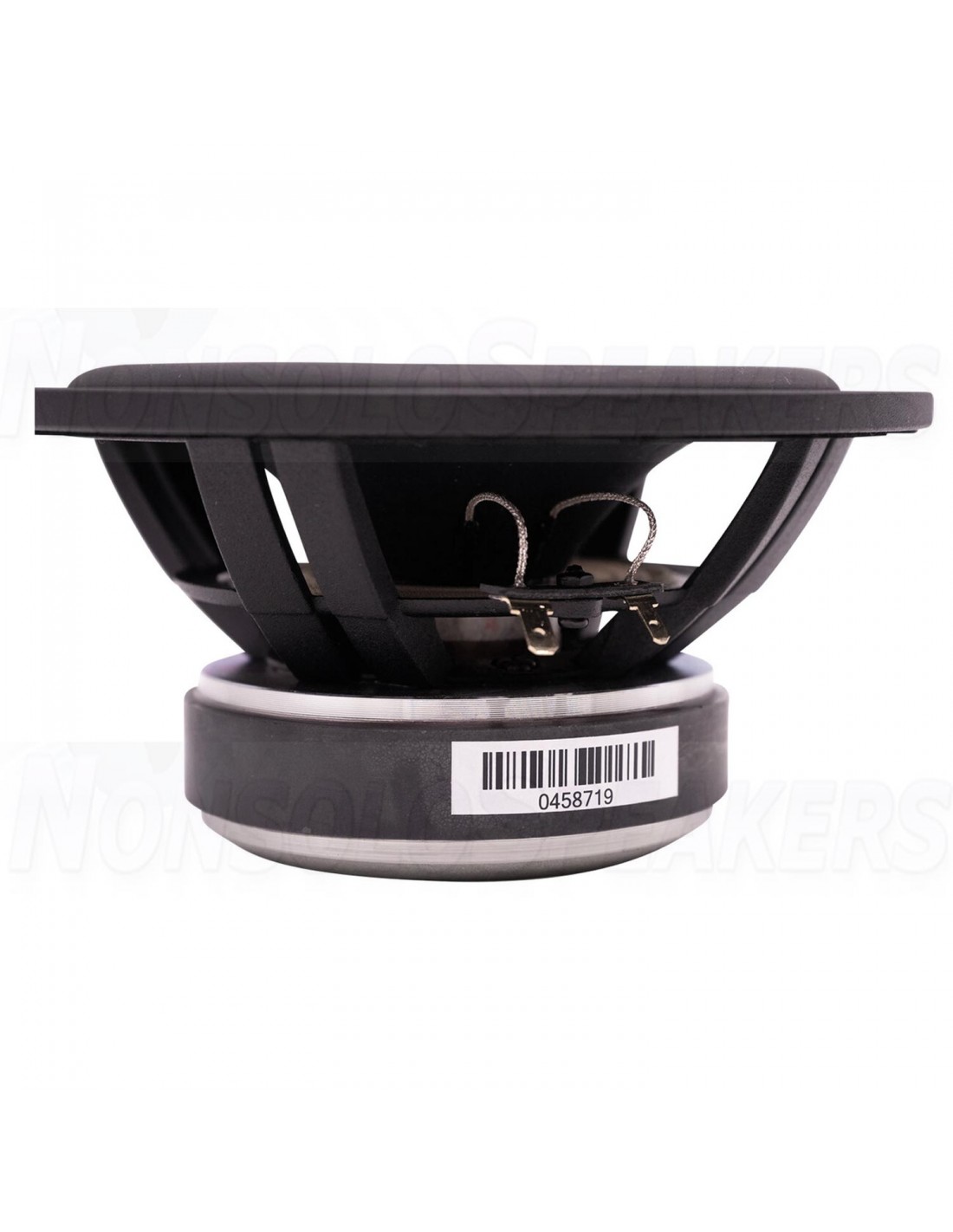

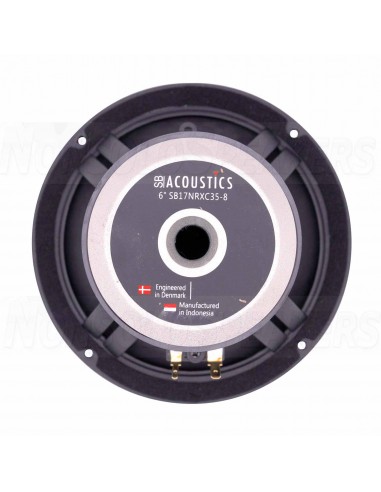

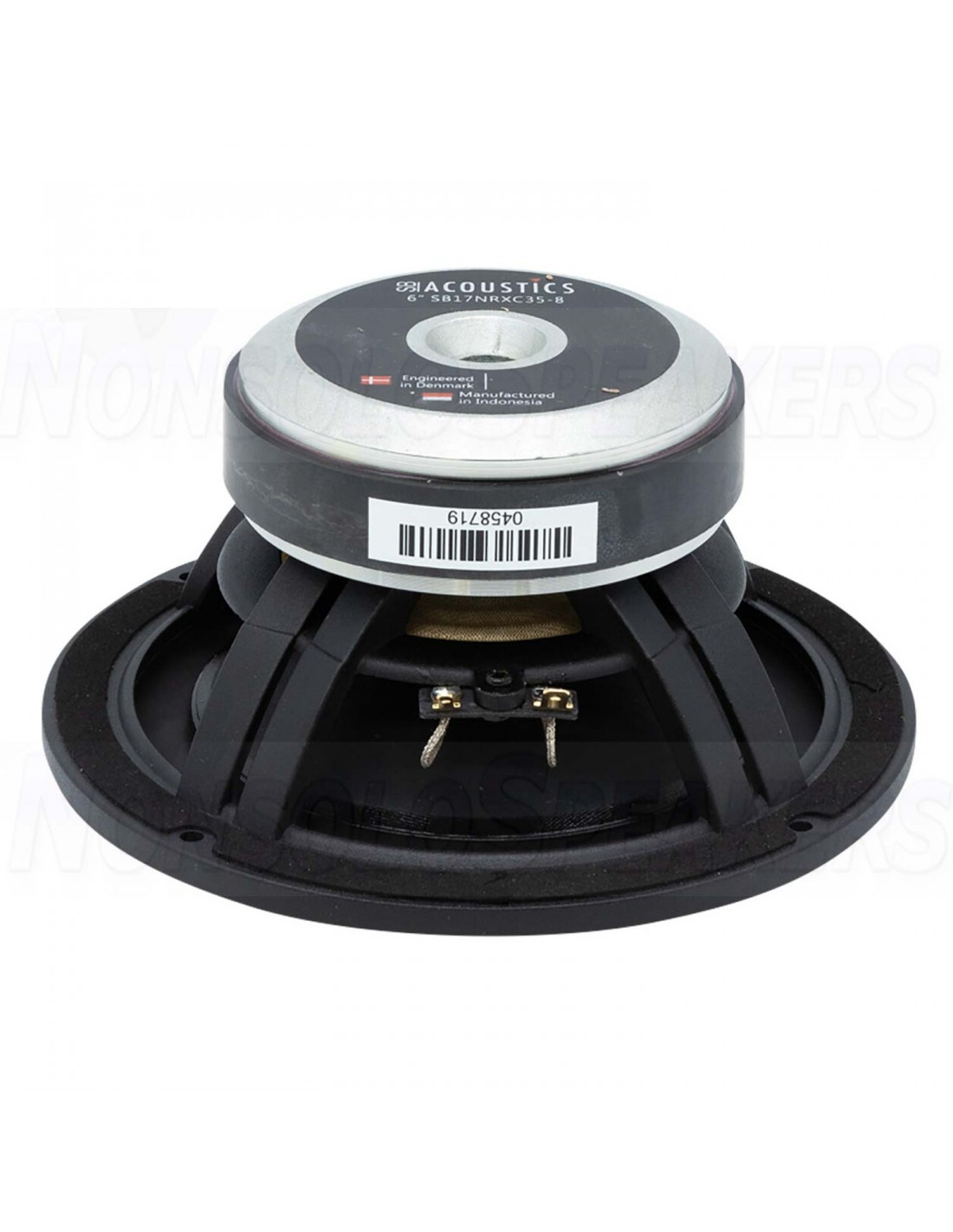

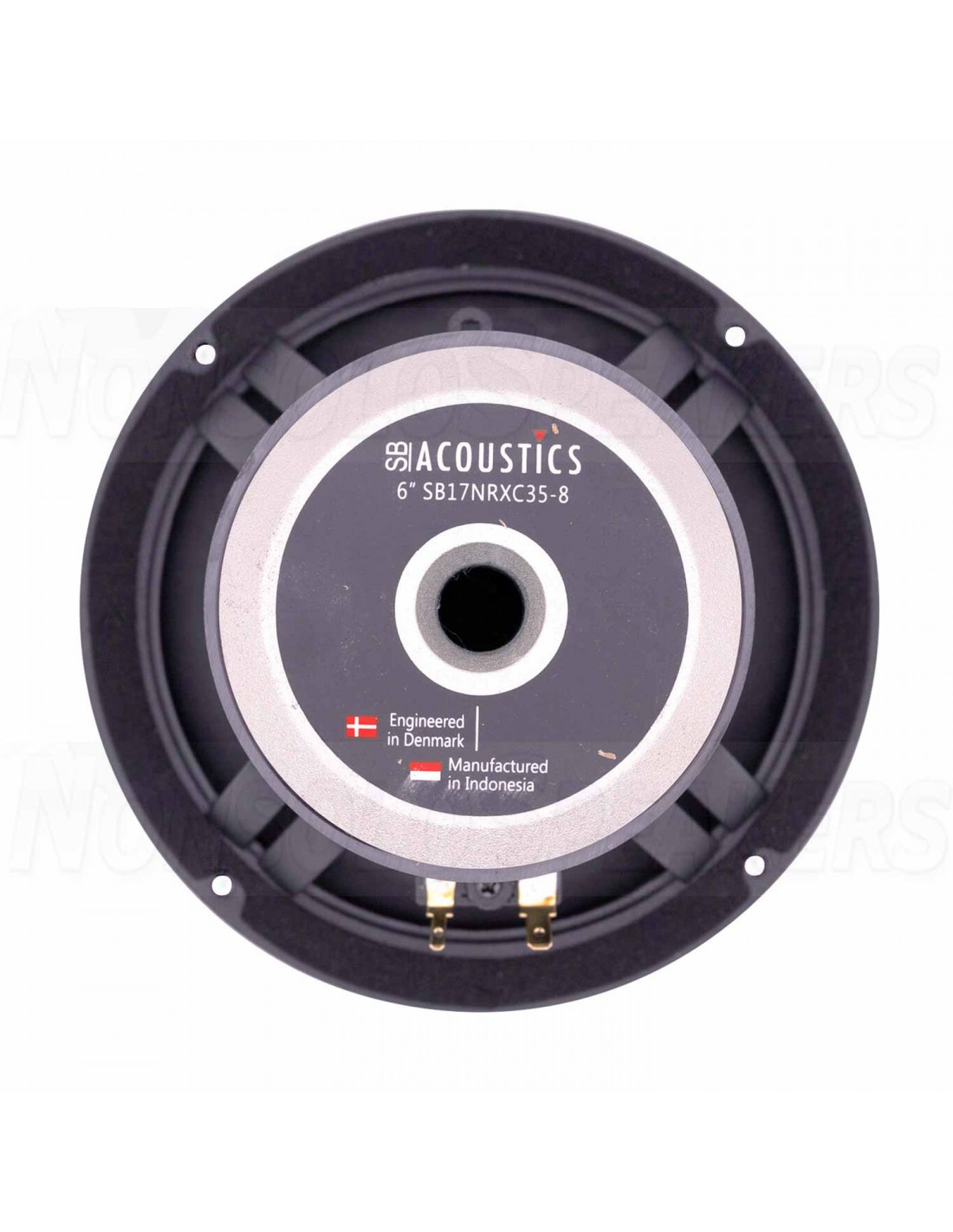

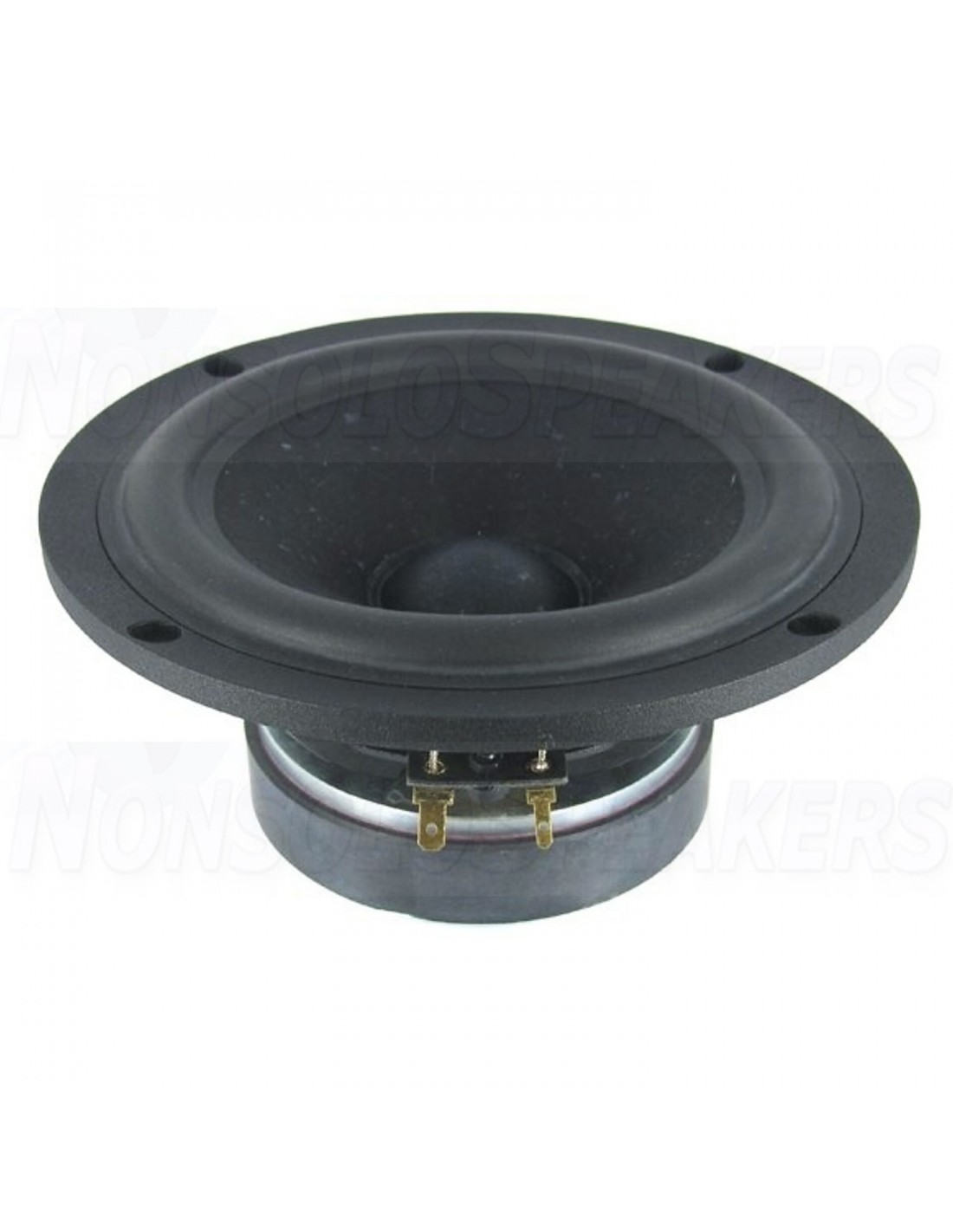

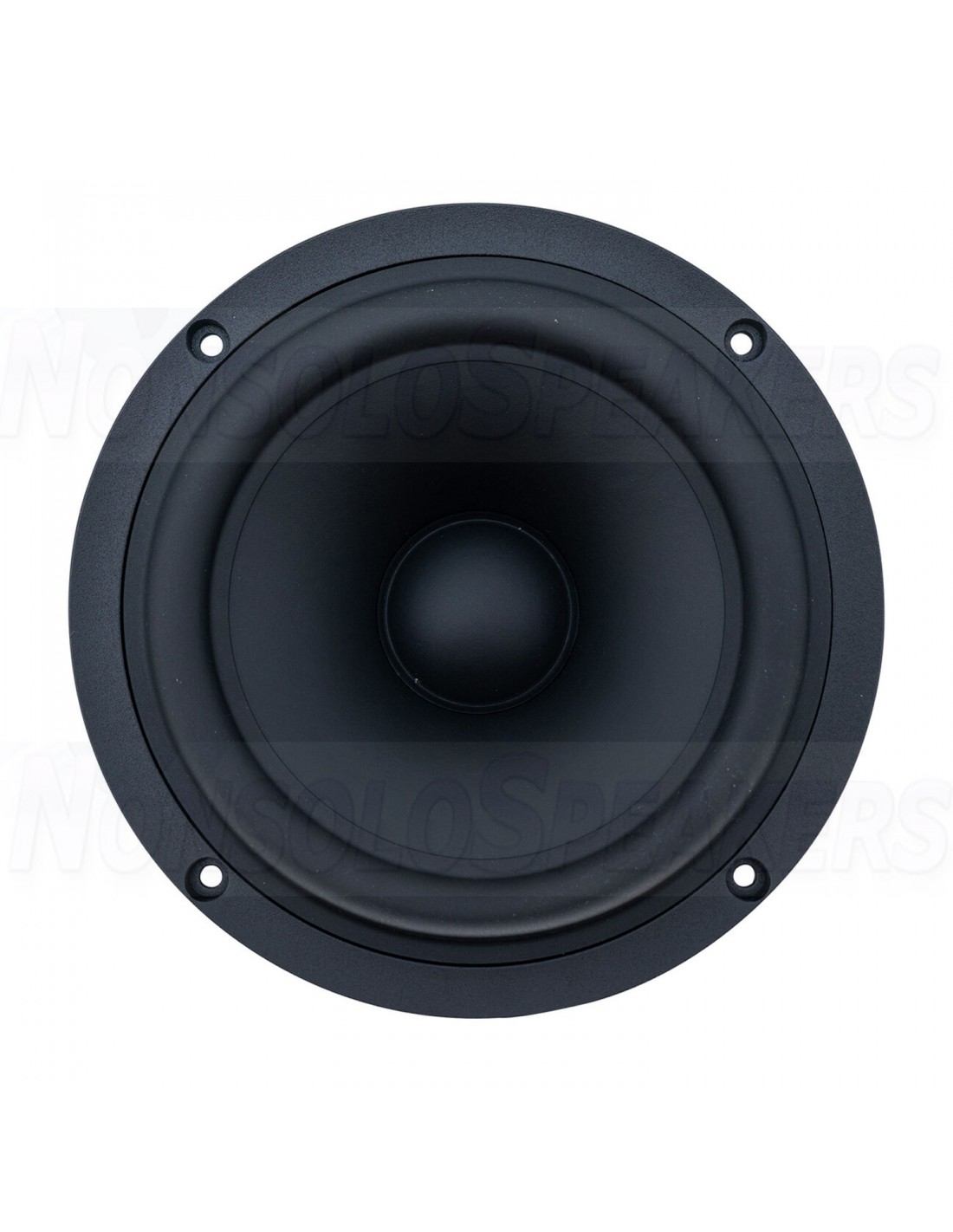

SB ACOUSTICS SB17NRXC35-8 - 6" Midwoofer SB Acoustics - 8ohm

The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio.

SHIPMENT IN 7-10 WORKING DAYS
€69.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB17NRXC35-8 - 6" Midwoofer SB Acoustics - 8ohm

.

Product description

Vented cast aluminum chassis for optimum strength and low compression

Proprietary cone material with natural fibers made in-house

Soft low damping rubber surround for transient response

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

vented pole piece for reduced compression

-

Product details

SB Acoustics SB17NRXC35-8 6" Midrange Woofer

Newly developed Norecx non-resonant poly-coated papyrus fiber cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminum alloy for light weight, non-magnetic and extra rigidity. Shorting copper cap on pole piece. Non-inductive CCAW fiber glass 300mm coil former. Silver lead wires. Vented pole piece.

The goal of SB Acoustics with their NRX series of performance drivers has been to design a simple, yet optimized speaker driver at a competitive price to achieve a high performance to cost ratio for their customers who appreciate premium quality audio. To this end, SBA are proud to present their NRX series where close attention has been payed to design engineering with manufacturing materials and processes to optimize performance.

.

Specifications

Article numberSB17NRXC35-8
Woofer SeriesNRX Series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)60 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)89 dB
Voice Coil Diameter1.4"
DC Resistance (Re)5.7 ohms
Voice Coil Inductance (Le)0.15 mH
Resonant Frequency (Fs)32 Hz
Mechanical Q (Qms)5
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Diaphragm Mass Inc. Airload (Mms)11
Mechanical Compliance of Suspension (Cms)2.25 mm/N
Surface Area of Cone (Sd)118 cm2
BL Product (BL)5.9 Tm
Compliance Equivalent Volume (Vas)1.57 ft.³
Maximum Linear Excursion (Xmax)5.5 mm
Sealed Volume14L - 25L (less damped - damped)
Vented Volume13L @ 35Hz - 17L @ 37Hz (damped - less damped)
SB17NRXC35-8
