16 cm (6.5") high efficiency full-range loudspeaker with tweeter cone.

SHIPMENT IN 5-7 WORKING DAYS
€26.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton BG 17 6.5" Full-Range Speaker 8 Ohm

16 cm (6.5") high efficiency full-range loudspeaker with tweeter cone.

.

Highlights

  • High efficiency
  • Holes for fitting a transformer (100V-network) to magnet or basket
  • Tweeter cone

.

Product Details

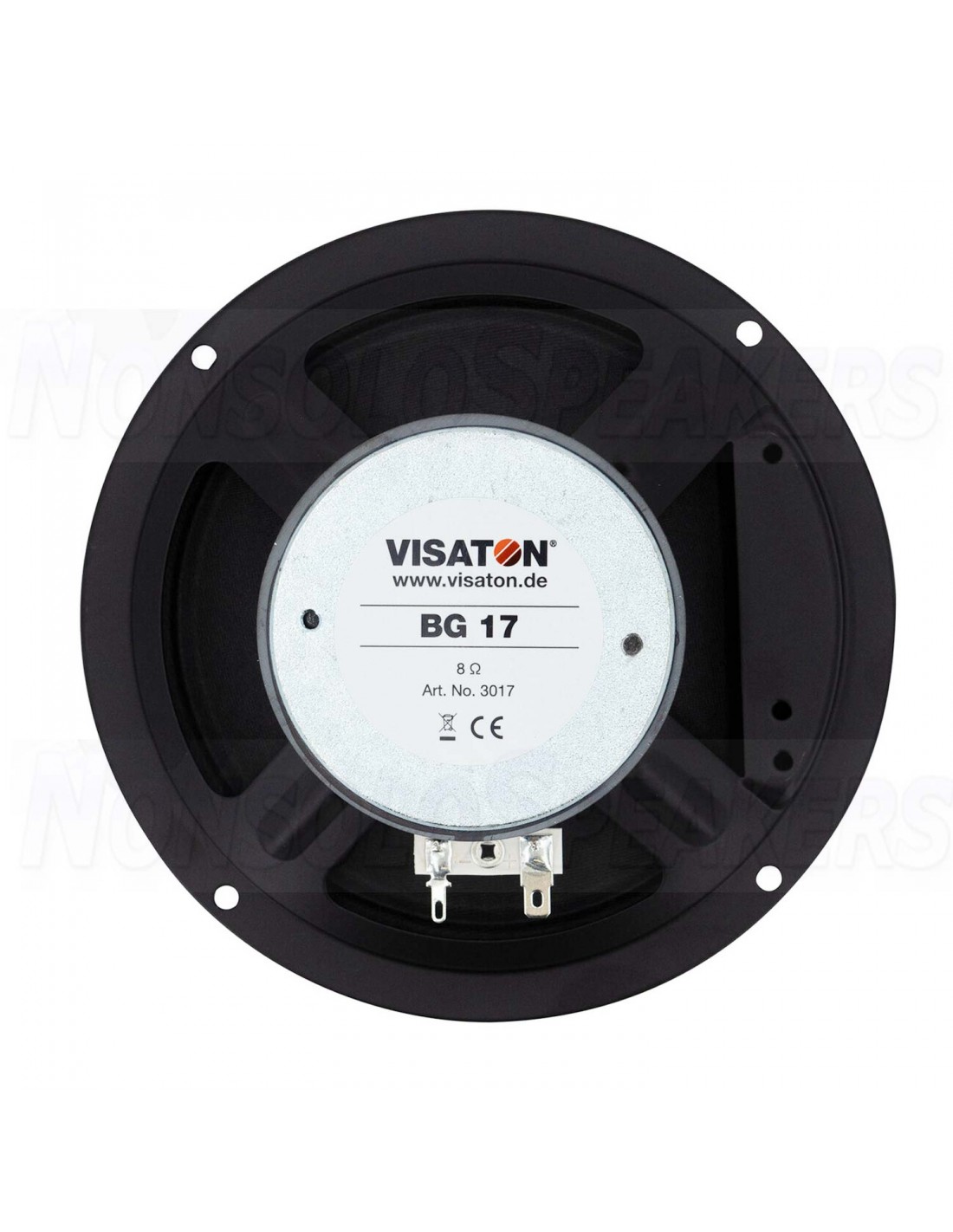

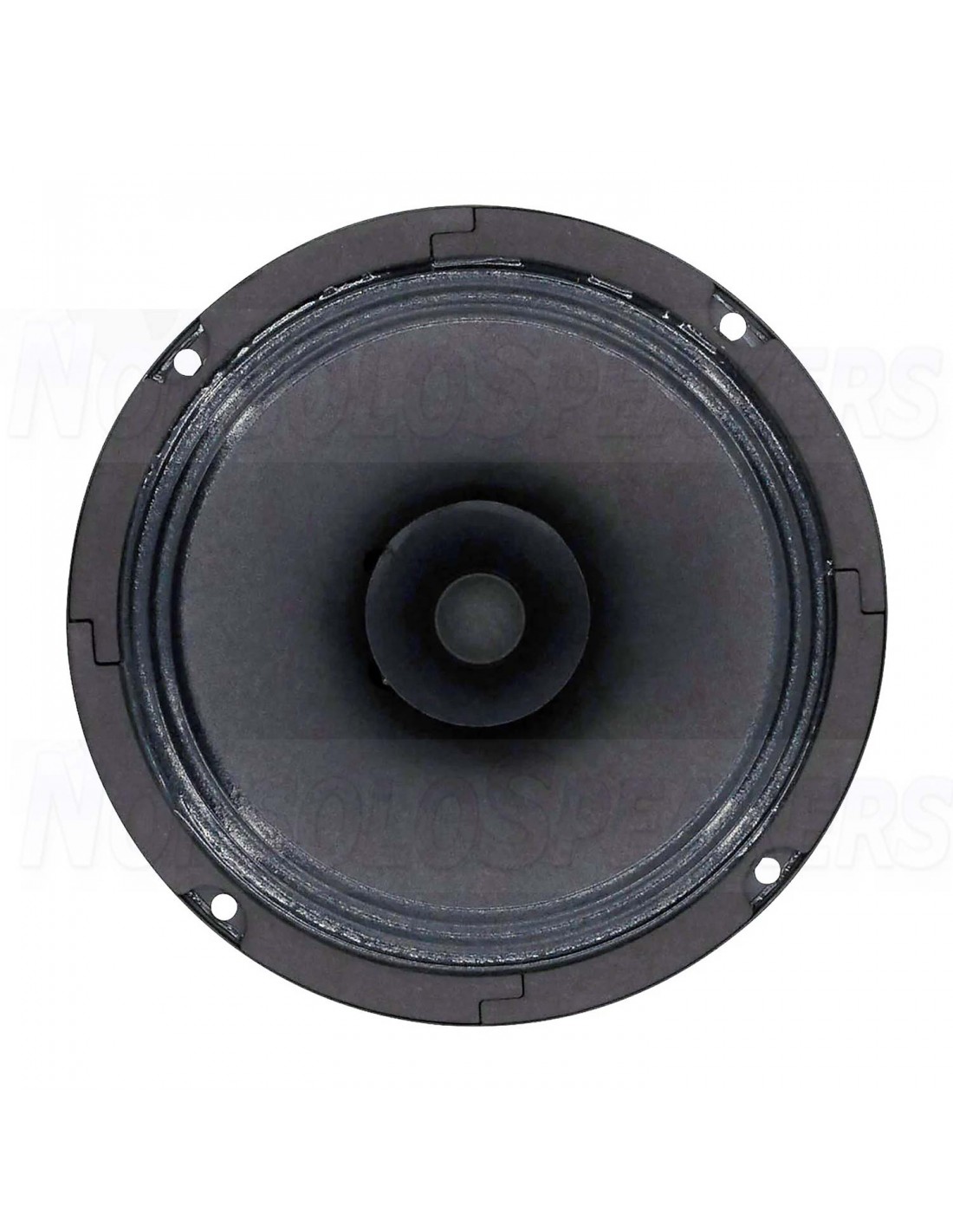

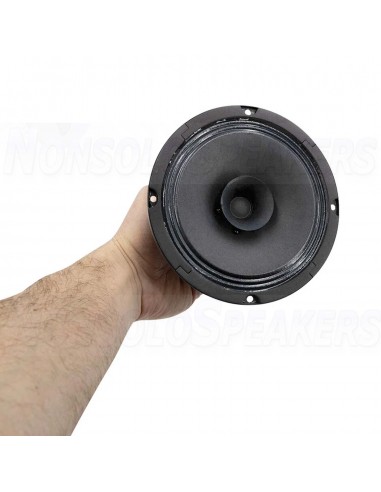

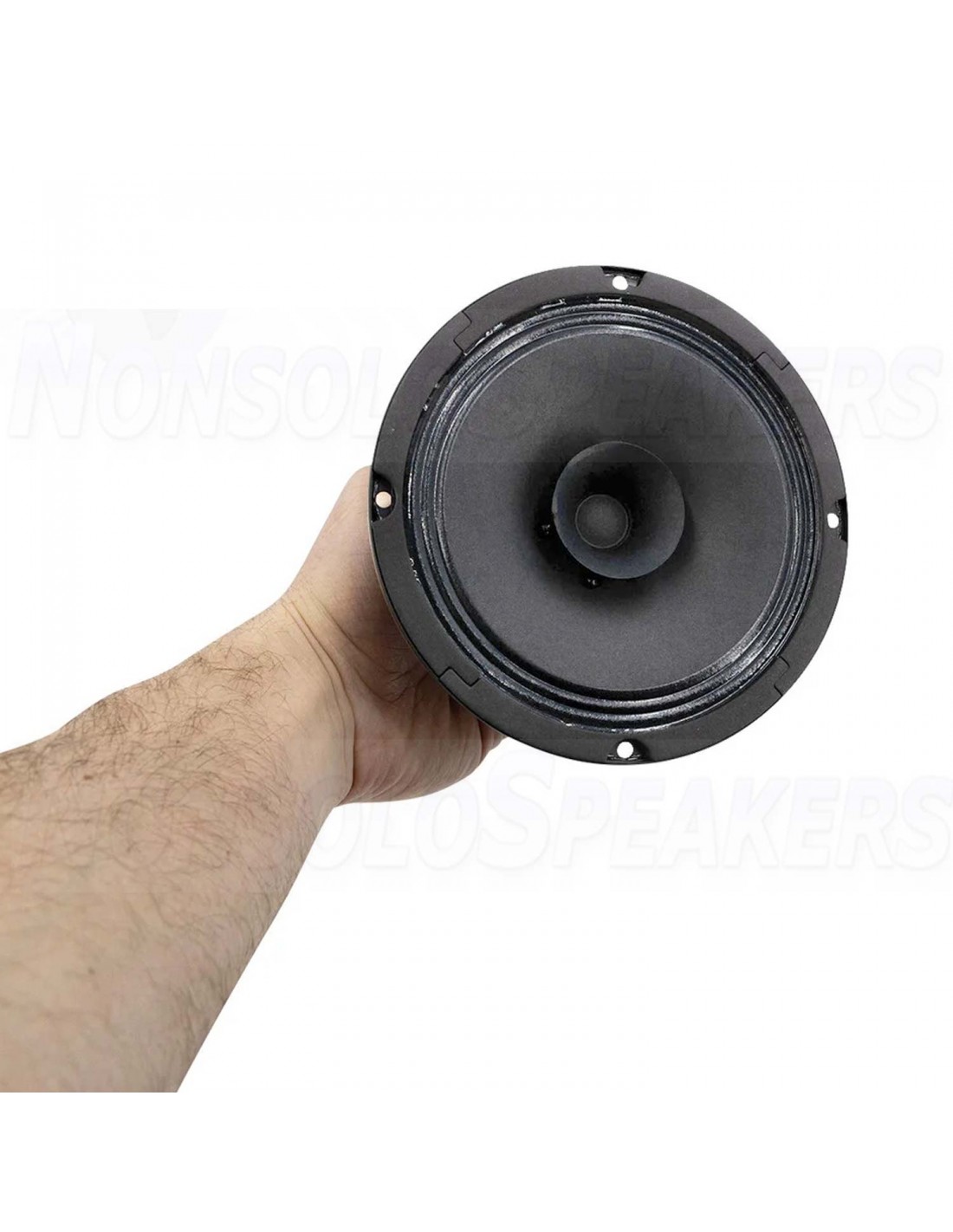

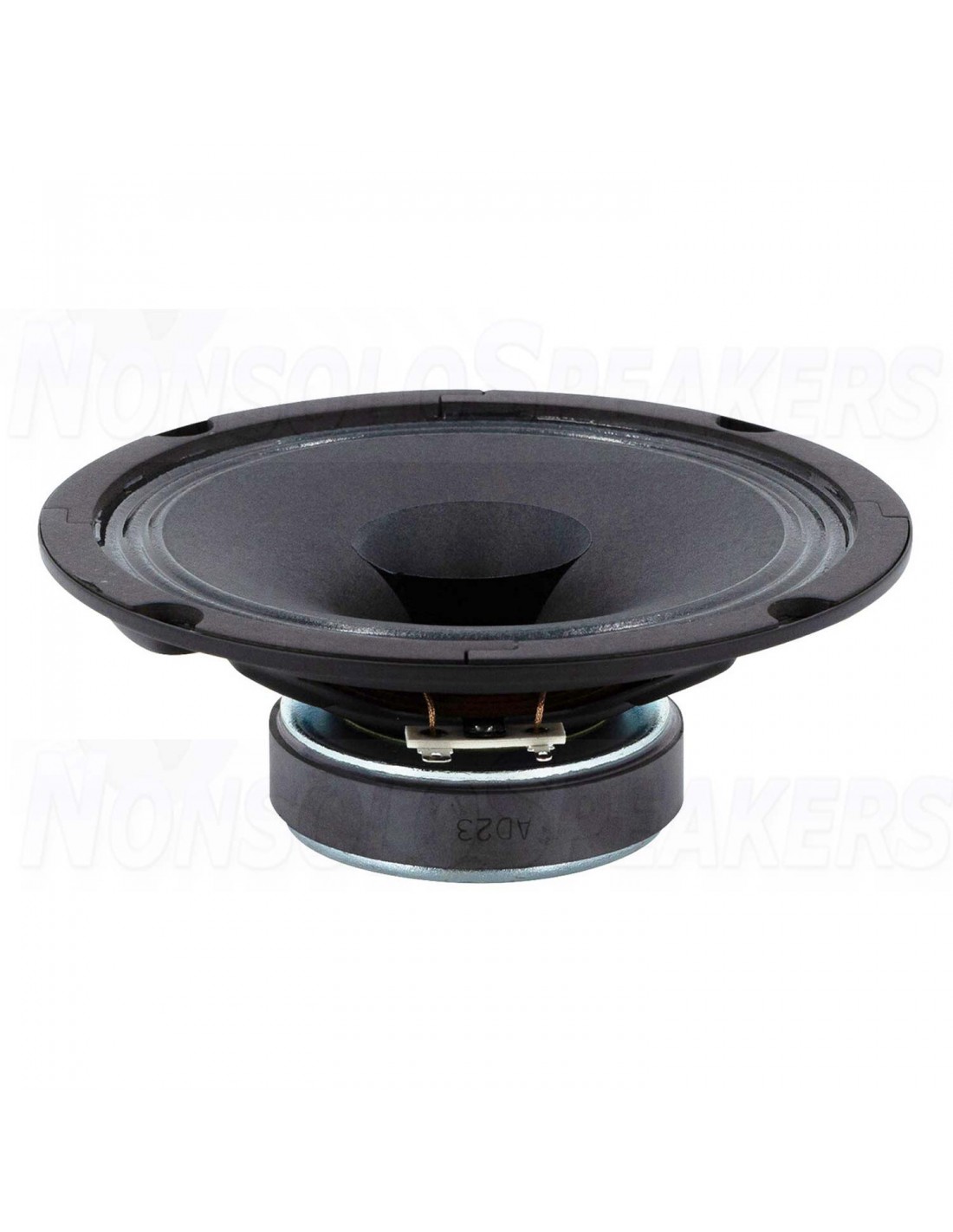

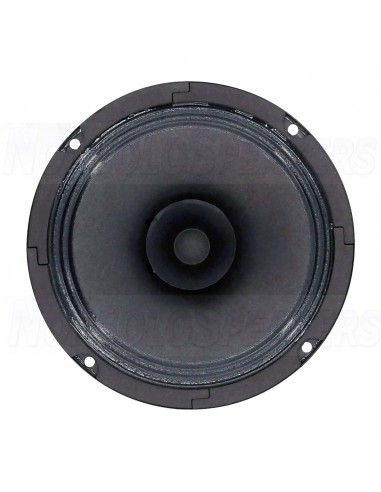

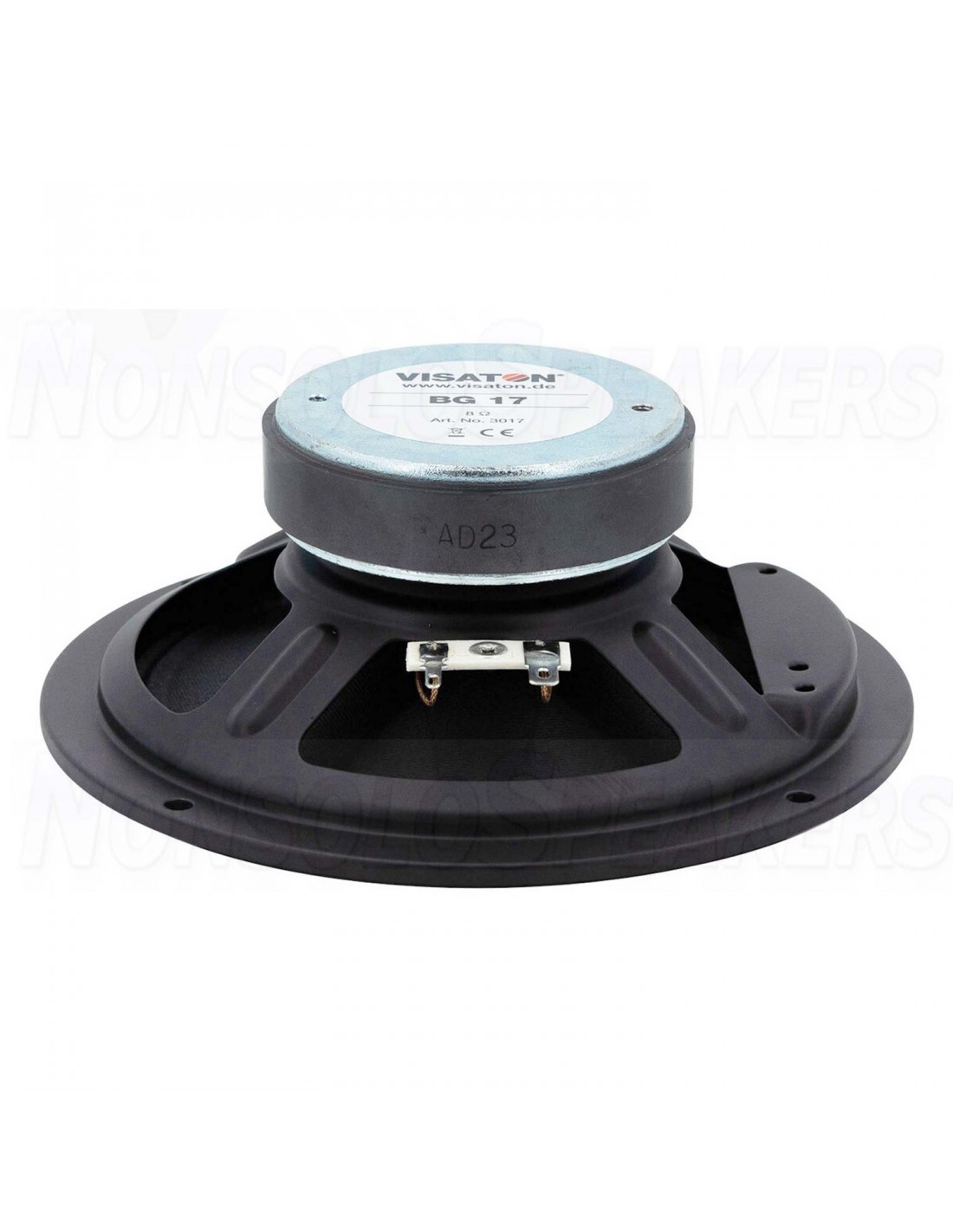

Visaton BG 17 6.5" Full-Range Speaker 8 Ohm

These high efficiency full-range speakers stand out because of their high end used paper cone. The BG 17 is ideally suited to use as midrange unit for full scale or musicians' PA systems, vocal or guitar monitors or as fullrange speaker for electronic organs and keyboards.

.

Technical Data

  • Article number BG 17
  • Woofer Type Full-Range
  • Nominal Diameter 6.5"
  • Power Handling (RMS) 40 Watts
  • Power Handling (max) 60 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 93 dB
  • Frequency Response 80–20,000 Hz
  • Voice Coil Diameter 20 mm
  • DC Resistance (Re) 6.3 ohm
  • Voice Coil Inductance (Le) 0.7 mH
  • Resonant Frequency (Fs) 120 Hz
  • Mechanical Q (Qms) 2.94
  • Electromagnetic Q (Qes) 0.98
  • Total Q (Qts) 0.74
  • Diaphragm Mass Inc. Airload (Mms) 6.5 g
  • Compliance Equivalent Volume (Vas) 8.2 L
  • Maximum Linear Excursion (Xmax) 1.5 mm
  • Magnet Material Ferrite
  • Overall Outside Diameter 165 mm
  • Overall Depth 61.5 mm
  • Baffle Cutout Diameter 146 mm
  • Bolt Circle Diameter 155 mm
  • # Mounting Holes 4 Mounting Hole Diameter 4.8 mm

Visaton BG 17
