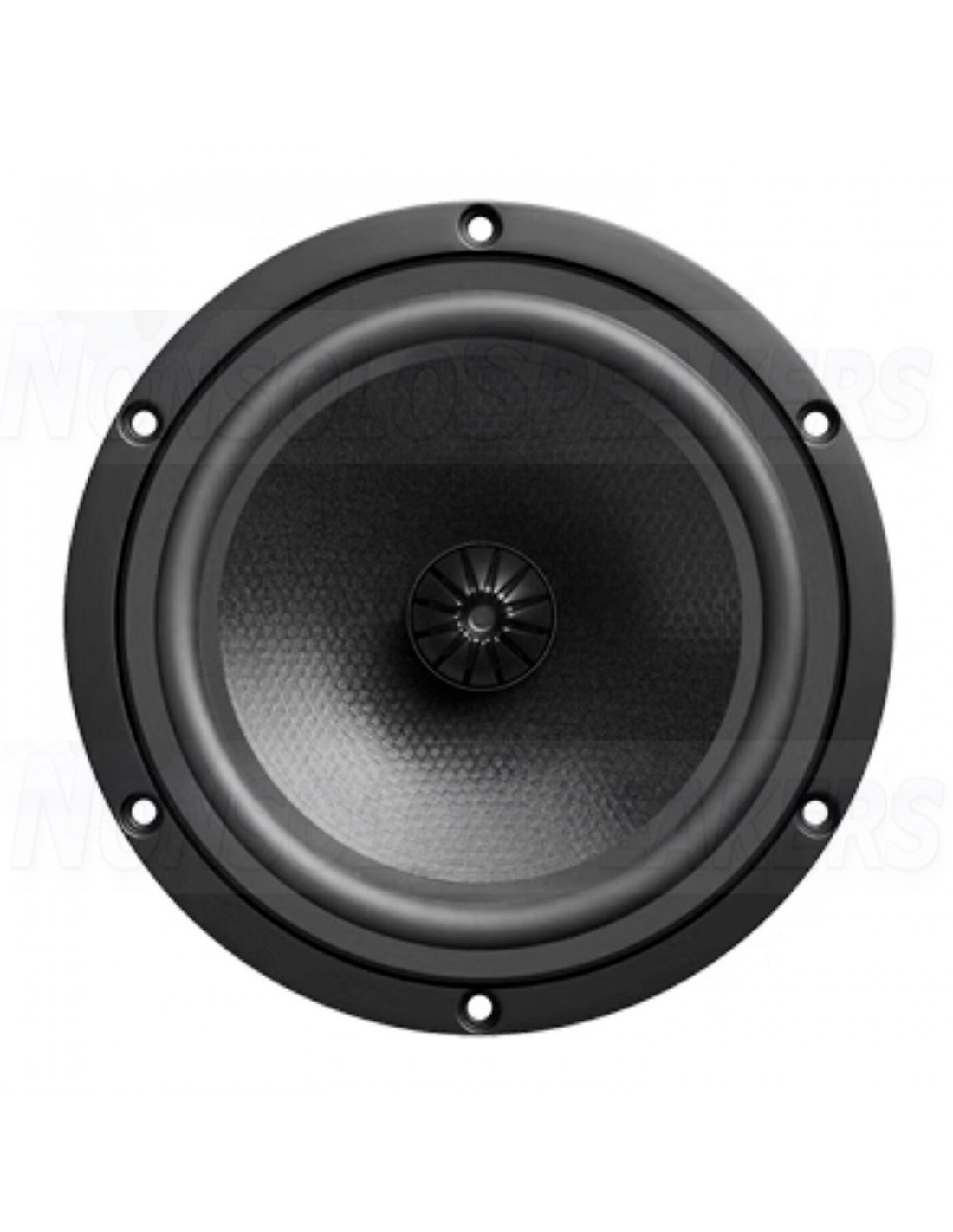

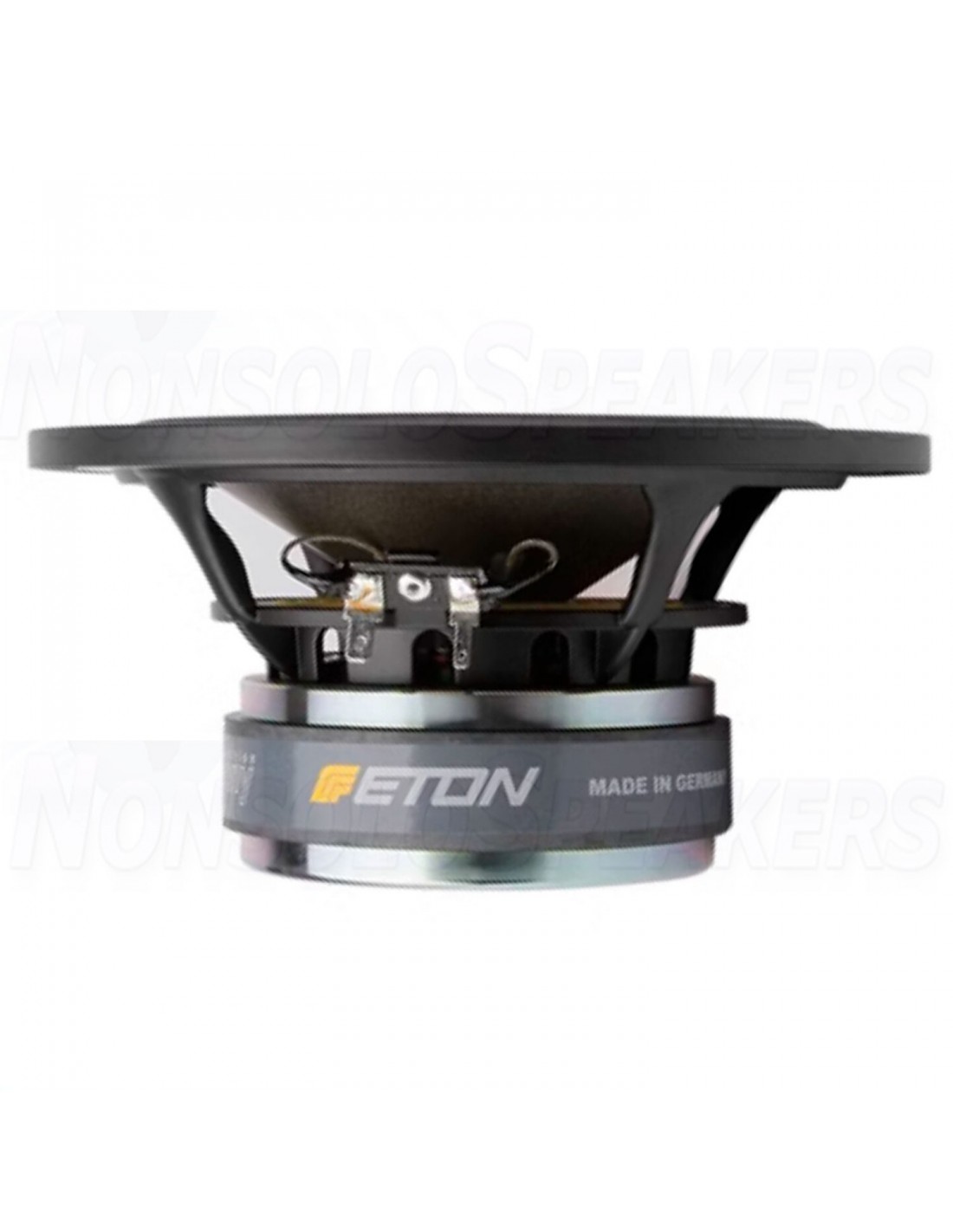

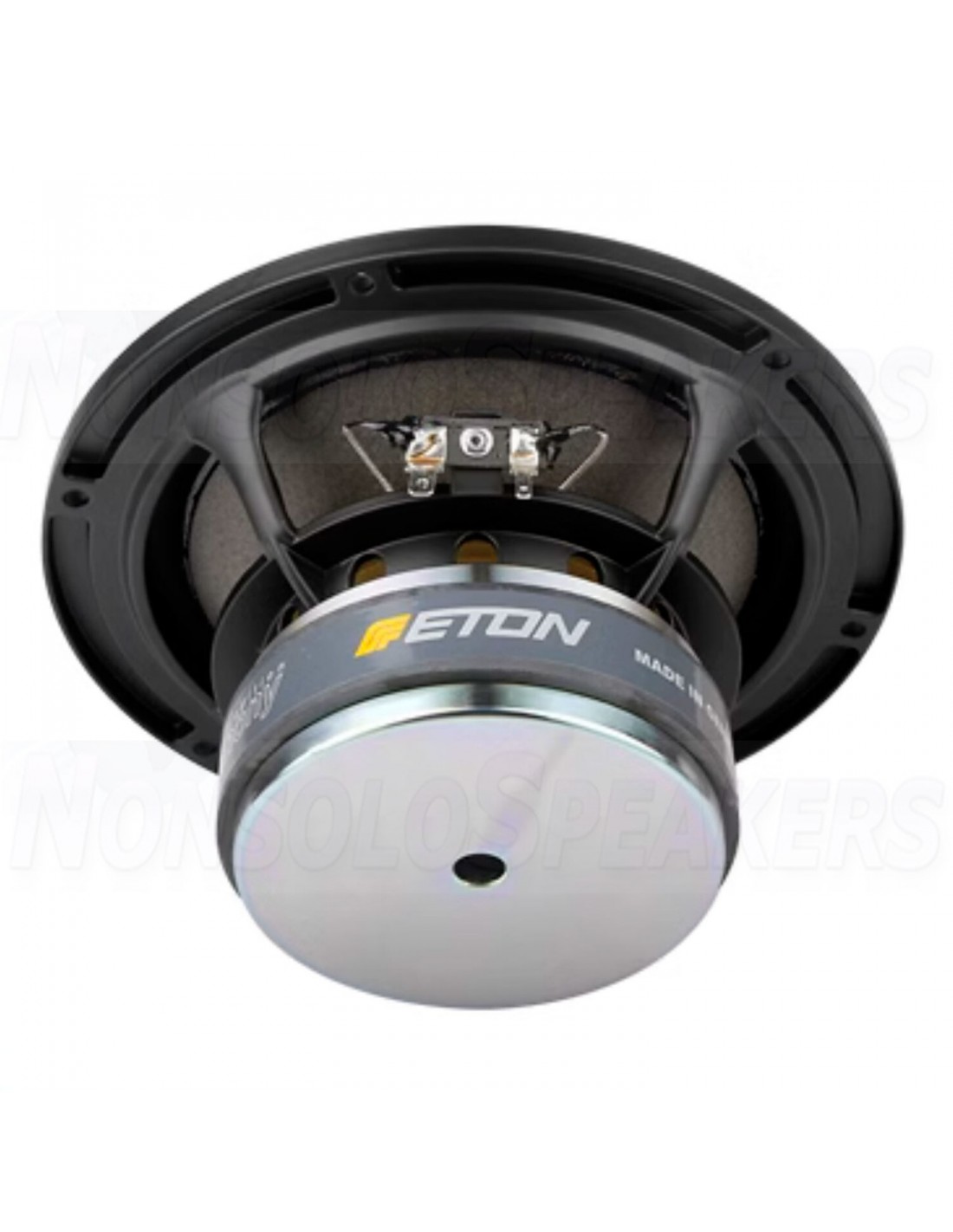

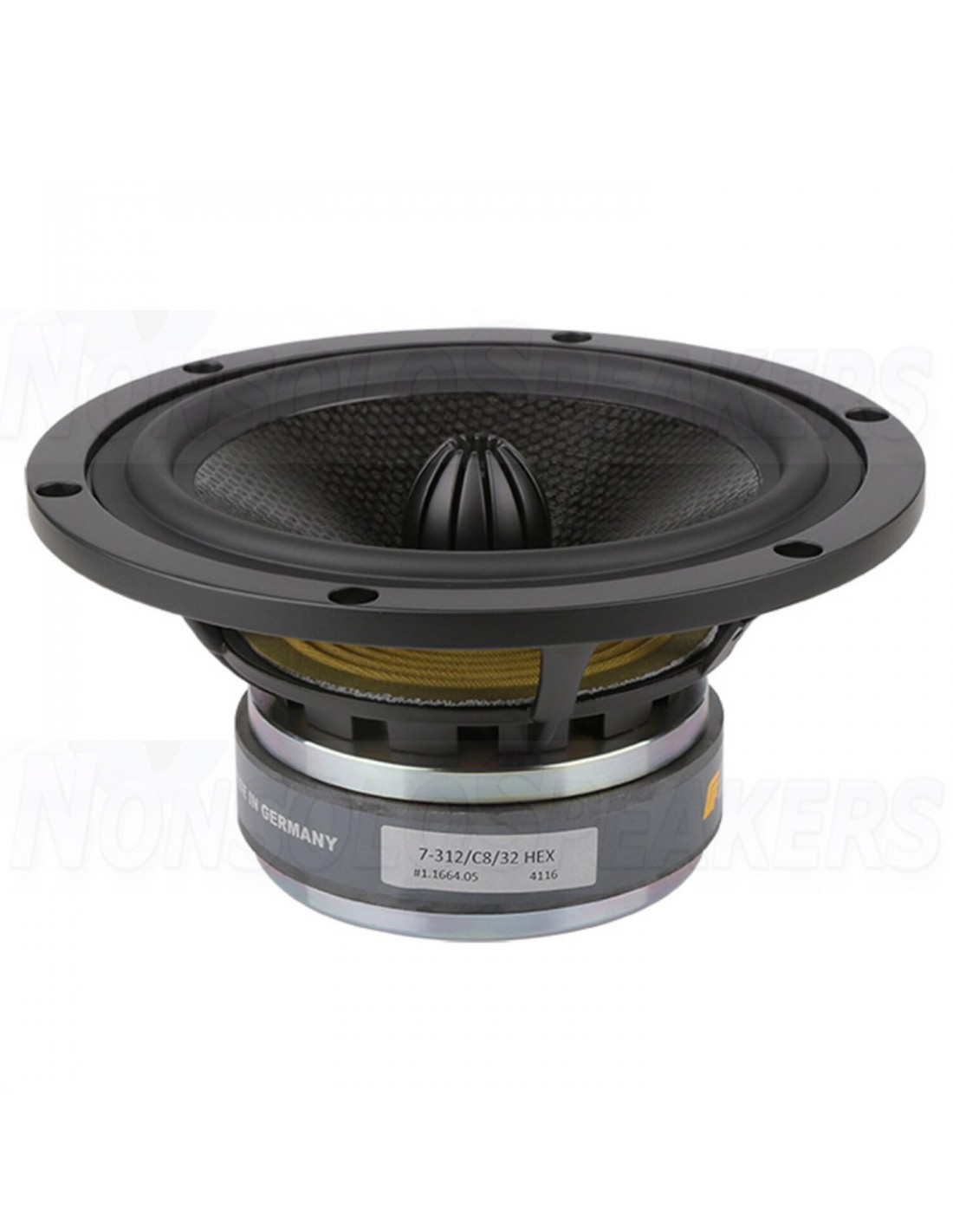

The ETON 7-312/C8/32 HEX Bass-mid Woofer is a high-quality speaker that is designed to deliver exceptional sound quality. It features a three-layer Hexacone sandwich cone, which is lightweight and rigid, and provides excellent sound quality.

SHIPMENT IN 7/10 WORKING DAYS
€184.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



ETON 7-312/C8/32 HEX Bass-mid Woofer

The ETON 7-312/C8/32 HEX Bass-mid Woofer is a high-quality speaker that is designed to deliver exceptional sound quality. It features a three-layer Hexacone sandwich cone, which is lightweight and rigid, and provides excellent sound quality. The speaker also has a phase plug construction, which helps to improve dispersion and reduce distortion.

.

Highlights

  • 7-inch three-layer Hexacone sandwich cone
  • Phase plug construction
  • Frequency response of 55Hz to 10kHz
  • Maximum power handling capacity of 120W RMS

.

Product details

ETON 7-312/C8/32 HEX Bass-mid Woofer

The ETON 7-312/C8/32 HEX Bass-mid Woofer is a versatile speaker that can be used in a variety of applications, including home audio, car audio, and professional audio. It has a frequency response of 55Hz to 10kHz, and a maximum power handling capacity of 120W RMS. This means that it can reproduce a wide range of frequencies, and can handle a lot of power, making it ideal for a variety of different systems

.

Technical Specifications

  • Specifications: Diameter: 181 mm (7.13 inches)
  • Impedance: 8 Nominal power: 80 W
  • SPL sensitivity (1W/1m): 89 dB
  • Frequency range: 50 - 3000 Hz
  • Coil diameter: 32 mm (1.26 inches)
  • Frame depth: 7.5 mm
  • Speaker depth: 87 mm
  • Height coil: 17 mm
  • Magnetic flux density: 1
  • TDesign: Magnet material: ferrite C
  • oil wire material: copper
  • Tape material: kapton
  • Parameters: Fs: 34 Hz ​​Re: 6.7
  • Qms: 6.40
  • Qes: 0.30
  • Qts: 0.29
  • Vas: 30 l
  • Cms: 1.14 mm/NSd: 137 cm
  • 2Xmax: 4.5/8.8 mm
  • Mms: 17.3 gBl: 8.8
  • TmLe: 0.9 mH
  • Total diameter: 181 mm
  • Cutout hole diameter: 151.5 mm
  • Frame depth: 7.5 mm
  • Diffuser depth: 87 mm
  • Screw hole diameter: 5.2 / 9 mm
  • Terminal: 2.8 / 4.8 mm
  • Net mass: 2.03 kg
