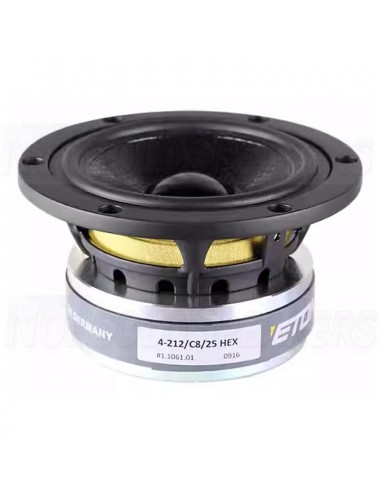

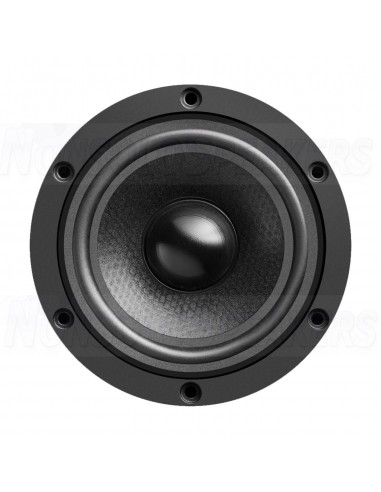

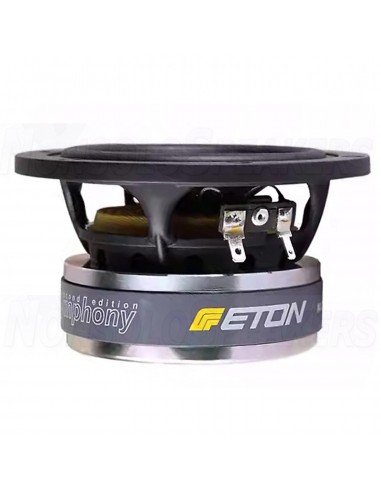

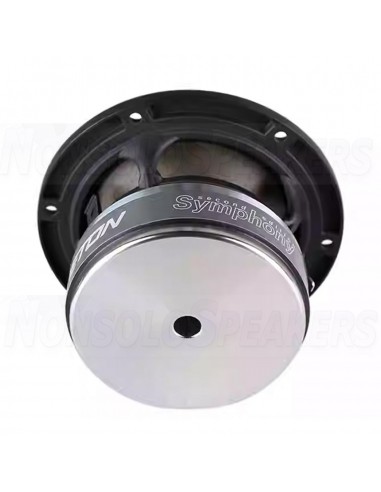

ETON 4-212/C8/25 HEX Bass-mid Woofer

The ETON 4-212/C8/25 HEX Bass-mid Woofer is a 4-inch driver that is designed to deliver deep, powerful bass with exceptional clarity and detail. It features a three-layer Hexacone sandwich cone, which is made from a combination of paper, Kevlar, and glass fiber. This unique construction gives the cone incredible rigidity and strength, while also providing excellent damping properties. The result is a driver that can produce extremely low frequencies without sacrificing clarity or accuracy.

.

Highlights

• Three-layer Hexacone sandwich cone for rigidity, excellent internal absorbing action, and neutral sound performance
• Ferrite magnet geometry for a nearly perfectly symmetrical magnetic field
• Warm, detailed sound
• Accurate staging and uncolored sound
• Very efficient driver

.

Product details

ETON 4-212/C8/25 HEX Bass-mid Woofer

The ETON 4-212/C8/25 HEX Bass-mid Woofer also features a ferrite magnet geometry that is designed to create a nearly perfectly symmetrical magnetic field. This helps to reduce compression effects and improve overall sound quality. The driver also has a high-temperature voice coil that is capable of handling a lot of power without distorting.

In terms of sound quality, the ETON 4-212/C8/25 HEX Bass-mid Woofer is simply outstanding. It produces deep, powerful bass with exceptional clarity and detail. The bass is also very well-defined and controlled, even at high volume levels. The driver also has a wide frequency response, which means that it can reproduce all of the nuances of your music with great accuracy.

Technical Specifications

• Terminal 2.8/4.8 mm
• Screw hole diameter 4.5/8 mm
• Basket edge thickness 6 mm
• Total depth 66 mm
• Installation diameter 96 mm
• Weight 1.2 kg
• Total diameter 122 mm
• Winding layers 2
• Carrier material Kapton
• Wire material Cu
• Diameter 25 mm
• DC resistance Re 5.9 Ω
• Mechanical resistance RMS 0.58 kg/s
• Effective radiating area SD 55 cm2
• Electrical quality Qes 0.43
• Force factor BLxl 5.8 Tm
• Load capacity watts 50 W
• Suspension compliance CMS 0.84 mm/N
• Total quality Qts 0.39
• Total moving mass (including moving air mass) MMD 6.2 g
• Inductance voice coil Le 0.4 mH
• Resonance frequency TSP fr 69 Hz
• Resonance frequency 1W fr 57 Hz
• Average sound pressure level 1W/1m SPL 88 dB
• Equivalent volume VAS 3.6 dm3
• Nominal impedance Zn 8 Ω
• Xmax mechanical +/- 5.5 mm
• Mechanical quality Qms 5.09
• Xmax electrical +/- 2 mm
• Drive system Overhung Ferrofluid no/no
• Dimensions 90 x 36 mm
• Height air gap 6 mm
• Height 10 mm
• Material Ferrite/Ferrite Magnetic flux density 1.15 T
• Recommended frequency range 100 - 5400 Hz
