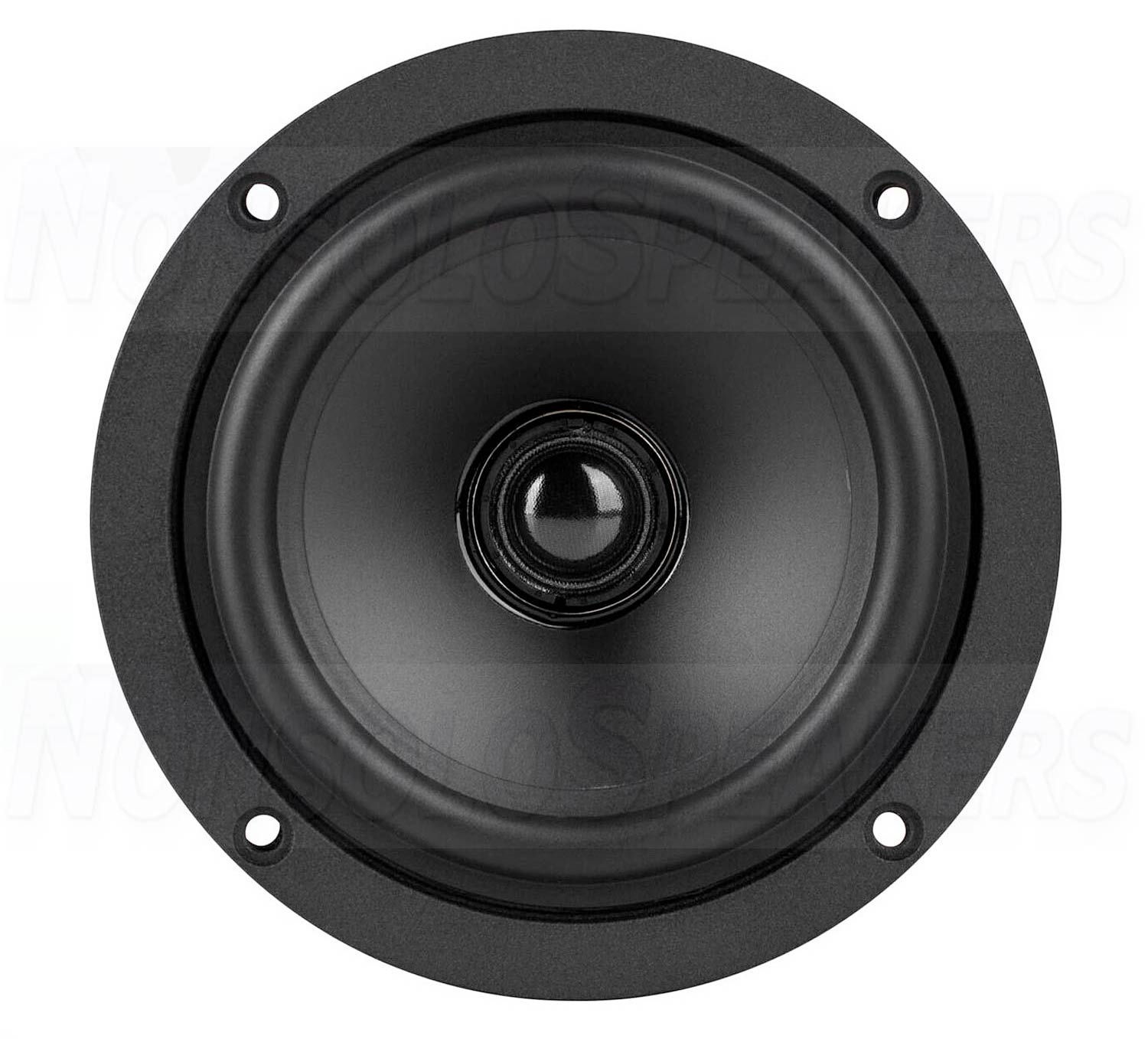

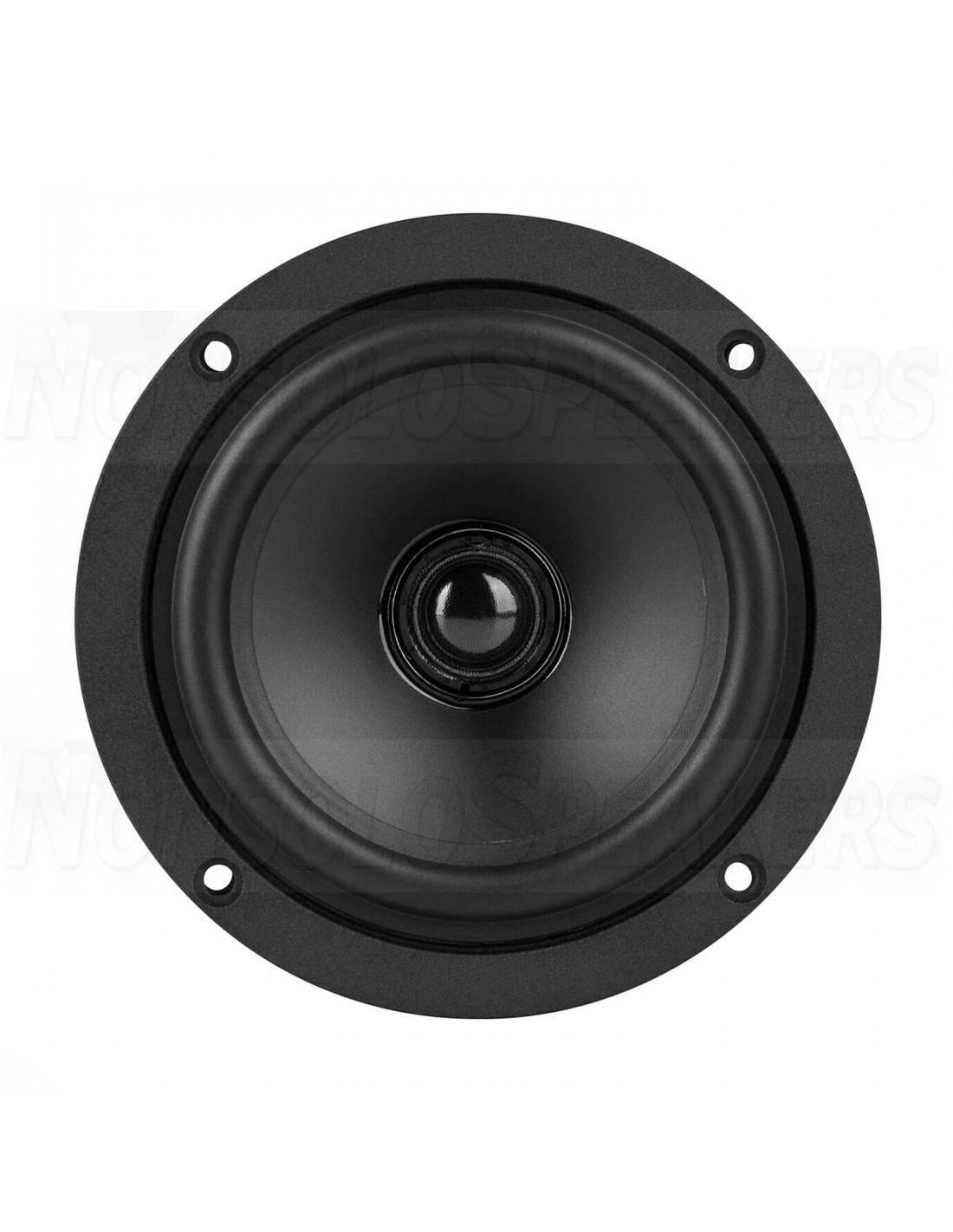

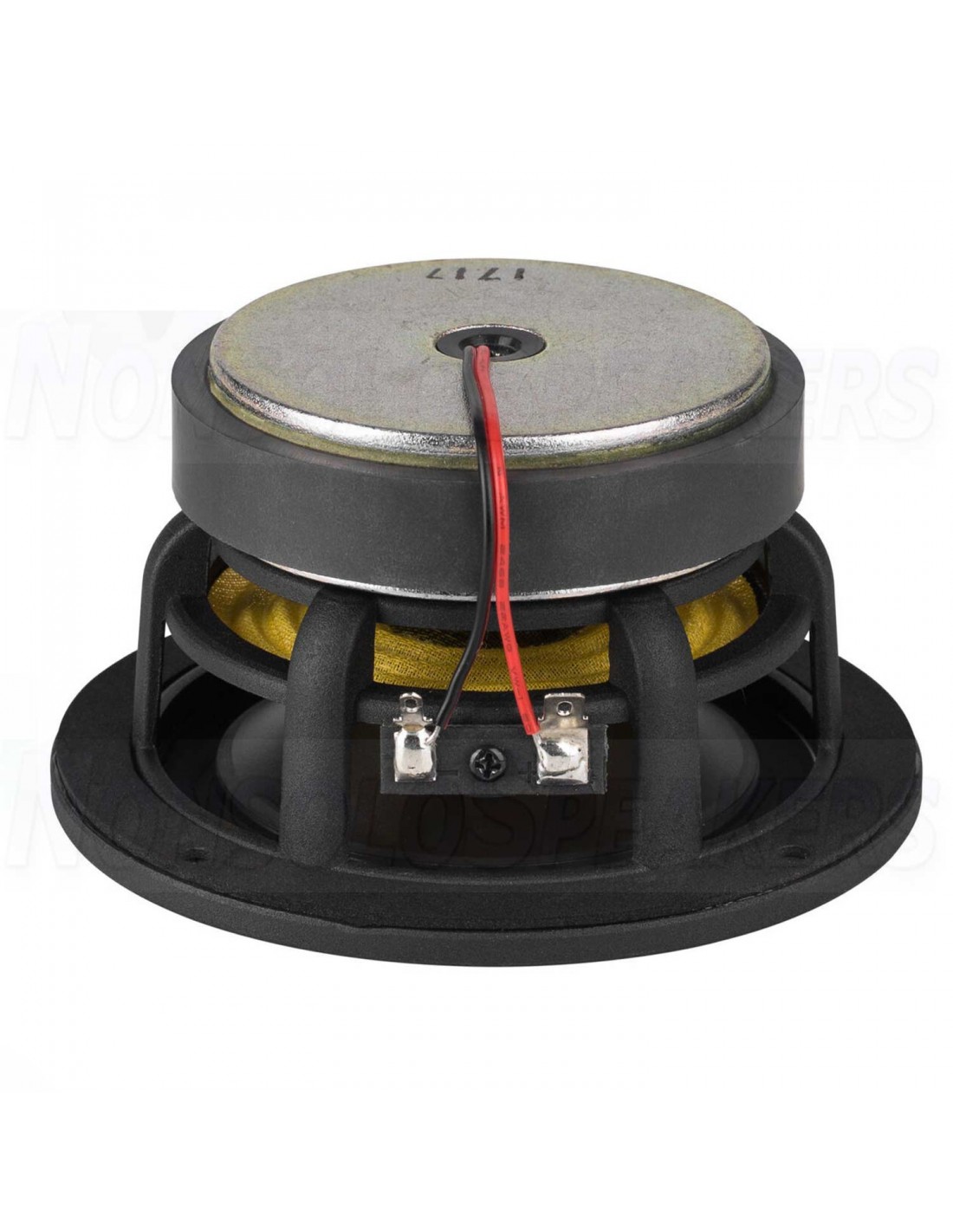

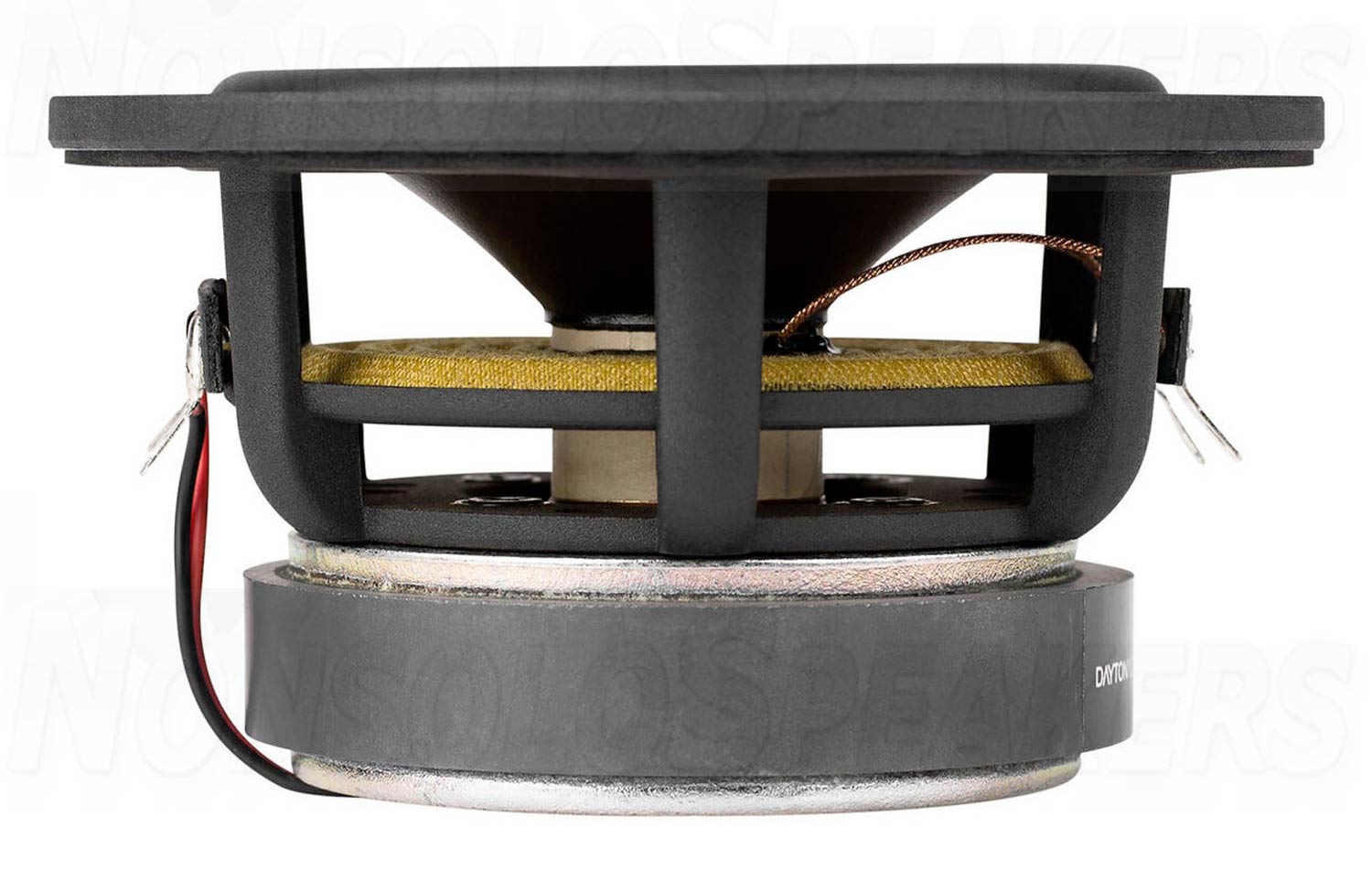

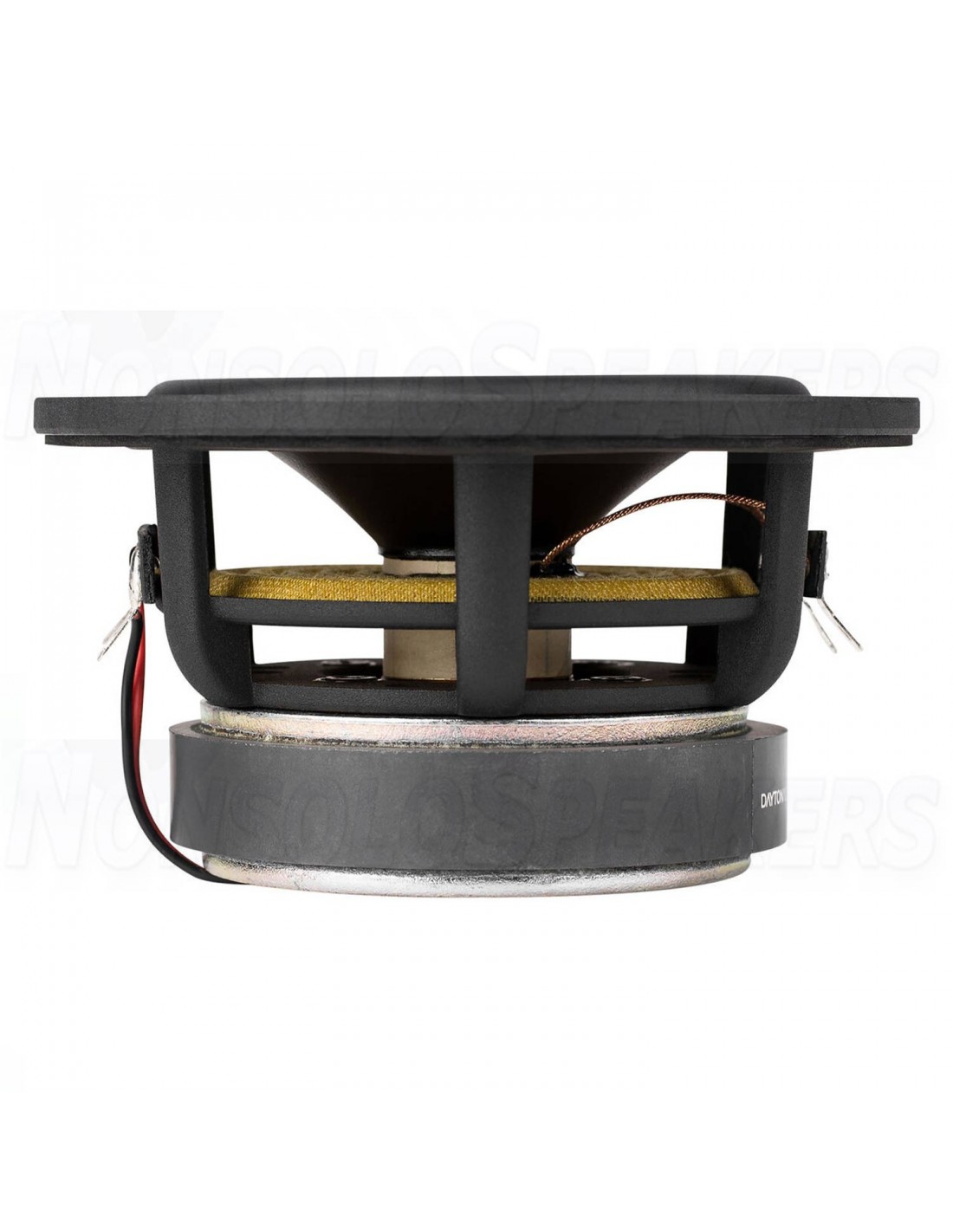

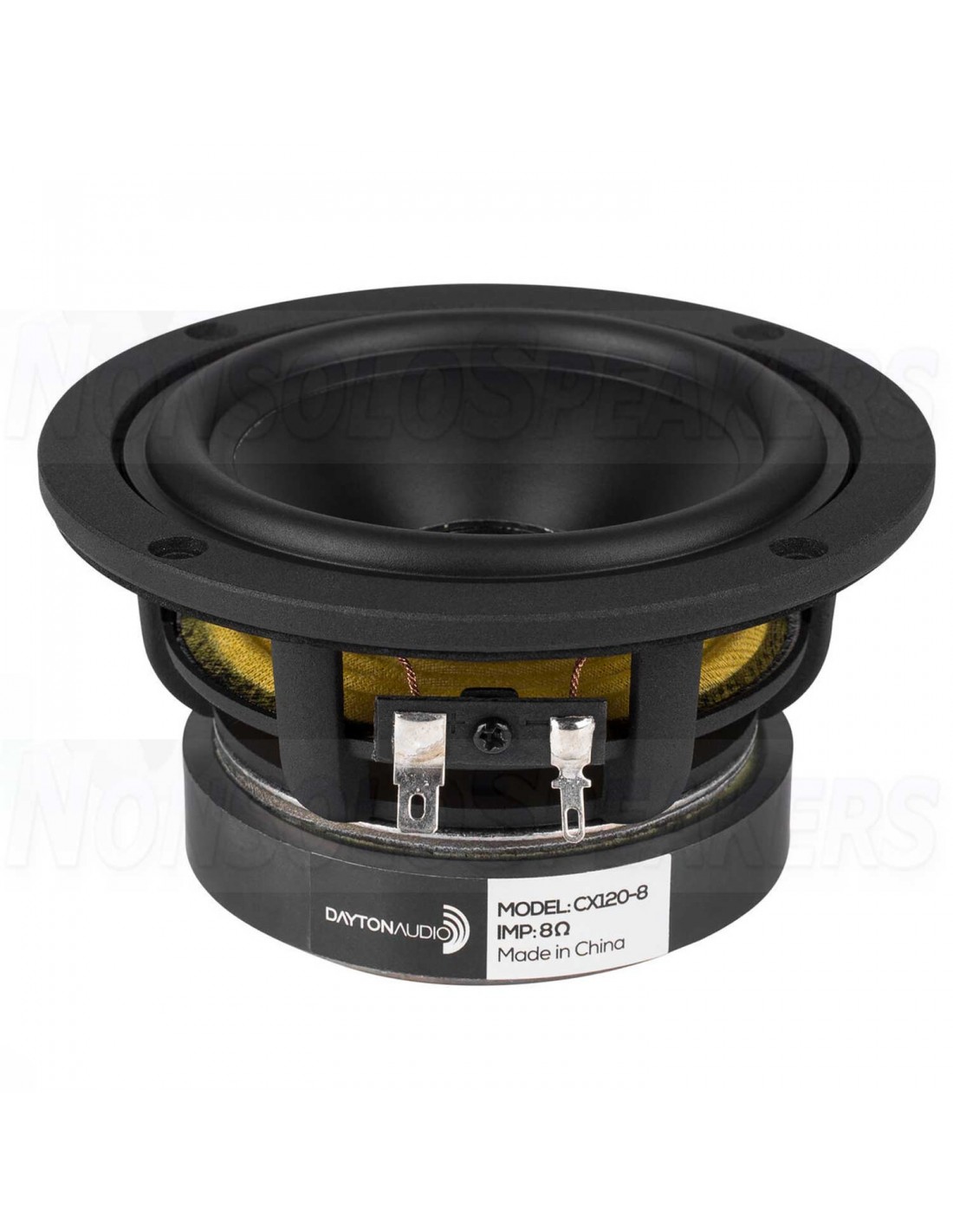

Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm
Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm
With a natural sounding 3/4" soft dome tweeter concentrically mounted in a long throw poly cone 4" woofer Dayton Audio's CX120-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2-way designs. This driver is perfect for compact designs, portable speakers, or even custom car audio systems.
Dayton Audio CS622C 6-1/2" Stereo Ceiling Speaker
Dayton Audio CX120-8 4" Coaxial Driver with 3/4" Silk Dome Tweeter 8 Ohm
The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4" curved linear poly cone woofer mated with a 3/4" silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.
4" Woofer:
• 1" voice coil wound on an aluminum former for high power handling
• Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response
• Optimized rubber surround for reduced break up in the midrange band
• Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
• High energy ceramic magnet for greater cone control and improved efficiency
Specifications: • Power handling: 40 watts RMS/80 watts max • VCdia: 1" • Le: 0.62 mH • Impedance: 8 ohms • Re: 6.2 ohms • Frequency response: 90-5,500 Hz • Fs: 87.5 Hz • SPL: 88.5 dB 2.83V/1m • Vas: 0.10 ft³ (2.99 liters) • Qms: 2.89 • Qes: 0.57 • Qts: 0.48 • Xmax: 3.0 mm • Dimensions: Overall diameter: 4-3/4", Cutout diameter: 3-7/8", Depth: 2".
.
3/4" Tweeter:
• Silk dome provides detail and clarity of high frequencies
• Coaxially mounted to pole piece of woofer cone
• Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
• Strong neodymium magnet
• Trimmed flared throat to minimize phase issues causing suck-out with woofer
• High pass filter required (not included)
.
Specifications:
• Power handling: 20 watts RMS/40 watts max • VCdia: 3/4" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.6 ohms • Frequency response: 4,500-20,000 Hz • Fs: 2,745 Hz • SPL: 89.2 dB 2.83V/1m • Qms: 2.20 • Qes: 7.91 • Qts: 1.72.
.
Product Details
Brand Dayton Audio
Model CX120-8
Part Number 295-384
UPC 848791003905
Unit of Measure Each
Weight 1.95
Product Specifications
Nominal Diameter 4"
Bolt Circle Diameter 4.313
Moving Mass Of Diaphragm (Mmd) 4.82
Power Handling (RMS) 40 Watts
Power Handling (MAX) 80 Watts
Impedance 8Ω
Frequency Response 90 to 20,000Hz
Sensitivity 88.5dB 2.83V/1m
Voice Coil Diameter 1"
Thiele-Small Parameters
Resonant Frequency (Fs) 87.5Hz
DC Resistance (Re) 6.22Ω
Voice Coil Inductance (Le) 0.63mH
Mechanical Q (Qms) 2.89
Electromagnetic Q (Qes) 0.57
Total Q (Qts) 0.48
Compliance Equivalent Volume (Vas) 0.106ft³
Mechanical Compliance of Suspension (Cms) 0.765mm/N
BL Product (BL) 5.08T·m
Maximum Linear Excursion (Xmax) 3mm
Surface Area of Cone (Sd) 52.51cm²
Materials of Construction
Cone Material Poly
Surround Material Rubber
Voice Coil Wire Material CCA
Voice Coil Former Aluminum
Basket / Frame Material Cast Aluminum
Magnet Material Ferrite
