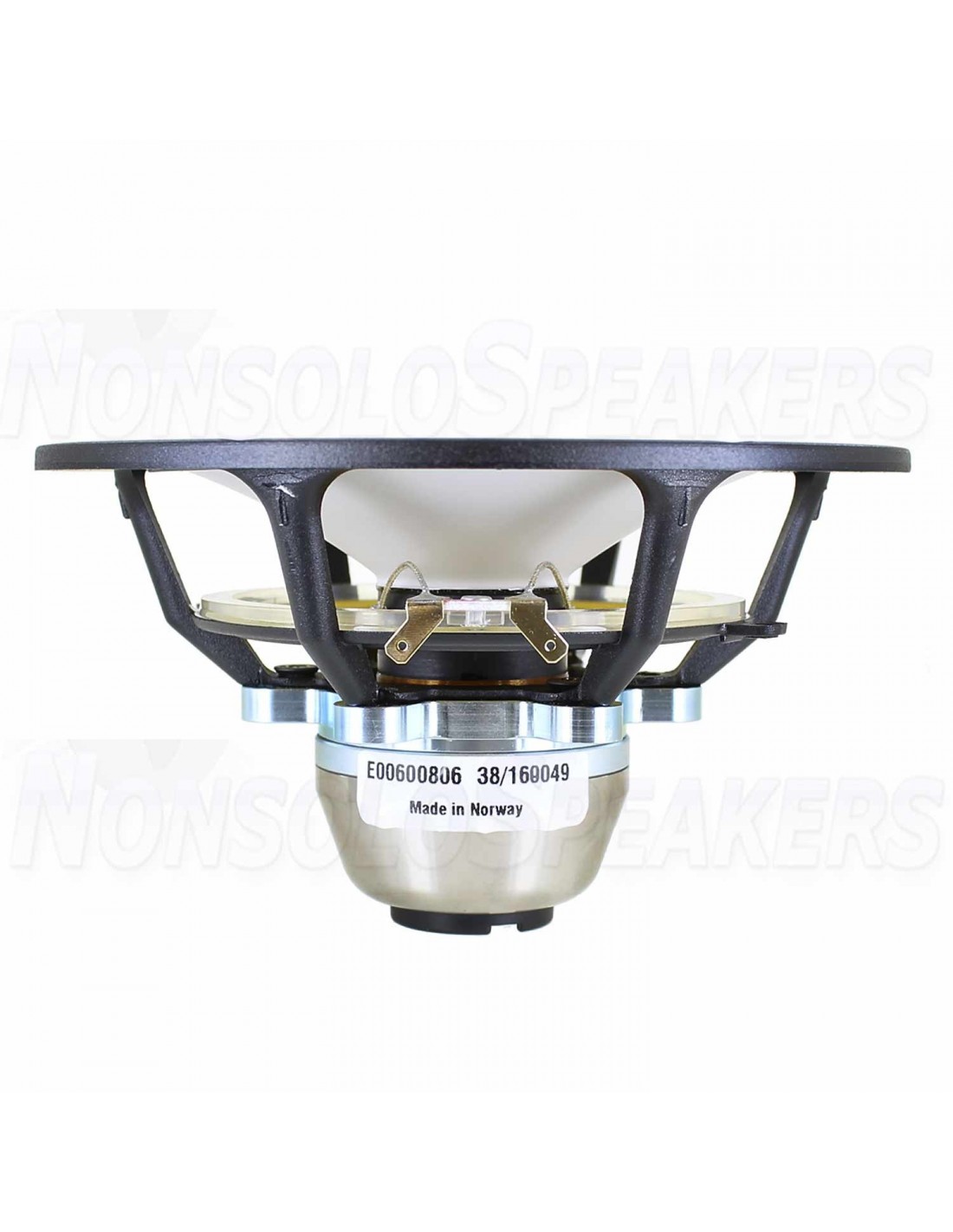

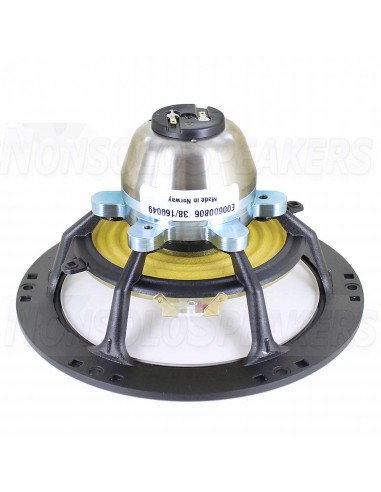

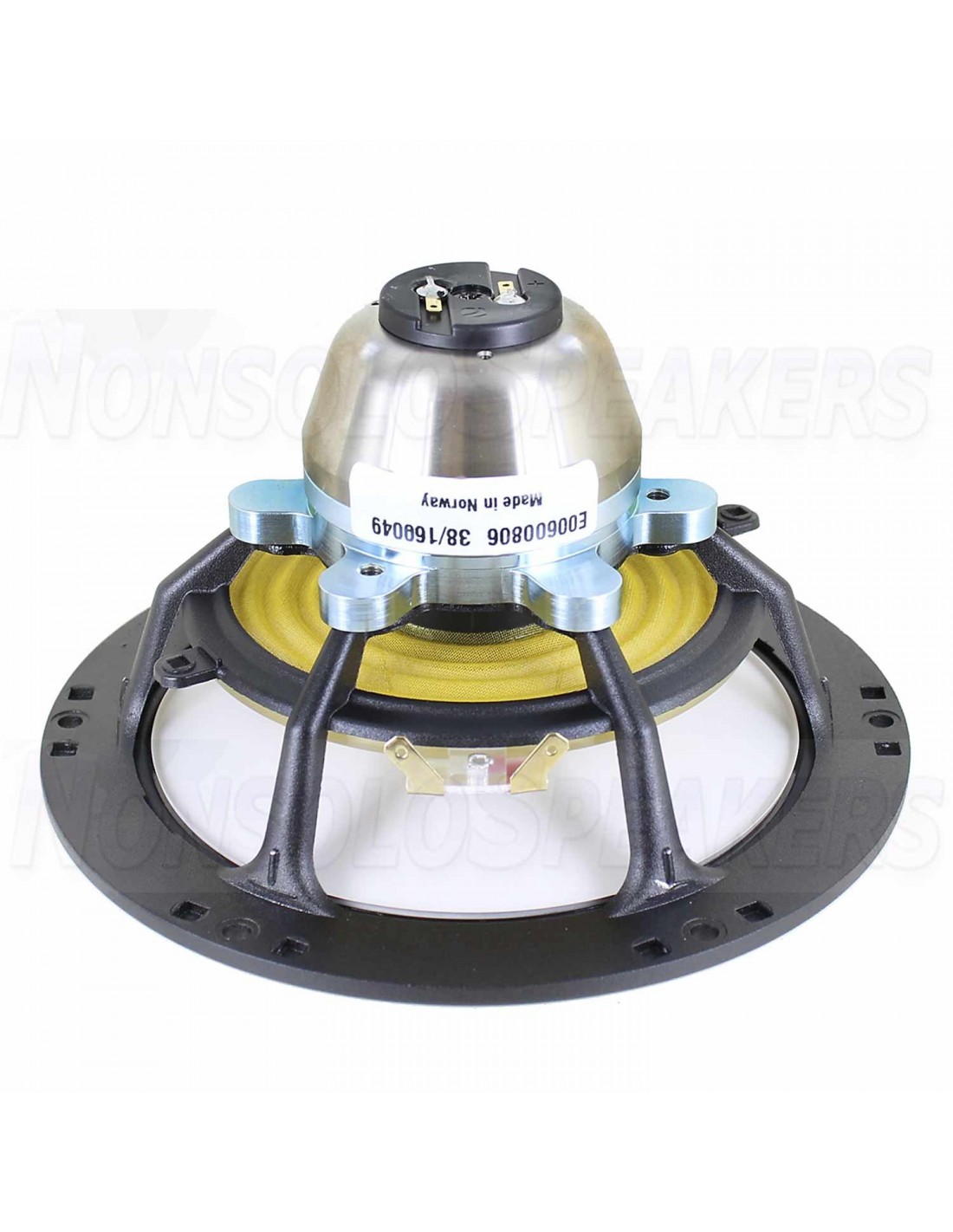

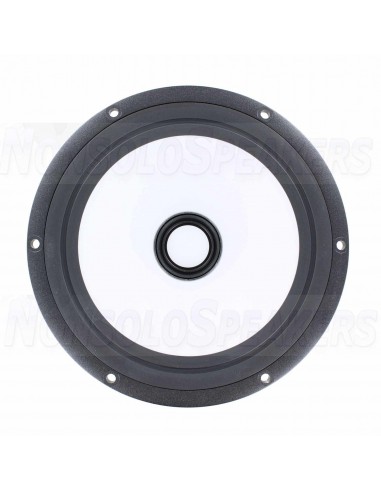

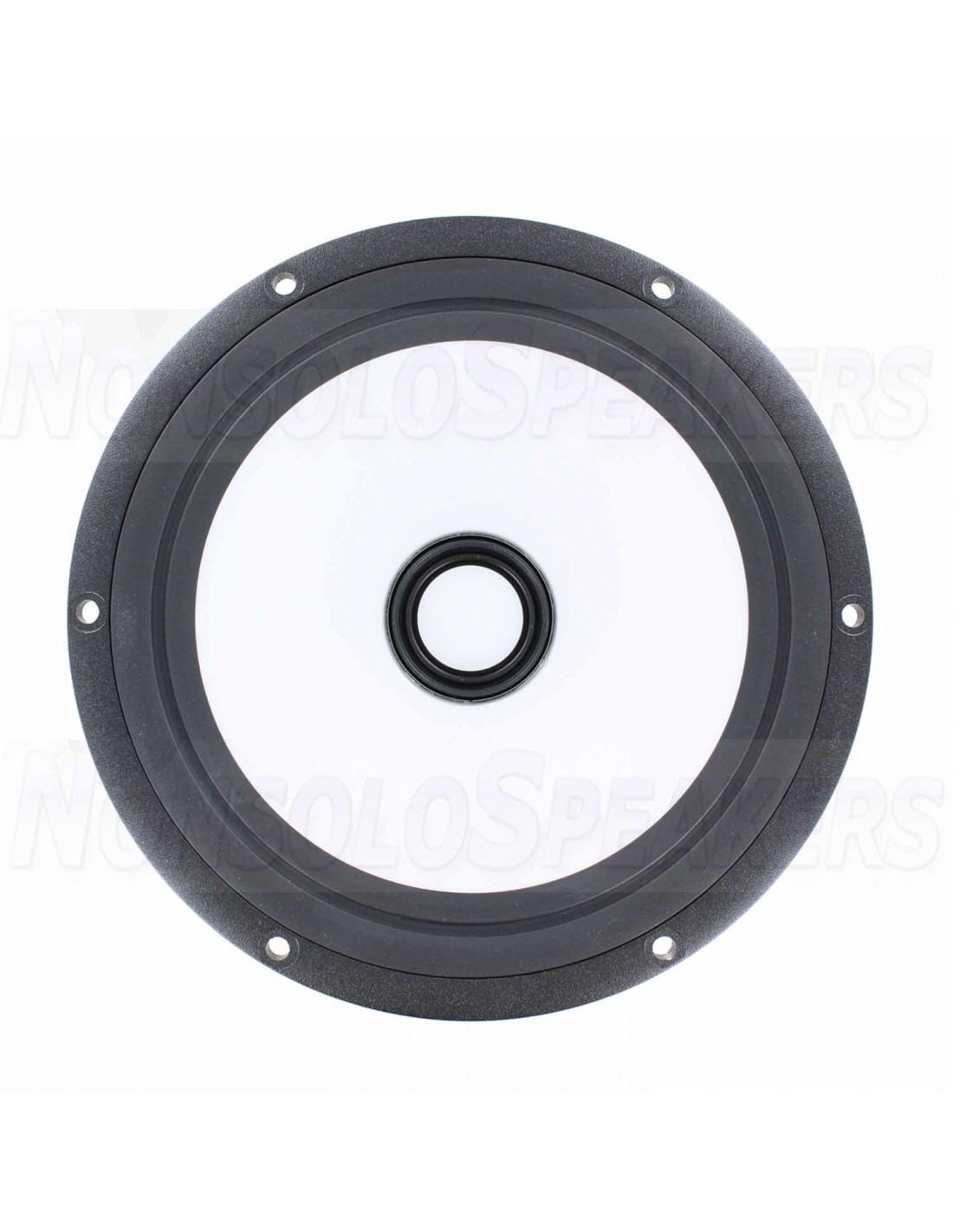

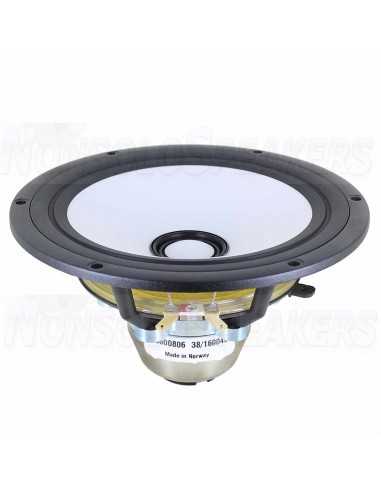

SEAS Excel C18EN002/A - E0060-08/06S coaxial speaker
.
Product description
Long-term power handling (RMS) is 100 watts (woofer) and 90 watts (tweeter)
Low-mass, surface-treated aluminium/magnesium alloy as diaphragm
Powerful neodymium magnet system ensures high sensitivity in the midrange with minimal return wave reflections
.
Product details
Seas Excel C18EN002/A - E0060-08/06S 6.5" coaxial speakers
This driver features a low-mass, surface-treated aluminum/magnesium alloy cone that behaves like a piston over the entire audible frequency range, with no sign of midrange resonance. The coaxially mounted aluminium/magnesium alloy dome tweeter has a low resonant frequency and is fused with the cone driver to form a point sound source. The cone profile has been carefully designed to optimally load the tweeter's radiation.
A completely new rubber surround reduces resonances and prevents the surround from breaking up in the midrange. The small inverted roll of the surround, combined with a profile that follows the shape of the cone, results in an almost complete elimination of diffraction effects on the tweeter. The powerful neodymium magnet system with its small profile and optimal shape results in high sensitivity in the midrange with minimal return wave reflections.
Heavy copper rings placed above and below the T-shaped pole core reduce non-linear and modulation distortion and increase overload margin. The crown-shaped copper support ring for the tweeter eliminates any resonance emanating from the cavity between the tweeter housing and the midrange voice-coil former. All of these features work together to provide smooth and forgiving off-axis behavior throughout the operating range.
A great application example would be the De KingRO4Y MkIII SEAS application. See our blog article " SEAS Use Cases " for more information.
-
Characteristics
Item number:C18EN002/A
Woofer SeriesExcel Series
woofer typecoaxial
nominal diameter6.5"
Load capacity (QMW)100 watts
load capacity (max)250 watts
Impedance (Z)8 ohms
sensitivity87dB 2.83V/1m
frequency response150 - 25,000 Hz
voice coil diameter1.53"
weight magnet33.5 oz.
DC resistance (Re)6.2 ohms
Voice coil induction (Le)0.62mH
Resonant Frequency (Fs)98Hz
Mechanical quality (Qms)2.16
Electrical Quality (Qes)0.86
Total Quality (Qts)0.62
Movable mass (Mms)1.69g
Suspension Compliance (Cms)0.17mm/N
Equivalent Volume (Vas)0.13 ft³
Maximum deflection (Xmax)3mm
