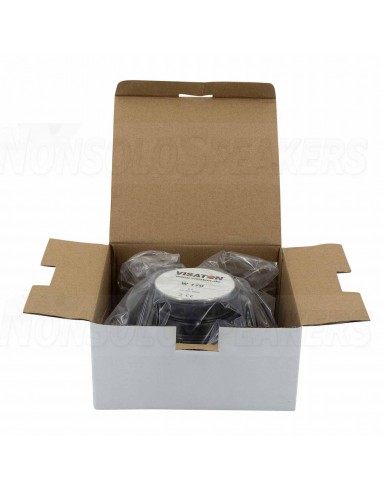

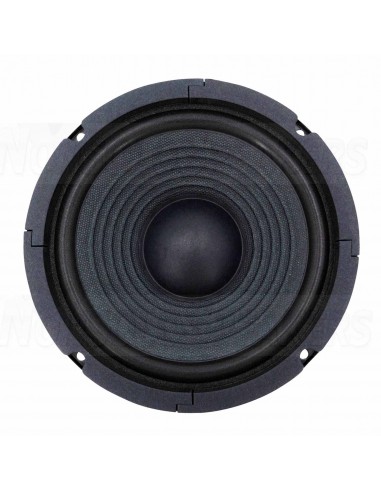

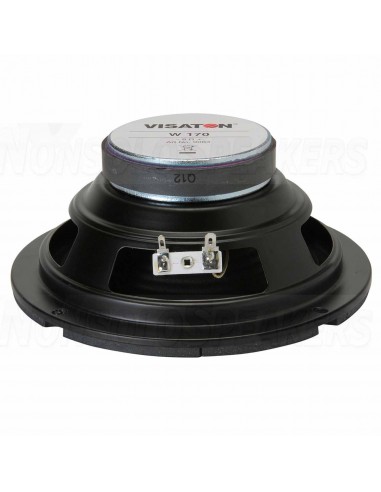

Visaton W 170 6.5" Woofer 8 Ohm

17 cm (6.5") woofer with very good price/performance ratio.

.

Highlights

• Good Price/Performance ratio
• Great replacement driver for sealed speaker cabinets
• Foam surround and ribbed paper cone for a classic sound

.

Product Details

Visaton W 170 6,5" Woofer 8 Ohm

This woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround and ribbed, treated paper cone offer longevity while capturing that classic sound from the golden era of loudspeakers.

A healthy 7.5 mm excursion limit allows this driver to pump out some serious bass in many different sized sealed, acoustic suspension cabinets. A smooth frequency response makes for easy integration with many different tweeters.

.

Technical Specifications

• Article number W 170
• Woofer Series W Series
• Woofer Type Midwoofer
• Nominal Diameter 6.5"
• Power Handling (RMS) 40 Watts
• Power Handling (max) 70 Watts
• Impedance (Z) 8 ohms
• Sensitivity (SPL at 1m / 2.83V) 87 dB
• Frequency Response 57 - 6,000 Hz
• Voice Coil Diameter 25 mm
• DC Resistance (Re) 7.2 ohms
• Voice Coil Inductance (Le) 0.9 mH
• Resonant Frequency (Fs) 57 Hz
• Mechanical Q (Qms) 2.92
• Electromagnetic Q (Qes) 0.9
• Total Q (Qts) 0.69
• Diaphragm Mass Inc. Airload (Mms) 8.7g
• Surface Area of Cone (Sd) 137 cm2
• BL Product (BL) 5.0 Tm
• Compliance Equivalent Volume (Vas) 24 liters
• Maximum Linear Excursion (Xmax) 2 mm
• Cone / Diaphragm Material Treated Paper
• Surround Material Foam
• Overall Outside Diameter 170 mm
• Overall Depth 73
• Baffle Cutout Diameter 146 mm
• Bolt Circle Diameter 159 mm
• # Mounting Holes 4
• Mounting Hole Diameter 5 mm
• Sealed Volume 64 liters
• Sealed F3 66 Hz
• Vented Volume 71.9 liters
• Vented F3 35 Hz
