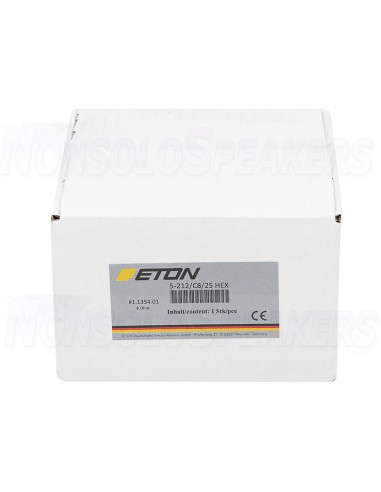

ETON 5-212/C8/25 HEX Bass-mid Woofer

5“ Bass-Mid range driver for multiple usage, 3-layer Hexacone Sandwich cone, fast and detailed reproduction, authentic staging,homogeneous uncolored sound performance.

.

Highlights

• Uncompromising sound quality
• Uncolored sound reproduction
• Frequency range: 50 – 4000 Hz
• Symphony II series: unique in sound and design

.

Product details

ETON 5-212/C8/25 HEX Bass-mid Woofer

The Hex Symphony II Series is the logical development of our successful patented Symphony I Series. All of ETON’s expertise has been poured into the development of the Symphony Series. For the first time, the specially patented production process enabled the three-layered sandwich type of construction in combination with aramid fibres and their hexagonal internal structure. Maximum rigidity and excellent internal absorbing action are therefore guaranteed. The manually applied coating also supports neutral cone behaviour and provides the surface with visual depth.

The Symphony II midrange drivers and woofers create unique sound spectrums typical of Hex. The sound features are harmonic, smooth reflections of the overtones and distinctive, light midranges. A precise and powerful bass is created in the woofer range. All Symphony II chassis are characterized by a high degree of musical imaging and an impressive soundscape. The ferrite magnet geometry’s special design makes the magnetic field almost perfectly symmetrical. Multiple ventilation and the flow-supporting cast basket guarantees mini[1]mum compression effects at large amplitudes.

Symphony, unique in sound and design.

Technical Specifications

• Terminal 2.8/4.8 mm
• Screw hole diameter 4.5/8 mm
• Basket edge thickness 6 mm
• Total depth 66 mm
• Installation diameter 96 mm
• Weight 1.2 kg
• Total diameter 122 mm
• Winding layers 2
• Carrier material Kapton
• Wire material Cu Diameter 25 mm
• DC resistance Re 5.9 Ω
• Mechanical resistance RMS 0.58 kg/s
• Effective radiating area SD 55 cm2
• Electrical quality Qes 0.43
• Force factor BLxl 5.8 Tm
• Load capacity watts 50 W
• Suspension compliance CMS 0.84 mm/N
• Total quality Qts 0.39
• Total moving mass (including moving air mass) MMD 6.2 g
• Inductance voice coil Le 0.4 mH
• Resonance frequency TSP fr 69 Hz
• Resonance frequency 1W fr 57 Hz
• Average sound pressure level 1W/1m SPL 88 dB
• Equivalent volume VAS 3.6 dm3
• Nominal impedance Zn 8 Ω
• Xmax mechanical +/- 5.5 mm
• Mechanical quality Qms 5.09
• Xmax electrical +/- 2 mm
• Drive system Overhung Ferrofluid no/no
• Dimensions 90 x 36 mm
• Height air gap 6 mm
• Height 17 mm
• Material Ferrite/Ferrite
• Magnetic flux density 1.15 T
• Recommended frequency range 100 - 5400 Hz
