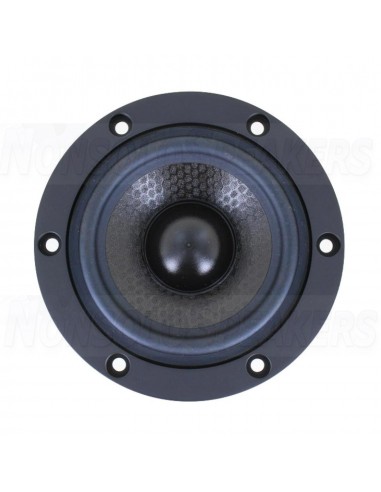

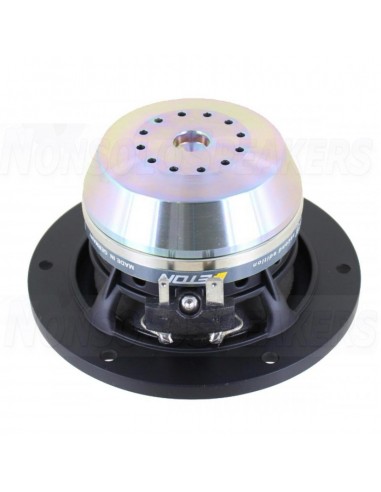

ETON 3-212/C8/25 HEX Bass-mid Woofer

The ETON 3-212/C8/25 HEX Bass-mid Woofer is a unique and innovative driver that delivers exceptional sound quality and versatility. Its unique features, such as its 3-layer Hexacone Sandwich cone, phase plug construction, and specially designed ferrite magnet, combine to create a driver that is truly one of a kind.

.

Highlights

• High-end mini monitor speakers
• Autosound applications
• 2-way bookshelf speakers
• Center channel speakers
• Satellite speakers in a surround sound system

.

Product details

ETON 3-212/C8/25 HEX Bass-mid Woofer

The ETON 3-212/C8/25 HEX Bass-mid Woofer is known for its harmonic and smooth sound. It has distinctive and light midranges, and precise and powerful bass. The driver is also characterized by a high degree of musical imaging and an impressive soundscape. When listening to the 3-212/C8/25 HEX, the first thing that notices is its clarity and transparency.

The driver is able to reproduce even the most delicate details with great accuracy. The midrange is particularly impressive, with vocals and instruments sounding natural and lifelike. The bass is also very good, with deep extension and tight control.

Technical Specifications

• Terminal 2.8/4.8 mm
• Screw hole diameter 4.5/8 mm
• Basket edge thickness 6 mm
• Total depth 66 mm
• Installation diameter 96 mm
• Weight 1.2 kg
• Total diameter 122 mm
• Winding layers 2
• Carrier material Kapton Wire material Cu Diameter 25 mm
• DC resistance Re 5.9 Ω
• Mechanical resistance RMS 0.58 kg/s
• Effective radiating area SD 55 cm2
• Electrical quality Qes 0.43
• Force factor BLxl 5.8 Tm
• Load capacity watts 50 W
• Suspension compliance CMS 0.84 mm/N
• Total quality Qts 0.39
• Total moving mass (including moving air mass) MMD 6.2 g
• Inductance voice coil Le 0.4 mH
• Resonance frequency TSP fr 69 Hz
• Resonance frequency 1W fr 57 Hz
• Average sound pressure level 1W/1m SPL 88 dB
• Equivalent volume VAS 3.6 dm3
• Nominal impedance Zn 8 Ω
• Xmax mechanical +/- 5.5 mm
• Mechanical quality Qms 5.09
• Xmax electrical +/- 2 mm
• Drive system Overhung Ferrofluid no
• Dimensions 90 x 36 mm
• Height air gap 6 mm
• Height 17 mm
• Material Ferrite Magnetic flux density 1.15 T
• Recommended frequency range 100 - 5400 HZ
