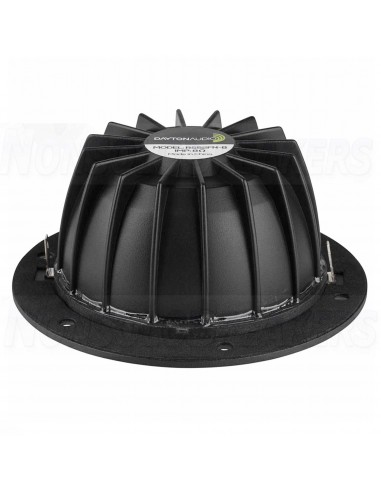

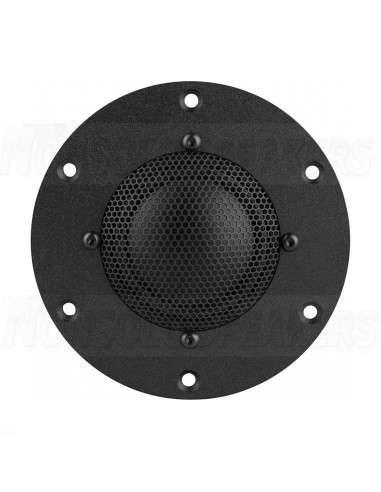

Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

    SHIPMENT IN 7-10 WORKING DAYS
    €64.95
    Tax included
    rating No review at the moment

    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

    Estimated Shipping Costs
    Shipping Costs
    €18.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

    Product description

    The Dayton Audio Reference Series dome midrange delivers smooth and natural midrange performance with excellent off-axis response. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece.

    .

    Highlights

    Large damped rear chamber for low resonance point

    2" damped fabric diaphragm for natural response and dispersion

    Neodymium keeps size and weight to a minimum without sacrificing efficiency

    Copper clad motor reduces distortion for transparent sound

    .

    Product details

    Dayton Audio RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm

    The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series but will also work well with any high-performance drivers.

    .

    Specifications

    Article numberRS52FN-8
    Woofer SeriesReference Series
    Woofer TypeMid-dome
    Nominal Diameter2"
    Power Handling (RMS)60 watts
    Power Handling (max)120 watts
    Impedance (Z)8 ohms
    Sensitivity (SPL at 1m / 2.83V)90 dB
    Frequency Response500 - 8,500 Hz
    Voice Coil Diameter2"
    DC Resistance (Re)5.7 ohms
    Voice Coil Inductance (Le)0.12 mH
    Resonant Frequency (Fs)394.3 Hz
    Mechanical Q (Qms)4.27
    Electromagnetic Q (Qes)1.39
    Total Q (Qts)1.05
    Surface Area of Cone (Sd)26.4 cm²
    Maximum Linear Excursion (Xmax)1 mm
    Surround MaterialCloth
    Voice Coil Wire MaterialCopper
    Voice Coil FormerAluminum
    Basket / Frame MaterialCast Aluminum
    Magnet MaterialNeodymium
    Overall Outside Diameter5.12"
    Overall Depth2.24"
    Baffle Cutout Diameter3.94"
    # Mounting Holes6
    Dayton Audio RS52FN-8
