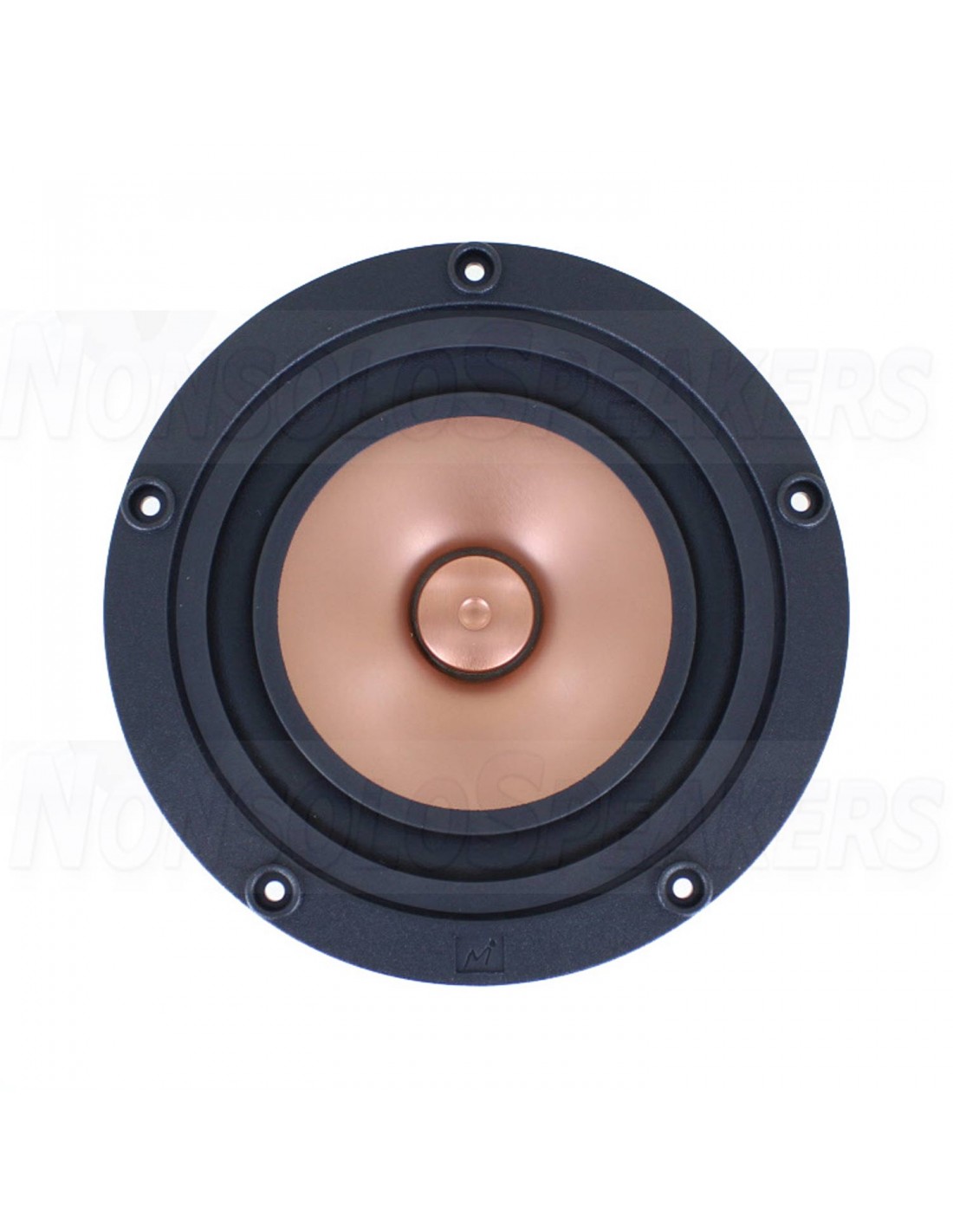

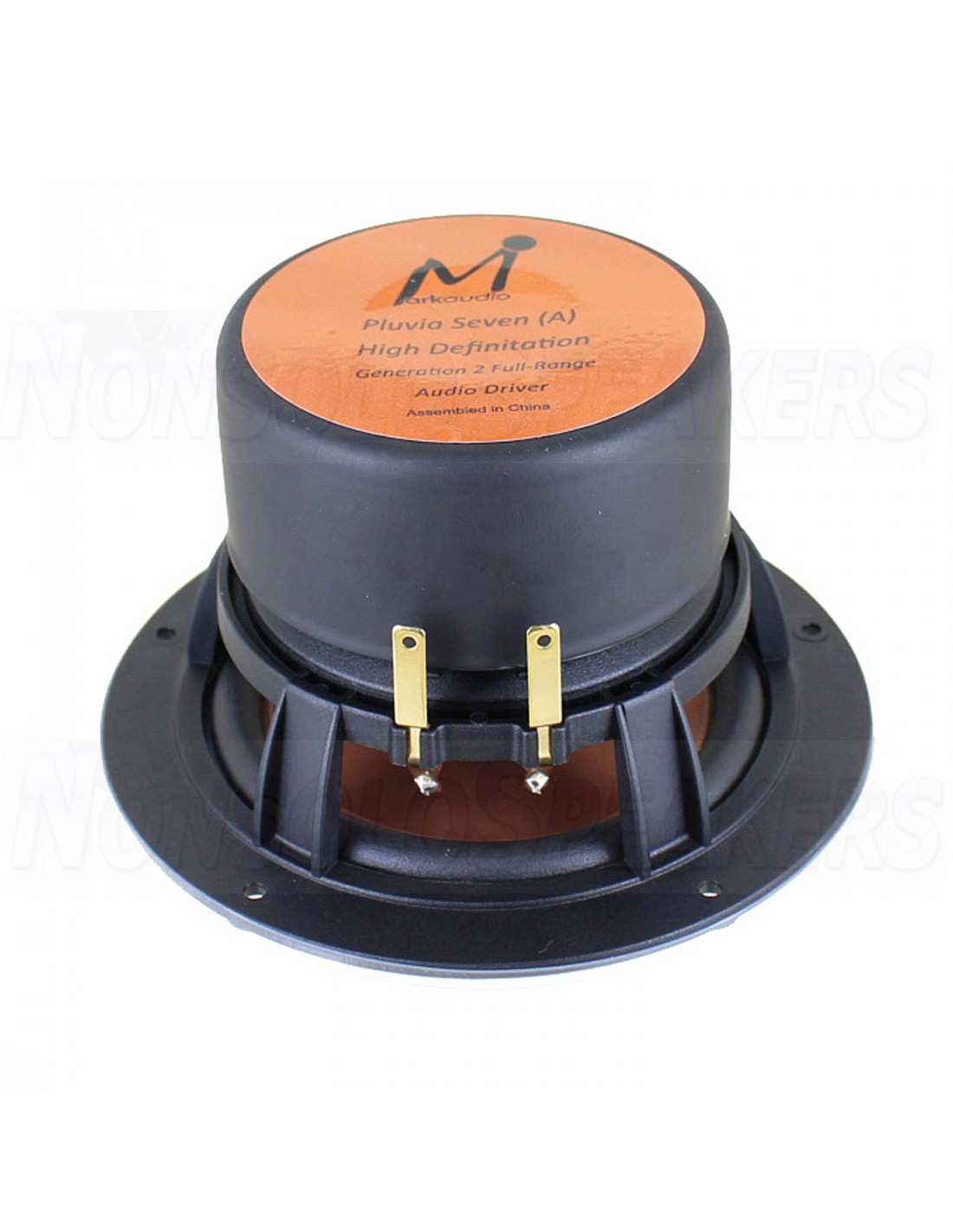

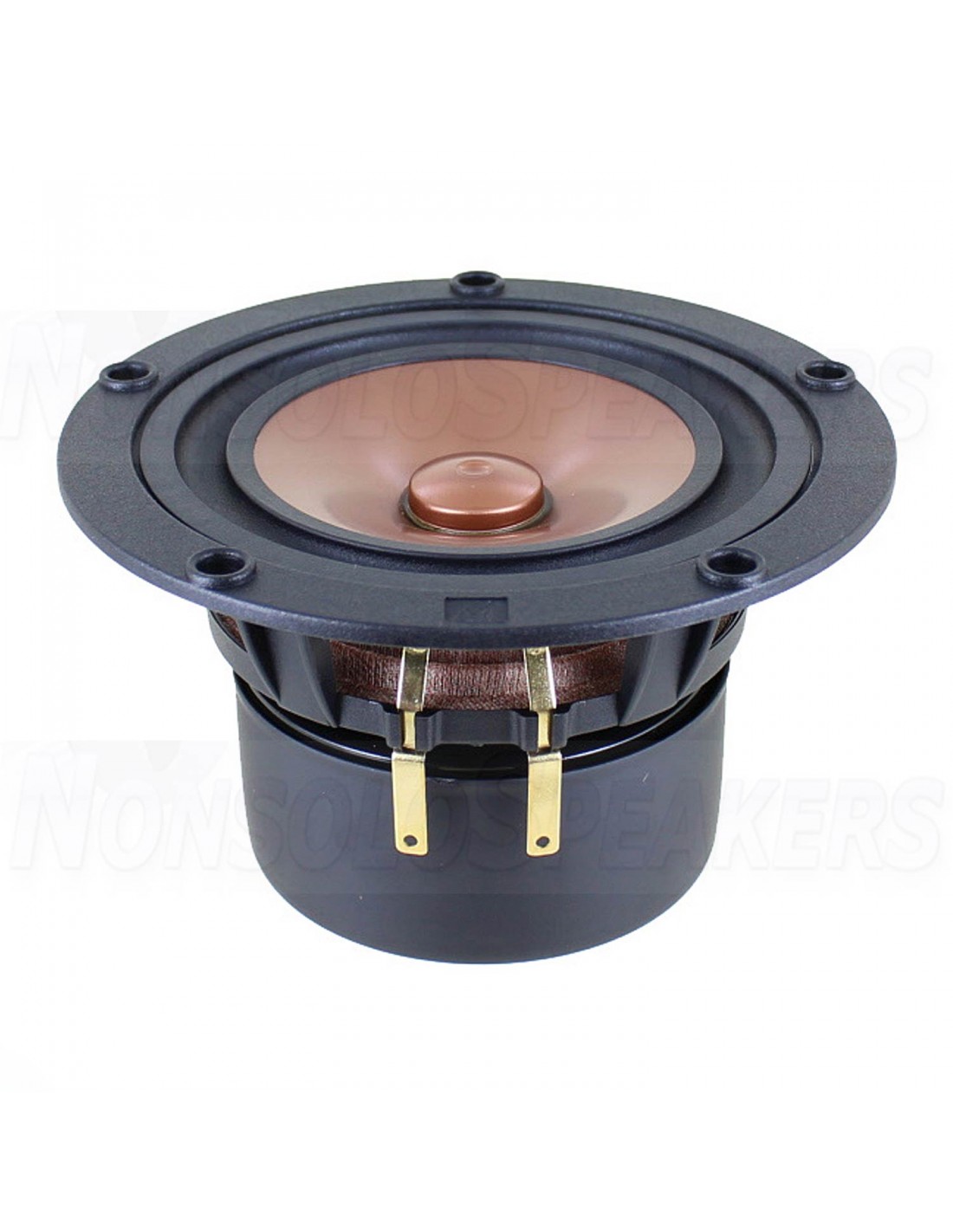

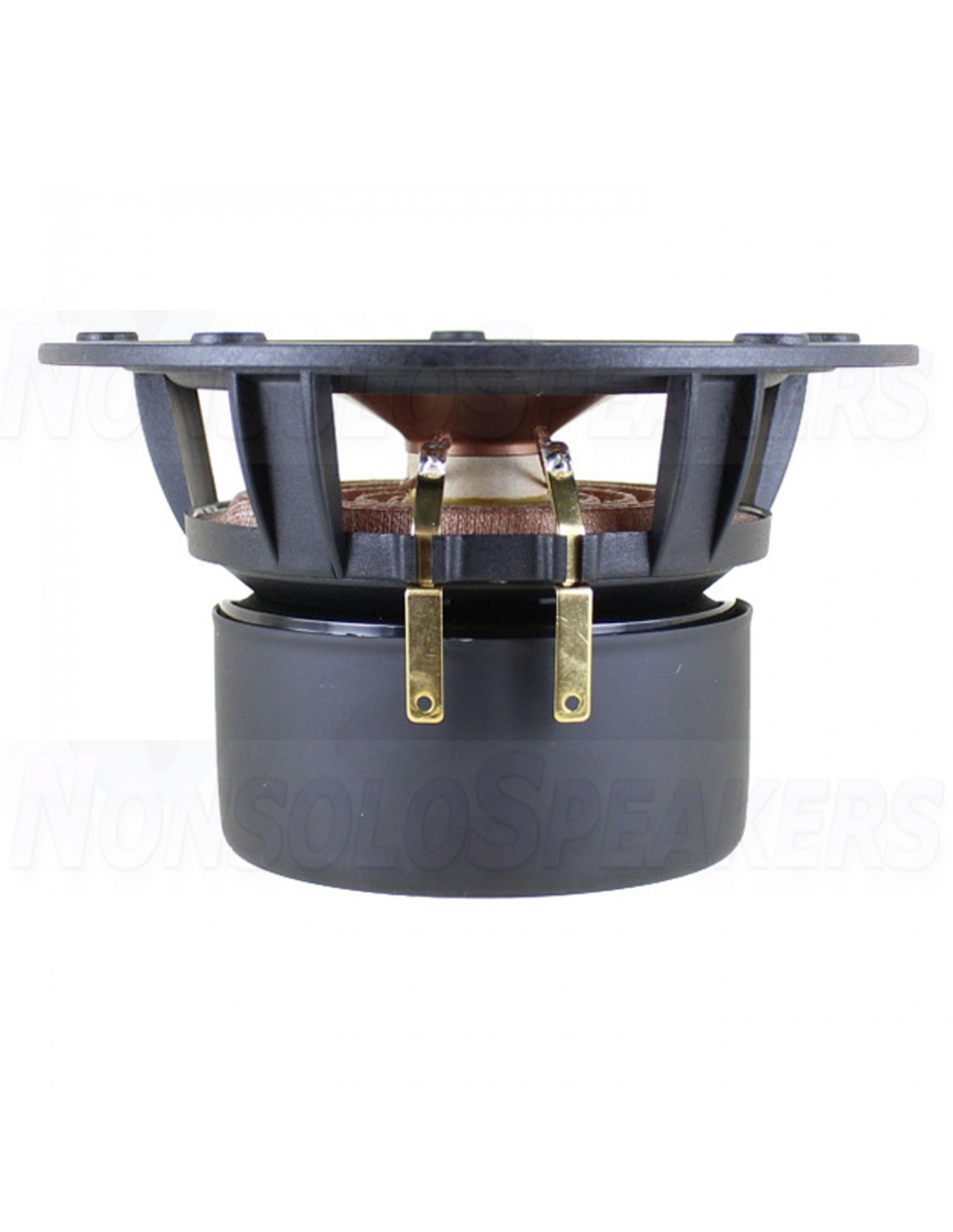

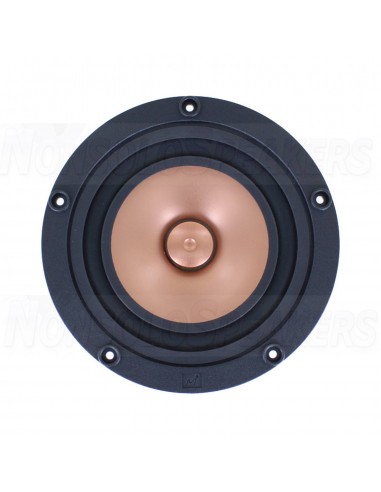

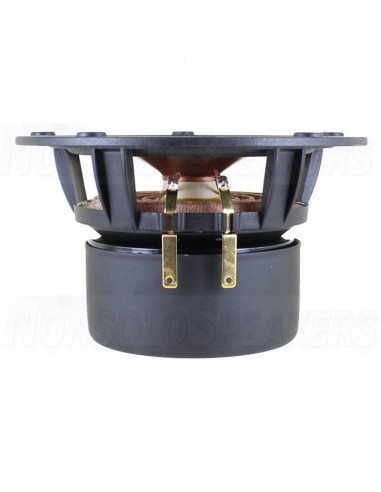

Markaudio PLUVIA-7HD Gold Full-range Woofer

Price for 1 piece

Product description

The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components, and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame.

-

Highlights

Vintage Gold 4’’ magnesium alloy cone

Operating range to 30KHz - very linear response

Very shallow multiform cone profile – very broad directivity pattern

Advanced low-distortion motor design

Long-stroke suspension with arrestor and progressive-rate spider

Low-profile surface-mount reinforced polymer basket

-

Product details

Markaudio PLUVIA-7HD Gold Full-range Woofer

The second-generation Pluvia 7HD is designed to supersede our original Alpair 7 series drive units. It employs many of the same components and has a very similar balance of frequency response and Thiele / Small values to the old Alpair model, packaged in the more efficient and convenient Pluvia frame. With a mounting depth of less than 4mm, the Pluvia may be surface or flush-mounted, and the design of the mounting legs is very open, allowing good airflow to the rear.

The low-mass coil, suspension, and shallow-profile cone are highly efficient. Frequency response extends beyond 30KHz, and the generous 4mm (1-way) Xmax and conveniently balanced T/S parameters allow 40Hz bass output in suitable enclosure designs. The sound character is neutral and highly detailed, with excellent off-axis performance. It is an extremely flexible drive unit for music, small HT and commercial AV applications, and offers exceptional performance at an affordable price point.

-

Specifications

• Article number PLUVIA-7HD Gold
• Woofer Series Pluvia series
• Woofer Type Full-Range Woofer
• Nominal Diameter 4''
• Power Handling (RMS) 20 Watts
• Impedance (Z) 8 Ohms
• Sensitivity 85.7419 dB 1W/m
• Frequency Response 20 - 40,000 Hz
• DC Resistance (Re) 5.4000 Ohms
• Voice Coil Inductance (Le) 0.1652 mH
• Resonant Frequency (Fs) 72.5494 Hz
• Mechanical Q (Qms) 3.1446
• Electromagnetic Q (Qes) 0.7173
• Total Q (Qts) 0.584
• Diaphragm Mass Inc. Airload (Mms) 3.8390 g
• Moving Mass Of Diaphragm (Mmd) 3.6373 g
• Mechanical Compliance of Suspension (Cms) 1.2536 mm/N
• Surface Area of Cone (Sd) 0.0050 m2
• BL Product (BL) 3.6297
• Compliance Equivalent Volume (Vas) 4.4227 L
• Maximum Linear Excursion (Xmax) +/- 4 mm
• Cone / Diaphragm Material Magnesium alloy
• Surround Material Rubber
• Basket / Frame Material Polymer
• Magnet Material Ferrite
• Overall Outside Diameter 122.3 mm
• Overall Depth 71.5 mm
• Baffle Cutout Diameter 100 mm
• Bolt Circle Diameter 112 mm
• # Mounting Holes 5
• Mounting Hole Diameter 5 - 3.1 mm
