GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm
GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm
GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm
GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm
GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm
GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

The GRS 3FR-4 3" driver makes a great economical replacement full-range speaker for devices like multimedia speakers, table radios, and home theater soundbar systems. It’s also an excellent choice for new designs. 4 ohm impedance.

SHIPMENT IN 7/10 WORKING DAYS
€8.95
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

The GRS 3FR-4 3" driver makes a great economical replacement full-range speaker for devices like multimedia speakers, table radios, and home theater soundbar systems. It’s also an excellent choice for new designs. 4 ohm impedance.

.

Product highlights:

  • Coated paper cone with foam surround for clear sound
  • Pincushion-shape frame with front gasket
  • Economical ferrite magnet assembly
  • Quality GRS construction and 1-year warranty

.

Product details

GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm

Why pay more? The GRS 3FR-4 is a great replacement driver for the widely-used, 3"-size full range drivers found commonly in home theater systems, table radios, “sound bars”, and multimedia speaker systems, among many other uses. It’s also useful as a replacement for 3" woofers.

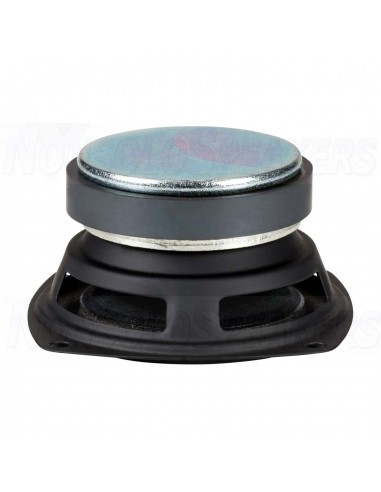

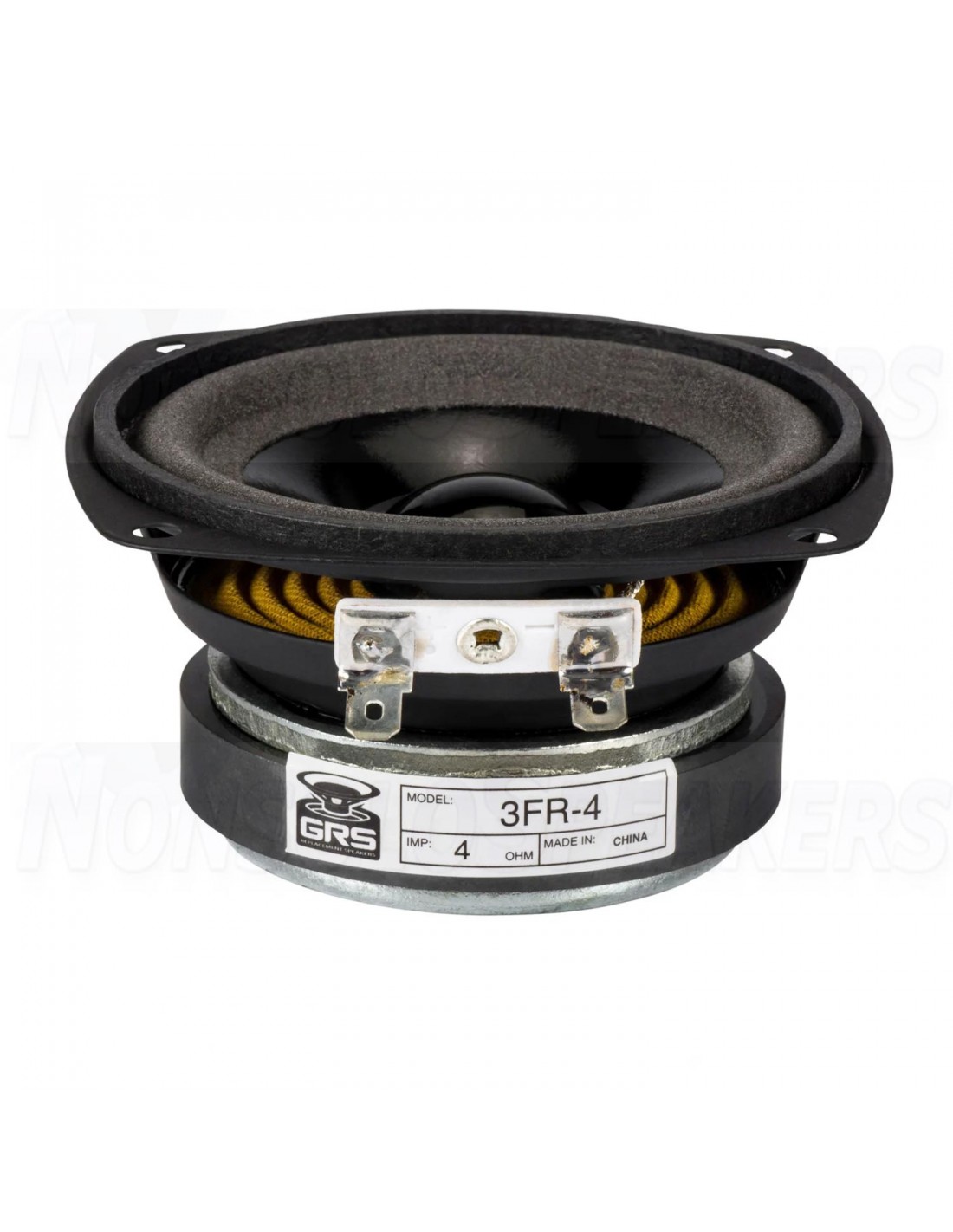

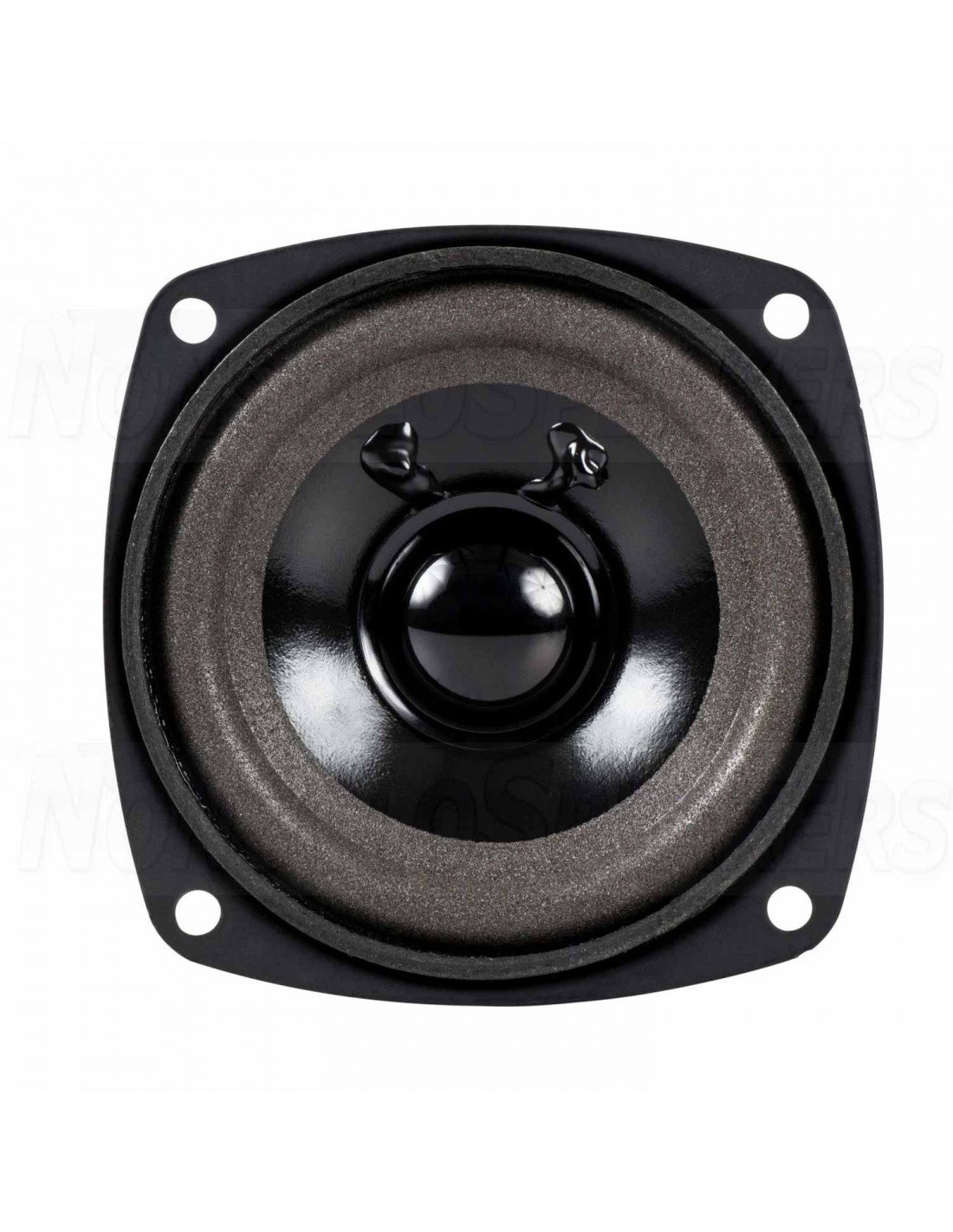

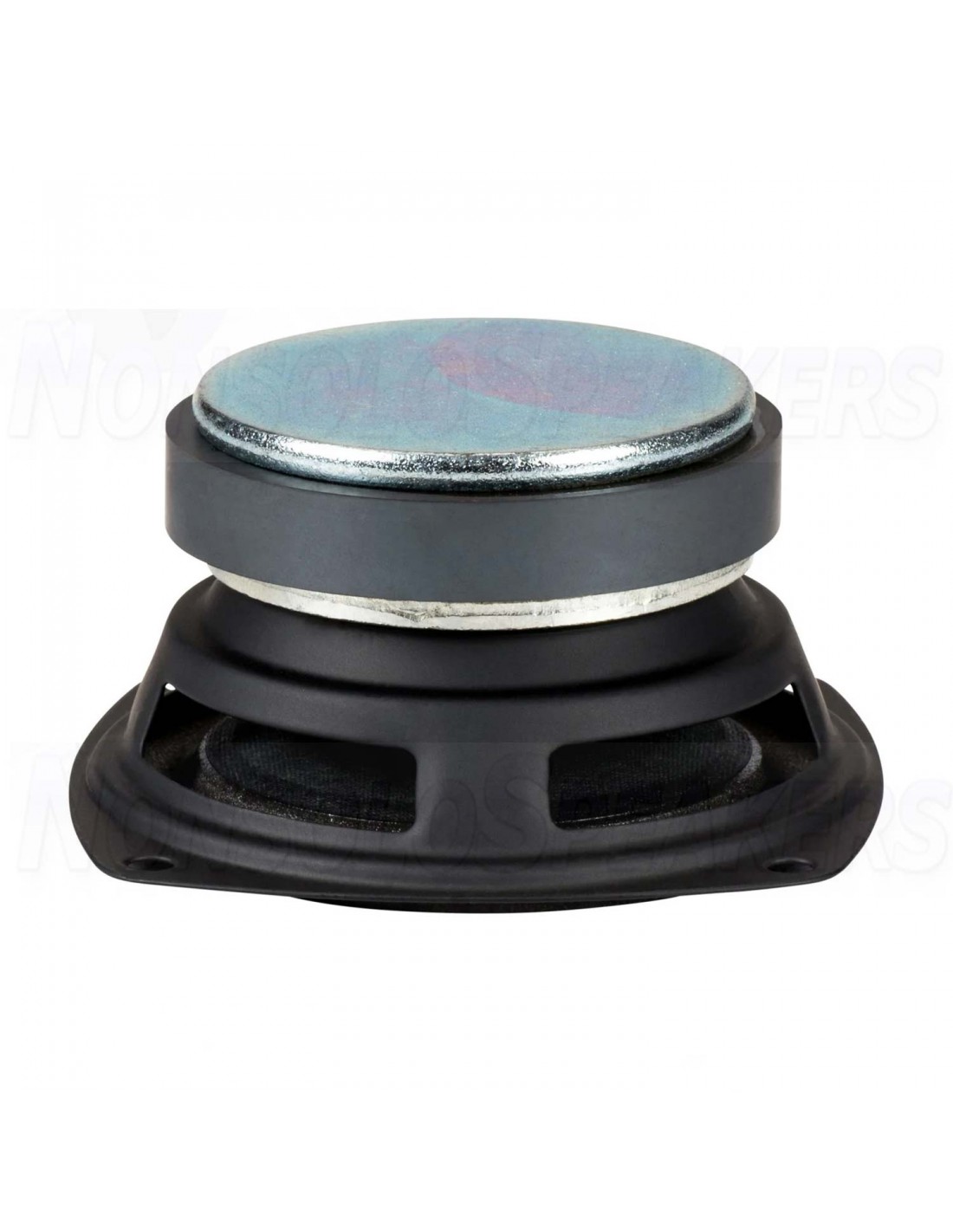

A sturdy stamped steel frame with “pincushion”-shaped mounting flange supports a robust ferrite ceramic magnet, and the coated paper cone with foam surround delivers clear sound that you might not expect from a driver this affordable.

.

Technical Specifications:

  • Article number 3FR-4
  • Woofer Series Full-Range Speakers
  • Woofer Type Midrange / Midbass Drivers
  • Nominal Diameter 3"
  • Power Handling (RMS) 10 Watts
  • Power Handling (max) 20 Watts
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 84 dB
  • Frequency Response 135 to 16,000 Hz
  • Voice Coil Diameter 0.75"
  • DC Resistance (Re) 4.00 ohms
  • Voice Coil Inductance (Le) 0.39 mH
  • Resonant Frequency (Fs) 135 Hz
  • Mechanical Q (Qms) 4.11
  • Electromagnetic Q (Qes) 1.11
  • Total Q (Qts) 0.88
  • Compliance Equivalent Volume (Vas) 0.03 ft.³
  • Maximum Linear Excursion (Xmax) 2 mm
  • Cone / Diaphragm Material Paper
  • Surround Material Foam
  • Basket / Frame Material Steel
  • Magnet Material Ferrite
  • Overall Outside Diameter 3.75"
  • Overall Depth 1.69"
  • Baffle Cutout Diameter 2.82"
  • # Mounting Holes 4
  • Sealed Volume 0.08 ft.³
  • Sealed F3 131 Hz
  • Vented Volume 0.15 ft.³
  • Vented F3 78 Hz
