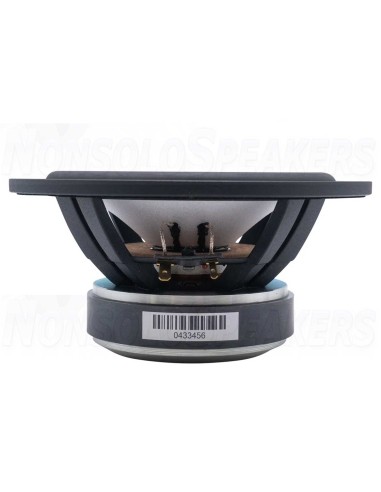

SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

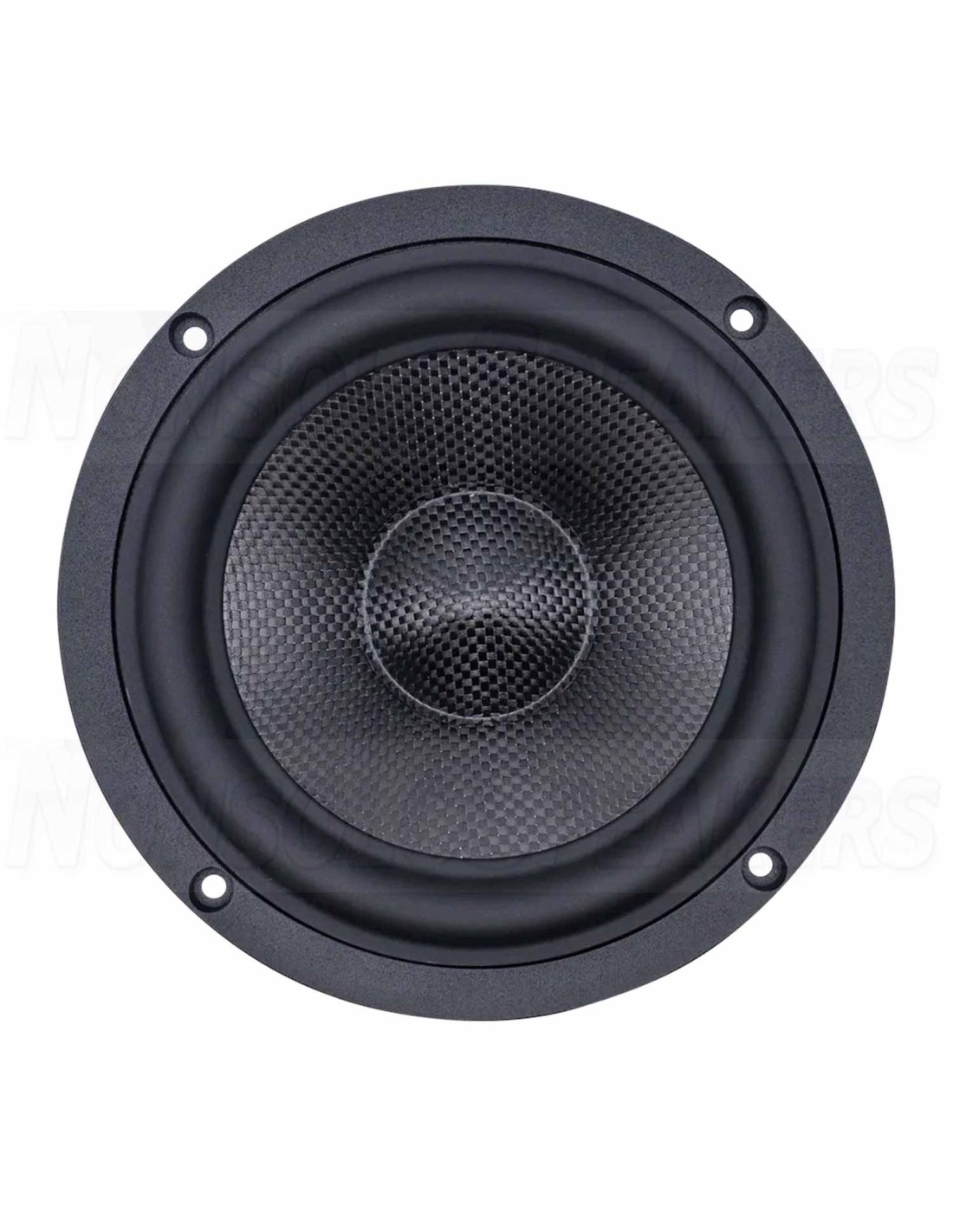

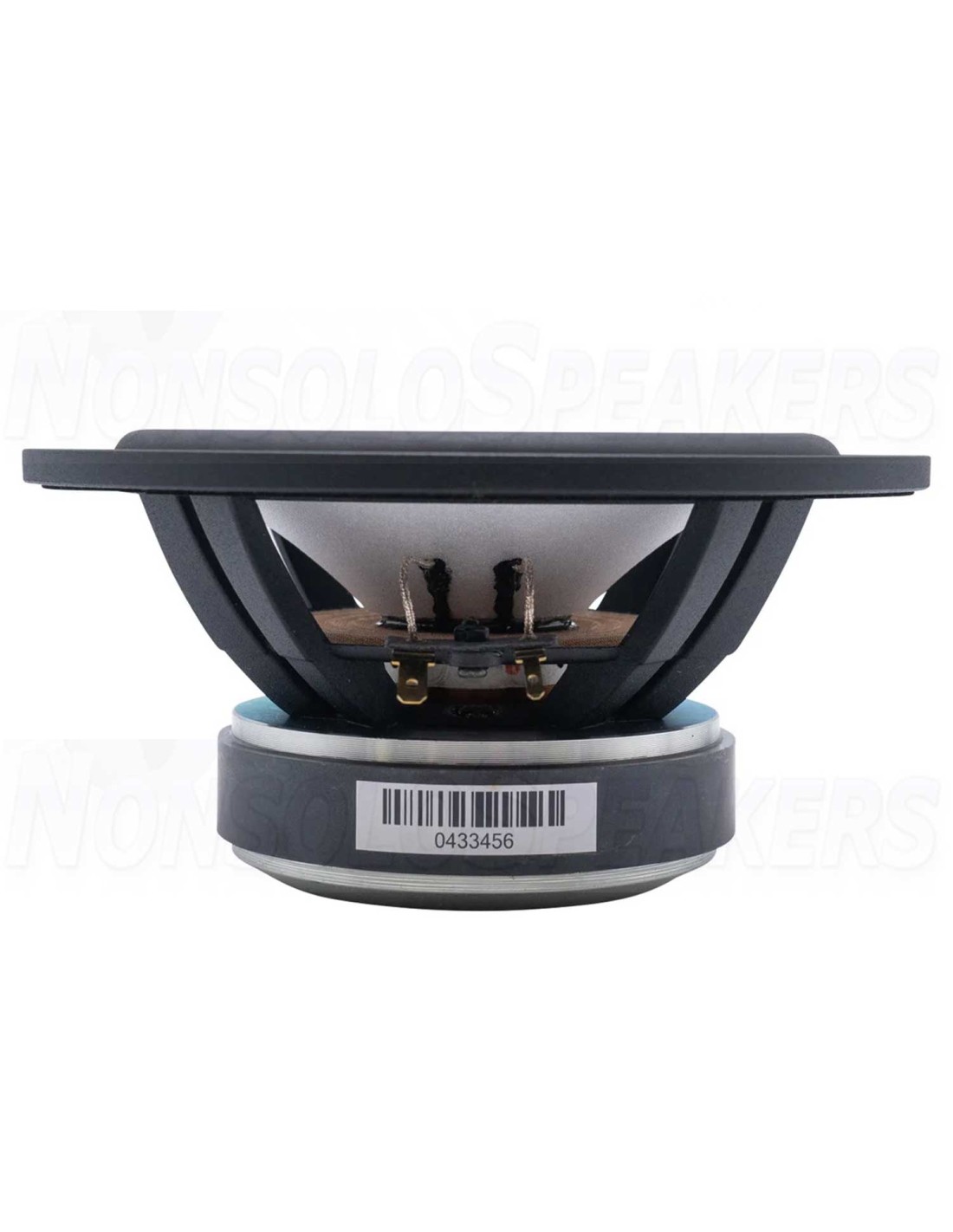

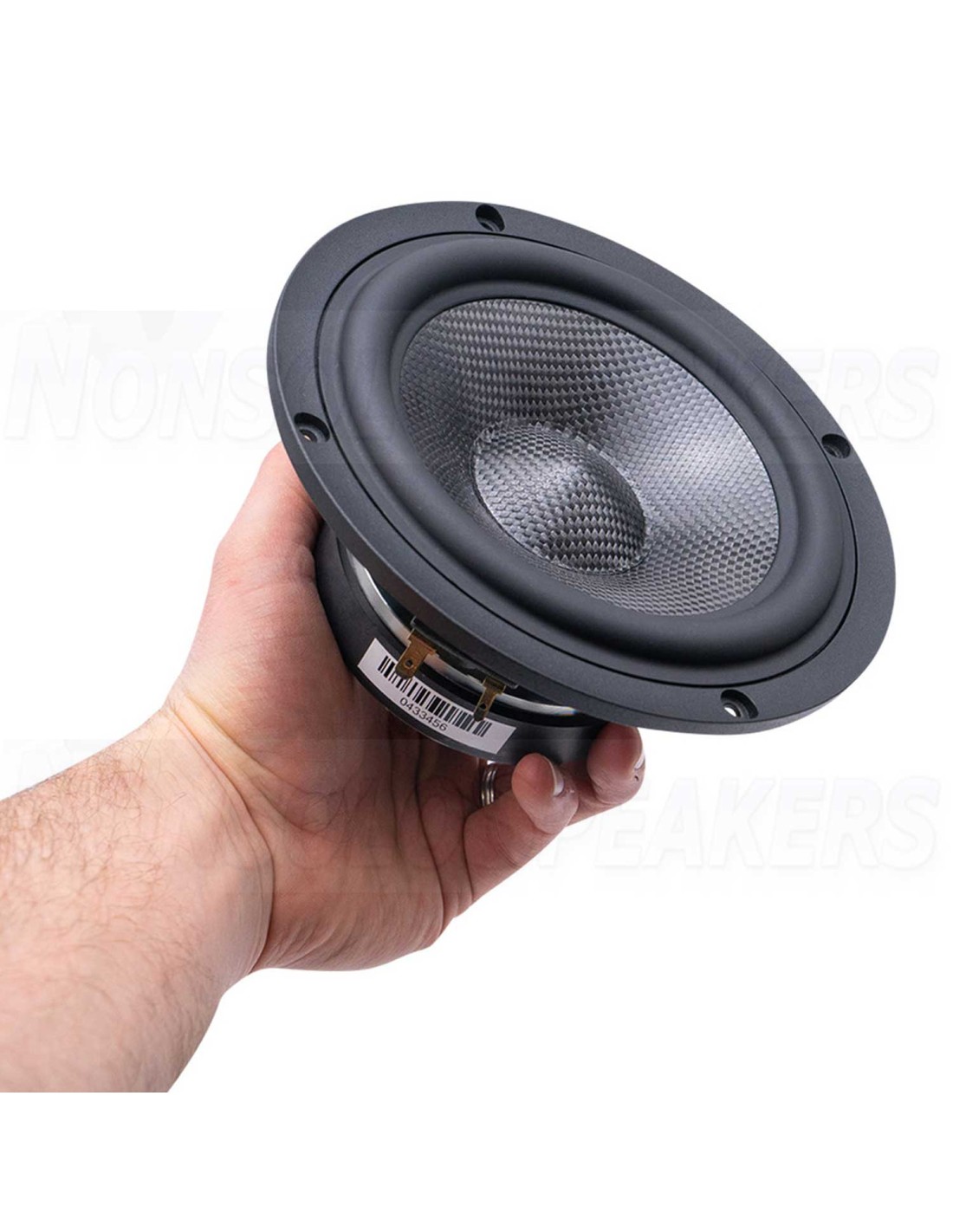

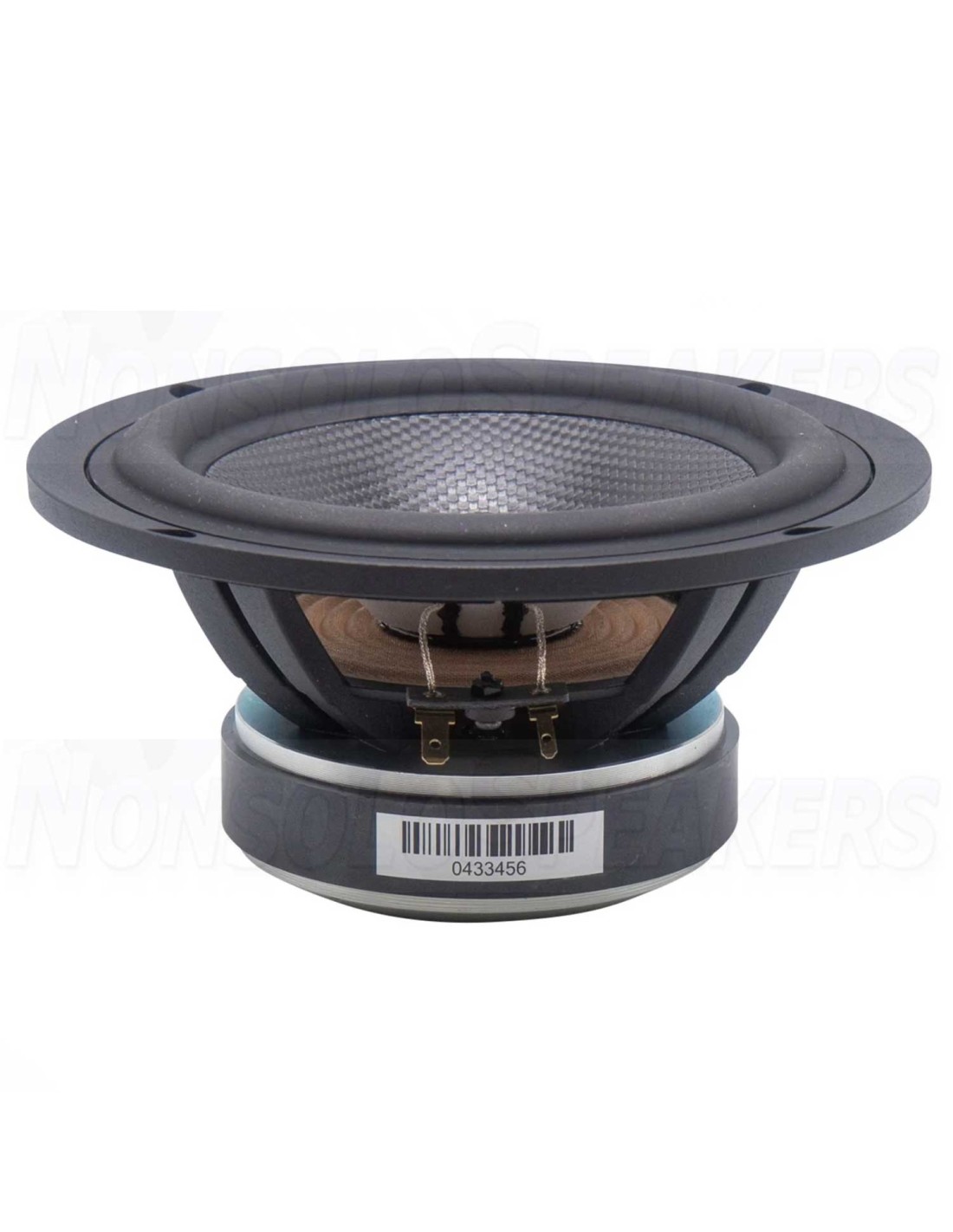

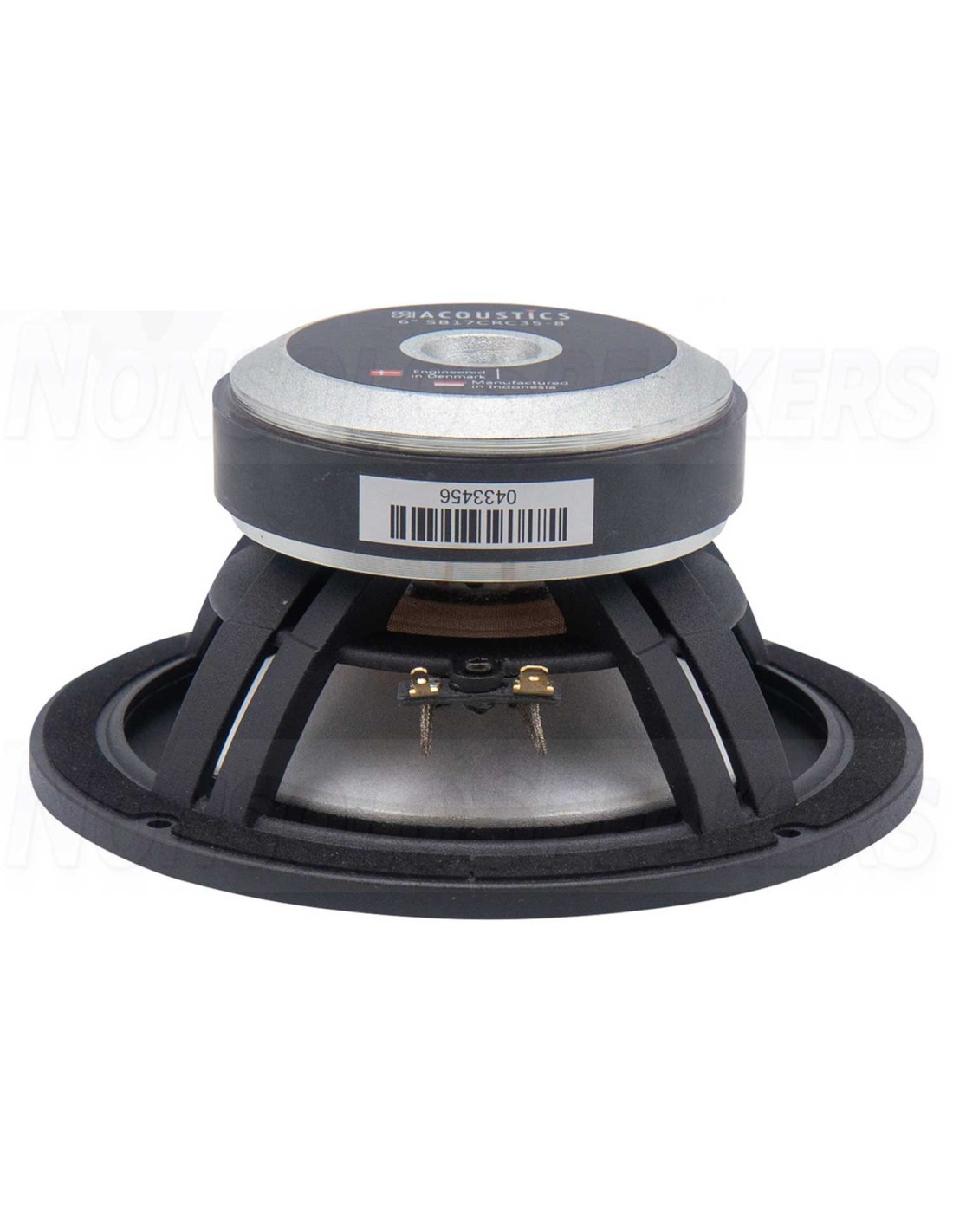

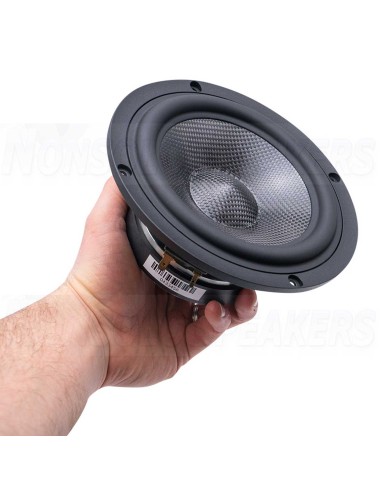

SB Acoustics SB17CRC35-4 6" Carbon Fiber Woofer 4 ohms

SHIPMENT IN 7/10 WORKING DAYS
€103.55 €109.00 -5%
Tax included
rating No review at the moment

SB Acoustics SB17CRC35-4 6" Carbon Fiber Woofer 4 ohms

Variants
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB17CRC35-4 6" Carbon Fiber Woofer 4 ohms

.

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

Rohacell®/Carbon fiber sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping.

.

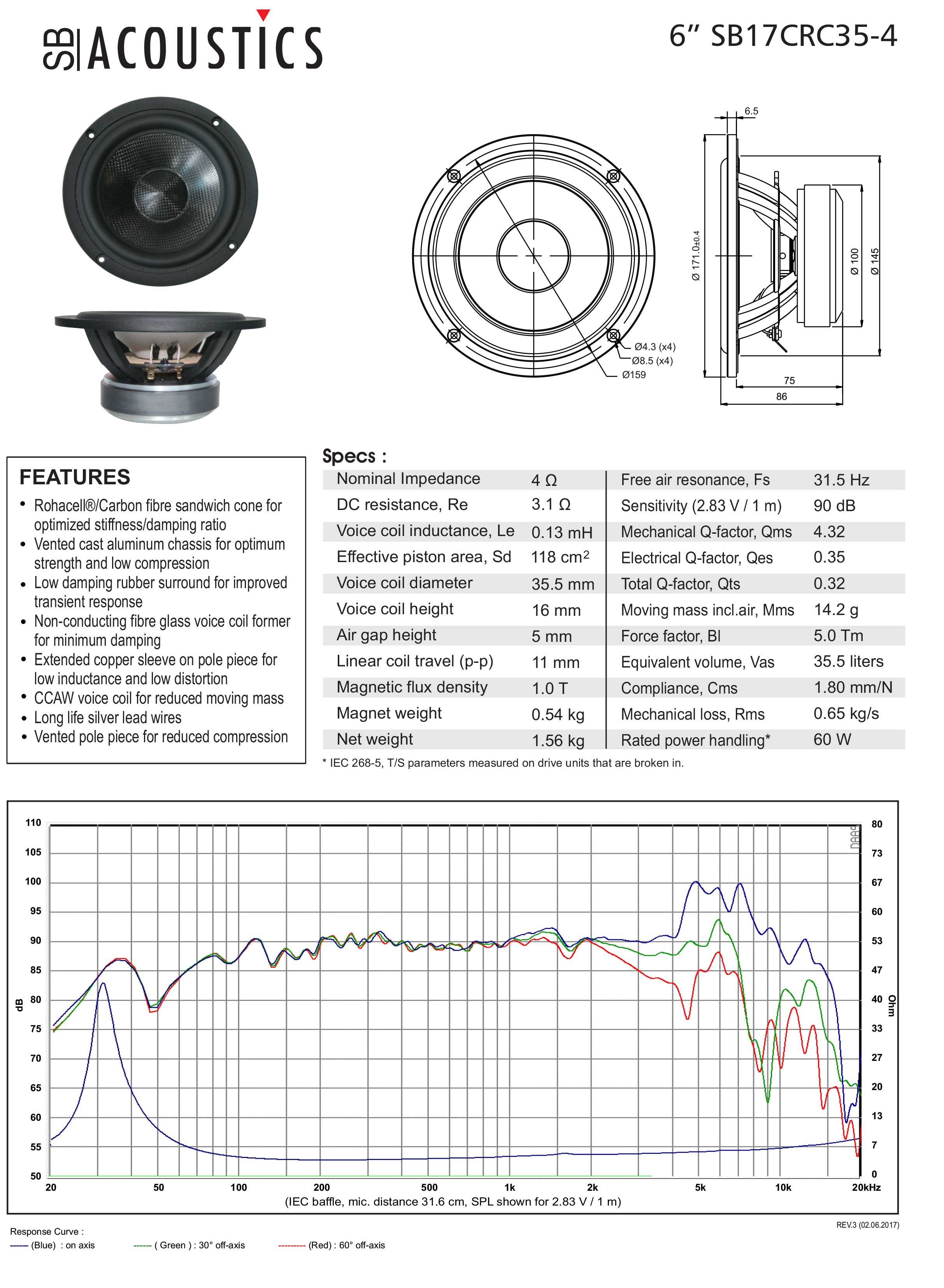

Specifications

  • Article number SB17CRC35-4
  • EAN 0691046949813
  • Woofer Series SB Acoustics CRC Carbon series
  • Woofer type Midwoofer
  • Nominal diameter 6”
  • Power Handling (RMS) 0.65kg/s
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 90dB
  • Voice coil diameter 35.5mm
  • Magnet weight 0.54kg
  • DC Resistance (Re) 3.1Ω
  • Voice Coil Inductance (Le) 0.13 mH
  • Resonant Frequency (Fs) 31.5Hz
  • Mechanical Q (Qms) 4.32
  • Total Q (Qts) 0.32
  • Diaphragm Mass Inc. Airload (Mms) 14.2g
  • Mechanical Compliance of Suspension (cms) 1.80mm/N
  • Surface Area of Cone (Sd) 118cm2
  • BL Product (BL) 5.0 Tm
  • Compliance Equivalent Volume (Vas) 35.5 liters
  • Maximum Linear Excursion (Xmax) 5.5mm
  • Driver's Mechanical Losses (Rms) 0.65kg/s
  • Cone/diaphragm material Rohacell®/Carbon fiber sandwich cone
  • # Mounting Holes 4

SB17CRC35-4
