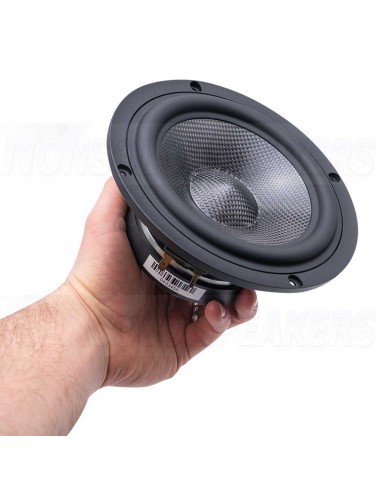

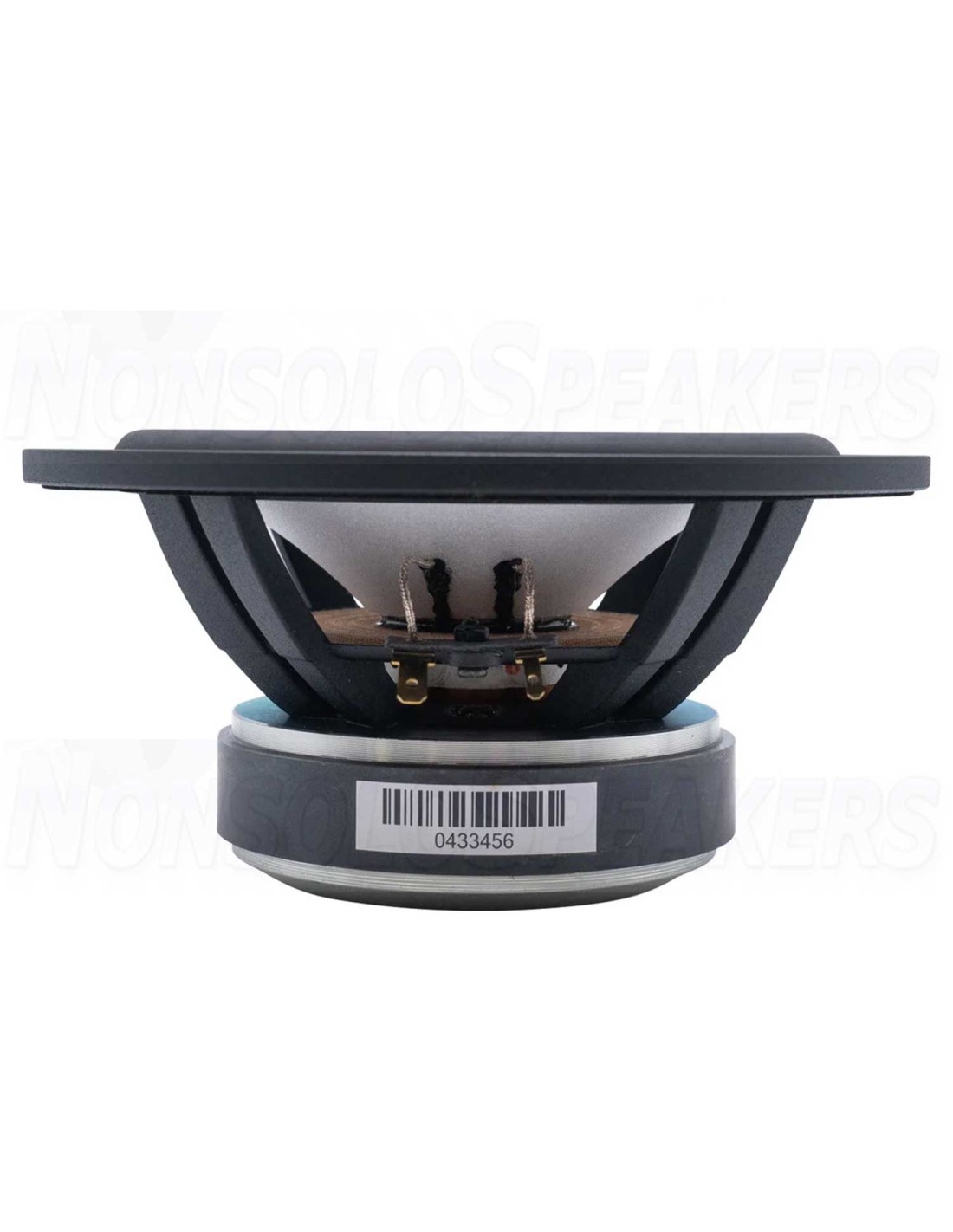

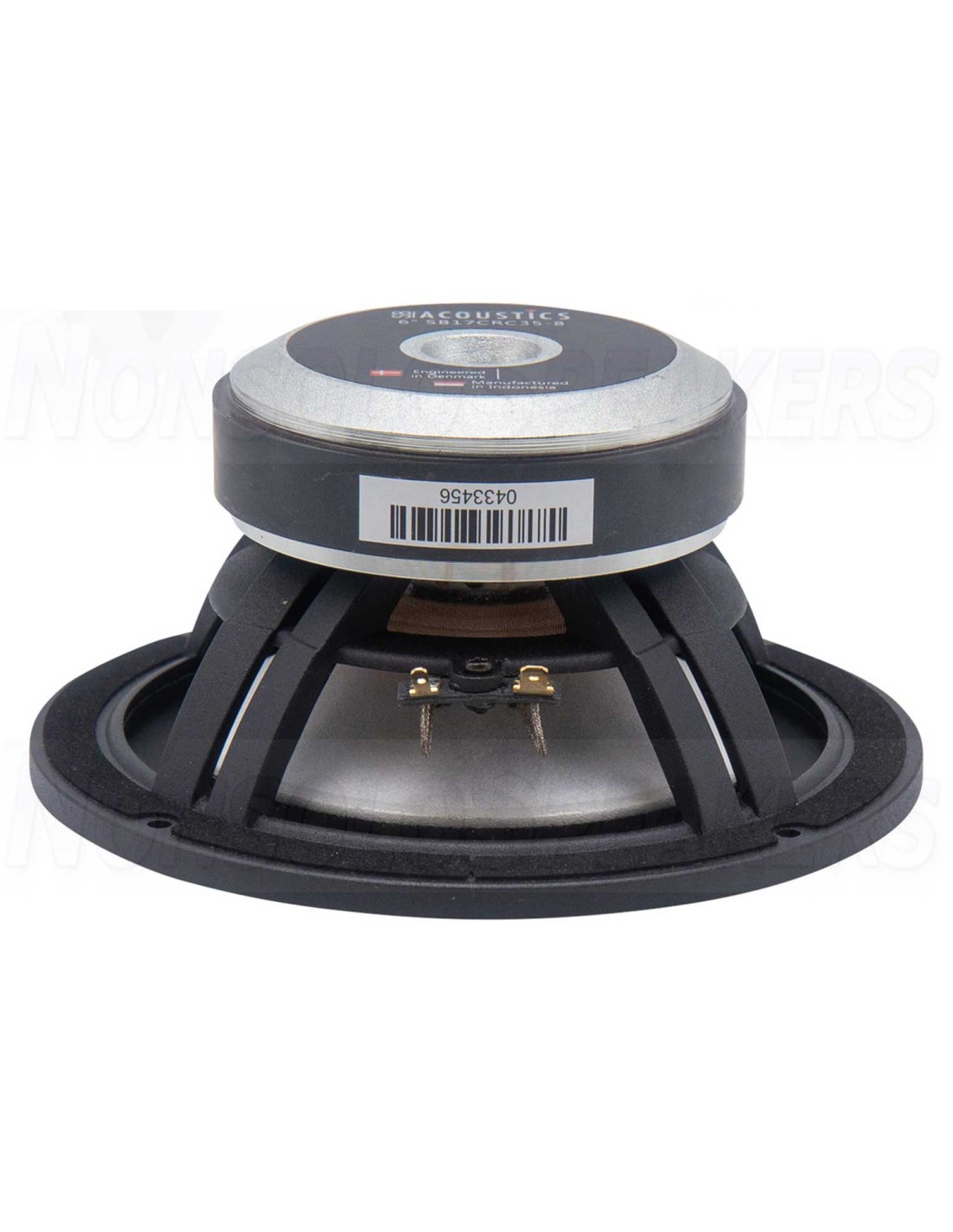

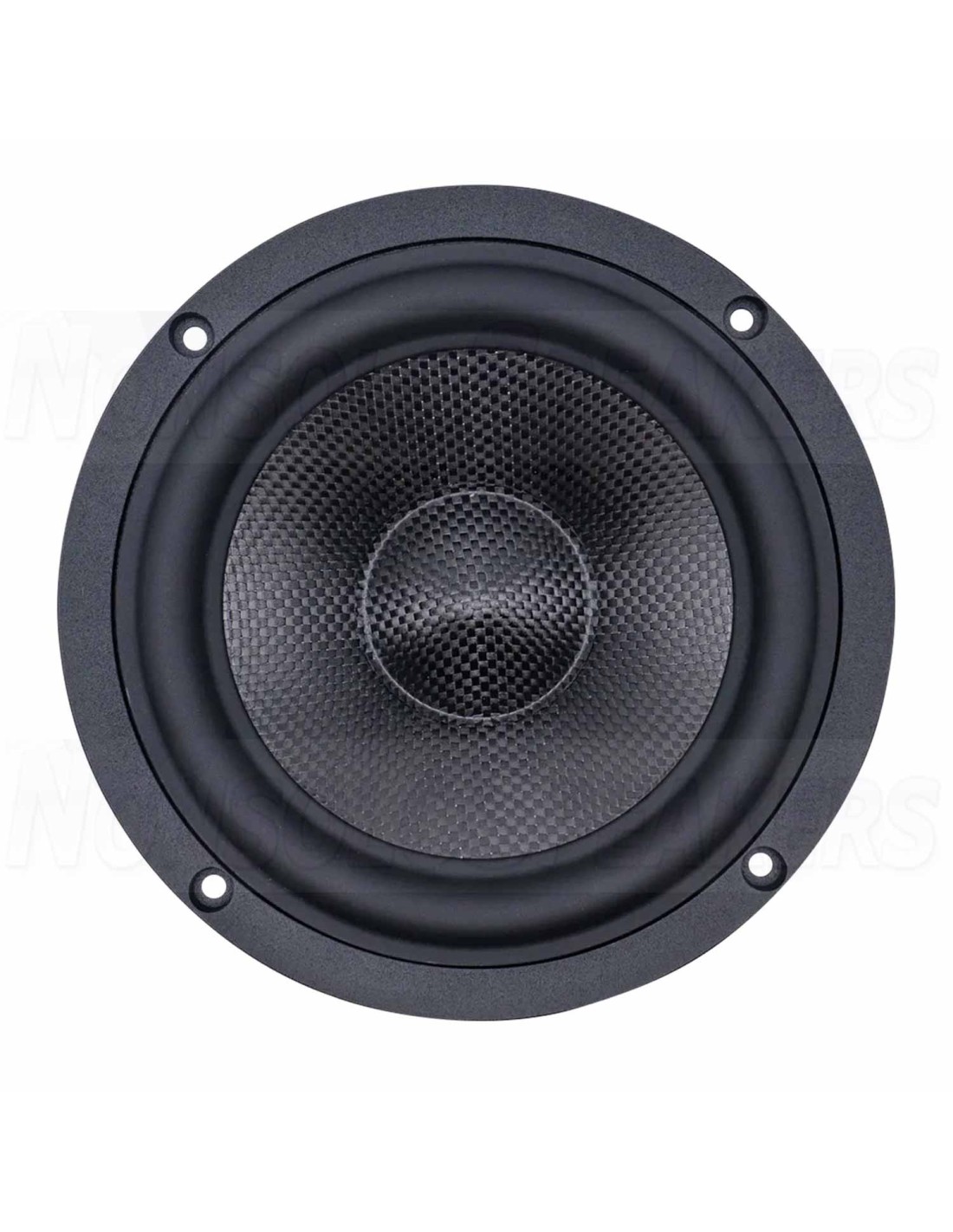

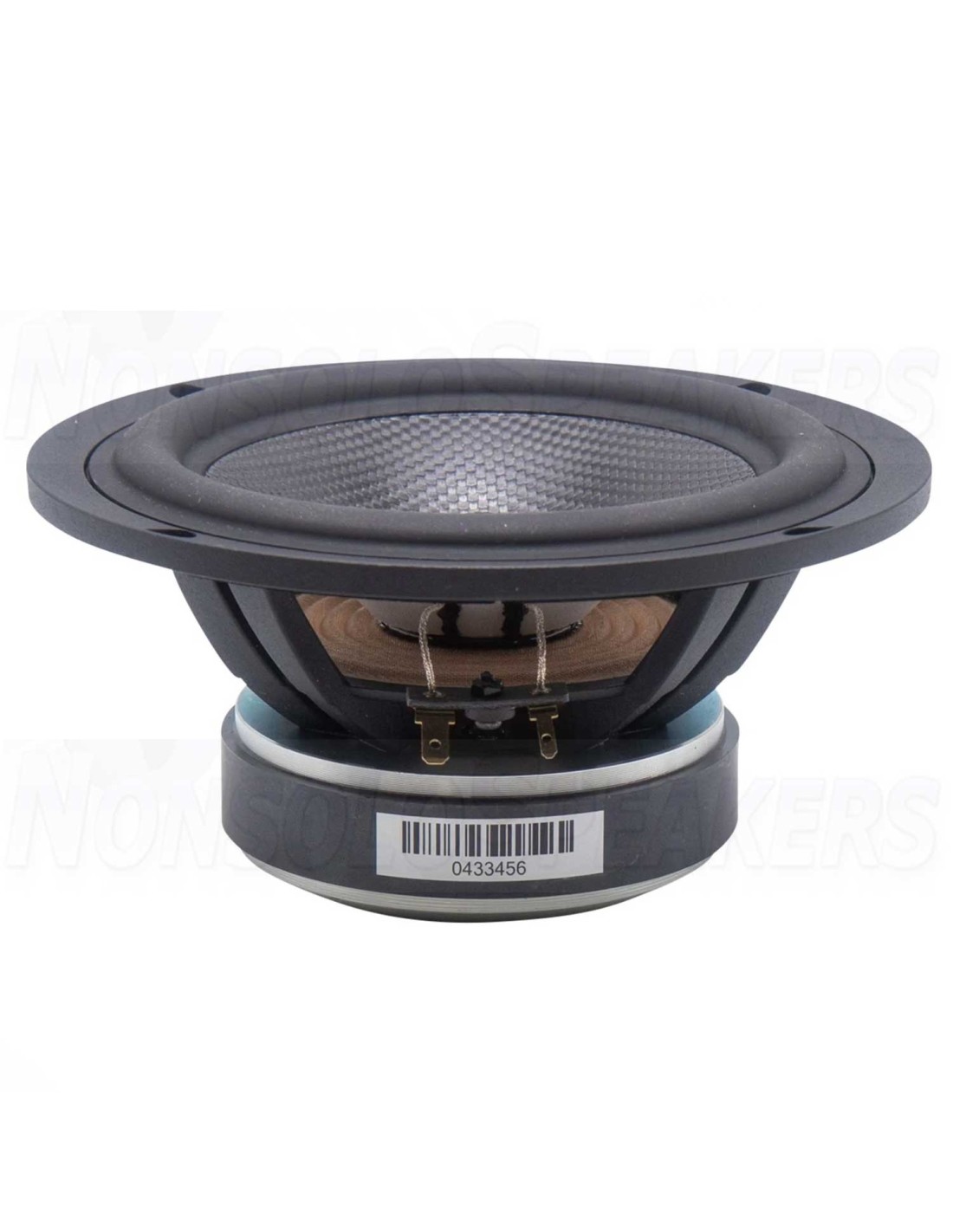

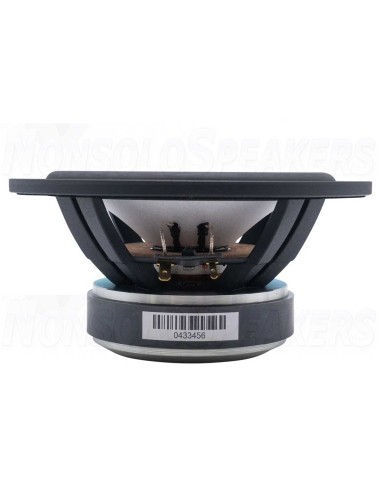

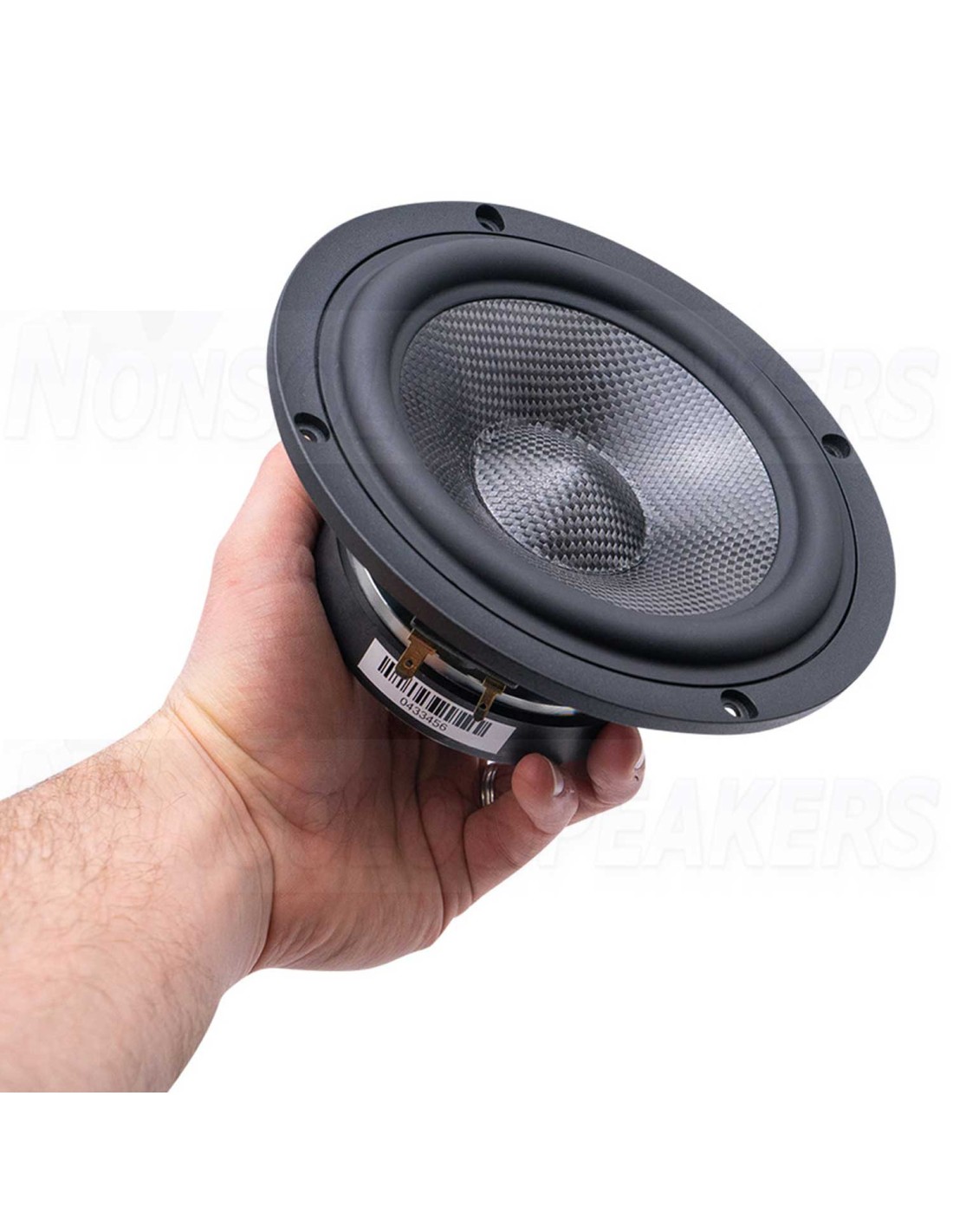

SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

SHIPMENT IN 7/10 WORKING DAYS
€103.55 €109.00 -5%
Tax included
rating No review at the moment

SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

Variants
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms
SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB17CRC35-8 6" Carbon Fiber Woofer 8 ohms

.

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

Rohacell®/Carbon fiber sandwich cone for optimized stiffness/damping ratio. Vented cast aluminum chassis for optimum strength and low compression. Low damping rubber surround for improved transient response. Non-conducting fiber glass voice coil former for minimum damping.

.

Specifications

  • Article number SB17CRC35-8
  • EAN 0691046949820
  • Woofer Series SB Acoustics CRC Carbon series
  • Woofer type Midwoofer
  • Nominal diameter 6"
  • Power Handling (RMS) 60W
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 87dB
  • Voice coil diameter 35.5mm
  • Magnet weight 0.54kg
  • DC Resistance (Re) 5.7Ω
  • Voice Coil Inductance (Le) 0.15mH
  • Resonant Frequency (Fs) 28Hz
  • Mechanical Q (Qms) 3.90
  • Electromagnetic Q (Qes) 0.37
  • Total Q (Qts) 0.34
  • Diaphragm Mass Inc. Airload (mms) 13.3g
  • Mechanical Compliance of Suspension (Cms) 2.43mm/N
  • BL Product (BL) 6.0 Tm
  • Compliance Equivalent Volume (Vas) 48 litres
  • Maximum Linear Excursion (Xmax) 5.5mm
  • Driver's Mechanical Losses (Rms) 0.6kg/s

SB17CRC35-8
