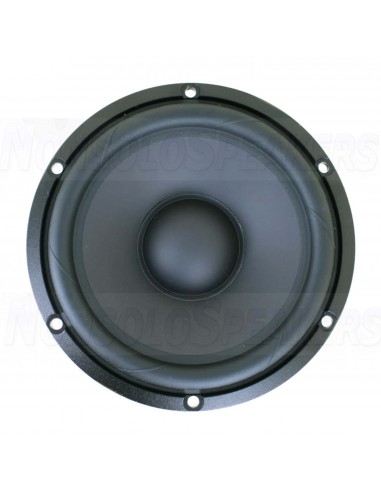

SEAS Prestige L19RNX1 - H1878-08 7" Woofer 8 Ohms

.

Seas Prestige L19RNX1 - H1878-08 7" Aluminum Cone Woofer

L19RNX1 is a 7” high-fidelity woofer with a very stiff and optimally shaped aluminum cone. This pushes the cone break-up high up in frequency and avoid any resonances in the working range for a very natural and clean sound. A titanium voice coil former with a long copper winding for excellent force transfer, transient sound reproduction and large linear excursion.

A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. This combination results in very low mechanical damping for better clarity and brings out the micro details in the music. An FEA optimized magnet system with precisely fitted copper parts for excellent linearity, high power handling and low distortion.

The extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

.

Highlights

• High break-up point
• Titanium voice coil former
• Very stiff and optimally shaped aluminum cone
• Unique radial reinforced rubber surround
• Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment

.

Technical Specifications:

• Article number L19RNX1
• EAN 0691046949066
• Woofer Series SEAS Prestige series
• Woofer Type Woofer
• Nominal Diameter 7"
• Power Handling (RMS) 200 watts
• Power Handling (max) 330 watts
• Continuous Program Power -
• Impedance (Z) 8 ohms
• Sensitivity (SPL at 1m / 2.83V) 86 dB
• Frequency Response 20 - 3000 Hz
• Voice Coil Diameter 39 mm
• Magnet Weight 900 grams
• DC Resistance (Re) 6.2 ohms
• Voice Coil Inductance (Le) 0.66 mH
• Resonant Frequency (Fs) 32 Hz
• Mechanical Q (Qms) 5.50
• Electromagnetic Q (Qes) 0.41
• Total Q (Qts) 0.38
• Diaphragm Mass Inc. Airload (Mms) 25.4g
• Mechanical Compliance of Suspension (Cms) 0.96 mm/N
• Surface Area of Cone (Sd) 146 cm²
• Volume of Displacement (Vd) 102 cm³
• BL Product (BL) -
• Compliance Equivalent Volume (Vas) 29 liters
• Maximum Linear Excursion (Xmax) 7 mm
• Driver's Mechanical Losses (Rms) -
• Cone / Diaphragm Material Aluminum
• Surround Material Rubber
• Voice Coil Wire Material Copper
• Voice Coil Former Titanium
• Dual Voice Coil -
• Basket / Frame Material -
• Magnet Material -
• Shielded -
• Overall Outside Diameter 176 mm
• Overall Depth 87 mm
• Baffle Cutout Diameter 154 mm
• Bolt Circle Diameter 166 mm
• Mounting Hole Diameter 5 mm
• Sealed Volume -
• Sealed F3 -
• Vented Volume -
• Vented F3 -
