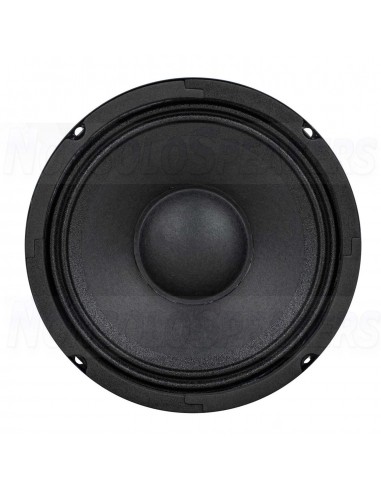

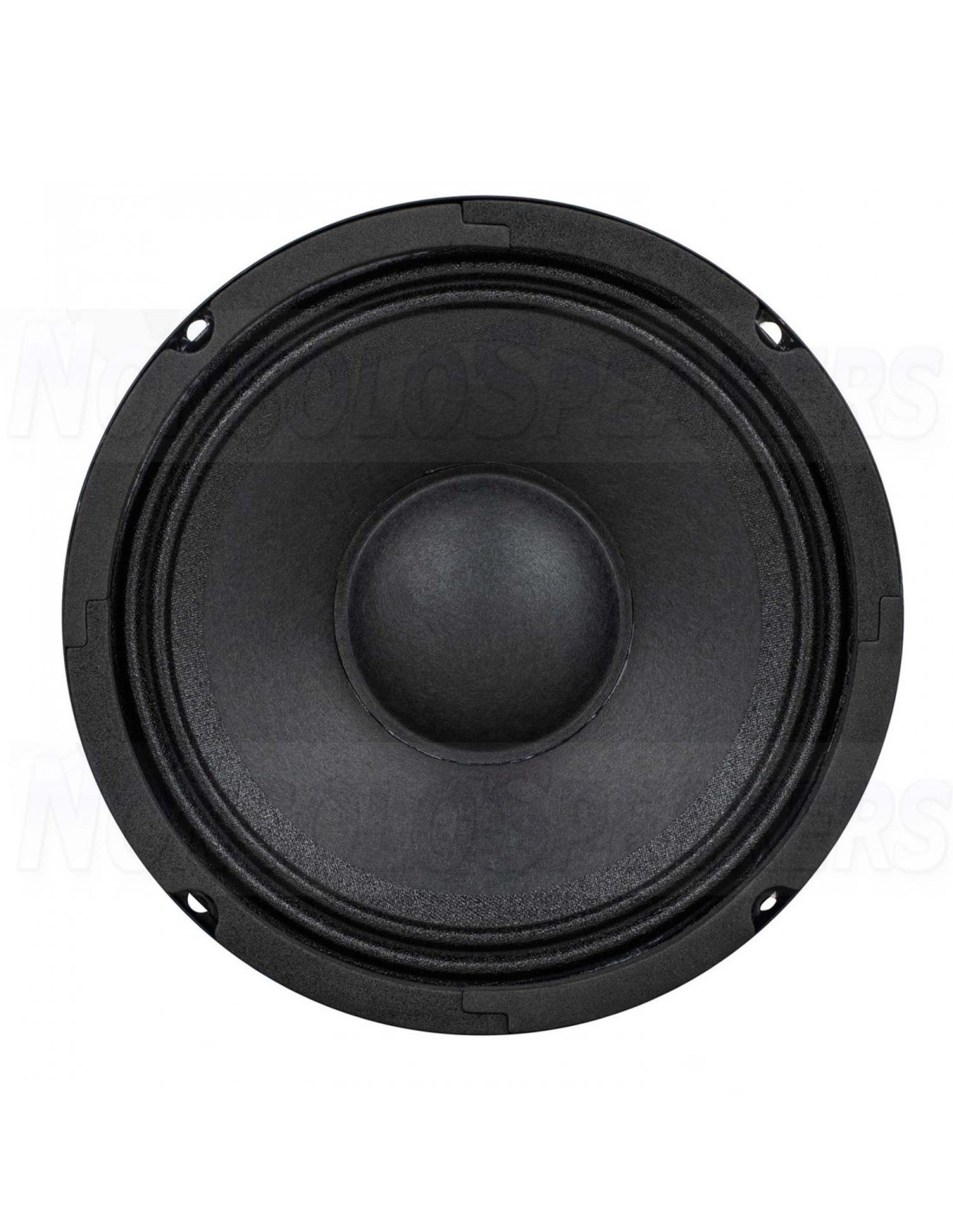

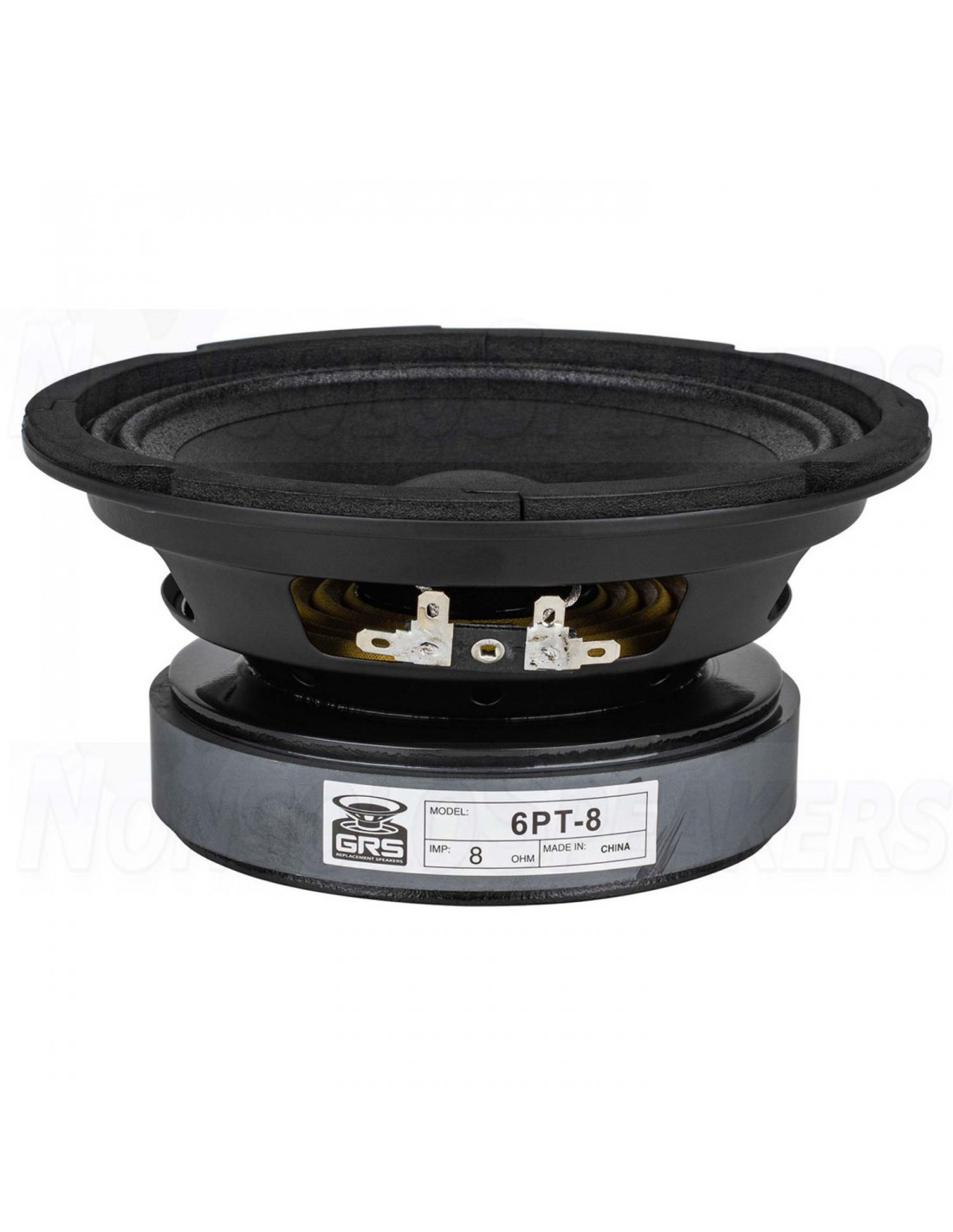

GRS 6PT-8 6-1/2" Paper Cone Midbass Woofer 8 Ohm

GRS 6PT-8 6-1/2" Paper Cone Midbass Woofer 8 Ohm

Name: GRS 6PT-8 6-1/2" Paper Cone Midbass Woofer 8 Ohm
Brand: GRS Audio
SKU: GRS 10SW-4
Price: 26.45 EUR
Availability: OutOfStock

GRS 6PT-8 6-1/2" Paper Cone Professional Midbass Woofer 8 Ohm

The GRS 6PT-8 6-1/2” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank.

Out-of-Stock

€26.45

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€16.80

Shipping Time

Want to check another country or courier?

GRS 6PT-8 6-1/2" Paper Cone Professional Midbass Woofer 8 Ohm

The GRS 6PT-8 6-1/2” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank. Packed with features like a 1.6” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged loudspeaker or you are designing a high output 2 or 3-way system, the 6PT-8 is the perfect driver for budget builds.

Product highlights:

Lightweight damped paper cone allows high efficiency with minimal resonance
Smooth on and off axis response for use in high output 2 or 3-way designs
Extensive venting keeps cool air flowing across the voice coil to minimize power compression

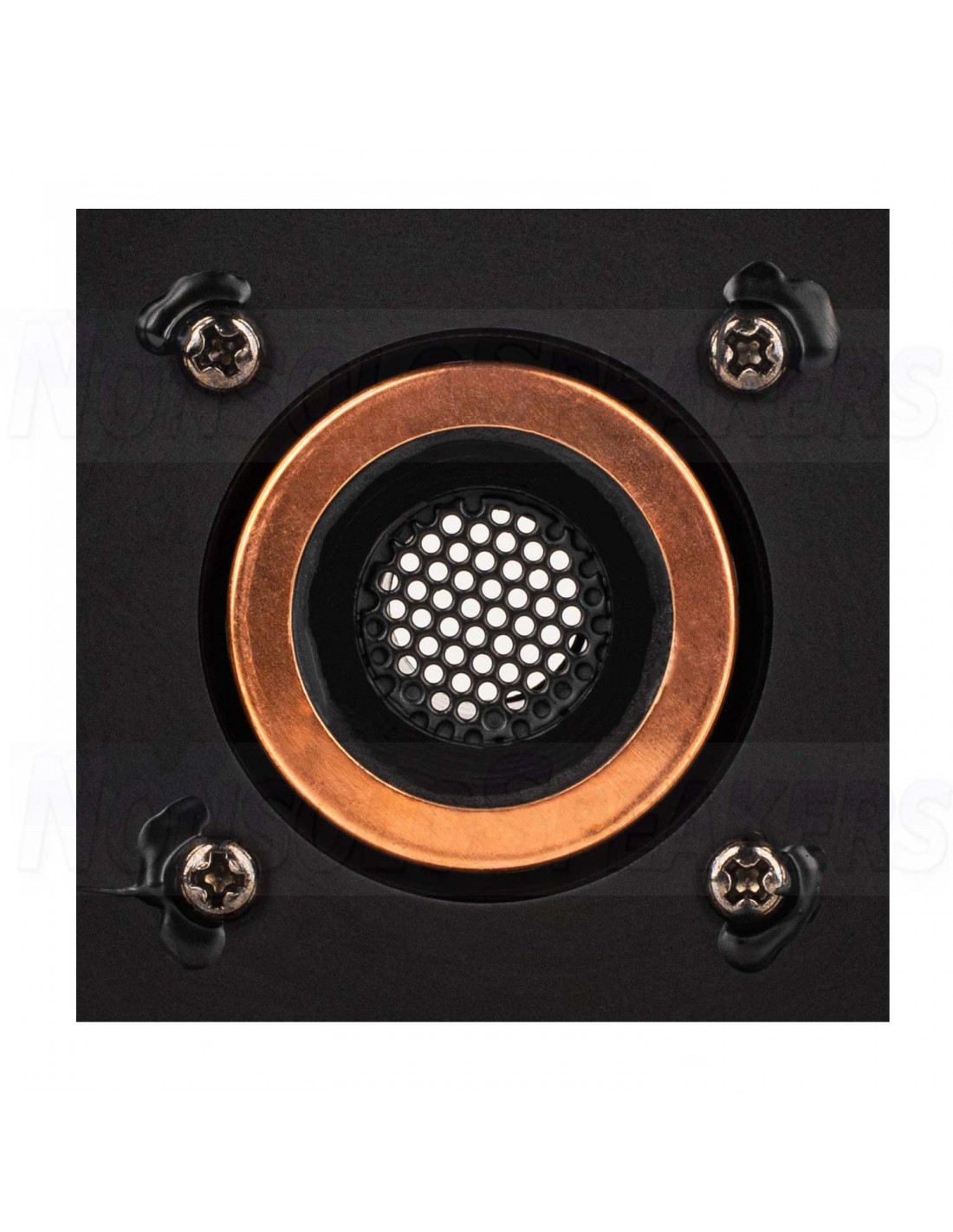

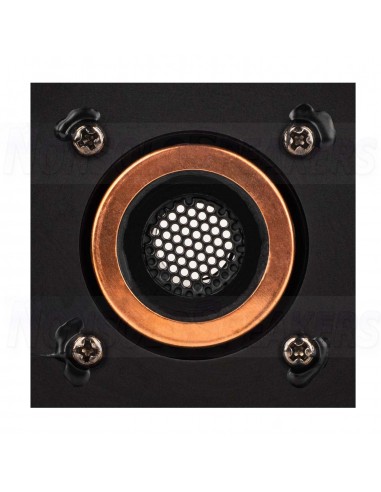

Inductance lowering copper cap reduces distortion and extends high frequency response
Spring-loaded push-button terminals makes wire connections quick and easy
Foam front gasket ensures an airtight seal for rear mount installations

Product details

GRS 6PT-8 6-1/2" Paper Cone Professional Midbass Woofer 8 Ohm

Engineered for high output with smooth frequency response, the 6PT-8 6-1/2” professional woofer is ideal for use in systems built to provide impressive SPL. Packed with features you would expect from much more expensive drivers, the 6PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 3,000 Hz. Driving the cone is a 1.6” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 100 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 6PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn-out speaker, or are designing high output 2 or 3-way system, the 6PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

Technical Specifications:

Article number 6PT-8
Nominal Diameter 6-1/2"
Power Handling (RMS) 100 Watts
Power Handling (max) 200 Watts
Impedance (Z) 8 Ohms
Sensitivity (SPL at 1m / 2.83V) 92 dB
Frequency Response 55 to 11,000Hz
DC Resistance (Re) 7.4Ω
Voice Coil Inductance (Le) 1.1mH
Resonant Frequency (Fs) 94 Hz
Mechanical Q (Qms) 4.74
Electromagnetic Q (Qes) 0.85
Total Q (Qts) 0.72
Diaphragm Mass Inc. Airload (Mms) 8g
Mechanical Compliance of Suspension (Cms) 0.36mm/N
Surface Area of Cone (Sd) 136.6cm²
BL Product (BL) 6.4T·m
Compliance Equivalent Volume (Vas) 0.335ft³
Maximum Linear Excursion (Xmax) 4.2 mm
Cone / Diaphragm Material Paper / Glass Fiber
Surround Material Cloth
Voice Coil Wire Material Copper
Voice Coil Former Kapton® / Polyimide
Basket / Frame Material Steel
Overall Outside Diameter 6.5"
Overall Depth 3"
Baffle Cutout Diameter 5.8"
Bolt Circle Diameter 6.14
# Mounting Holes 4
Sealed Volume 0.5ft³
Sealed F3 108Hz
Vented Volume 1.1ft³
Vented F3 57Hz

Reference GRS 10SW-4
