SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer
SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer
SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer
SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

SHIPMENT IN 7/10 WORKING DAYS
€569.05 €599.00 -5%
Tax included
rating No review at the moment

SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

Variants

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?



SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

.

Highlights of the SEAS E0117-08 W19NX004

Custom Composite Sound Metamodal™ TPCD diaphragm for optimal stiffness, low weight, and controlled damping

FEA-optimized magnet system with copper parts for low distortion and high linearity

Titanium voice coil former ensures precise force transfer and reduced mechanical damping

Rigid injection-moulded metal basket minimizes air noise, cavity resonance, and reflection

.

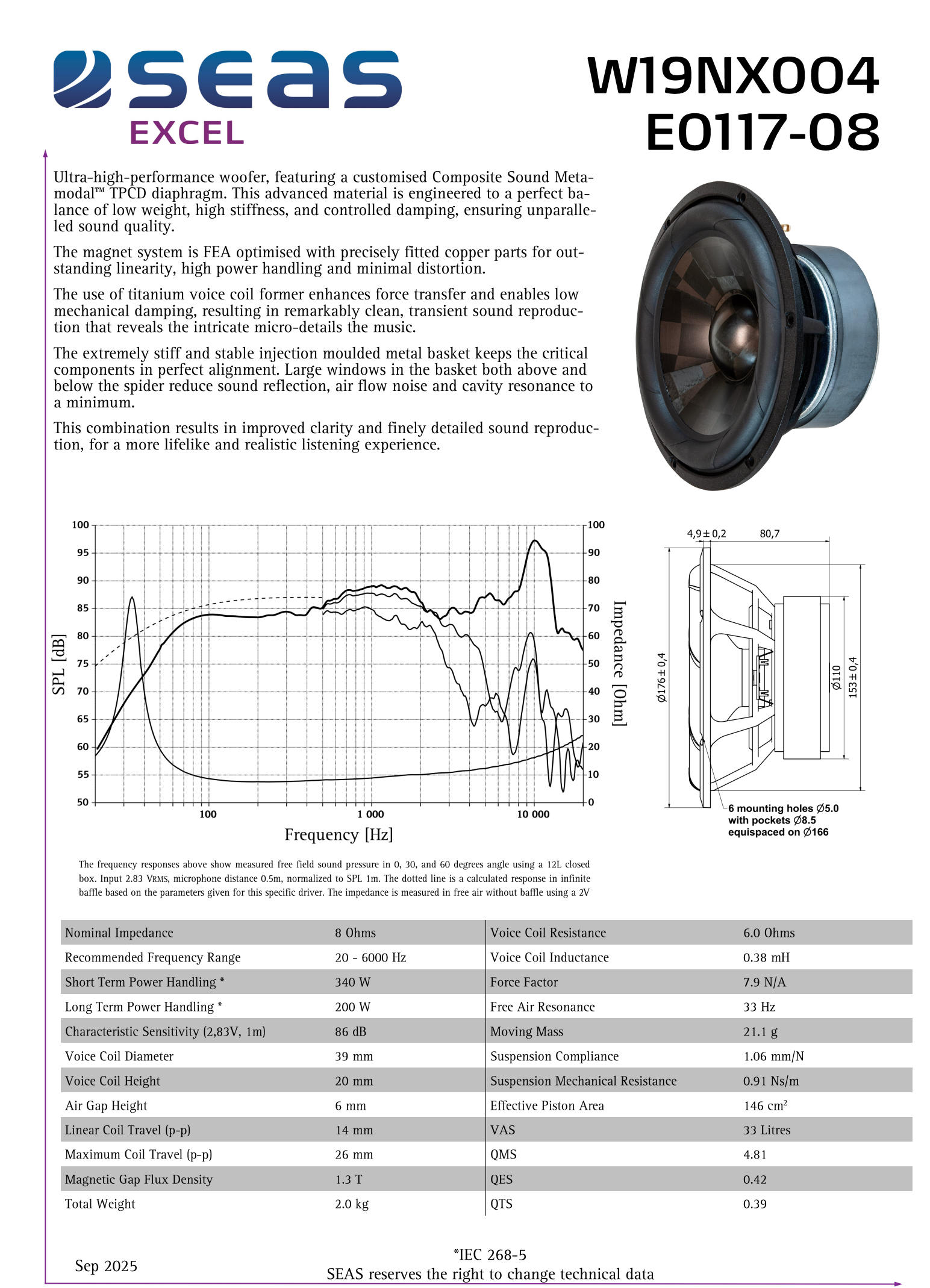

Product details SEAS E0117-08 W19NX004

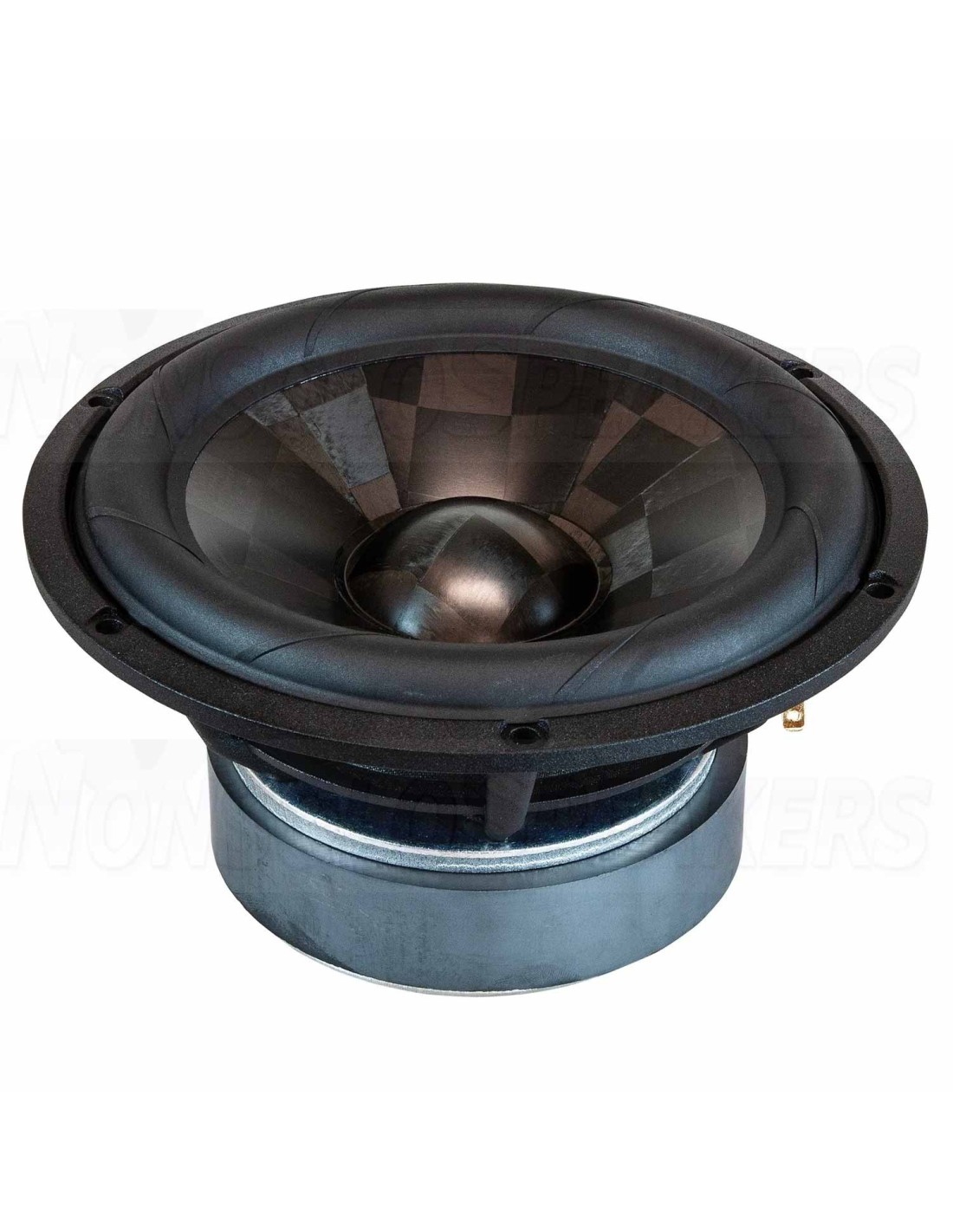

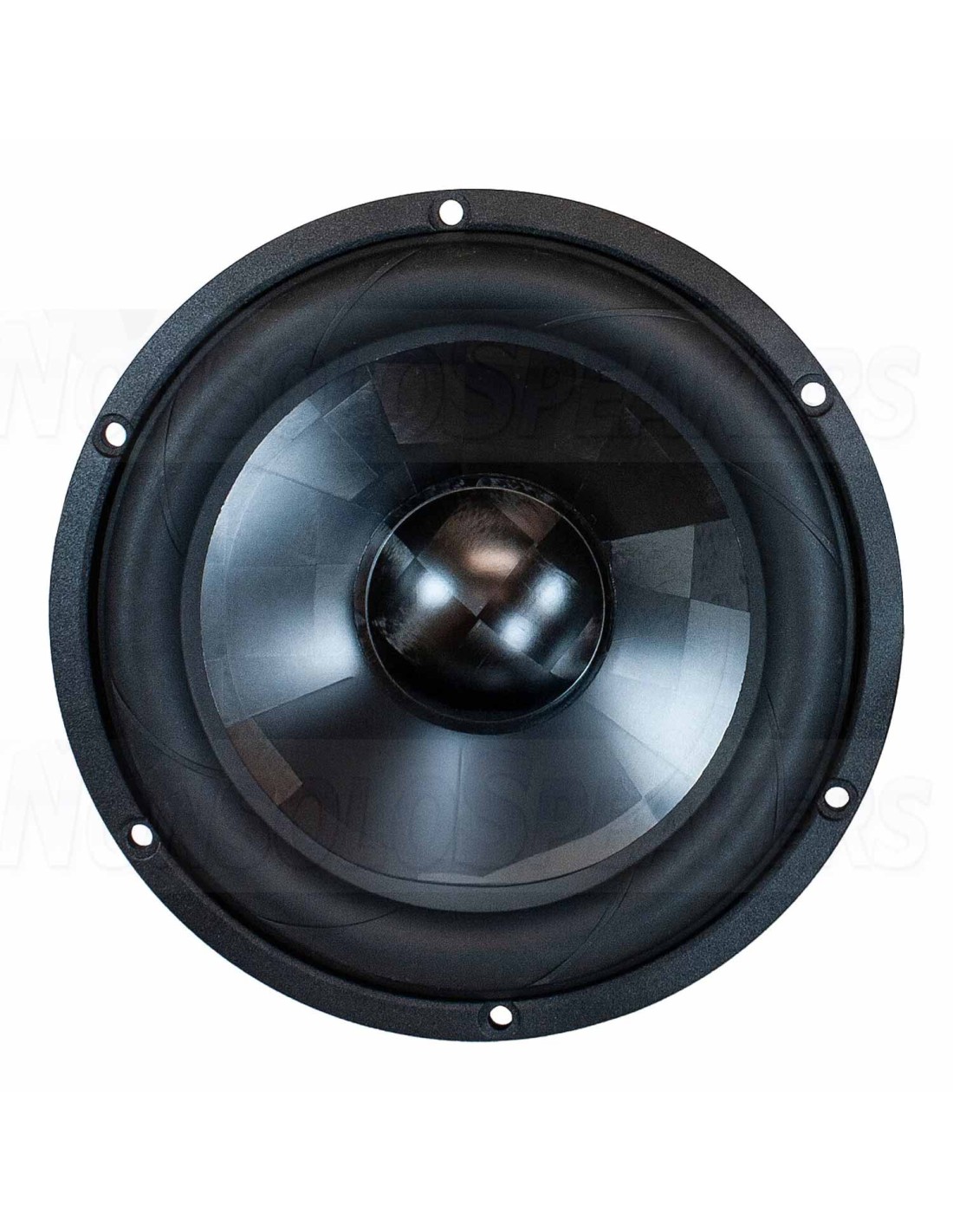

SEAS E0117-08 W19NX004 Bass-mid woofer

The SEAS E0117-08 W19NX004 is a state-of-the-art bass-midrange woofer built for audiophiles and high-end loudspeaker applications. At its core is a proprietary Composite Sound Metamodal™ TPCD diaphragm, engineered to strike a perfect balance of low mass, high stiffness, and internal damping. This enables ultra-low distortion and detailed, lifelike sound reproduction.

Its FEA-optimized magnet system integrates precision copper components to enhance linearity, reduce distortion, and support high power handling. The titanium voice coil former offers improved force transmission and reduces mechanical damping, resulting in rapid, clean transients that accurately render even the most delicate micro-details in audio content.

The driver is housed in an extremely rigid injection-moulded metal basket, which holds all internal components in stable alignment. Carefully designed venting above and below the spider helps minimize unwanted acoustic artifacts such as reflections, turbulence, and resonance, further improving clarity and realism. The SEAS E0117-08 W19NX004 is the ideal choice for discerning DIY speaker builders and manufacturers aiming for uncompromised audio performance.

.

Features

  • Article Number: W19NX004
  • EAN 9502589747174
  • Woofer Series SEAS Excel series
  • Woofer Type Bass-midwoofer
  • Nominal Diameter 7"
  • Power Handling (QMW) 200 Watts
  • Maximum Power Handling 340 W
  • Impedance (Z) 8 Ohms
  • Sensitivity (SPL at 1m / 2.83V) 86 dB
  • Frequency Response 20 - 6000 Hz
  • Voice Coil Diameter 39 mm
  • DC Resistance (Re) 6 Ohms
  • Voice Coil Inductance (Le) 0.38 mH
  • Mechanical Q Factor (Qms) 4.81
  • Electrical Q Factor (Qes) 0.42
  • Total Q Factor (Qts) 0.39
  • Suspension Compliance (Cms) 1.06 mm/N
  • Diaphragm Area (Sd) 146 cm²
  • Force Factor (BL) 7.9 N/A
  • Equivalent Volume (Vas) 33 L
  • Maximum Deflection (Xmax) 14 mm
  • Cone/Diaphragm Material TPCD
  • Voice Coil Mold Material Titanium
  • Basket/Frame Material
  • Metal # Mounting Holes 6

W19NX004 - E0117-08
4 Items

SEAS is a highly respected brand in the world of high-fidelity (HiFi) speakers, known for its high-quality drivers and custom speaker components. The company, based in Norway, has been in the speaker manufacturing business since 1950. They specialize in producing premium speaker drivers—everything from woofers and tweeters to midrange drivers, which are used by audiophiles and speaker manufacturers worldwide.

Here's a closer look at what makes SEAS stand out:

1. High-Quality Drivers:

SEAS is renowned for its high-performance drivers, which are often used in custom speaker builds or high-end commercial speaker systems. These drivers are crafted with precision to deliver accurate, natural sound. The range of drivers they produce includes:

  • Woofers: SEAS woofers are known for their deep bass response and low distortion. They use materials like polypropylenealuminum, and paper cones to balance rigidity and lightness.
  • Tweeters: SEAS offers both soft dome and metal dome tweeters, with a focus on smooth high-frequency response and wide dispersion. Their aluminumtitanium, and ceramic tweeters are highly regarded for their ability to deliver crisp, detailed highs.
  • Midrange Drivers: SEAS midrange drivers focus on clarity and accuracy in the critical midrange frequencies. These drivers are built to produce natural-sounding vocals and instruments, and are often paired with woofers and tweeters in full-range speaker systems.

2. Technology and Materials:

SEAS uses cutting-edge materials and engineering techniques to optimize the performance of their drivers. Some of the advanced technologies they employ include:

  • Aluminum and Magnesium Cones: Used for their light weight, rigidity, and damping properties, which help reduce distortion while maintaining excellent sound accuracy.
  • Silk and Paper Domes: Their soft dome tweeters, particularly those with silk or paper materials, are designed for smooth high frequencies and a more natural sound profile.
  • Ferrofluid Cooling: Many of SEAS’ high-end tweeters and midrange drivers feature ferrofluid cooling to help improve power handling and reduce distortion.
  • Improved Suspension Systems: SEAS uses advanced suspension designs to control the movement of the speaker cone, helping to improve both efficiency and linear motion for more accurate sound reproduction.

3. Custom Speaker Components:

SEAS doesn’t just make standalone drivers; they are also known for creating complete speaker kits and custom solutions for speaker manufacturers. Many high-end speaker brands use SEAS drivers in their systems because of their precision and reliability.

4. Famous Series from SEAS:

  • SEAS Excel Series: The Excel line is SEAS’ flagship range and is designed for audiophiles and serious enthusiasts. These drivers use advanced materials like magnesium alloy cones and diamond-coated surfaces, ensuring top-tier performance with ultra-low distortion and a highly accurate sound profile. All Excel drivers feature gold-plated connectors for low contact resistance and exceptional reliability. In the SEAS Excel T25CF002 Millennium tweeter, for example, the patented hexadymium magnet system further reduces reflections and back pressure by completely venting the voice coil gap and the space behind the cone suspension. The SEAS Excel T25CF001 features an optimally shaped cone and a large SONOMEX suspension, both produced by SEAS, to ensure excellent performance and consistency.
  • SEAS Prestige Series: This line offers a more affordable option without sacrificing quality. The Prestige drivers are commonly used in high-end DIY speaker projects. The SEAS Prestige MCA15RCY, for example, is a 15 cm diaphragm driver designed for use as a high-quality midrange. The classic coated paper cone offers a smooth and extended frequency response with controlled roll-off. The large magnet system, together with the lightweight cone, provides high sensitivity with low distortion and good transient response. The SEAS Prestige 27TBCD/GB-DXT is a high-resolution aluminum/magnesium alloy tweeter with a DXT® lens. An optimally shaped dome and a large SONOMEX surround, both produced by SEAS, ensure excellent power and coherence. The SEAS Prestige CA22RNY, an 8-inch woofer, features a classic hand-coated paper cone. A matching natural rubber surround creates a well-deflected roll-off characteristic and reduces potential resonance problems.
  • SEAS Extreme Line:SEAS Extreme woofers are designed and crafted to perfection to enhance the low-frequency experience in any audio system. The drivers can be used in all types of applications, such as closed cabinets, passive radiator systems and open diaphragms. The SEAS L26ROY - XM001-04 , a 10-inch woofer, for example, features an extremely rigid aluminum cone that delivers incredible bass accuracy. The cone and low-loss rubber surround do not exhibit the typical resonance and edge distortion signals typical of soft cones. The cables, sewn symmetrically to the spider, are embedded to prevent resonance. The overall suspension ensures stability during extreme excursions

5. Applications:

SEAS drivers are used in:

  • DIY speaker projects: Many audiophiles build their own custom speakers using SEAS components due to their reputation for high performance and excellent build quality.
  • HiFi loudspeakers: SEAS components are commonly found in high-end speaker systems, both from well-known speaker brands and boutique manufacturers.
  • Professional audio: SEAS drivers are sometimes used in studio monitors or professional sound systems due to their accuracy and clarity.

Why Choose SEAS?

  • Accuracy and Natural Sound: SEAS drivers are known for producing very accurate, natural sound. If you’re looking for a speaker that can reproduce music as close to the original performance as possible, SEAS is a top choice.
  • Durability and Longevity: SEAS has a long history in the speaker industry, and their drivers are built to last. The materials they use are chosen for their robustness, meaning their products can handle high power while maintaining their sonic integrity.
  • Reputation for Quality: As a brand, SEAS is highly respected in the audio industry, particularly for producing precision-engineered drivers that are trusted by both DIYers and professional speaker manufacturers.
  • Innovation: With their focus on new materials and technologies, SEAS is constantly pushing the boundaries of what’s possible in speaker design.

Are SEAS Drivers Right for You?

If you’re an audiophile or someone who wants to build or upgrade a high-end sound system, SEAS components could be a great option. Their high-fidelity drivers provide exceptional clarity and accuracy, making them ideal for critical listening environments, such as in a home theater or music listening room.

Are you thinking about building a custom speaker setup, or are you more interested in purchasing a pre-built speaker that uses SEAS drivers? Let me know what you're aiming for, and I can help guide you through your options!
