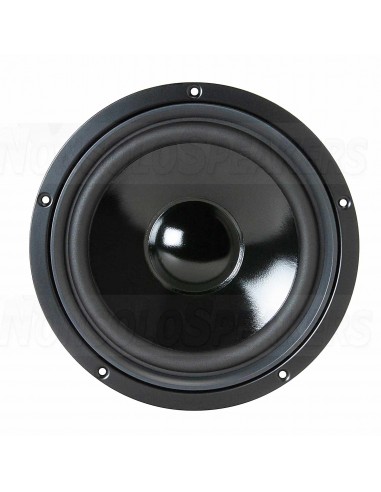

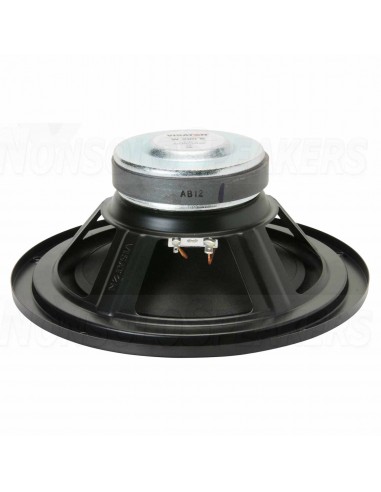

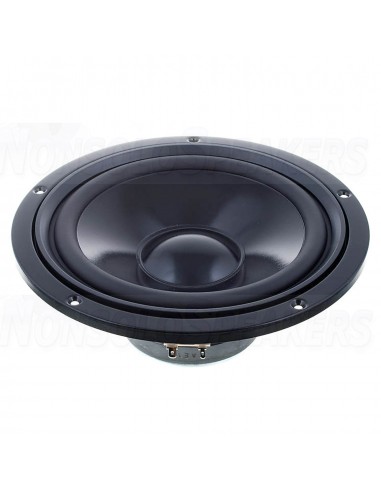

Visaton W 200 S - 4 8" HiFi Woofer 4 Ohm

20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling.

.

Highlights

• High-value HiFi woofer
• Super-low 30 Hz Fs and 0.33 Qts specifications
• Deep bass in a moderate-sized enclosure

.

Product Details

Visaton W 200 S 8" HiFi Woofer 4 Ohm

Visaton's W 200 S 8" woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow an excursion limit of ±10 mm.

A balanced design approach between sensitivity, smooth frequency response (cross it over as high as 2,800 Hz), and extended bass allows this driver to be used as a woofer in two and three-way speaker systems or as a subwoofer.

Technical Specifications

• Article number W 200 S - 4
• Woofer Series HiFi Series
• Woofer Type Midwoofer
• Nominal Diameter 8"
• Power Handling (RMS) 75 Watts
• Power Handling (max) 115 Watts
• Impedance (Z) 4 ohms
• Sensitivity (SPL at 1m / 2.83V) 91 dB
• Frequency Response 29 - 6,000 Hz
• Voice Coil Diameter 35 mm
• DC Resistance (Re) 3.4 ohms
• Voice Coil Inductance (Le) 1.5 mH
• Resonant Frequency (Fs) 29 Hz
• Mechanical Q (Qms) 3.99
• Electromagnetic Q (Qes) 0.38
• Total Q (Qts) 0.35
• Diaphragm Mass Inc. Airload (Mms) 28g
• Surface Area of Cone (Sd) 214 cm2
• BL Product (BL) 7.7 Tm
• Compliance Equivalent Volume (Vas) 65 liters
• Maximum Linear Excursion (Xmax) 3.5 mm
• Cone / Diaphragm Material Treated Paper
• Surround Material Rubber
• Overall Outside Diameter 232 mm
• Overall Depth 95 mm
• Baffle Cutout Diameter 184 mm
• Bolt Circle Diameter 218 mm
• # Mounting Holes 5
• Mounting Hole Diameter 5 mm
• Sealed Volume 14.4 liters
• Sealed F3 66 Hz
• Vented Volume 32 litersVented F3 39 Hz
