TANG BAND W1-2121S - 1.75" Full Range 2x TB-Speakers

TANG BAND W1-2121S - 1.75" Full Range 2x TB-Speakers

Tang Band, one of the leaders in small full range technology, presents the W1-2121S aluminum cone full range. This driver is a perfect candidate for use in portable speakers, computer speakers, or even TV sound bars.

SHIPMENT IN 5-7 WORKING DAYS
€62.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W1-2121S - 1.75" Full Range 2x TB-Speakers

- Price for pair -

Speakers today are becoming smaller and smaller and the need for small drivers is constantly increasing. Tang Band has been one of the leaders in small driver technology and now they bring you the 4 ohm W1-2121S 1-3/4" aluminum cone full range. At only 46 mm outside diameter, this driver will fit almost anywhere you can imagine. The incredibly smooth response from 120 to 15,000 Hz makes it excellent for use in portable Bluetooth speakers and small sound bars. When teamed up with a subwoofer the W1-2121S delivers superb performance in portable speakers or even an ultra-small satellite.

.

Product Details

  • Brand Tang Band
  • Model W1-2121S
  • Part Number 264-825
  • UPC 848864023717
  • Unit of Measure Each
  • Weight 0.25

.

Product Specifications

  • Nominal Diameter 1-3/4"
  • Moving Mass Of Diaphragm (Mmd) 1.68
  • Power Handling (RMS) 6 Watts
  • Power Handling (MAX) 12 Watts
  • Impedance 4Ω

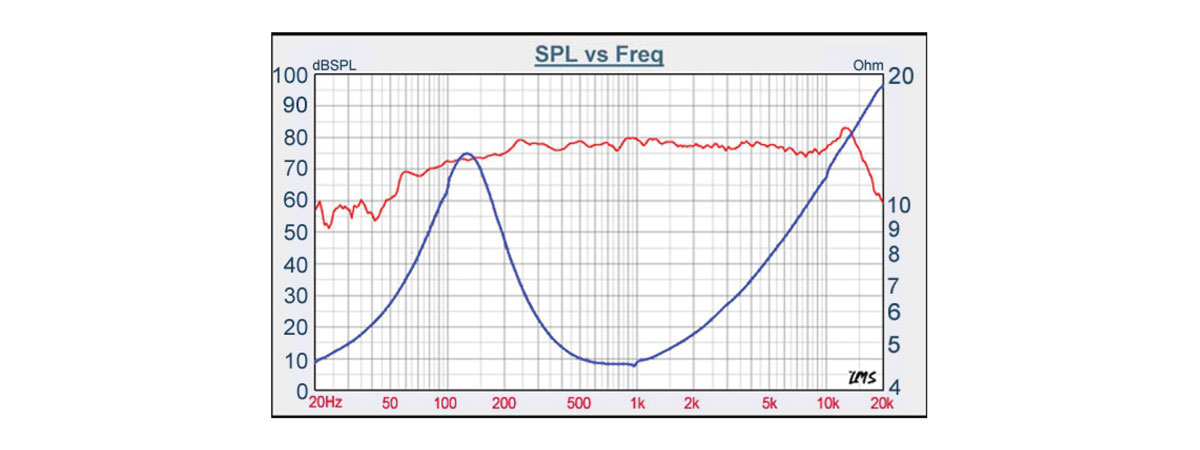

  • Frequency Response 120 to 15,000Hz
  • Sensitivity 79dB 2.83V/1m
  • Voice Coil Diameter 1.1"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 120Hz
  • DC Resistance (Re) 3.5Ω
  • Voice Coil Inductance (Le) 0.07mH
  • Mechanical Q (Qms) 1.33
  • Electromagnetic Q (Qes) 0.47
  • Total Q (Qts) 0.35
  • Compliance Equivalent Volume (Vas) 0.0038ft³
  • Mechanical Compliance of Suspension (Cms) 0.949mm/N
  • BL Product (BL) 3.14T·m
  • Maximum Linear Excursion (Xmax) 2.3mm
  • Surface Area of Cone (Sd) 8.935cm²

.

Materials of Construction

  • Cone Material Aluminum
  • Surround Material Santoprene®
  • Voice Coil Wire Material Copper
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium

.

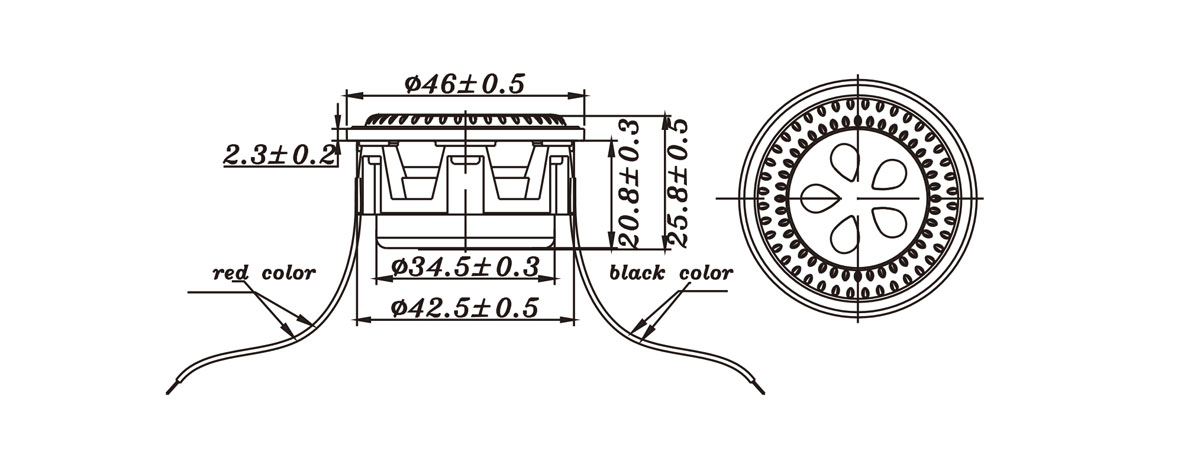

Mounting Information

  • Overall Outside Diameter 1.81"
  • Baffle Cutout Diameter 1.67"
  • Depth 1.07"

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.00698ft³
  • Sealed F3 294Hz
  • Vented Volume 0.00181ft³
  • Vented F3 167.9Hz

.

.

W1-2121S
