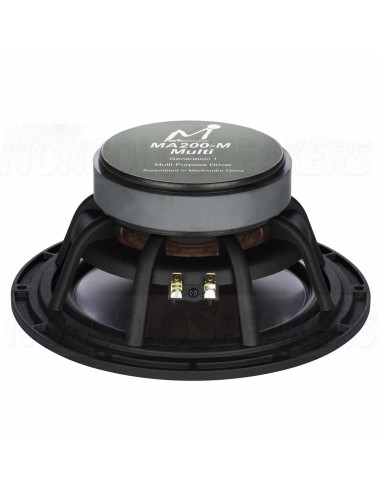

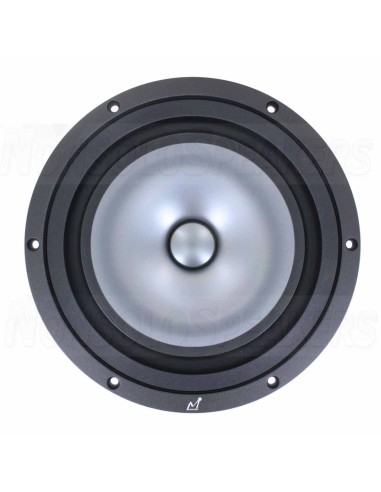

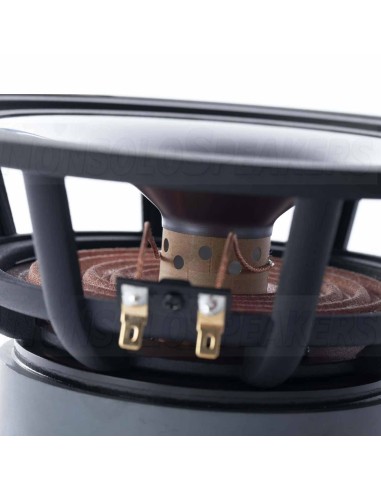

Markaudio MA200-M Grey Fullrange Driver

Price for 1 piece

.

The Markaudio MA200-M Multi in Stealth Grey is an 8-inch high-fidelity full-range driver engineered for versatility and refined sound. Designed to handle high power and deliver extended low and high-frequency response, it is ideal for custom speaker builds in hi-fi, home theater, and commercial audio applications.

.

Highlights of the Markaudio MA200-M Multi

Wide frequency response from 30 Hz to over 20 kHz in optimal enclosures

High-strength aluminum-magnesium alloy cone for low distortion and rigidity

Low resonance frequency (Fs = 33 Hz) with long-stroke suspension and high compliance

Optimized chassis design with rounded angles for smoother wave dispersion and airflow

.

The MA200-M Multi from Markaudio is a purpose-built 8-inch driver offering high fidelity and mechanical precision for serious audio enthusiasts and speaker designers. Featuring a nominal power handling of 50 watts and a sound pressure level of 90.26 dB (2.83V/1m), it balances efficiency with dynamic capability. The driver’s advanced cone material—a blend of aerospace-grade aluminum and magnesium—offers exceptional strength-to-weight ratio, enabling excellent performance from deep bass to high treble.

With a low Fs of 33 Hz and a compliance volume (Vas) of 65.2 liters, the MA200-M is optimized for large enclosures and supports deep low-end extension. The mechanical suspension, long 9mm Xmax, and Qts of 0.3455 result in clean excursion and tight control across its frequency range. Its low inductance (0.228 mH @ 1kHz) and smooth impedance behavior support stable and accurate reproduction. This driver is a strong choice for full-range or wide-range mid-bass designs in diverse audio setups, combining premium materials with engineering tailored for clarity and flexibility.

.

Specifications

• Article number MA200-M Grey
• EAN 9507615973817
• Woofer Type Full Range Woofer
• Nominal Diameter 8"
• Power Handling (RMS) 50 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 90.26 dB
• Frequency Response 30 - 20.000 Hz
• DC Resistance (Re) 6.8 Ω
• Voice Coil Inductance (Le) 0.2283 mH
• Resonant Frequency (Fs) 33 Hz
• Mechanical Q (Qms) 2.239
• Electromagnetic Q (Qes) 0.4086
• Total Q (Qts) 0.3455
• Diaphragm Mass Inc. Airload (Mms) 21.1652 g
• Moving Mass Of Diaphragm (Mmd) 19.4903 g
• Mechanical Compliance of Suspension (Cms) 1.0990 mm/N
• Surface Area of Cone (Sd) 0.0206 m²
• BL Product (BL) 8.5460 T/M
• Compliance Equivalent Volume (Vas) 65.1957 Liters
• Maximum Linear Excursion (Xmax) 9 mm
• Driver's Mechanical Losses (Rms) 1.96 WM
• Voice Coil Former Aluminum magnesium mixed alloy
• Overall Outside Diameter 223.5 mm
• Overall Depth 97 mm
• Baffle Cutout Diameter 189 mm
• Bolt Circle Diameter 210 mm
• # Mounting Holes 6
• Mounting Hole Diameter 5.2 mm
