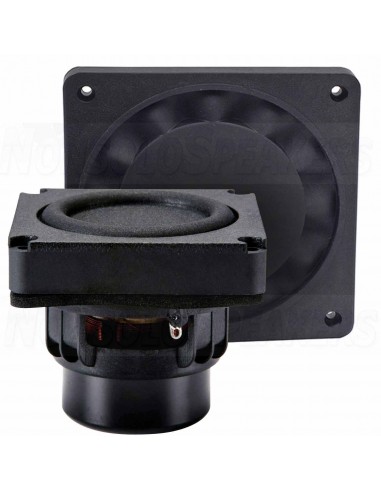

PR08-A - Subwoofer bundle W2-2040S + PR08
PR08-A - Subwoofer bundle W2-2040S + PR08

TANG BAND PR08-A - Subwoofer bundle W2-2040S + PR08

SHIPMENT IN 7/10 WORKING DAYS
€76.95 €81.00 -5%
Tax included
rating No review at the moment

TANG BAND PR08-A - Subwoofer bundle W2-2040S + PR08

Quantity Unit discount You Save
4 8% €25.92
Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND PR08-A - Subwoofer bundle W2-2040S + PR08

.

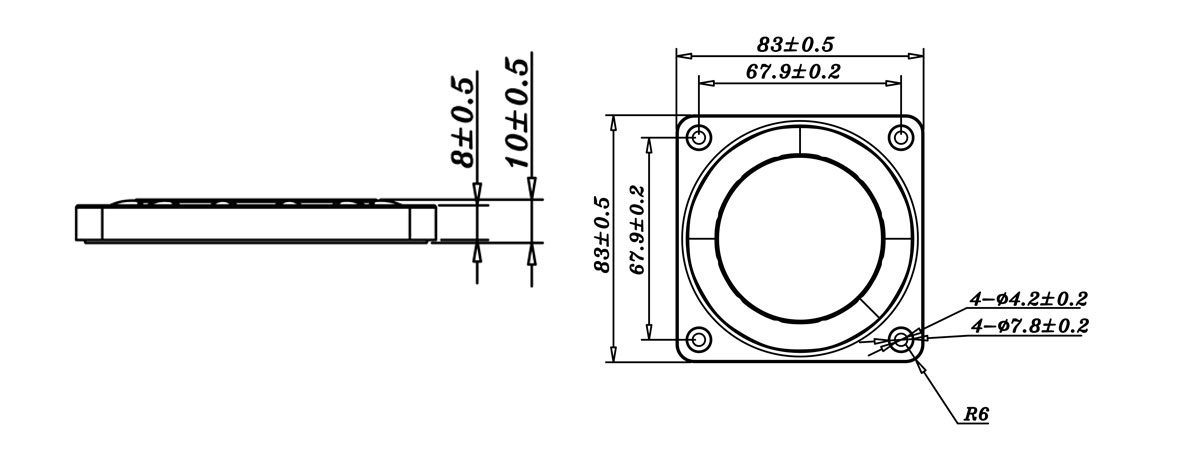

Thiele & Small Parameters - PR08-A (Passive)

  • F0 68 Hz
  • F3 62.5 Hz
  • Piston Area 0.0036 M²
  • Mms 20 g
  • Dimensions 83 mm x 83 mm x 10 mm
  • Features 2" Subwoofer Bundle / PR08-A:
  • • Patented passive radiator waveform structure design:
  • • Co-injection molding technology applied:
  • • Optimal balance of internal loss and lower spring damping;
  • • Dimensions: 83mm x 83mm x 10mm;
  • • Square shape.

.

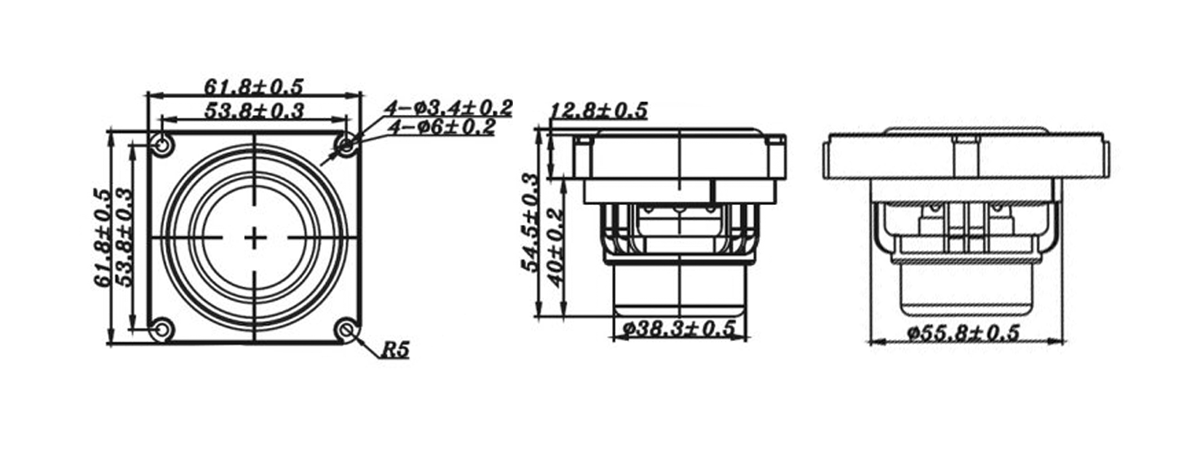

Thiele & Small Parameters - W2-2040S

  • Nominal Impedance 4 Ω
  • Re 3.5 Ω
  • Fs 72 Hz
  • Sensitivity 1W / 1m 76 dB
  • Frequency Response 75-2K Hz
  • Area resonance 75 Hz
  • Voice coil diameter 25.4 mm
  • Air Gap 3 mm
  • Input power 10 W
  • Output power 20 W
  • Bl 6.35
  • TM Levc 0.25 mH
  • Zo 70 Ω
  • Qts 0.26
  • Qms 5.21
  • Vas 0.2 L
  • xMax 5.3 mm
  • Sd 14 sq.cm
  • Qes 0.28
  • Re 3.5 o hms
  • Le 0.246 mH
  • Z 4 ohms
  • Pe 10 W

W2-2040S + PR08
