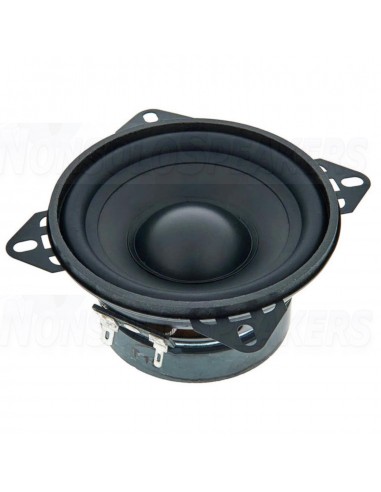

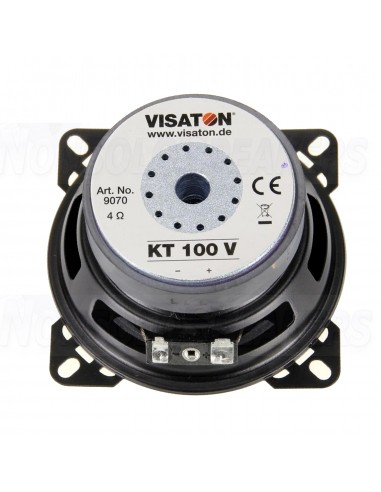

Visaton KT 100 V 4" Woofer 4 Ohm
Visaton KT 100 V 4" Woofer 4 Ohm
Visaton KT 100 V 4" Woofer 4 Ohm
Visaton KT 100 V 4" Woofer 4 Ohm
Visaton KT 100 V 4" Woofer 4 Ohm
Visaton KT 100 V 4" Woofer 4 Ohm

Visaton KT 100 V 4" Woofer 4 Ohm

Visaton KT 100 V 4" Woofer 4 Ohm

10 cm (4") woofer with low resonant frequency and compact size.

SHIPMENT IN 5-7 WORKING DAYS
€28.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton KT 100 V 4" Woofer 4 Ohm

10 cm (4") woofer with low resonant frequency and compact size.

.

Highlights

  • Low resonant frequency in compact design
  • Low noise due air gap venting and t-toke
  • Simple basket for various installation possibilities

.

Product Details

Visaton KT 100 V 4" Midrange Driver

Large strokes possible due to elastic rubber surround and deep magnet while noise is minimized through venting of air gap and t-yoke. Simple basket for various installation possibilities.

Technical Specifications

  • Article number KT 100 V
  • Woofer Series KT Series
  • Woofer Type Midwoofer
  • Nominal Diameter 4"
  • Power Handling (RMS) 25 watts
  • Power Handling (max) 40 watts
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 83 dB
  • Frequency Response 32 - 9,500 Hz
  • Voice Coil Diameter 25 mm
  • DC Resistance (Re) 3.7 ohms R
  • esonant Frequency (Fs) 42 Hz
  • Mechanical Q (Qms) 2.94
  • Electromagnetic Q (Qes) 0.69
  • Total Q (Qts) 0.56
  • Diaphragm Mass Inc. Airload (Mms) 7.5g
  • Surface Area of Cone (Sd) 51.4 cm2
  • BL Product (BL) 3.43 Tm
  • Compliance Equivalent Volume (Vas) 7.5 liters
  • Maximum Linear Excursion (Xmax) 2 mm
  • Overall Outside Diameter 99 mm
  • Overall Depth 51.4 mm
  • Baffle Cutout Diameter 92 mm
  • # Mounting Holes 4
  • Mounting Hole
  • Diameter 5 mm

Visaton KT 100 V
