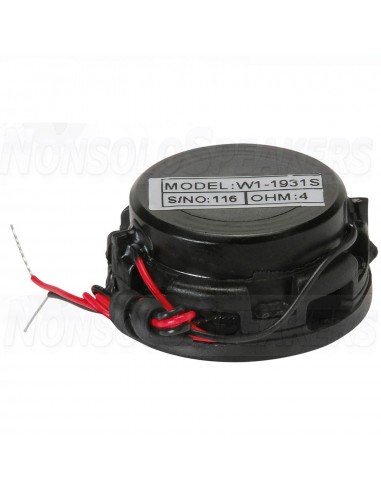

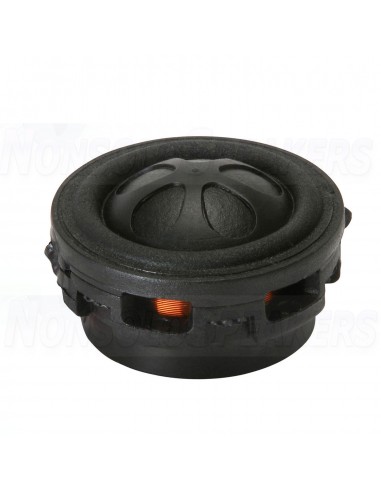

TANG BAND W1-1931S - 1.25" Full Range 2 X TB-Speakers (PAIR)

Tang Band's W1-1931S micro full-range driver features amazing performance that belies its diminutive 31 mm diameter (under 1-1/4") size. The patented design employs a unique polypropylene cone, with flower petal embossments, that's mated to a neodymium motor for maximum BL product in the voice coil gap. A free air resonance of 170 Hz allows you to pair these nearly any woofer or subwoofer up to 6-1/2 feet away without localization and beaming effects (poor off-axis response).

Additionally, you can use these drivers in multiples for an awesome line-array speaker that requires a miniscule footprint. Great for use in designing micro LCR (left, center, right) speakers for modern flat panel HDTVs, or even computer desk and laptop speakers. The high-fidelity nature of these drivers is exemplified by their low Qts specification (quite rare in drivers this size), while the ultra-low inductance allows these to play relatively flat frequency response up 20,000 Hz! Ferrofluid cooling protects and cools the voice coil, while the mineral-filled polypropylene cone combines with the Santoprene surround for use in harsh environments. Press-fit frame design minimizes center-to-center distance.

Note: Higher power handling can be achieved by using a 200 Hz 2nd-order high-pass filter, or by using multiple drivers together.

.

Product Details

• Brand Tang Band
• Model W1-1931S
• Part Number 264-923
• UPC 844632099410
• Unit of Measure Each
• Weight 0.1

.

Product Specifications

• Nominal Diameter 1"
• Moving Mass Of Diaphragm (Mmd) 0.87
• Power Handling (RMS) 2 Watts
• Power Handling (MAX) 4 Watts
• Impedance 4Ω
• Frequency Response 170 to 20,000Hz
• Sensitivity 76dB 2.83V/1m
• Voice Coil Diameter 0.76"

.

Thiele-Small Parameters

• Resonant Frequency (Fs) 170Hz
• DC Resistance (Re) 3.6Ω
• Voice Coil Inductance (Le) 0.06mH
• Mechanical Q (Qms) 3.11
• Electromagnetic Q (Qes) 0.54
• Total Q (Qts) 0.46
• Compliance Equivalent Volume (Vas) 0.0007ft³
• Mechanical Compliance of Suspension (Cms) 0.85mm/N
• BL Product (BL) 2.6T·m
• Maximum Linear Excursion (Xmax) 1.2mm
• Surface Area of Cone (Sd) 4.5cm²

.

Materials of Construction

• Cone Material Poly Composite
• Surround Material Santoprene®
• Magnet Material Neodymium

.

Mounting Information

• Overall Outside Diameter 1.22"
• Baffle Cutout Diameter 1.22"
• Depth 0.46"

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

• Sealed Volume 0.000265ft³
• Sealed F3 314.5Hz
• Vented Volume 0.000857ft³
• Vented F3 154.6Hz
