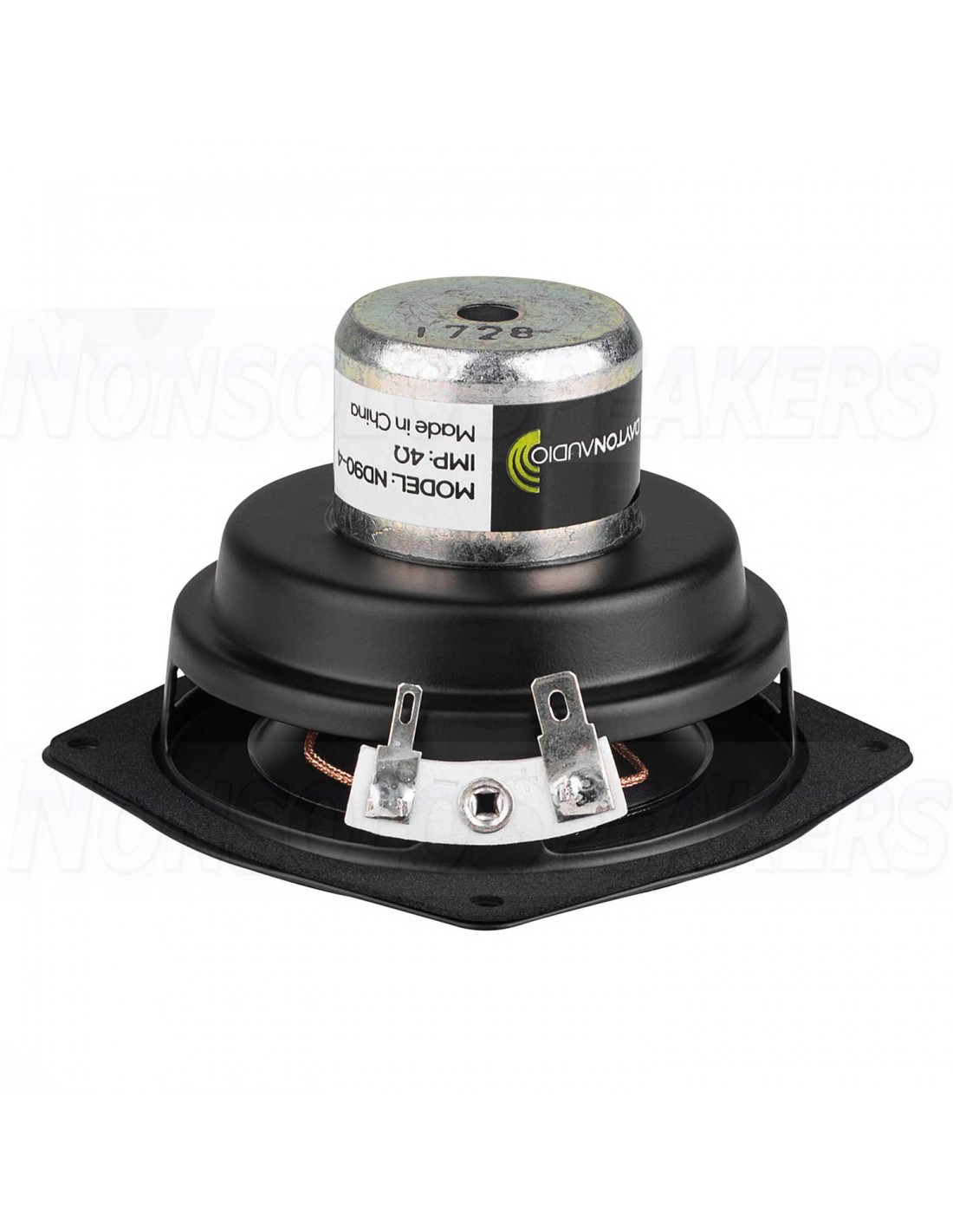

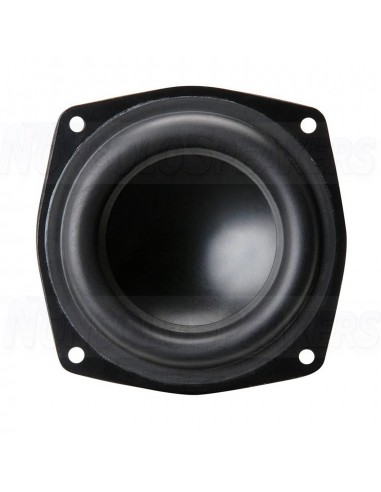

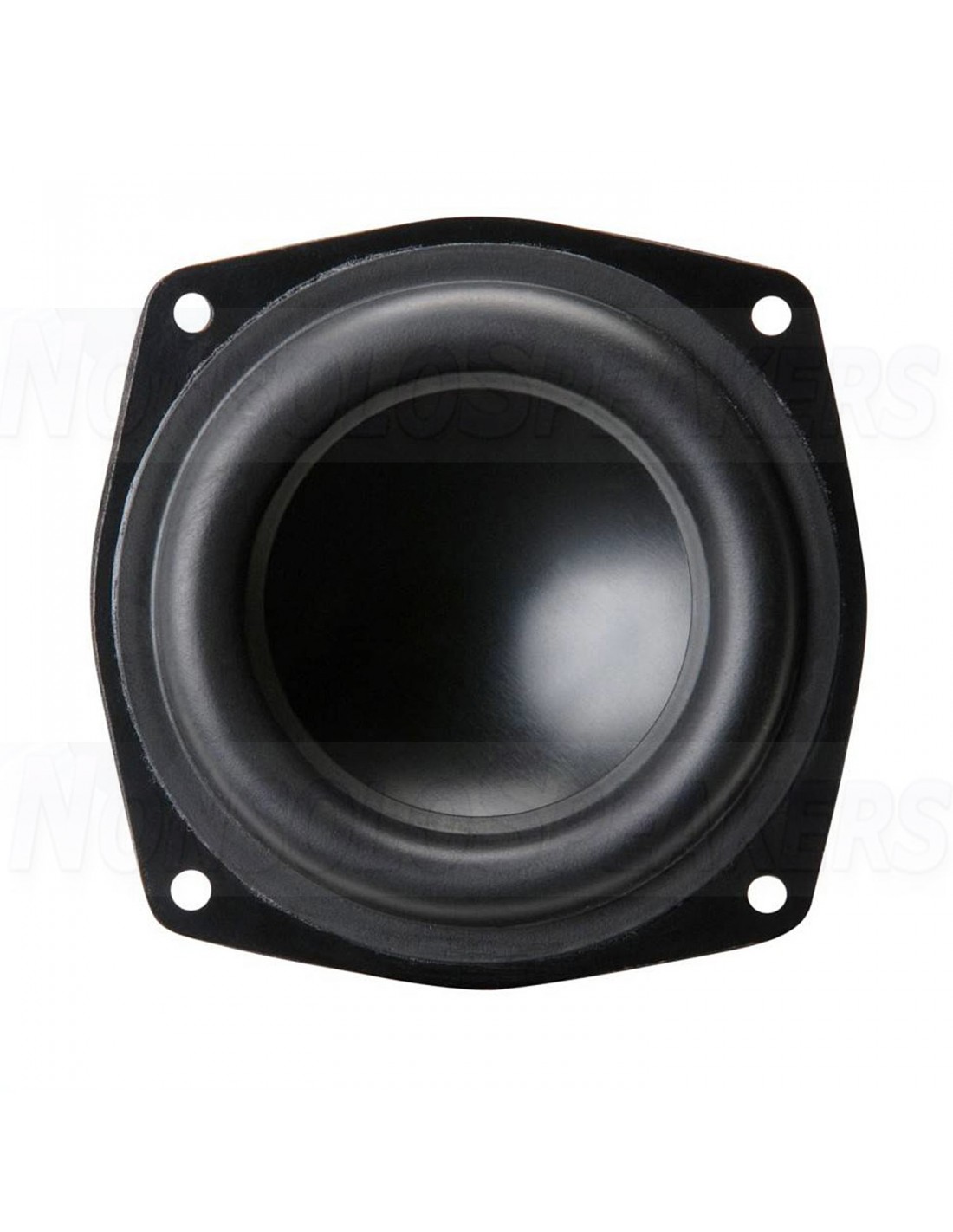

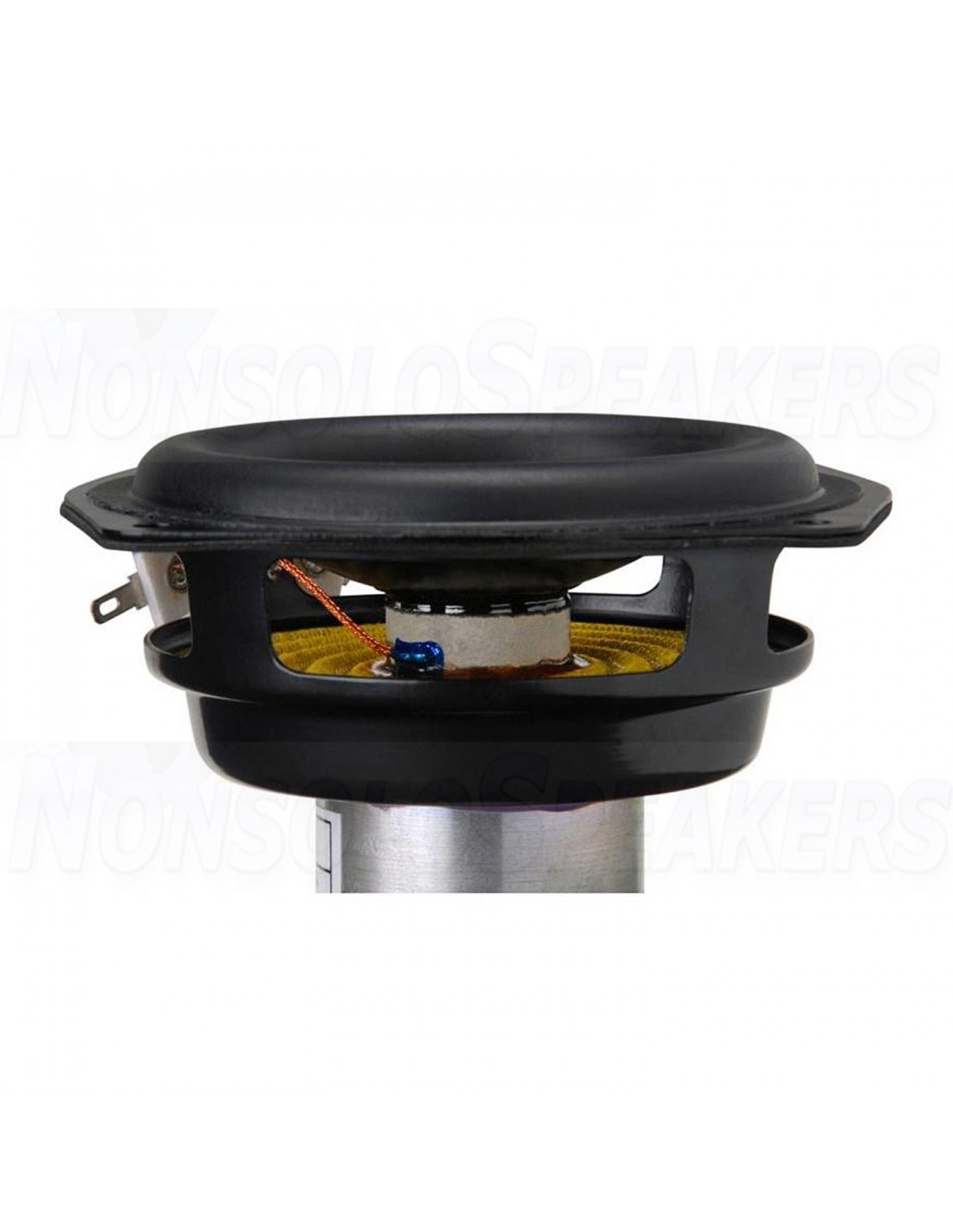

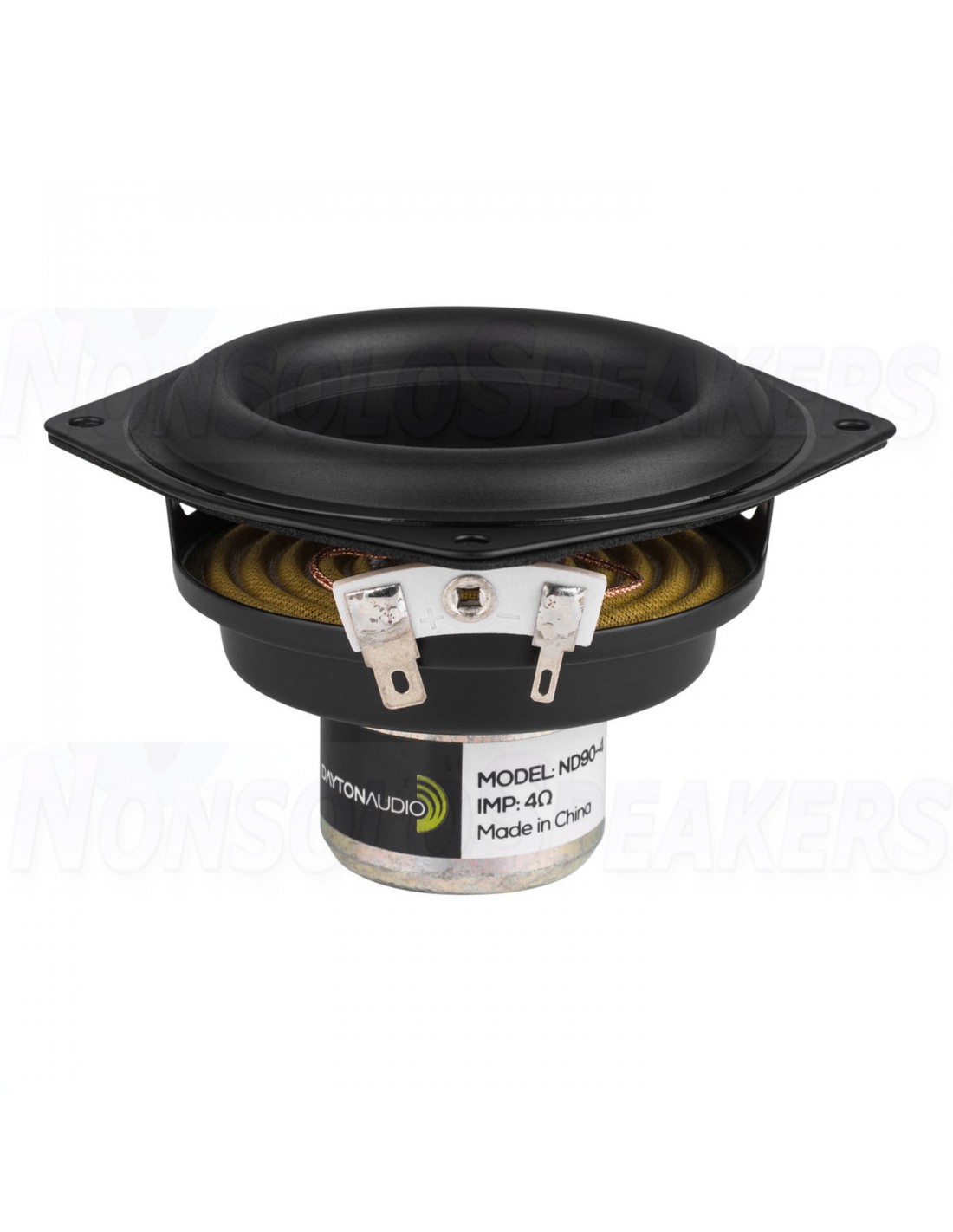

Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm
Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm

Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm

SHIPMENT IN 7-10 WORKING DAYS
€33.99
Tax included
rating No review at the moment

Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm

Product description

Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes.

.

Highlights

Full-range 80 Hz to 15 kHz performance

Rubber-edged aluminum alloy cone

Large excursion capability—4 mm Xmax, 20 mm peak

Self-shielded Neo-Balanced motor structure

3/4" 4-layer underhung voice coil with polyimide former

20 watts RMS power handling

.

Product details

Dayton Audio ND90-4 3-1/2" Aluminum Cone Full-Range Driver 4 Ohm

Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.

.

Specifications

Article numberND90-4
Woofer SeriesND Series
Woofer TypeFull-Range
Nominal Diameter3.50"
Power Handling (RMS)20 watts
Power Handling (max)40 watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)85.7 dB
Frequency Response80 - 15,000 Hz
Voice Coil Diameter19 mm
DC Resistance (Re)3.6 ohms
Voice Coil Inductance (Le)0.62 mH @ 1 kHz
Resonant Frequency (Fs)90.2 Hz
Mechanical Q (Qms)5.10
Electromagnetic Q (Qes)0.72
Total Q (Qts)0.63
Diaphragm Mass Inc. Airload (Mms)4.3g
Mechanical Compliance of Suspension (Cms)0.73 mm/N
Surface Area of Cone (Sd)31.2 cm²
Volume of Displacement (Vd)12.5 cm³
BL Product (BL)3.47 Tm
Compliance Equivalent Volume (Vas)1.06 liters
Maximum Linear Excursion (Xmax)4 mm
Cone / Diaphragm MaterialBlack Anodized Aluminum Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
ShieldedYes
Overall Outside Diameter103.5 mm
Overall Depth60.8 mm
Baffle Cutout Diameter85 mm
# Mounting Holes4
Sealed Volume0.1 ft.³
Sealed F390 Hz
Vented Volume0.16 ft.³
Vented F348 Hz
