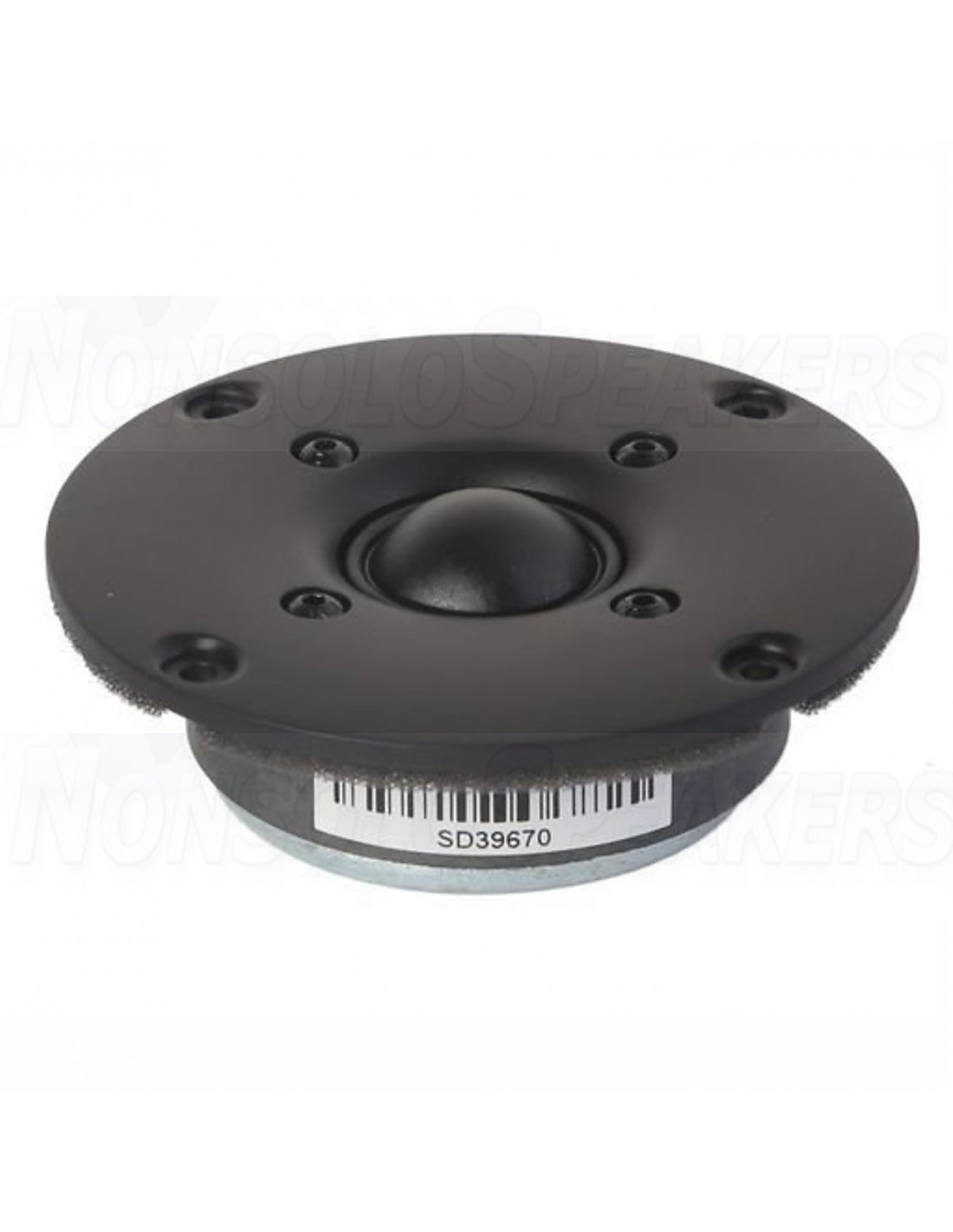

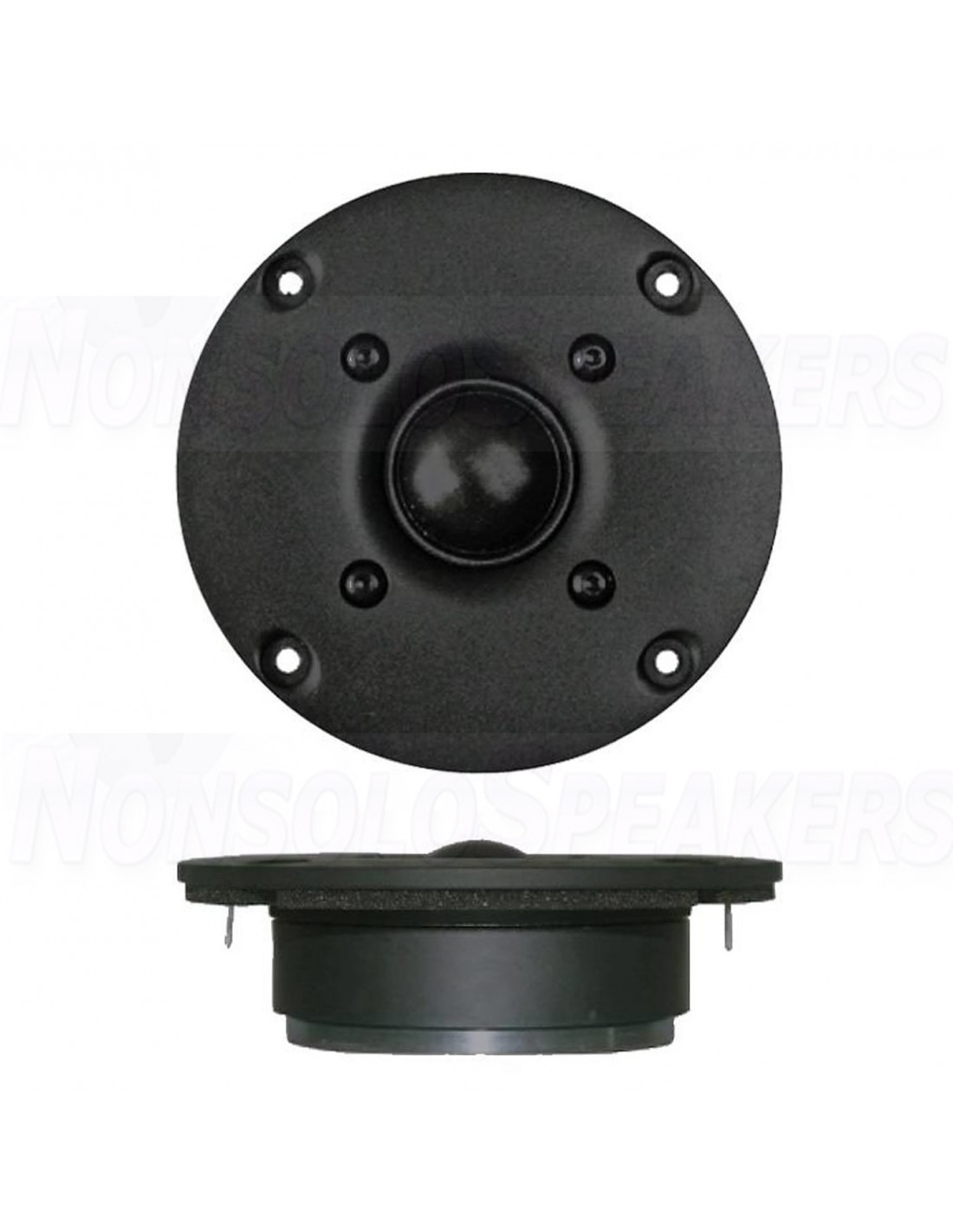

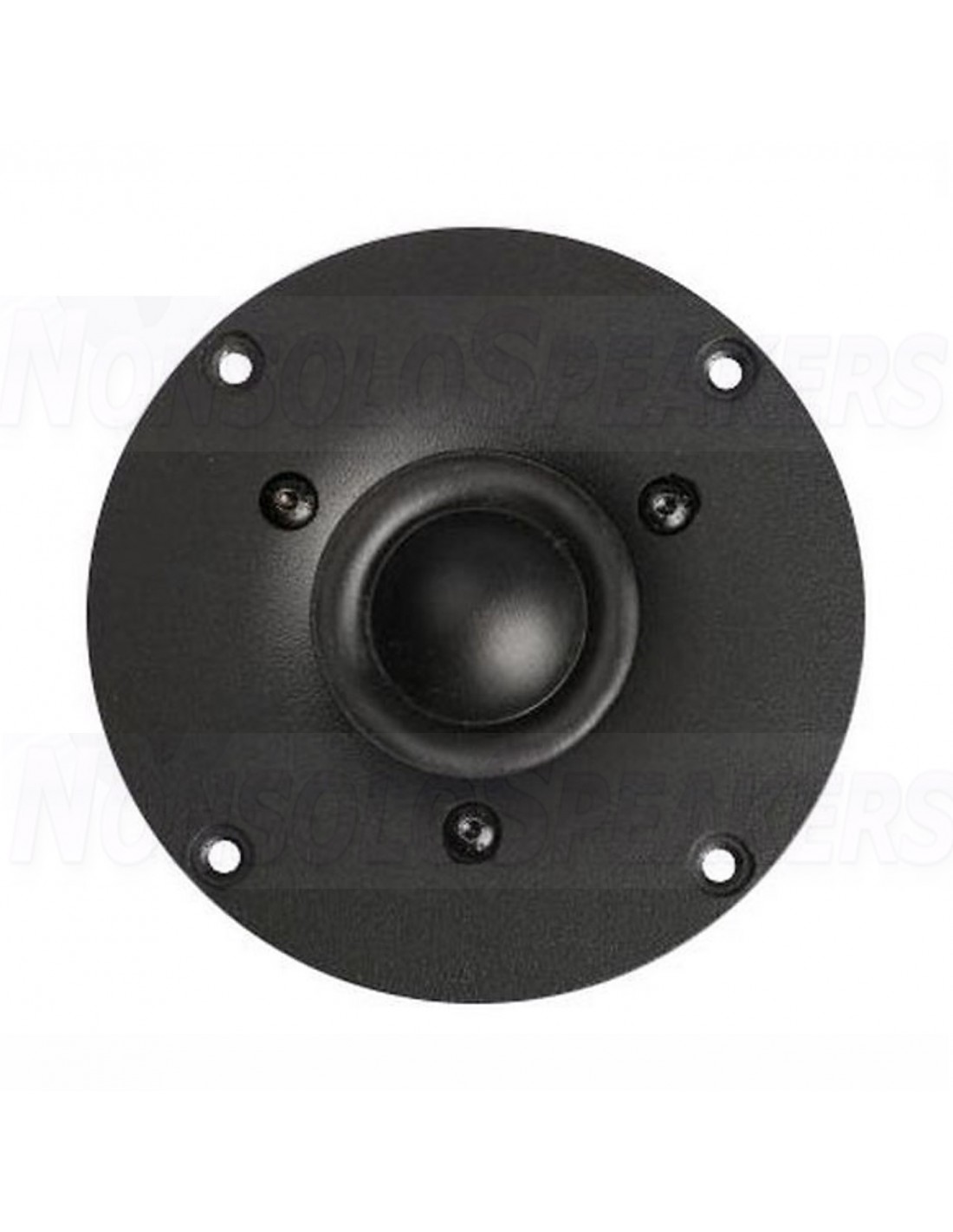

SB Acoustics SB26ST-C000-5 Dome Tweeter
SB Acoustics SB26ST-C000-5 Dome Tweeter
SB Acoustics SB26ST-C000-5 Dome Tweeter
SB Acoustics SB26ST-C000-5 Dome Tweeter
SB Acoustics SB26ST-C000-5 Dome Tweeter
SB Acoustics SB26ST-C000-5 Dome Tweeter

SB Acoustics SB26ST-C000-5 Dome Tweeter

SB Acoustics SB26ST-C000-5 Dome Tweeter

Optimized damping in pole cavity to eliminate internal reflection. Fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.

SHIPMENT IN 7/10 WORKING DAYS
€29.40 €30.95 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB26ST-C000-5 Dome Tweeter

.

Product description

Optimized damping in pole cavity to eliminate internal reflection

Fine weave soft fabric dome for smooth frequency response

Saturation controlled motor system for reduced distortion

CCAW voice coil for low moving mass

Long life silver lead wires

.

Product details

SB Acoustics SB26ST-C000-5 1'' Tweeter

Optimized damping in pole cavity to eliminate internal reflection. Fine weave soft fabric dome provides a smooth frequency response. Saturation controlled motor system for reduced distortion. CCAW voice coil for low moving mass. Long life silver lead wires.

Specifications: BL Product (BL): 2.2 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.33 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

.

Specifications

Article numberSB26ST-C000-5
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)80 Watts
Impedance (Z)5 Ω
Sensitivity (SPL at 1m / 2.83V)91 dB
Resonant Frequency (Fs)870 Hz
DC Resistance (Re)4.4 ohms
Voice Coil Inductance (Le)0.07 mH
Mechanical Q (Qms)5
Electromagnetic Q (Qes)1.64
Total Q (Qts)1.24
SB26ST-C000-5
