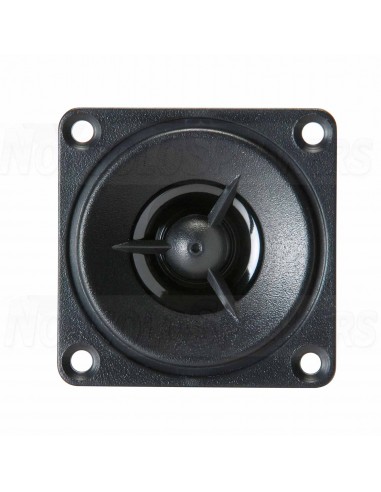

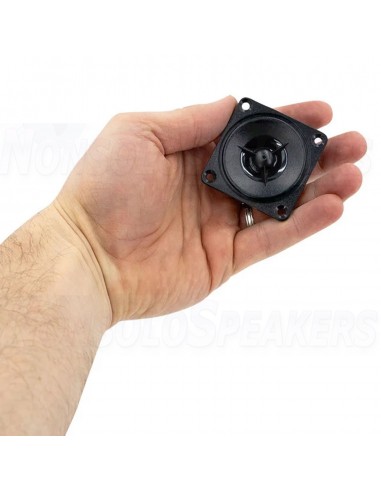

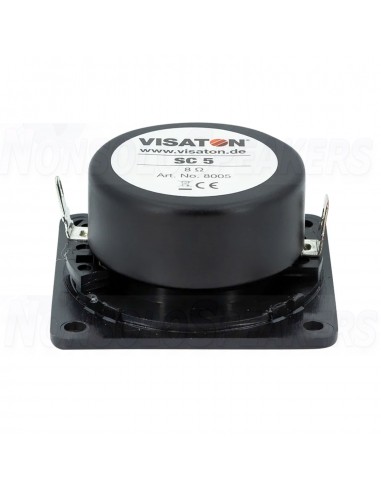

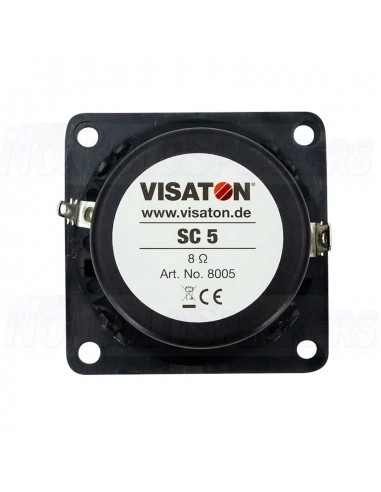

Visaton SC 5 Dome Tweeter

13 mm (0.5") Magnetically shielded polycarbonate dome driver for the high-frequency range above 4,000 Hz.

SHIPMENT IN 5-7 WORKING DAYS
€14.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton SC 5 Dome Tweeter

13 mm (0.5") Magnetically shielded polycarbonate dome driver for the high-frequency range above 4,000 Hz.

.

Highlights

  • Great for compact speaker designs
  • Magnetically shielded
  • Special grill for excellent dispersion 4 kHz to 22 kHz usable frequency response
  • High power handling and shielded design

Product Details

Visaton SC 5 1/2" Polycarbonate Tweeter

The SC 5 1/2" dome tweeter from Visaton is a natural choice for speaker builders designing desktop recording monitors, surround sound multimedia speakers, or center channels. Visaton's SC 5 shielded 1/2" polycarbonate dome tweeter is built for superior off-axis response, high sensitivity, and a relatively flat frequency response from 4,000 Hz to 10,000 Hz.

Above 10,000 Hz, the SC5 features a rising response to add ambiance and sparkle. The small size of this tweeter lends itself to be used in small 2-way monitors, center-channel speakers, and multimedia speakers where a shielded design is desired.

Technical Specifications

  • Article number SC 5
  • Tweeter Type Dome
  • Tweeter Series SC Series
  • Cone / Dome Diameter 13 mm | 1/2"
  • Power Handling (RMS) 60 Watts
  • Power Handling (max) 100 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 90 dB
  • Frequency Response 1,500 - 22,000 Hz
  • Resonant Frequency (Fs) 2000 Hz
  • Cutout Diameter 48 mm
  • Depth 25.2 mm
  • Diaphragm Material Polycarbonate
  • Recommended cut frequency >4,000 Hz
Visaton SC 5
