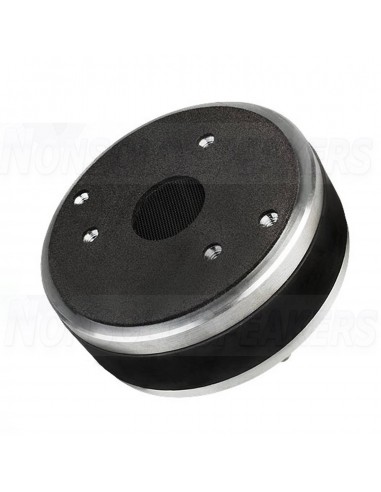

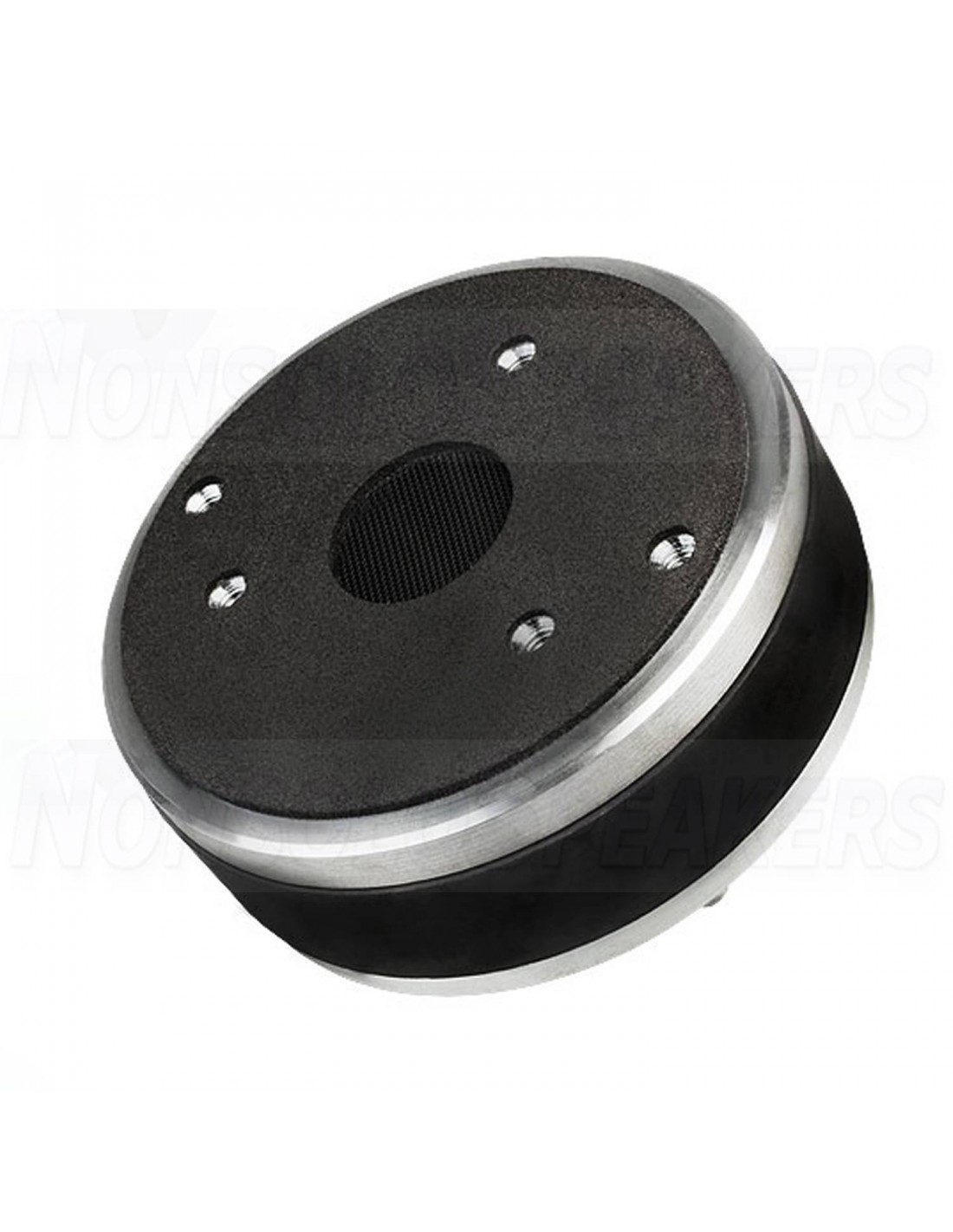

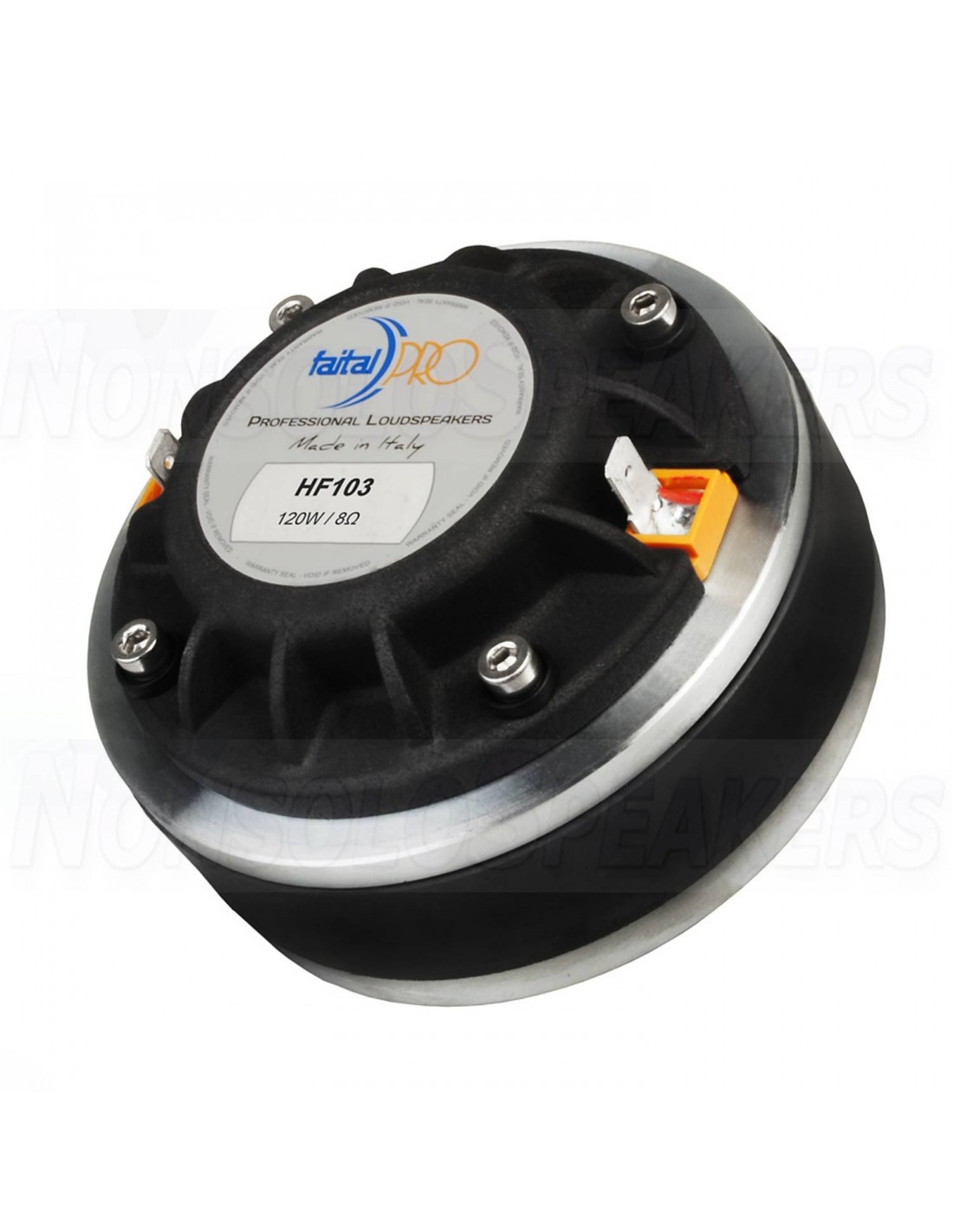

Faital HF103 - compression driver 1" Ferrite - 8ohm
Faital HF103 - compression driver 1" Ferrite - 8ohm
Faital HF103 - compression driver 1" Ferrite - 8ohm
Faital HF103 - compression driver 1" Ferrite - 8ohm

Faital HF103 - compression driver 1" Ferrite - 8ohm

Faital HF103 - compression driver 1"  Ferrite - 8ohm

SHIPMENT IN 7-10 WORKING DAYS
€126.34 €132.99 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Faital HF103 - compression driver 1" Ferrite - 8ohm

Technical Parameters

Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power Handling (1) 60 W
Maximum Power Handling (2) 120 W
Minimum Crossover Frequency (3) 1.3 kHz
Sensitivity (1W/1m) (4) 107 dB
Frequency Range 1÷20 kHz
Voice Coil Diameter 44 mm (1.73 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Winding Depth 2.3 mm (0.09 in)
Magnetic Gap Depth 2.85 mm (0.11 in)
Flux Density 1.5 T
Magnet Ferrite Ring
Re 5.8 Ohm
Phase Plug Design Annular
Exit Angle (5) 13° Conical
NET Air Volume filled by HF Driver 0.33 dm^3 (0.011 ft^3)

Nominal Specifications

Throat Diameter 25.4 mm (1 in)
Overall Diameter 100 mm (3.94 in)
180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 55 mm (2.17 in)
Net Weight 1.3 Kg (2.9 lb)
Shipping Box
(Single carton box)		 147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in)
Shipping Weight 1.6 Kg (3.5 lb)

HF103_response_8.gif HF103_impedance_8.gif

Quick acoustic specs

Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power Handling (1) 60 W
Maximum Power Handling (2) 120 W
Minimum Crossover Frequency (3) 1.3 kHz
Sensitivity (1W/1m) (4) 107 dB
Frequency Range 1÷20 kHz
Voice Coil Diameter 44 mm (1.73 in)
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Flux Density 1.5 T
Re 5.8 Ohm


Quick mechanical specs

Throat Diameter 25.4 mm (1 in)
Overall Diameter 100 mm (3.94 in)
180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 55 mm (2.17 in)
Net Weight 1.3 Kg (2.9 lb)
Shipping Box
(Single carton box)		 147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in)
Shipping Weight 1.6 Kg (3.5 lb)
HF103
