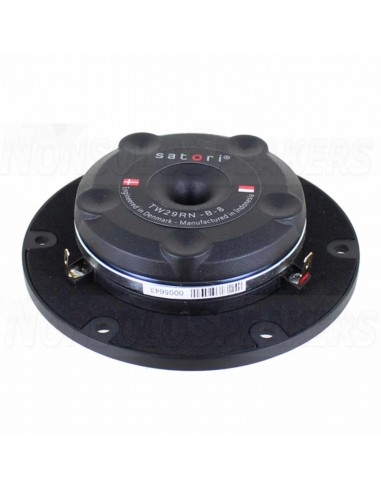

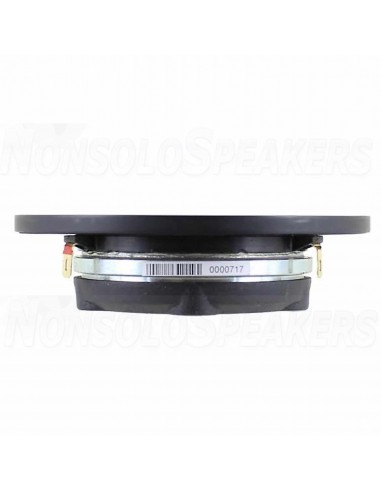

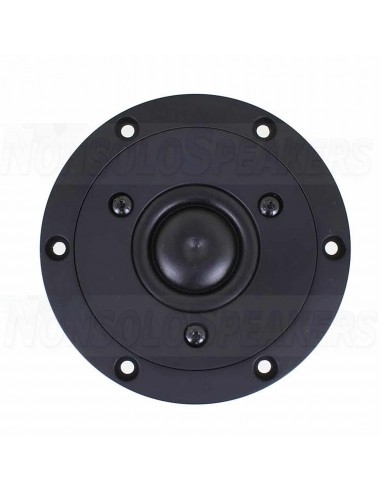

SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mmTW29RN
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mmTW29RN
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm
SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm

SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm

SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm

The TW29RN-B-8 is a premium ring dome tweeter offered in the Satori line by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output: a perfect choice in any high end system

SHIPMENT IN 7/10 WORKING DAYS
€165.30 €174.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS Satori TW29RN-B-8 - Tweeter 29mm

.

Product description

Non-resonant diaphragm design for minimum high frequency break-up

Two part aluminum faceplate with integrated mechanical decoupling

Dual balanced compression chambers for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

High saturation neodymium motor system with T-shaped pole piece for lower distortion.

Non-reflective cast aluminum chamber with optimized damping for improved dynamics

Shallow flow optimized magnet structure for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency for extended range

.

Product details

SB Acoustics Satori TW29RN-B-8 Ring Dome Tweeter

The TW29RN-B-8 is a premium ring dome tweeter offered in the Satori line by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output: a perfect choice in any high end system. Compact neodymium magnet version (less than 1" depth from back of flange to base). 8 ohm version. Black faceplate.

.

Specifications

Article numberTW29RN-B-8
Tweeter TypeRing Dome
Tweeter SeriesSatori series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)80 Watts
Impedance (Z)8 Ω
Sensitivity (SPL at 1m / 2.83V)93 dB

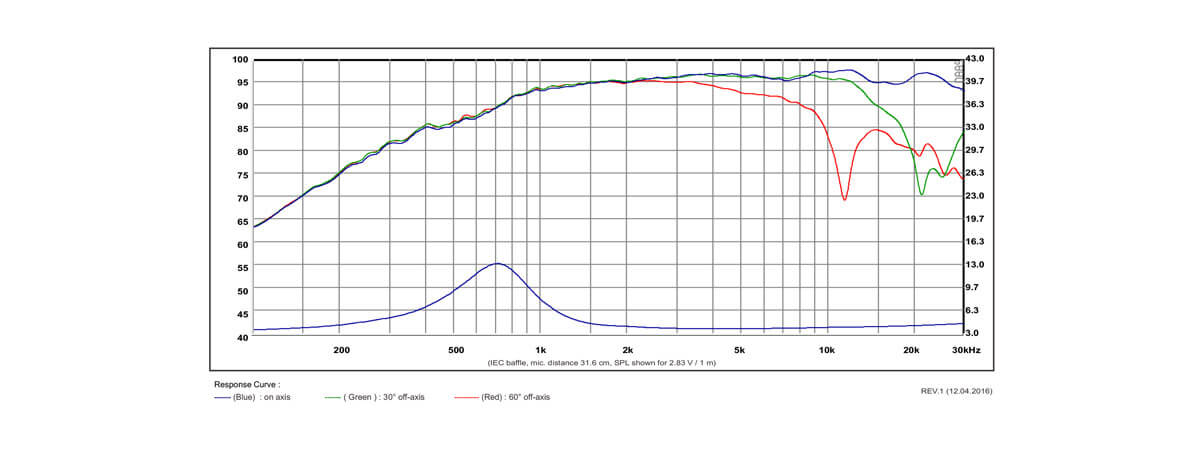

Frequency Response1,400 - 40,000 Hz
Resonant Frequency (Fs)650 Hz
DC Resistance (Re)6.2 Ohms
Voice Coil Inductance (Le)0.04 mH
Mechanical Q (Qms)1.74
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.48

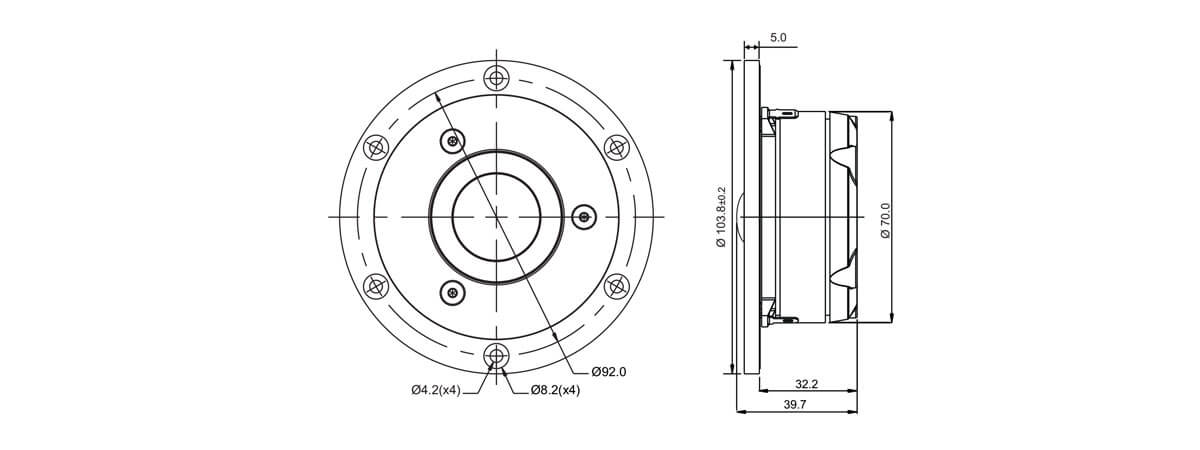

Overall Outside Diameter103.8
Cutout Diameter70 mm
Depth26.7 mm
Diaphragm MaterialSilk

TW29RN-b-8
