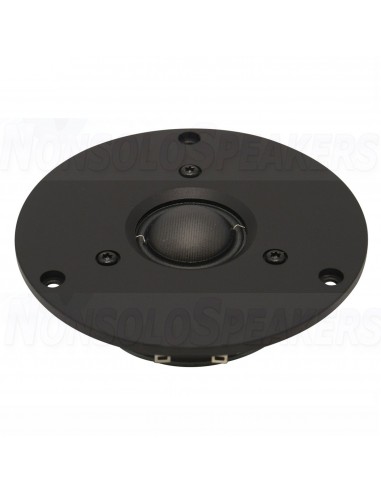

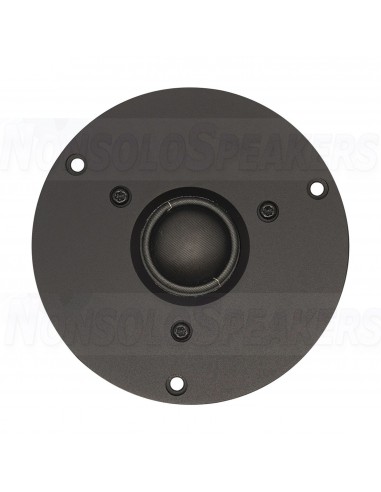

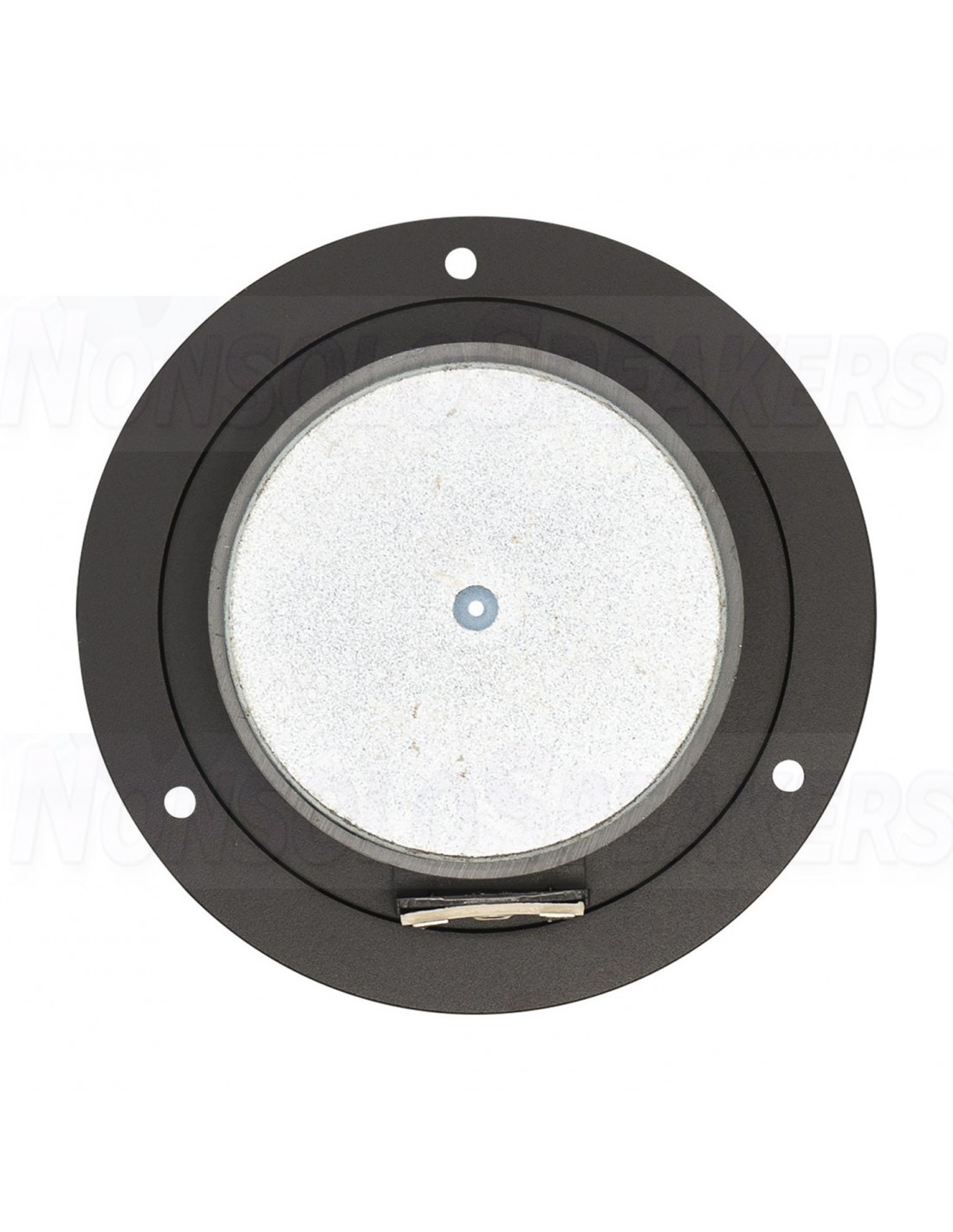

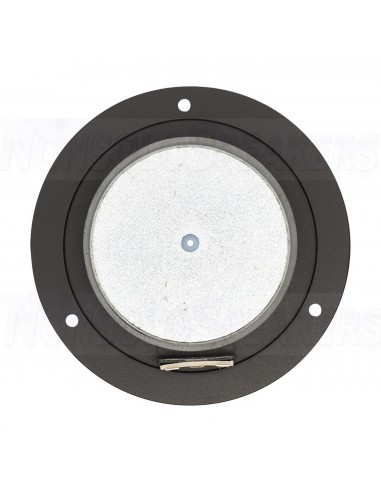

HiVi Q2R Dome Tweeter 6 ohm

Product description

The Q2R delivers high end sound in a compact convenient size.

.

Highlights

• Using 28mm German soft dome sound film
• Special damping layer treatment
• Broad and straight frequency response
• Transparent and clear sound performance

.

Product details

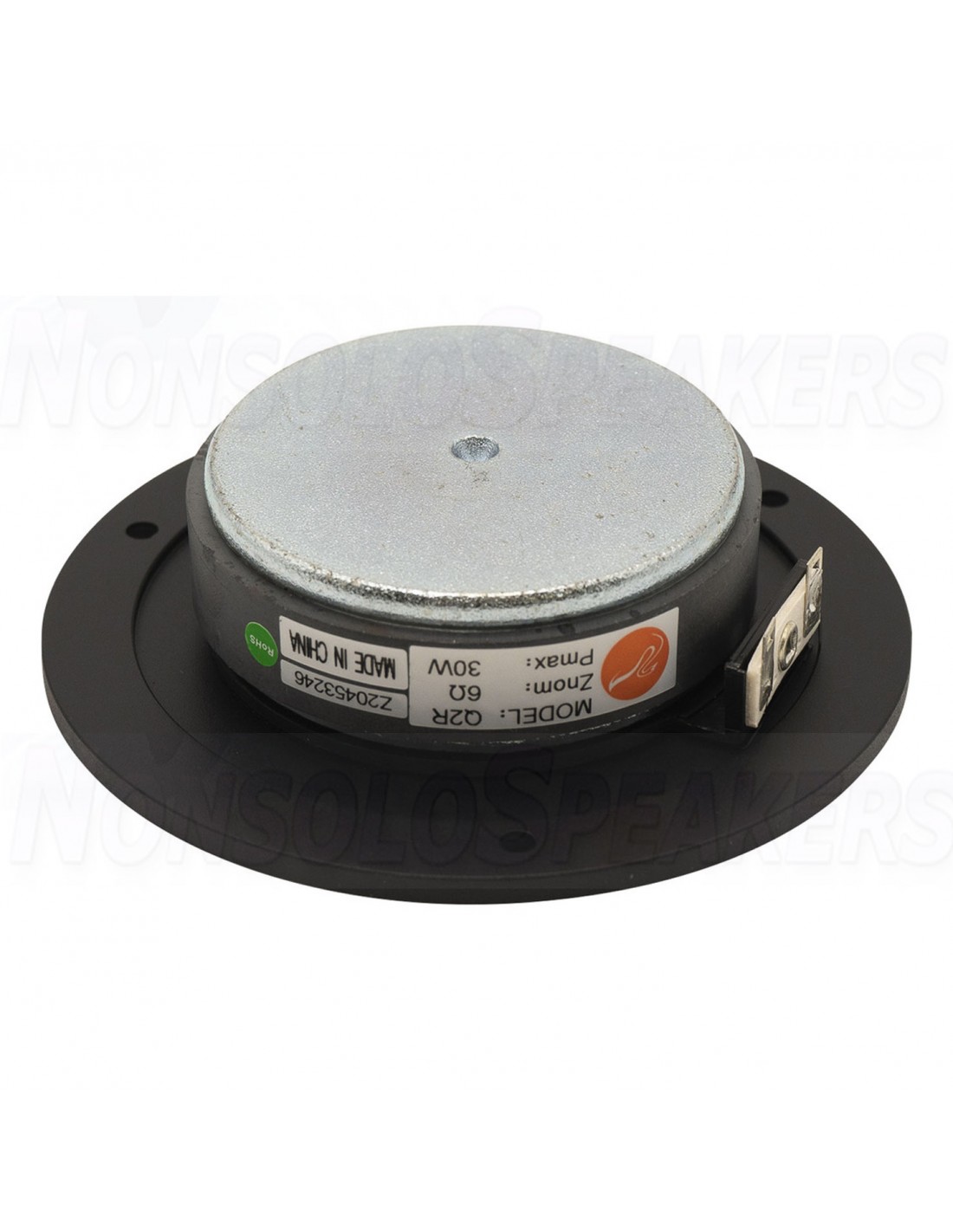

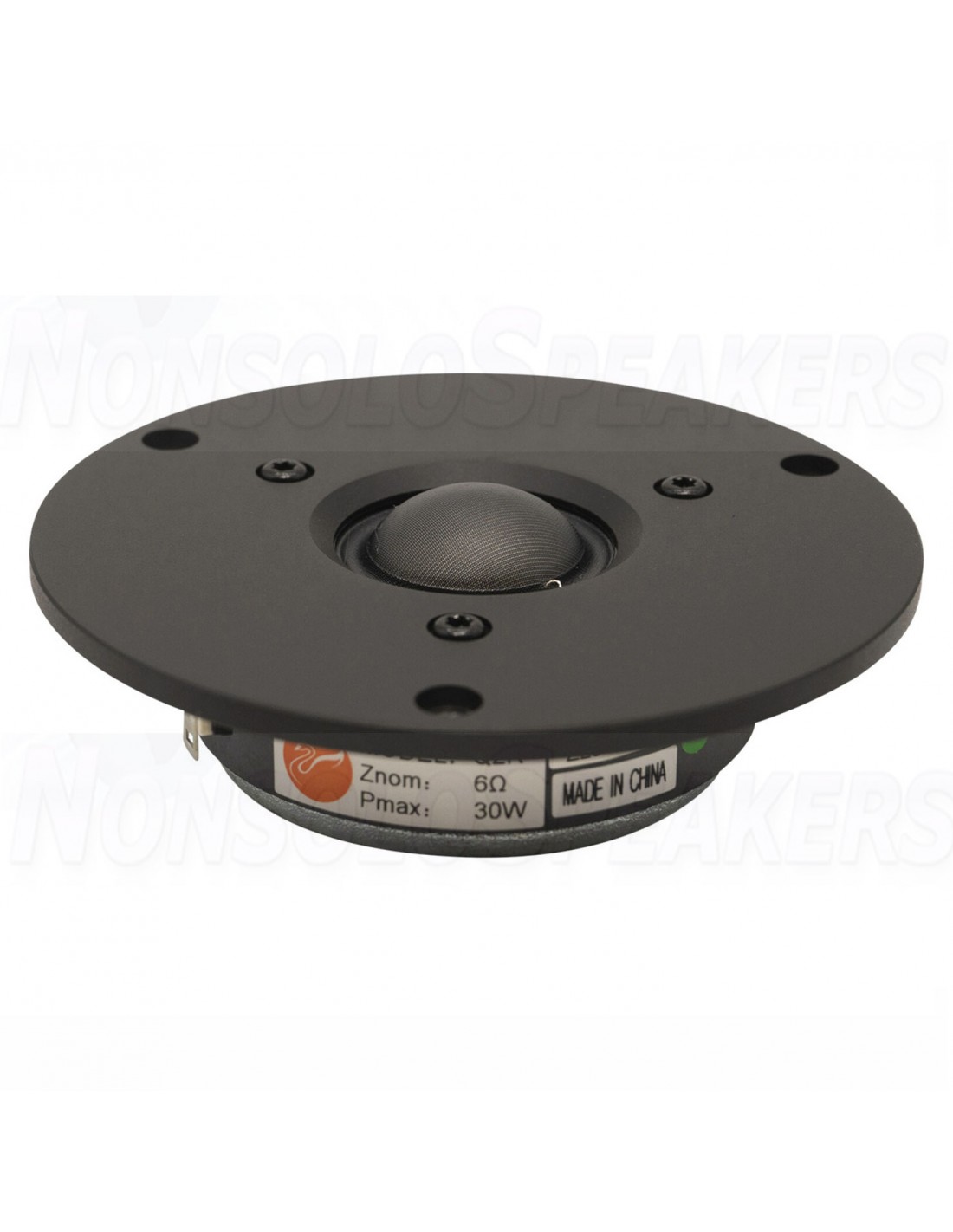

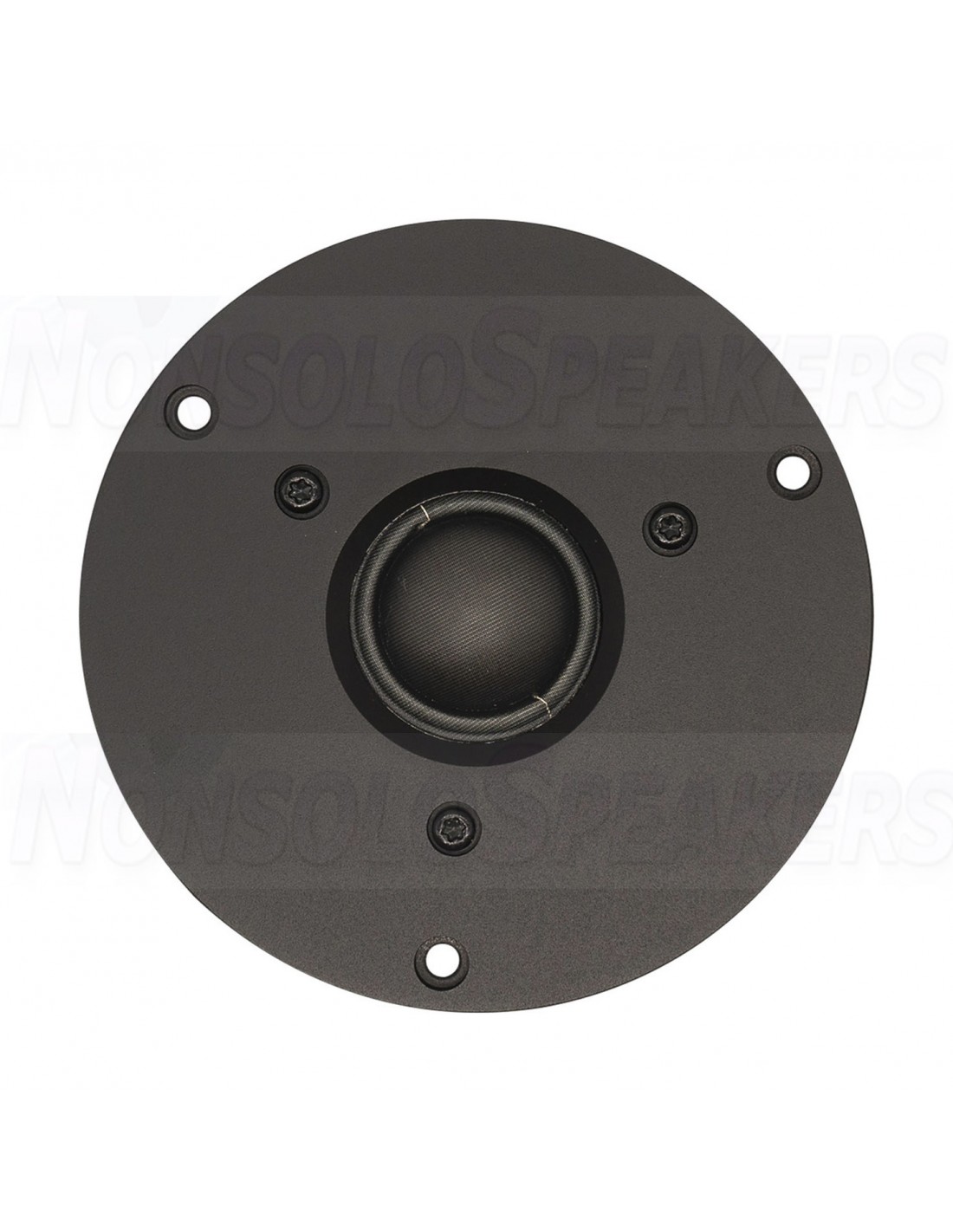

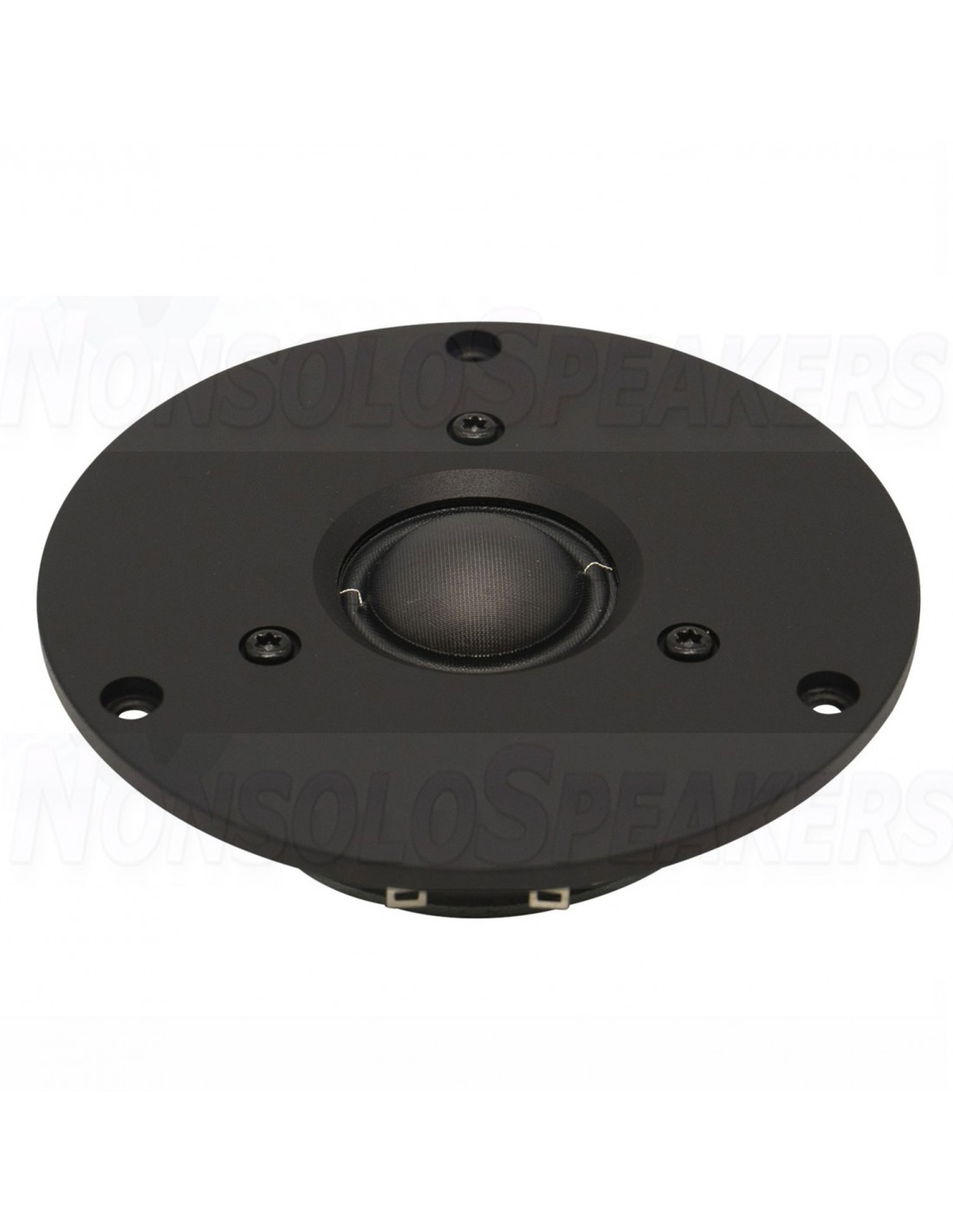

HiVi Q2R Dome Tweeter

High-performance ferrite dual magnetic circuit design, linear uniform magnetic field, harmonic distortion can be effectively reduced. Lower distortion and better prevention of dynamic compression, improved resonant cavity design, high-impedance sound-absorbing materials. Professional liquid magnetic cooling technology, high temperature resistant aluminum alloy frame and copper clad aluminum wire voice coil, with greater power tolerance. To protect the precious treble diaphragm, a protective net is added to the panel to prevent the diaphragm from being deformed and damaged by external forces. Adhering to HiVi' s consistent Hi-end concept, the sound is more natural and smooth, and analytical performance are more layered, and the details are rich without unpleasant characteristics.

.

Specifications

• Article number Q2R
• Tweeter Type Soft dome
• Tweeter Series QR
• Cone / Dome Diameter 28mm
• Power Handling (RMS) 15W
• Power Handling (max) 30W
• Impedance (Z) 6Ω
• Sensitivity (SPL at 1m / 2.83V) 90 dB
• Resonant Frequency (Fs) 1000 Hz
• Diaphragm Material High performance ferrite
• Recommended cut frequency >2500Hz
