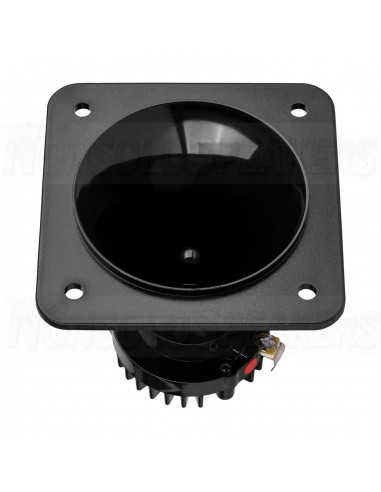

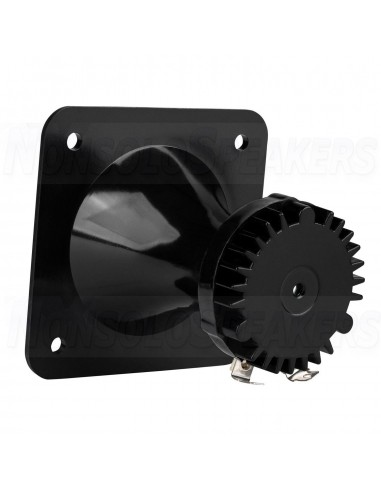

GRS BT3-8 Bullet Tweeter 8 ohm

Super quality bullet tweeter with wide dispersion angle. Heavy duty magnet structure provides increased power handling capability.

.

Product highlights:

• 60° x 60° dispersion pattern for even response
• Common 2.75" mounting hole, ideal as a replacement tweeter
• Controlled 60° x 60° dispersion pattern for even response

.

Product details

GRS BT3-8 3-3/8" Bullet Tweeter

Super quality bullet tweeter with wide dispersion angle. Heavy duty magnet structure provides increased power handling capability.

.

Technical Specifications:

• Article number BT3-8
• Tweeter Type Bullet Tweeter
• Cone / Dome Diameter 25 mm | 1"
• Power Handling (RMS) 40 Watts
• Power Handling (max) 80 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 106 dB
• Frequency Response 2,000-18,000 Hz
• Resonant Frequency (Fs) 1600 Hz
• Overall Outside Diameter 3-3/8"
• Cutout Diameter 2-3/4" Depth 2-1/2"
