Fountek’s NeoCD3.5H is a unique horn-loaded true ribbon tweeter that combines high sensitivity with the exceptional speed and detail of ribbon technology.

Out-of-Stock
€132.05 €139.00 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

-

Product description

Fountek’s NeoCD3.5H is a unique horn-loaded true ribbon tweeter that combines high sensitivity with the exceptional speed and detail of ribbon technology.

.

Highlights

Horn-loaded, true ribbon design

2.36" H x 0.35" W ribbon element

95.5 dB sensitivity combined with 1,100 to 30,000 Hz frequency response

Extremely fast transient response with wide horizontal dispersion

-

Product details

Fountek, an innovator in ribbon transducer technology, is the first to mate true ribbon technology with horn-loading for high efficiency and low distortion with their NeoCD3.5H . A reinforced sandwiched-aluminum ribbon diaphragm and strong neodymium motor structure are extremely responsive, and deliver musical detail with speed and accuracy, from 1,100 to 30,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot.

A taller element is used in the NeoCD3.5H, which tames vertical off-axis dispersion. This helps to minimize ceiling and floor bounce reflections for world-class, pin-point precise imaging, while the focused output also reduces the amount of sound pressure level drop over distance. Recommended minimum crossover frequency: 2,500 Hz @ 18 dB/octave.

.

Specifications

Article numberNeoCD3.5H
Tweeter TypeRibbon
Tweeter SeriesCD series
Cone / Dome Diameter0.35" W x 2.36" H
Power Handling (RMS)12 Watts
Impedance (Z)7 Ω
Sensitivity (SPL at 1m / 2.83V)95.5 dB
Frequency Response1,100 to 30,000 Hz
DC Resistance (Re)0.02 ohms

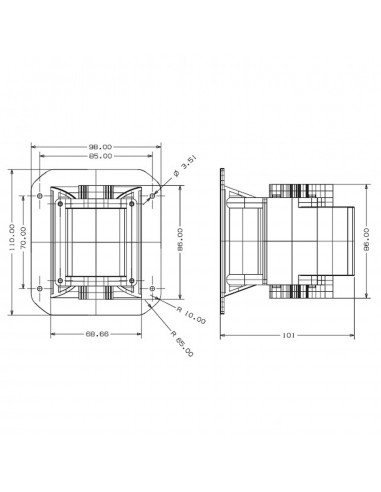

Overall Outside Diameter3.86'' W x 4.33'' H
Cutout Diameter2.70'' W x 3.39'' H
Depth3.49''
Recommended cut frequency2,500Hz with 3rd order
