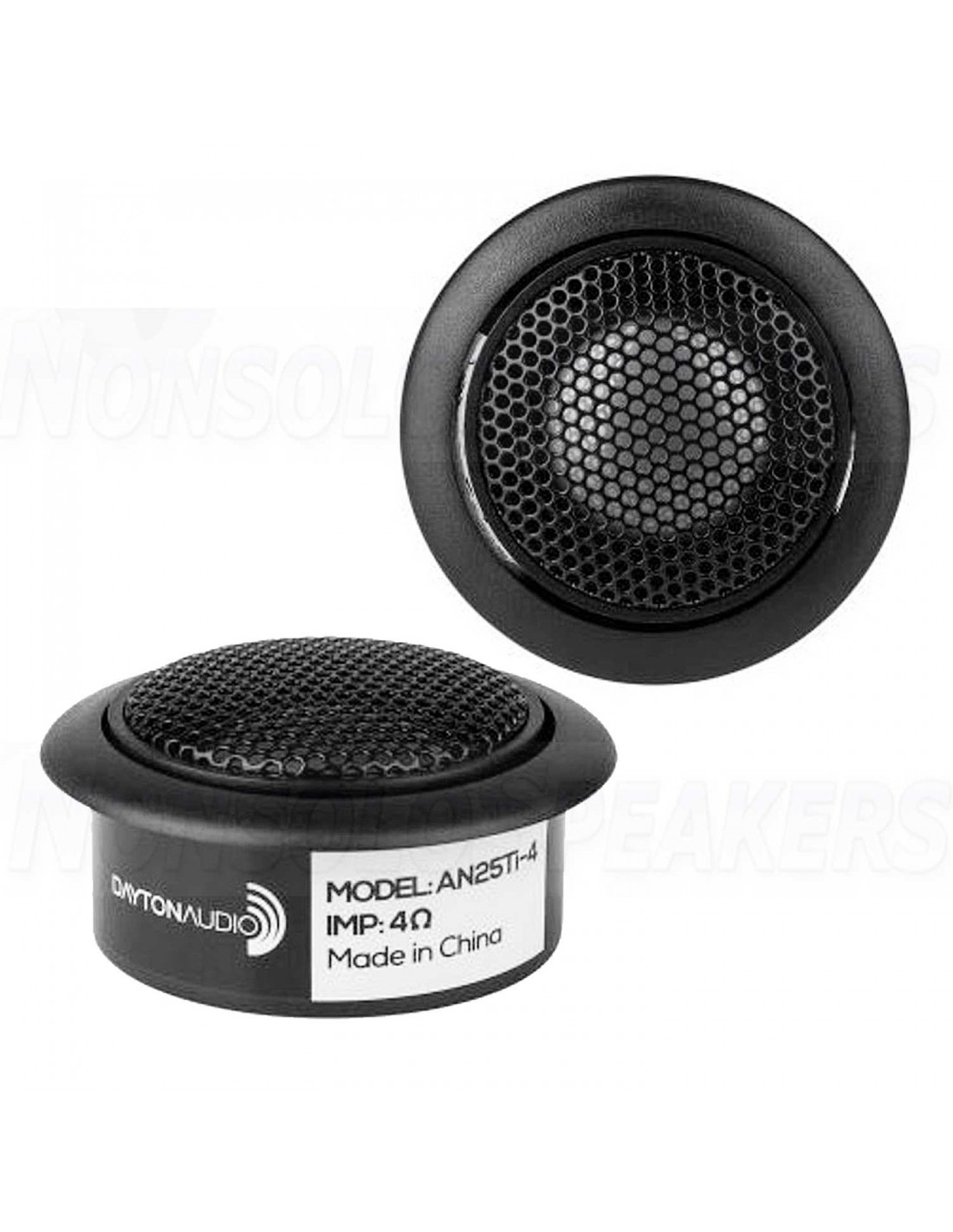

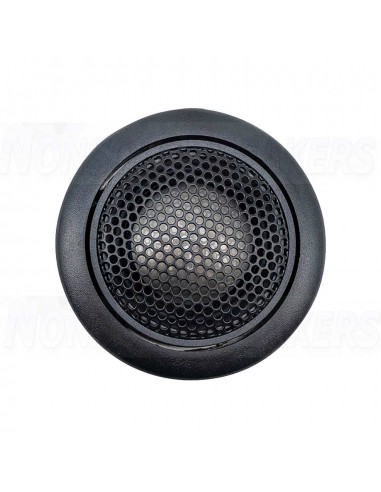

Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm
    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm

    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Tweeter 4 Ohm

    SHIPMENT IN 7-10 WORKING DAYS
    €46.90
    Tax included
    rating No review at the moment

    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Car Audio Tweeter Pair 4 Ohm

    The Automotive Neodymium Series tweeter pairs by Dayton Audio offer remarkable clarity, good off-axis dispersion, and an exceptionally flat response above 3 kHz. These tweeters are specifically designed for car audio systems, however their modern appearance and flat response curve integrate easily into any design, especially where minimal center-to-center spacing of the tweeter and woofer placement is needed.

    Highlights

    • Exceptionally flat treble response for accurate high frequency reproduction
    • High-strength neodymium motor provides low distortion and compact size
    • Ultra-high sensitivity of 95 dB to deliver high output with modest power

    Estimated Shipping Costs
    Shipping Costs
    €18.00
    Shipping Time
    .
    Want to check another country or courier?



    Dayton Audio AN25Ti-4 1" Titanium Dome Neodymium Car Audio Tweeter Pair 4 Ohm

    The Automotive Neodymium Series tweeter pairs by Dayton Audio offer remarkable clarity, good off-axis dispersion, and an exceptionally flat response above 3 kHz. These tweeters are specifically designed for car audio systems, however their modern appearance and flat response curve integrate easily into any design, especially where minimal center-to-center spacing of the tweeter and woofer placement is needed.

    Dayton Audio designed the AN25Ti-4 tweeter to provide superb audio reproduction. The titanium diaphragm offers remarkable accuracy, great off-axis dispersion and an exceptionally flat response above 3 kHz. Although these tweeters where specifically designed for car audio systems, their modern appearance, high efficiency, and flat response curve integrate easily into many non-automotive designs and are especially useful in MTM and TMM designs where high efficiency and/or minimal center-to-center spacing of the tweeter and woofer placement is needed. Sold in pairs.

    Specifications:

    • Power handling: 30 watts RMS/60 watts max (with appropriate crossover)

    • VCdia: 1"

    • Impedance: 4 ohms

    • Re: 3.11 ohms

    • Frequency range: 3,000-20,000 Hz

    • Fs: 1744 Hz • SPL: 95.5 dB @2.83V/1m.

    Highlights

    • Exceptionally flat treble response for accurate high frequency reproduction
    • High-strength neodymium motor provides low distortion and compact size
    • Ultra-high sensitivity of 95 dB to deliver high output with modest power
    • 1" titanium diaphragm for incredibly accuracy and great off-axis response
    • 1" diameter voice coil for excellent power handling

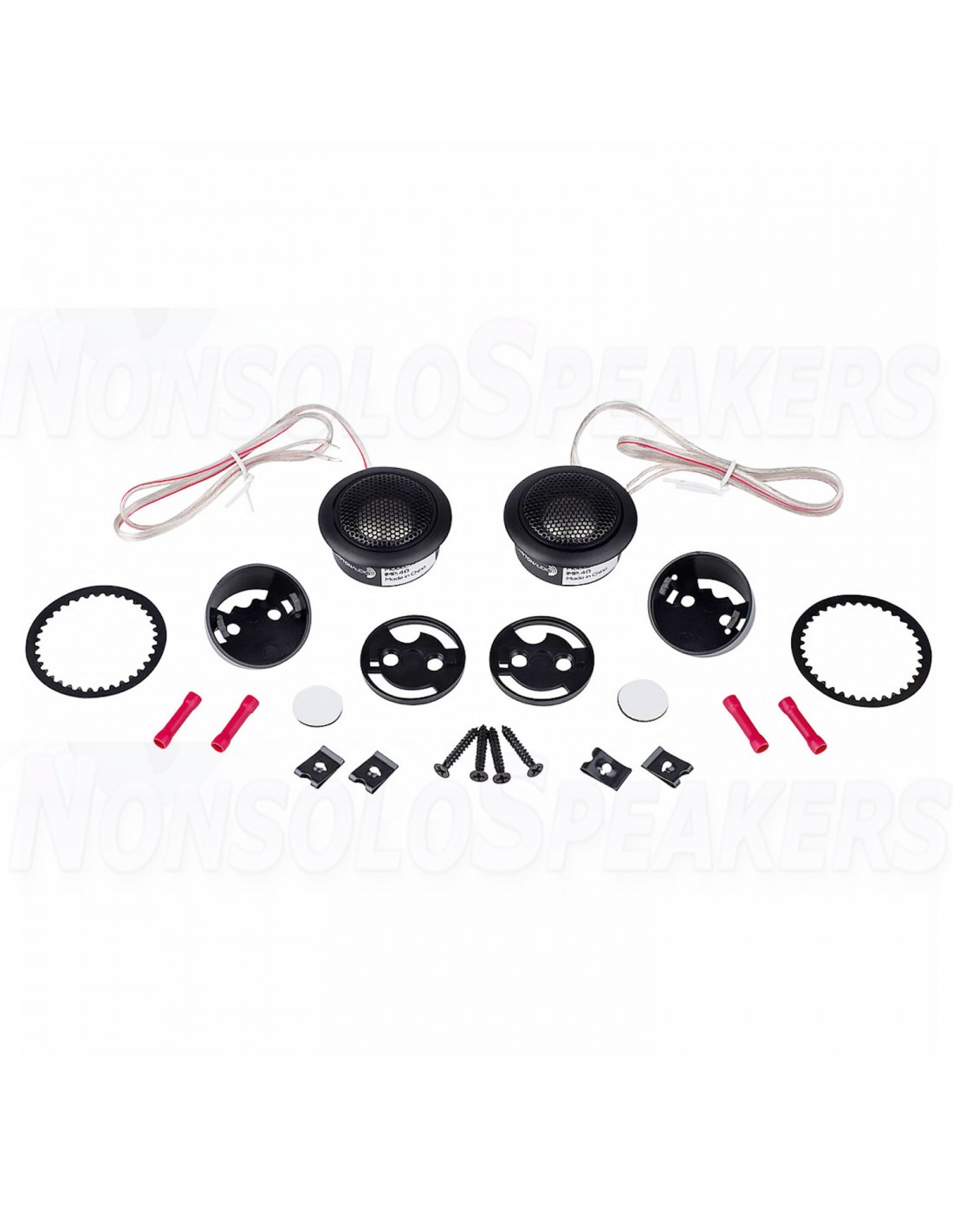

    • All hardware included to permit flush or surface mounting

    Product Details

    Speaker Series ND Series

    Model Number AN25Ti-4

    Color Black

    Unit of Measure Each

    UPC 848791004865

    Product Shipping Weight (lbs.) 1.2

    Speaker Type Tweeter

    Nominal Diameter 1"

    Power Handling (RMS) 40 watts

    Power Handling (max) 80 watts

    Continuous Program Power --

    Impedance 4 ohms

    Sensitivity 95.5 dB 2.83V/1m

    Frequency Response 3,000 - 20,000 Hz

    Voice Coil Diameter 25.4 mm

    Magnet Weight -- DC

    Resistance (Re) 3.11 ohms

    Voice Coil Inductance (Le) 0.03 mH

    Resonant Frequency (Fs) 1744 Hz

    Mechanical Q (Qms) 3.04

    Electromagnetic Q (Qes) 2.28

    Total Q (Qts) 1.3

    Diaphragm Mass Inc. Airload (Mms) --

    Moving Mass Of Diaphragm (Mmd) --

    Mechanical Compliance of Suspension (Cms) --

    Surface Area Of Cone (Sd) --

    Volume of Displacement (Vd) --

    BL Product (BL) --

    Compliance Equivalent Volume (Vas) --

    Maximum Linear Excursion (Xmax) --

    Drivers Mechanical Losses (Rms) --

    Cone / Diaphragm Material Titanium Cone

    Entry / Exit Diameter --

    Surround Material --

    Voice Coil Wire Material Copper

    Voice Coil Former Polyimide

    Basket/Frame Material Plastic

    Magnet Material Neodymium

    Overall Outside Diameter 53 mm

    Overall Depth 25.5 mm

    Baffle Cutout Diameter 18 mm

    Mounting Hole Diameter --

    Bolt Circle Diameter --

    Product Weight --
    AN25Ti-4
