Scan-Speak Discovery R2604/833000 Ring Radiator Tweeter
Scan-Speak Discovery R2604/833000 Ring Radiator Tweeter
The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz.
You might also like
Scan-Speak Discovery R2604/833000 Ring Radiator Tweeter
Product description
Dual Ring Radiator Diaphragm (Patented)
Wave-guide centre plug (Patented)

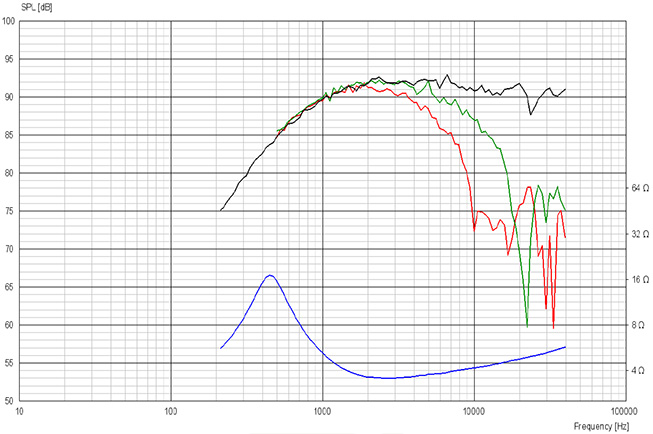

Extended frequency to above 40kHz
High Sensitivity - 92dB
Low Resonance Frequency - 440Hz
Low Distortion
Double Magnet
Copper Clad Alu-wire
.
Product details

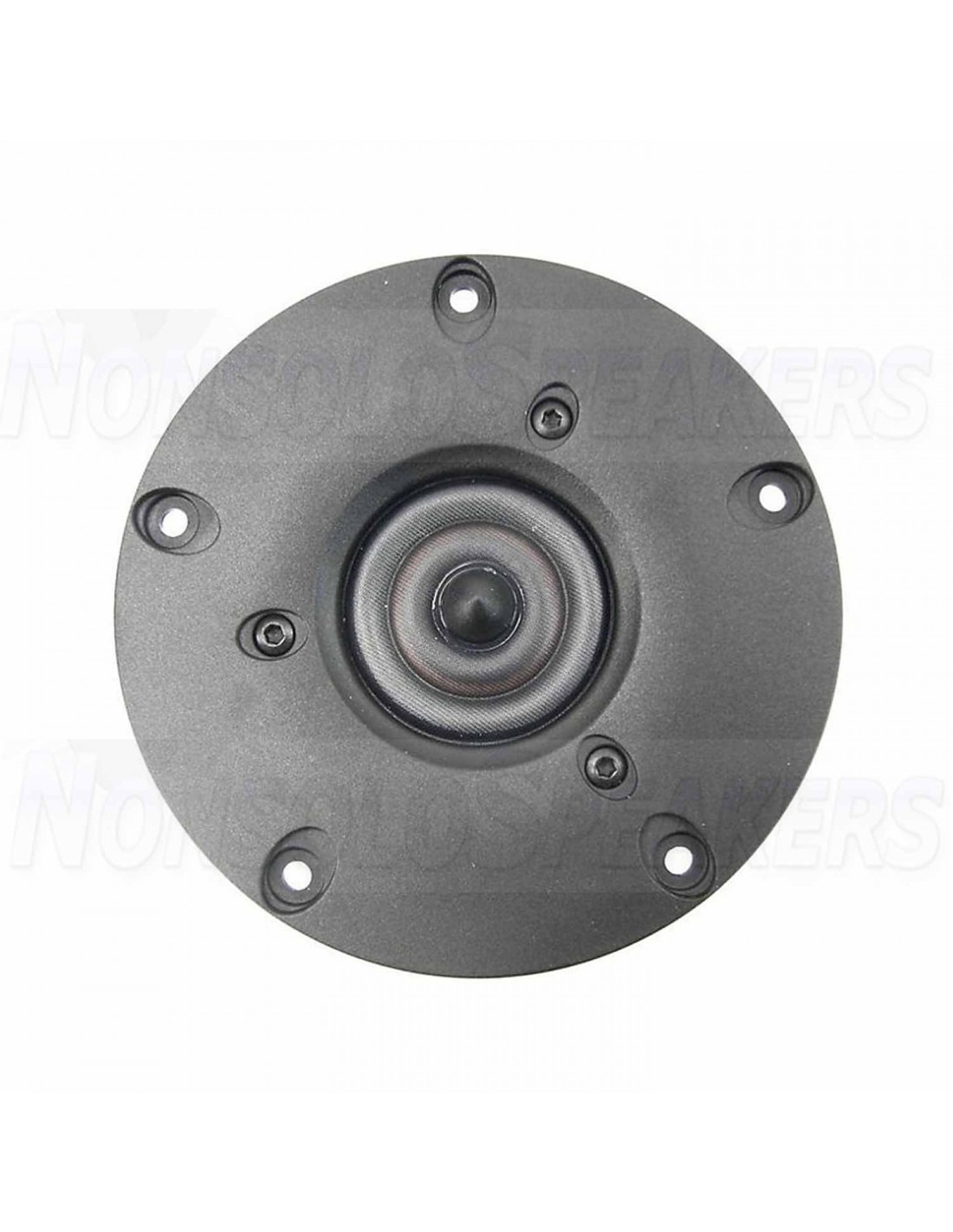

Scan-Speak Discovery R2604/833000 1” Ring Radiator
The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz. The additional volume from the second magnet also increases the size of the chamber, lowering the resonance frequency. This tweeter is an excellent choice for any high-end home or automotive system.

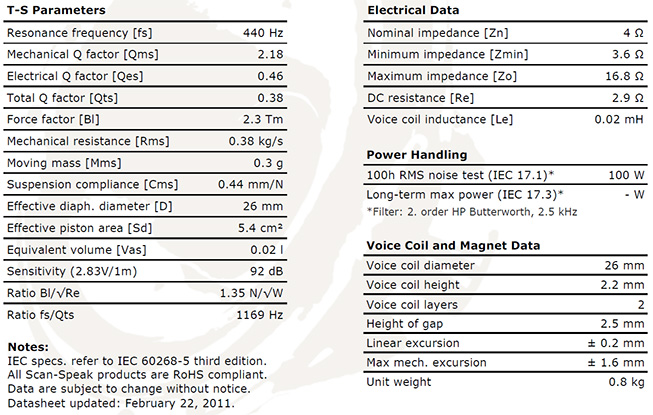

Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.44 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.4 cm2
.
Specifications
.
.
.
.
