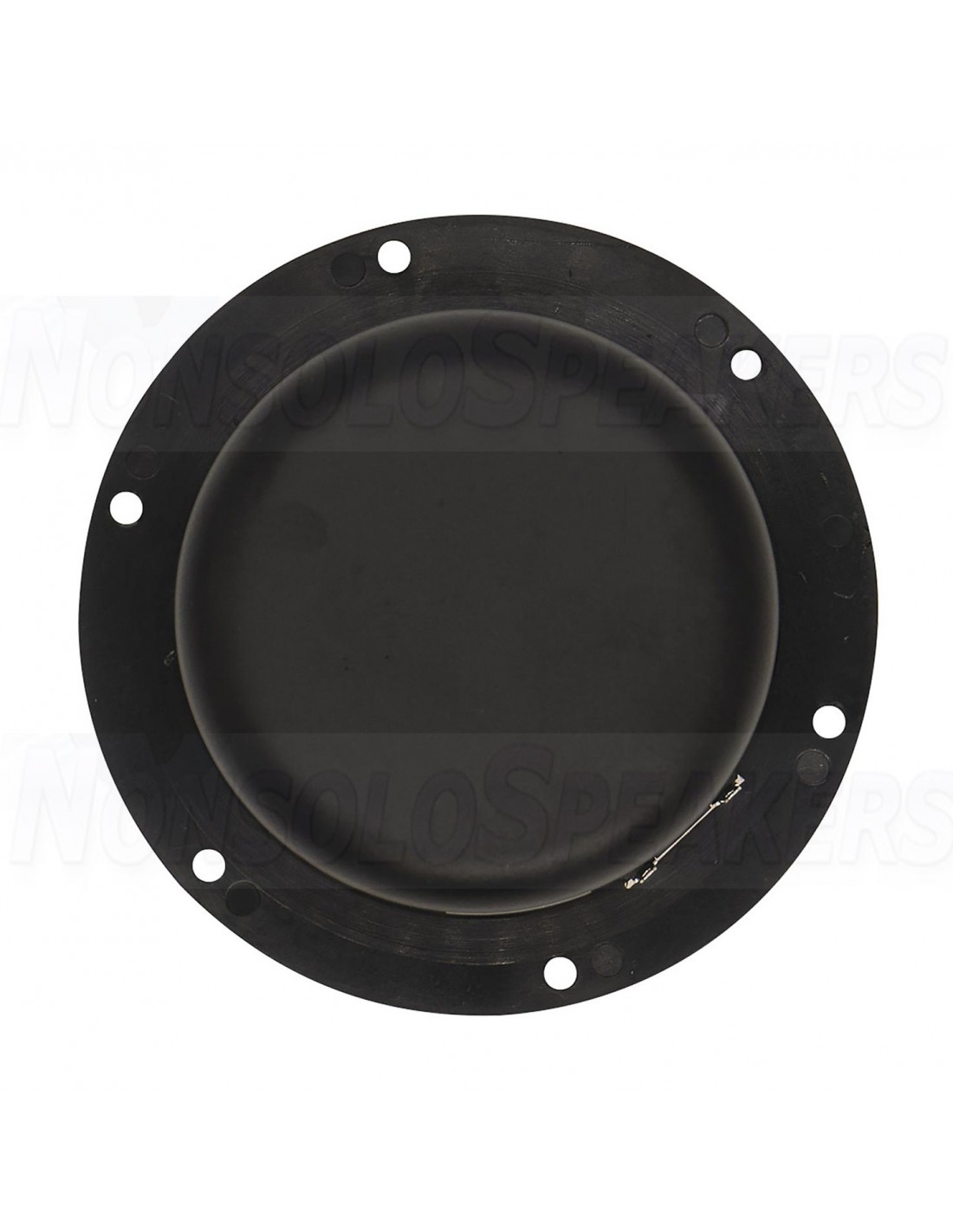

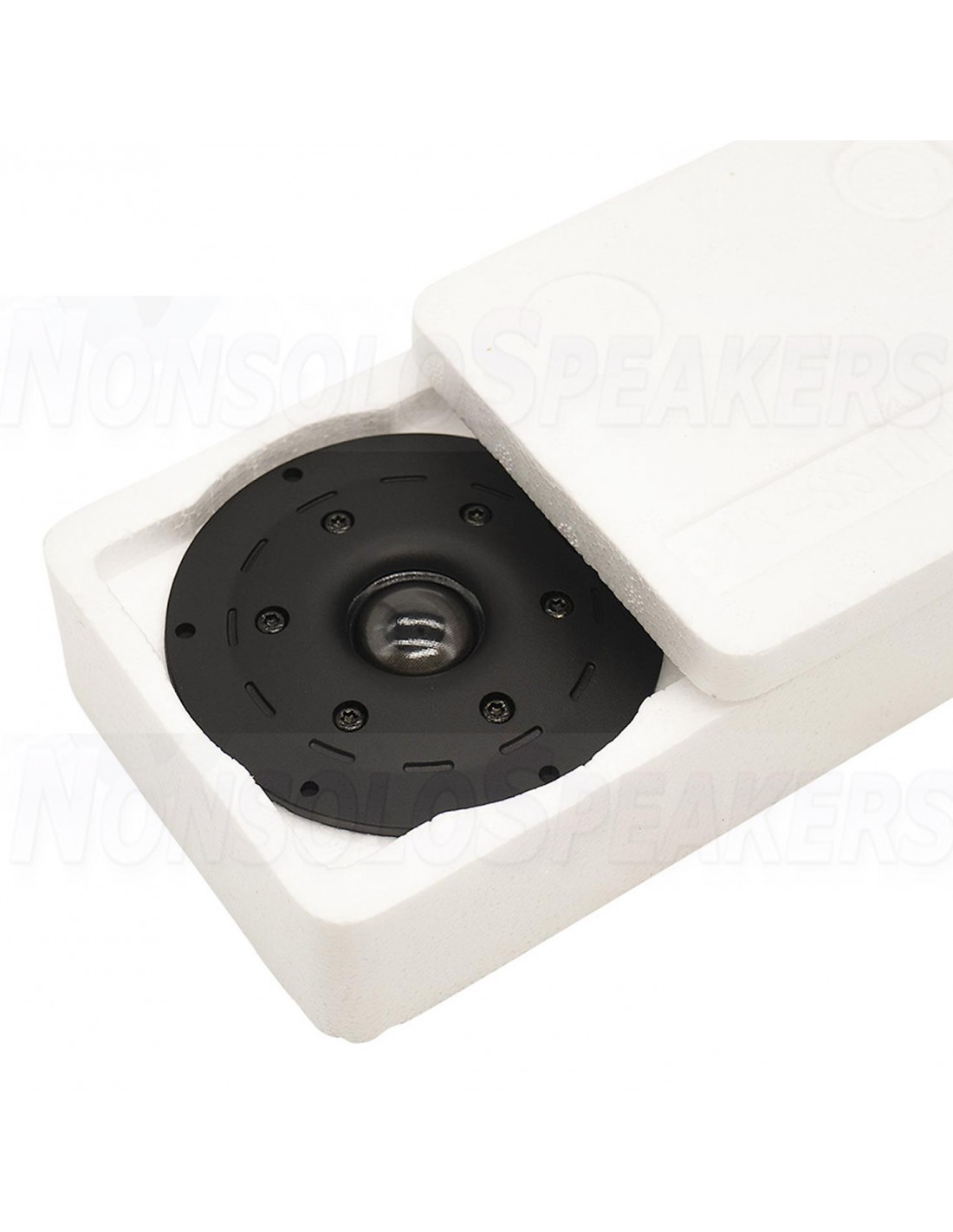

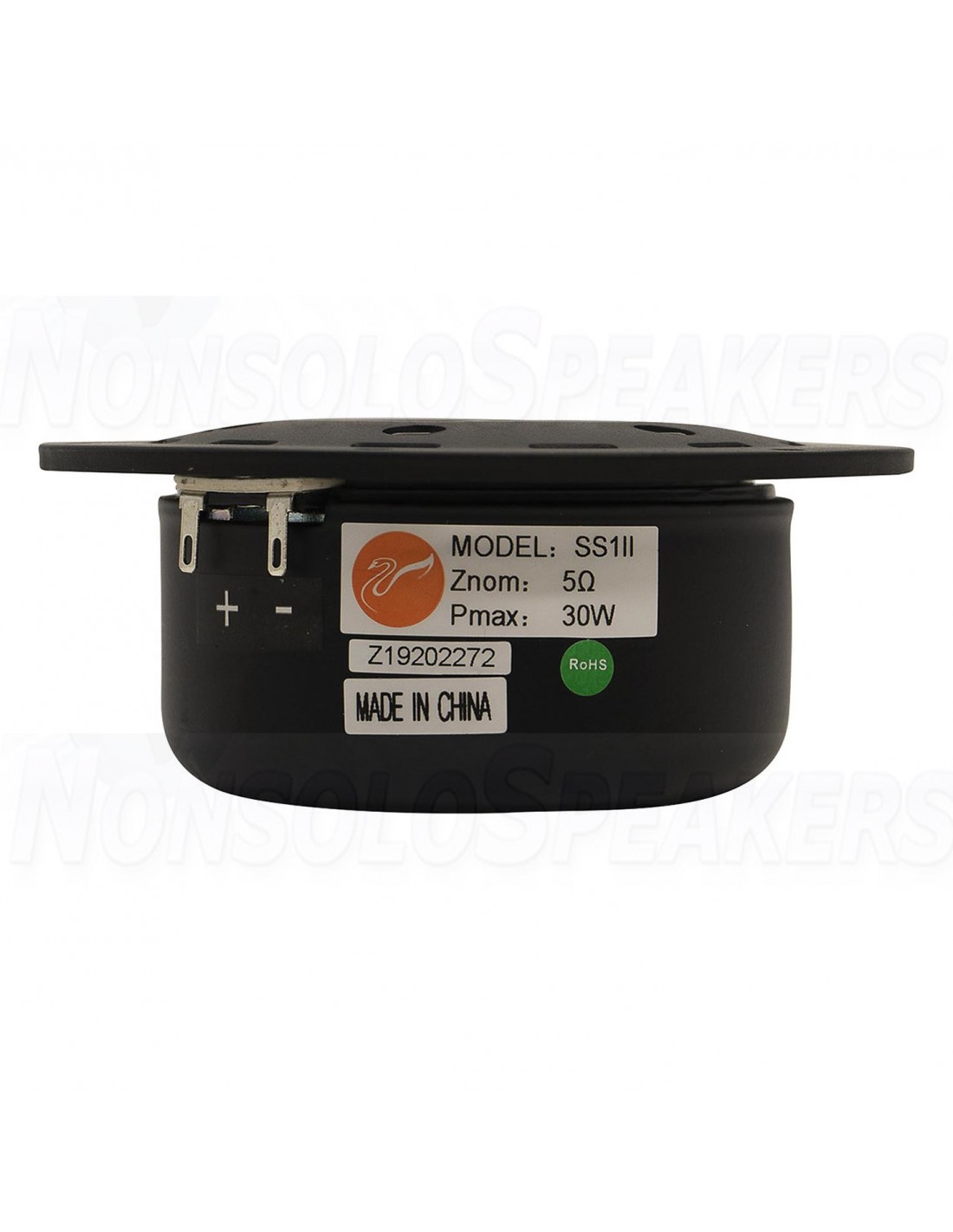

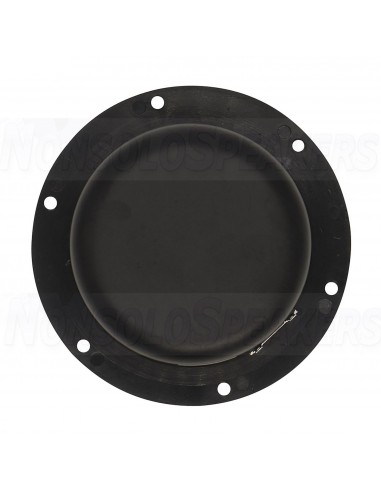

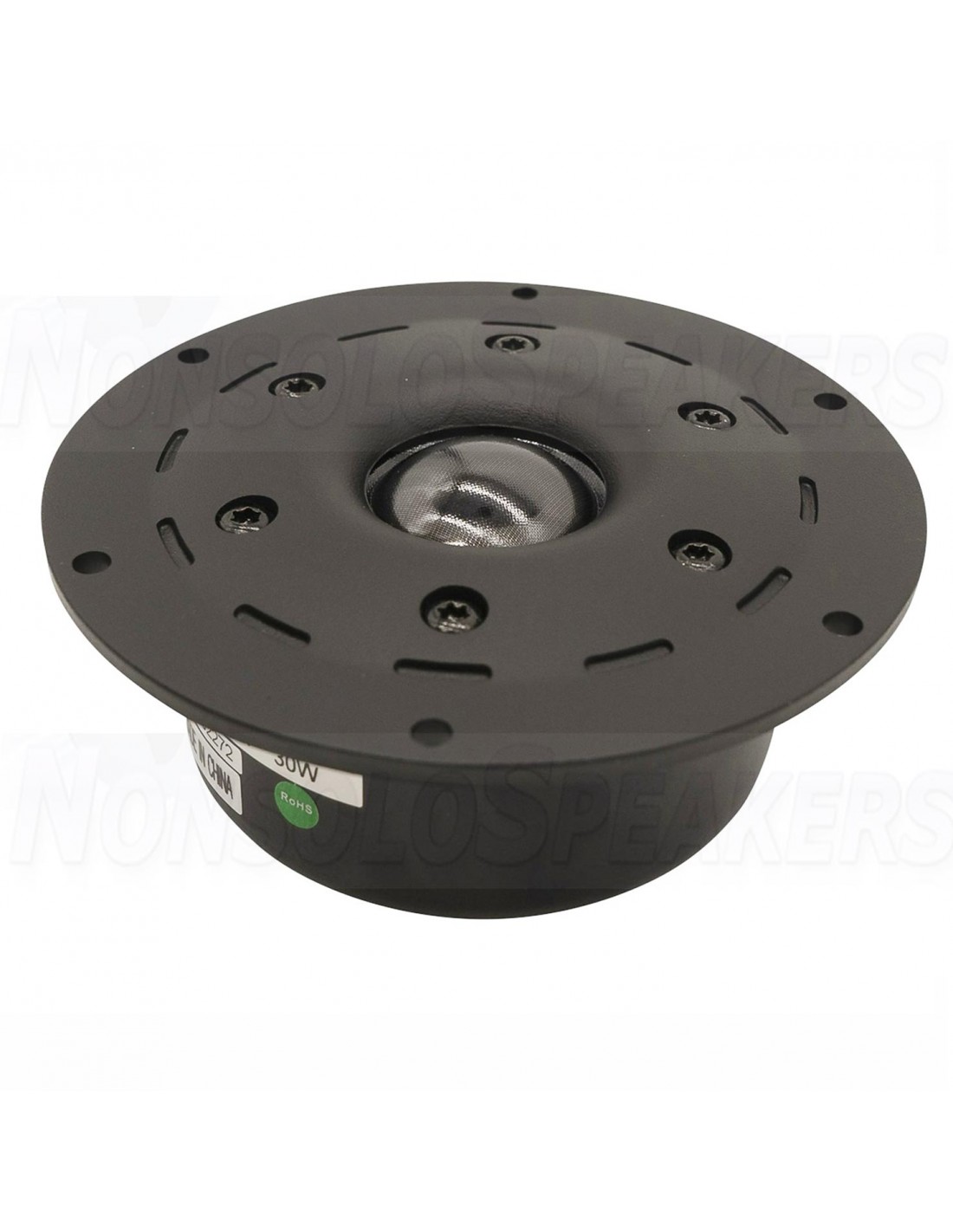

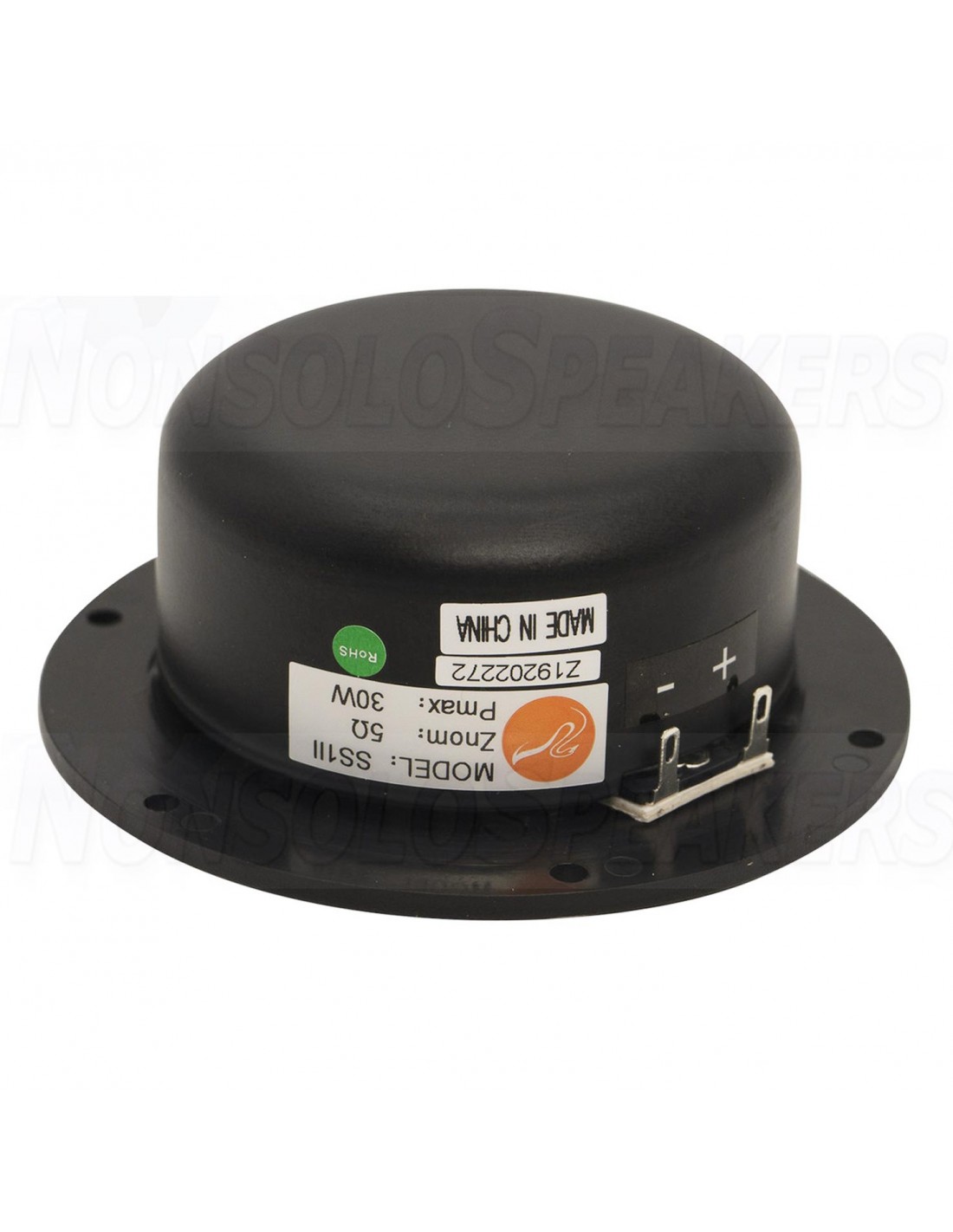

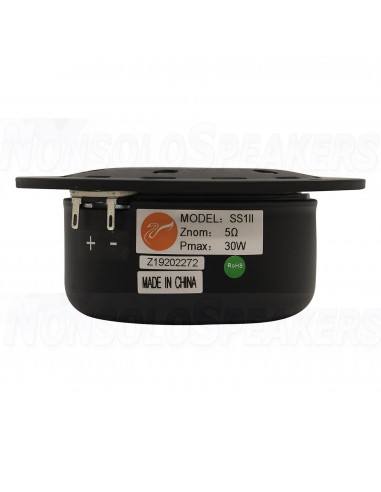

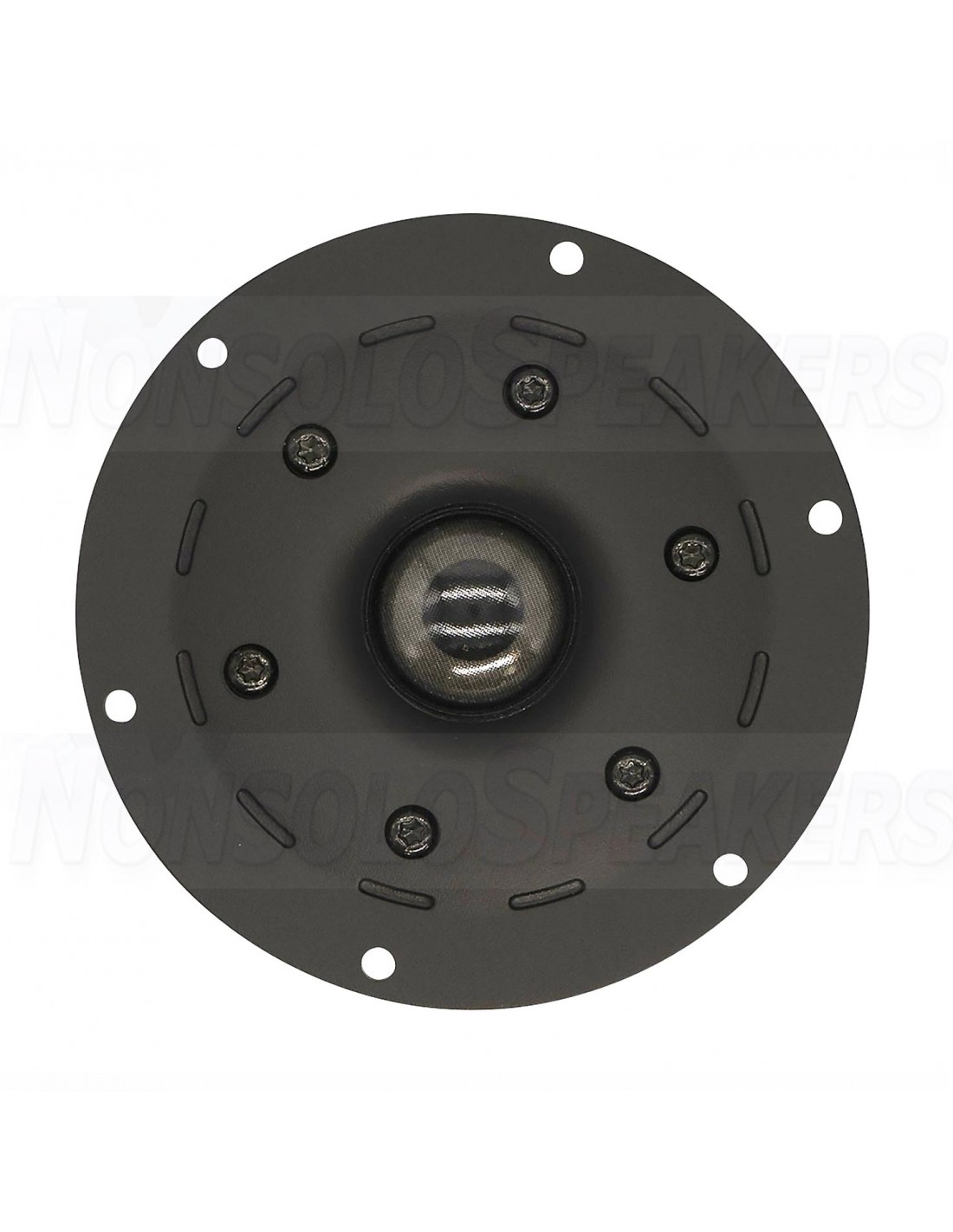

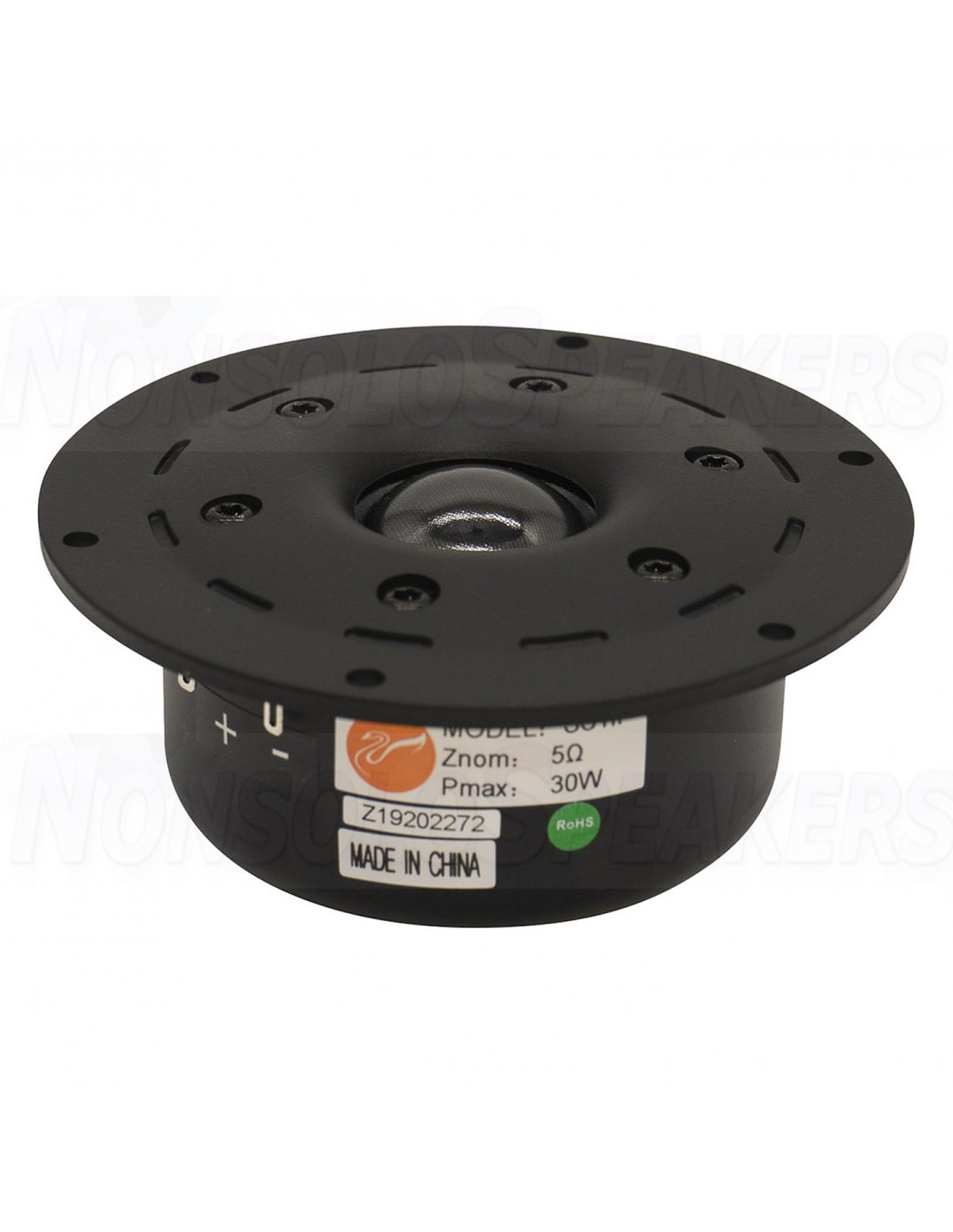

HiVi SS1II Dome Tweeter 5 ohm

Product description

Integrated with the HiVi home theater range, the SS1II tweeter is distinguished mainly by its natural fiber dome surrounded by shock absorbing material. It is capable of a linear frequency response up to 20Khz and demonstrates a level of realism and appreciable clarity.

.

Highlights

• Moving coil of 25mm
• Double magnetic circuit
• Suitable for tweeter in home Hi-Fi/home theater system
• High-strength M.I. panel design-eliminates bad vibration
• Upgraded model of SS1

.

Product details

HiVi SS1II Dome Tweeter

SS1II is an upgraded model of SS1!  It can be installed directly instead of SS1 without changing the frequency divider!

.

Specifications

• Article number SS1II
• Tweeter Type Soft dome
• Tweeter Series SS
• Cone / Dome Diameter 25mm
• Power Handling (RMS) 15W
• Power Handling (max) 30W
• Impedance (Z) 5Ω
• Sensitivity (SPL at 1m / 2.83V) 91 dB
• Resonant Frequency (Fs) 1300 Hz
• DC Resistance (Re) 4.6Ω
• Mounting Type Aluminum
• Recommended cut frequency 2000Hz
