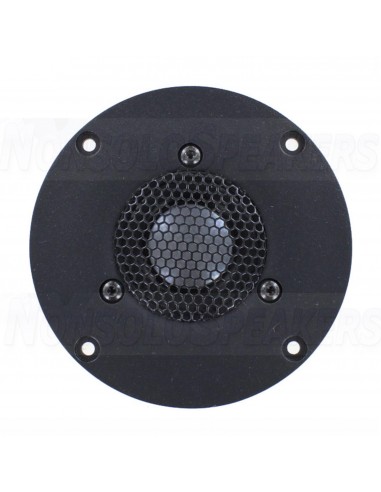

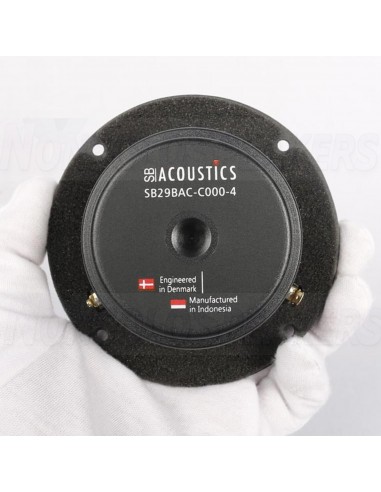

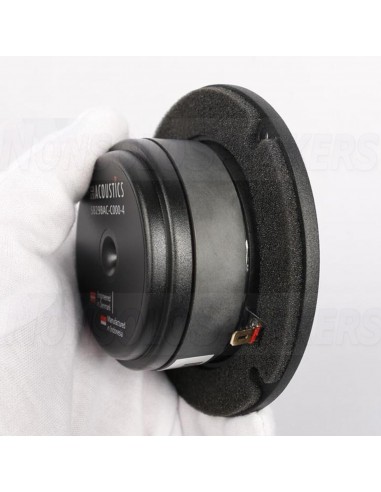

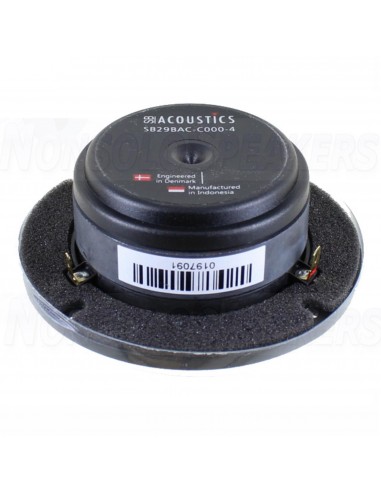

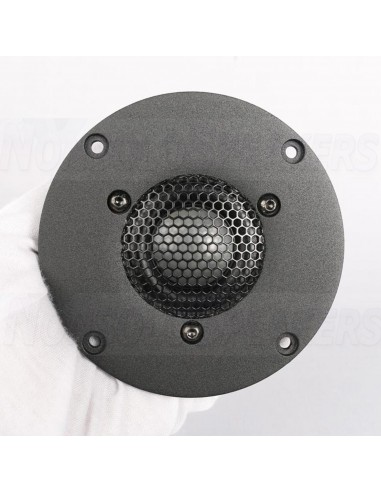

SB Acoustics SB29BAC-C000-4 Beryllium Dome Tweeter

-

Product description

The SB Acoustics SB29BAC-C000-4 is a beryllium tweeter that is designed for high-end audio applications. It features a beryllium dome for non-resonant high frequency extension, a large surround dome for increased acoustic output, and a copper cap for reduced voice coil inductance and minimum phase shift. The SB29BAC-C000-4 also has a saturation controlled motor system for low distortion, dual balanced compression chambers for improved dynamics, and a non-reflective rear chamber with optimized damping for improved dynamics.

Highlights

Beryllium dome for non-resonant high frequency extension

Large surround dome for increased acoustic output

Copper cap for reduced voice coil inductance and minimum phase shift

Saturation controlled motor system for low distortion

Dual balanced compression chambers for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

Non-reflective rear chamber with optimized damping for improved dynamics

CCAW voice coil for low moving mass

Long life flexible lead wires

Cast aluminium faceplate

Low resonance frequency

.

Product details

SB Acoustics SB29BAC-C000-4 Beryllium Dome Tweeter

The SB Acoustics SB29BAC-C000-4 Dome Tweeter is another high-end tweeter that features a beryllium dome for non-resonant high frequency extension. Beryllium is a very stiff and lightweight material that has a high modulus of elasticity and is used in high-end tweeters because it can produce a very accurate sound. The large surround dome increases the acoustic output of the tweeter, while the copper cap reduces voice coil inductance and minimum phase shift. The saturation controlled motor system is used for low distortion, while the dual balanced compression chambers are used for improved dynamics.

The SB Acoustics SB29BAC-C000-4 is a high-quality tweeter that is capable of delivering excellent sound quality. It is a good choice for use in high-end audio systems where high frequency extension and clarity are important.

.
